1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Ambach Knob. Please read this manual thoroughly before use to ensure proper function and longevity of the product.
2. Product Overview
The Ambach Knob is a replacement control knob designed for various Ambach commercial cooking appliances. It features a durable black finish and is designed for specific axle dimensions.
2.1 Key Features
- Designed for specific Ambach models: GH-45, GH-90-BF, GH-45-D, GH-45-G, GH-90.
- Flat axle compatibility: Left-aligned for axles with a diameter of 10 x 8 mm.
- Suitable for gas stoves, hot plates, lava stone settings, and gas noodle cookers.
- Diameter: 72 mm.
- Color: Black.
- No symbol on the knob face.
2.2 Product Image

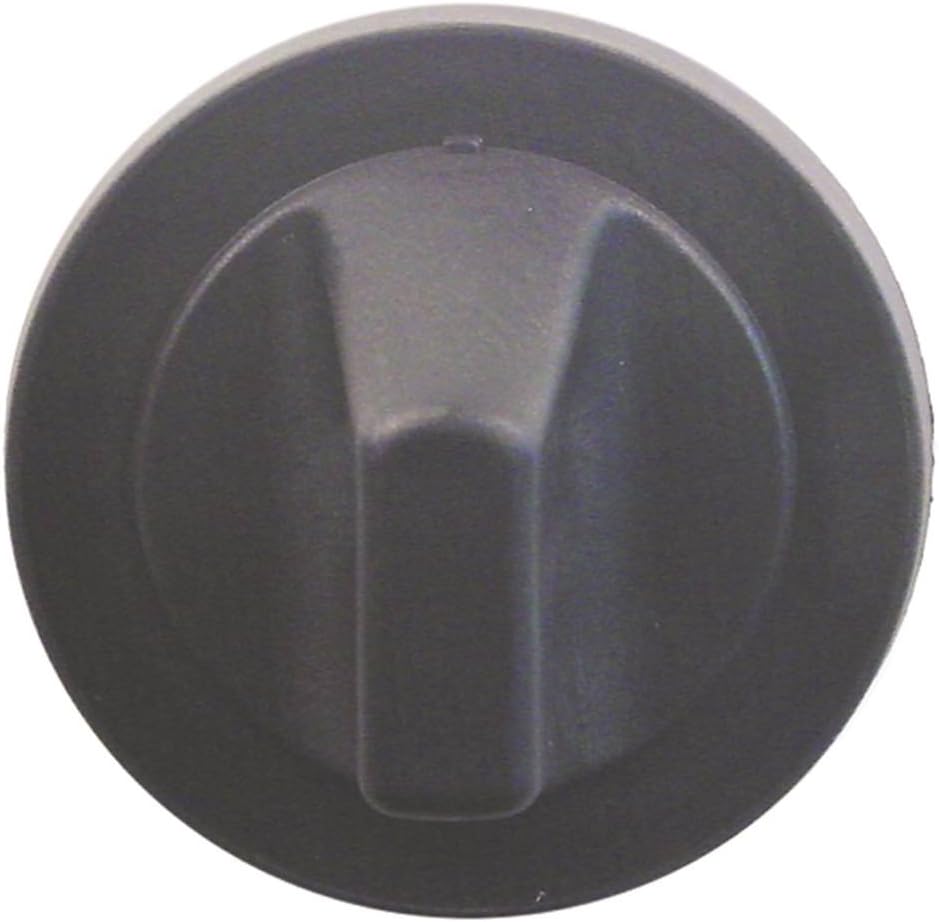

Figure 1: Front view of the Ambach Knob. This black, circular knob has a diameter of 72 mm and features a flat, D-shaped opening for the control shaft, designed for left alignment. There are no symbols or markings on its surface.
3. Setup and Installation
This knob is designed for easy replacement on compatible Ambach appliances. Ensure the appliance is turned off and cooled down before proceeding with installation.
- Verify Compatibility: Confirm that your appliance model (GH-45, GH-90-BF, GH-45-D, GH-45-G, GH-90) and the control shaft dimensions (10 x 8 mm, flat axle, left alignment) match the specifications of this knob.
- Remove Old Knob (if applicable): Gently pull the existing knob straight off the control shaft. Avoid twisting or forcing, as this may damage the shaft.
- Clean Shaft: Ensure the control shaft is clean and free of grease or debris.
- Install New Knob: Align the D-shaped opening on the back of the new Ambach knob with the flat side of the control shaft. Push the knob firmly onto the shaft until it is fully seated.
- Test Functionality: Once installed, gently turn the knob to ensure it rotates smoothly and engages properly with the appliance's control mechanism.
Caution: Do not apply excessive force during installation. If the knob does not fit, re-verify compatibility.
4. Operating Instructions
The Ambach Knob functions as a direct replacement for the original control knob on your Ambach appliance. Its operation is identical to the knob it replaces.
- Turning On/Off: Rotate the knob to the designated 'On' or 'Off' positions as indicated on your appliance's control panel.
- Adjusting Settings: For appliances with variable settings (e.g., flame intensity on a gas stove), rotate the knob clockwise or counter-clockwise to adjust to the desired level.
- Engagement: Ensure the knob is fully pushed onto the shaft for proper engagement with the internal control mechanism.
Important: Always refer to your specific appliance's user manual for detailed operating procedures and safety guidelines.
5. Maintenance and Care
Proper maintenance ensures the longevity and appearance of your Ambach Knob.
- Cleaning: Wipe the knob regularly with a soft, damp cloth. For stubborn stains, a mild, non-abrasive cleaner can be used.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the knob's finish.
- Inspection: Periodically check that the knob remains securely attached to the control shaft. If it feels loose, gently push it back into place.
6. Troubleshooting
This section addresses common issues you might encounter with the Ambach Knob.
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob feels loose or wobbly. | Not fully seated on the shaft; shaft or knob opening is worn. | Push the knob firmly onto the shaft. If it continues to be loose, the shaft or knob may be worn and require replacement. |
| Knob does not turn or is stiff. | Incorrect alignment; debris on the shaft; internal appliance mechanism issue. | Remove the knob, clean the shaft, and re-install, ensuring correct alignment. If the issue persists, consult your appliance's manual or a qualified technician. |
| Knob does not fit the shaft. | Incorrect knob model; incompatible shaft dimensions. | Verify the knob's specifications (axle diameter 10x8mm, left alignment) against your appliance's requirements. Ensure you have the correct replacement part. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Ambach |
| Model Number | 4251188716542 |
| Product Type | Control Knob |
| Compatibility | Ambach GH-45, GH-90-BF, GH-45-D, GH-45-G, GH-90 |
| Axle Compatibility | Ø 10 x 8 mm, flat axle, left alignment |
| Diameter | Ø 72 mm |
| Color | Black |
| Symbol | None |
| Power Source | Not applicable (passive component) |
| Special Feature | Indoor use |
| Control Type | Rotary Knob |
8. Warranty and Support
For information regarding product warranty, please refer to the documentation provided with your original Ambach appliance or contact Ambach directly. This replacement part typically falls under the manufacturer's standard spare parts warranty, if any.
For technical support or further inquiries, please contact your authorized Ambach dealer or the manufacturer's customer service department. Contact details can usually be found on the official Ambach website or in your appliance's main user manual.
