PNY Quadro M2000 Professional Graphics Card User Manual

1. Introduction

The PNY Quadro M2000 is a professional graphics card designed to deliver exceptional creative experiences across a wide range of 3D applications. Featuring an NVIDIA Maxwell-based GPU and 4 GB of ultra-fast GDDR5 on-board memory, this card is capable of driving up to four 4K displays natively. It is engineered for reliability and performance in demanding professional environments.

Key features include:

• Four DisplayPort 1.2 Connectors for multi-display setups.
• DisplayPort with Audio support.
• NVIDIA nView Desktop Management Software Compatibility for enhanced workspace control.
• HDCP Support for protected content playback.
• NVIDIA Mosaic technology for seamless scaling of the desktop across multiple displays.

2. What's in the Box

Verify that all components are present in your PNY Quadro M2000 package:

• NVIDIA® Quadro® M2000 Professional Graphics Board
• DisplayPort to DVI-D SL Adapter
• Software Installation Disc
• Printed Quick Start Guide

Image: PNY Quadro M2000 graphics card shown with the included DisplayPort to DVI-D SL adapter.

3. Setup and Installation

3.1 Pre-Installation Checklist

• Ensure your computer's power supply meets the minimum requirements for the Quadro M2000.
• Turn off your computer and disconnect the power cord.
• Open the computer case.
• Ground yourself to prevent electrostatic discharge (ESD) by touching a metal part of the computer chassis.

3.2 Hardware Installation

1. Locate an available PCI Express x16 slot on your motherboard.
2. Remove the metal bracket cover from the back of the computer case corresponding to the chosen slot.
3. Carefully align the Quadro M2000 card with the PCIe slot and press down firmly until it is securely seated.
4. Secure the card to the computer chassis with the screw or retention clip.
5. Close the computer case and reconnect the power cord.

3.3 Driver Installation

1. Power on your computer.
2. Insert the provided Software Installation Disc into your optical drive. Follow the on-screen instructions to install the NVIDIA Quadro drivers.
3. Alternatively, download the latest drivers from the official PNY or NVIDIA website for your specific operating system.
4. Restart your computer after the driver installation is complete.

3.4 Connecting Displays

The Quadro M2000 features four DisplayPort 1.2 connectors. Use these ports to connect your monitors. If your monitor requires a DVI-D connection, use the included DisplayPort to DVI-D SL adapter.

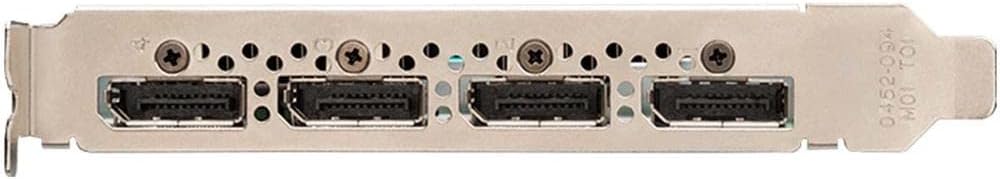

Image: Rear view of the PNY Quadro M2000, highlighting the four DisplayPort outputs.

4. Operating the Graphics Card

4.1 Basic Operation

Once installed and drivers are configured, the Quadro M2000 will automatically manage your display output. You can access NVIDIA Control Panel settings through your operating system to customize display configurations, 3D application settings, and other graphics-related options.

4.2 Multi-Display Configuration

The Quadro M2000 supports up to four displays simultaneously. Utilize the NVIDIA nView Desktop Management Software to:

• Arrange your displays in various configurations (e.g., extended desktop, cloned displays).
• Create custom profiles for different workflows.
• Manage application windows across multiple screens.

For advanced multi-display setups, NVIDIA Mosaic technology allows you to span a single desktop across multiple displays, creating a large, unified workspace ideal for professional visualization and design.

5. Maintenance

To ensure optimal performance and longevity of your PNY Quadro M2000 graphics card, consider the following maintenance tips:

• Keep it Clean: Periodically clean dust from the card's fan and heatsink using compressed air. Ensure the computer is powered off and unplugged before cleaning.
• Ensure Proper Airflow: Make sure your computer case has adequate ventilation to prevent overheating. Avoid obstructing the card's fan.
• Driver Updates: Regularly check the PNY or NVIDIA website for the latest driver updates. Keeping your drivers current can improve performance and stability.

6. Troubleshooting

6.1 No Display Output

• Check Connections: Ensure all display cables are securely connected to both the graphics card and the monitor.
• Monitor Input: Verify that your monitor is set to the correct input source (e.g., DisplayPort, DVI).
• Power: Confirm the computer is powered on and the graphics card fan is spinning.
• Reseat Card: Power off the computer, unplug it, and reseat the graphics card in its PCIe slot.

6.2 Driver Issues or Instability

• Reinstall Drivers: Uninstall existing NVIDIA drivers through your operating system's control panel, then perform a clean installation of the latest drivers from the PNY or NVIDIA website.
• Compatibility: Ensure the installed drivers are compatible with your operating system version.

6.3 Poor Performance in Applications

• Driver Updates: Ensure you have the latest graphics drivers installed.
• Application Settings: Check the graphics settings within your professional applications. Ensure they are configured to utilize the Quadro M2000.
• System Resources: Verify that your system has sufficient RAM and CPU resources for the tasks being performed.

7. Specifications

Below are the technical specifications for the PNY Quadro M2000 graphics card:

8. Warranty Information

PNY products are covered by a manufacturer's warranty. For specific details regarding the warranty period, terms, and conditions for your Quadro M2000 graphics card, please refer to the warranty documentation included with your product or visit the official PNY website. Keep your proof of purchase for warranty claims.

9. Support

For further assistance, technical support, or to download the latest drivers and software, please visit the official PNY support website:

https://www.pny.com/support

You may also find helpful resources and FAQs on the NVIDIA professional graphics support pages.
