Tasco 16x32 Black Roof MC Binoculars Instruction Manual

1. Introduction

The Tasco 16x32 Black Roof MC Binoculars are designed for outdoor enthusiasts, offering clear and bright viewing for various activities such as hunting, hiking, and general observation. These binoculars feature multi-coated lenses to optimize clarity and brightness, housed within a rugged, weather-resistant body with rubber armor for enhanced durability and grip. The 16x magnification and 32mm objective lens provide a powerful viewing experience in a compact and lightweight design.

2. What's in the Box

• Tasco 16x32 Black Roof MC Binoculars
• Carrying Case
• Neck Strap
• Lens Cleaning Cloth

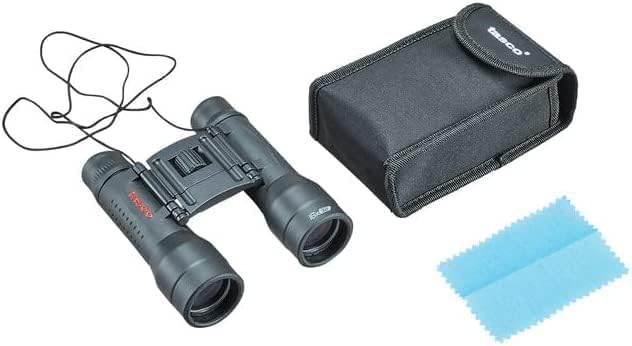

Image: Contents of the Tasco 16x32 Binoculars package, including the binoculars, carrying case, and cleaning cloth.

3. Product Features

• 16x Magnification: Brings distant objects 16 times closer.
• 32mm Objective Lens: Provides a clear and bright image.
• Multi-Coated Lenses: Enhances light transmission for optimal clarity and brightness.
• Roof Prism Design: Offers a compact and streamlined form factor.
• Rubber Armor: Provides a secure grip and added protection against impacts and weather.
• Lightweight: Weighs approximately 10.22 ounces for easy portability.
• Field of View: 185 feet at 1000 yards.
• Eye Relief: 9mm for comfortable viewing.

Image: Front view of the Tasco 16x32 Black Roof MC Binoculars, highlighting their compact design.

4. Setup

4.1 Attaching the Neck Strap

1. Thread each end of the neck strap through the strap lugs located on the sides of the binoculars.
2. Secure the strap by feeding it back through the buckle, ensuring it is tightly fastened to prevent accidental detachment.

Image: Top-down view of the binoculars with the neck strap attached to the lugs.

4.2 Adjusting Interpupillary Distance (IPD)

The interpupillary distance is the distance between the centers of your pupils. To match this to your binoculars:

1. Hold the binoculars up to your eyes.
2. Adjust the two halves of the binoculars by rotating them on the central hinge until you see a single, clear circular field of view.
3. Ensure both eyes are comfortable and the image is not doubled.

5. Operating Instructions

5.1 Focusing Your Binoculars

To achieve a sharp image:

1. Hold the binoculars to your eyes and look at a distant object.
2. Rotate the central focus wheel until the image appears sharp and clear.

Image: A close-up of the central focus wheel, used for adjusting image clarity.

5.2 General Viewing Tips

• For extended viewing, try to brace your elbows against your body or a stable surface to minimize hand shake, especially with 16x magnification.
• Always use the neck strap to prevent accidental drops.

6. Maintenance

6.1 Cleaning Lenses

To clean the lenses:

1. Gently brush away any dust or debris using a soft lens brush or compressed air.
2. Use the provided lens cleaning cloth to wipe the lens surfaces in a circular motion. For stubborn smudges, a small amount of lens cleaning fluid can be applied to the cloth, not directly to the lens.
3. Avoid using abrasive cloths, paper towels, or harsh chemicals, as these can scratch or damage the lens coatings.

6.2 Storage

When not in use, store your binoculars in the provided carrying case in a cool, dry place to protect them from dust, moisture, and impacts.

6.3 Durability

The rubber-armored housing provides a degree of protection against minor bumps and splashes. However, these binoculars are not fully waterproof and should not be submerged in water.

7. Troubleshooting

7.1 Blurry Image

• Ensure the central focus wheel is properly adjusted for your viewing distance.
• Verify that the interpupillary distance is correctly set for your eyes.
• Check if the lenses are clean and free from smudges or debris.

7.2 Double Image

• Adjust the interpupillary distance by moving the two halves of the binoculars closer or further apart until a single, unified image is seen.

8. Specifications

9. Official Product Video

10. Warranty and Support

For detailed warranty information, product registration, or customer support, please visit the official TASCO website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
