1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Fein MultiMaster MM 500 Start Oscillating Kit. Please read this manual thoroughly before using the tool and keep it for future reference.
The Fein MultiMaster MM 500 Start is a high-performance 350W corded multi-tool designed for interior construction and renovation tasks. It features a Starlock Max tool mount for versatile accessory attachment and a QuickIn rapid-clamping system for fast, tool-free accessory changes.
2. Safety Information
WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Always wear eye protection, hearing protection, and a dust mask when operating the tool.
- Ensure the workpiece is securely clamped before beginning any operation.
- Keep hands and body parts away from the oscillating blade or accessory.
- Disconnect the tool from the power source before making any adjustments, changing accessories, or storing the tool.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Maintain proper footing and balance at all times.
3. Package Contents
Your Fein MultiMaster MM 500 Start Oscillating Kit includes the following items:
- 1x Fein MultiMaster MM 500 Start Oscillating Tool
- 1x Backing Pad
- 12x Sanding Sheets (3 each of grits 60, 80, 120, and 180)
- 1x Universal E-Cut Saw Blade 1-3/4" (Type 152)
- 1x E-Cut Long-Life Saw Blade 2"
- 1x E-Cut Precision BIM Saw Blade 1-3/8"
- 1x Nylon Soft Case

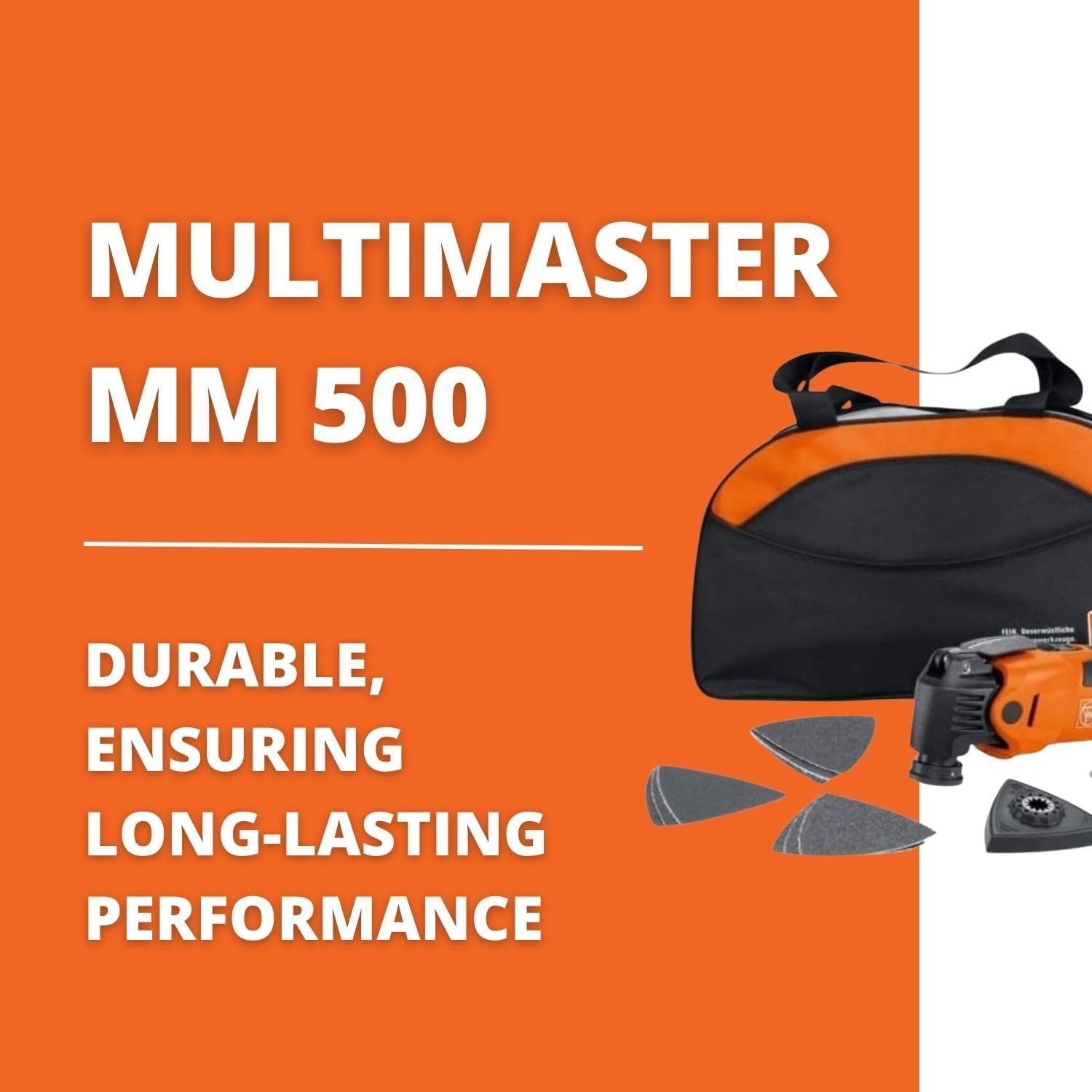

Figure 1: Contents of the Fein MultiMaster MM 500 Start Oscillating Kit, including the tool, various blades, sanding pads, and a soft case.
4. Setup
4.1 Attaching Accessories (QuickIn System)
The Fein MultiMaster MM 500 features the QuickIn rapid-clamping system, allowing for tool-free accessory changes in under 3 seconds. This system ensures quick and secure attachment for various applications.
- Ensure the tool is unplugged from the power source.
- Lift the QuickIn lever located on the tool head.
- Align the accessory (e.g., saw blade, sanding pad) with the Starlock Max mount on the tool head. The accessory will click into place.
- Push the QuickIn lever back down to secure the accessory. Ensure it is firmly locked before operation.
Video 1: Demonstration of the Starlock QuickIn system for tool-free accessory changes on the Fein MultiMaster. This video illustrates how to quickly attach and detach various accessories like saw blades and sanding pads.
Figure 2: The Fein MultiMaster MM 500 with a cutting blade attached, ready for use. The Starlock Max mount ensures a secure connection.
5. Operating Instructions
5.1 Powering On and Off
To turn the tool on, slide the power switch to the 'ON' position. To turn it off, slide the switch to the 'OFF' position. The tool features a soft start for controlled operation.
5.2 Variable Speed Control
The MultiMaster MM 500 is equipped with variable speed control, allowing you to adjust the oscillation rate to suit the material and application. Use lower speeds for delicate work or materials prone to burning, and higher speeds for faster material removal.
5.3 Cutting Applications
For cutting, select the appropriate E-Cut saw blade for your material (wood, metal, or universal). Position the blade against the workpiece and apply gentle, consistent pressure. The oscillating action will make precise cuts. The tool's design allows for tool-free positioning of blades in 45° steps, enabling work in difficult-to-reach spots.
Video 2: An overview of the Fein MultiMaster's capabilities, demonstrating various cutting and sanding applications, highlighting the tool's versatility and ease of accessory changes.
Video 3: This video showcases the range of Fein Starlock blades available and their quick-change mechanism, illustrating how different blades are used for various materials and tasks.
Figure 3: The Fein MultiMaster MM 500 being used to make a precise cut in a wooden workpiece, demonstrating control and accuracy.
5.4 Sanding Applications
Attach the backing pad and the desired grit sanding sheet. Use the variable speed control to match the sanding task. Apply light pressure and move the tool evenly across the surface. The anti-vibration design helps reduce fatigue during extended use.
Figure 4: The Fein MultiMaster MM 500 equipped with a sanding pad, ideal for preparing surfaces or finishing details.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Fein MultiMaster MM 500.
- Cleaning: After each use, disconnect the tool from the power supply and clean the ventilation openings and the tool head with a soft brush or compressed air. Do not use water or chemical cleaners.
- Accessory Inspection: Regularly inspect accessories for wear or damage. Replace worn or damaged blades and sanding sheets to maintain cutting efficiency and safety.
- Cord Inspection: Check the power cord for any signs of damage, cuts, or fraying. If damaged, have it repaired by a qualified technician.
- Storage: Store the tool and its accessories in the provided nylon soft case in a dry, secure location, out of reach of children.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | No power supply; Damaged power cord; Faulty switch | Check power outlet; Inspect power cord; Contact service center |
| Reduced cutting/sanding performance | Worn or dull accessory; Incorrect speed setting | Replace accessory; Adjust speed setting |
| Excessive vibration/noise | Loose accessory; Damaged accessory; Internal issue | Secure accessory; Replace accessory; Contact service center |
| Tool overheats | Blocked ventilation slots; Overloading the tool | Clean ventilation slots; Reduce load/pressure; Allow tool to cool |
8. Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Fein |
| Model Number | 72295264090 |
| Item Weight | 3.1 pounds |
| Product Dimensions | 13.25 x 2.63 x 3.25 inches |
| Power Source | Corded Electric |
| Wattage | 350 watts |
| Voltage | 120 Volts |
| Sound Level | 83 Decibels |
| Tool Mount | Starlock Max |
| Accessory Change System | QuickIn Rapid-Clamping System |
9. Warranty and Support
Fein products are manufactured to high-quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Fein website. For technical support, service, or to order replacement parts, please contact Fein customer service directly.
Online Resources: For additional information, product registration, and FAQs, visit the Fein Store on Amazon.
