Stagg SPS-0620 BK Speaker Stands Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and effective assembly, operation, and maintenance of your Stagg SPS-0620 BK Speaker Stands. Please read this manual thoroughly before use and retain it for future reference.

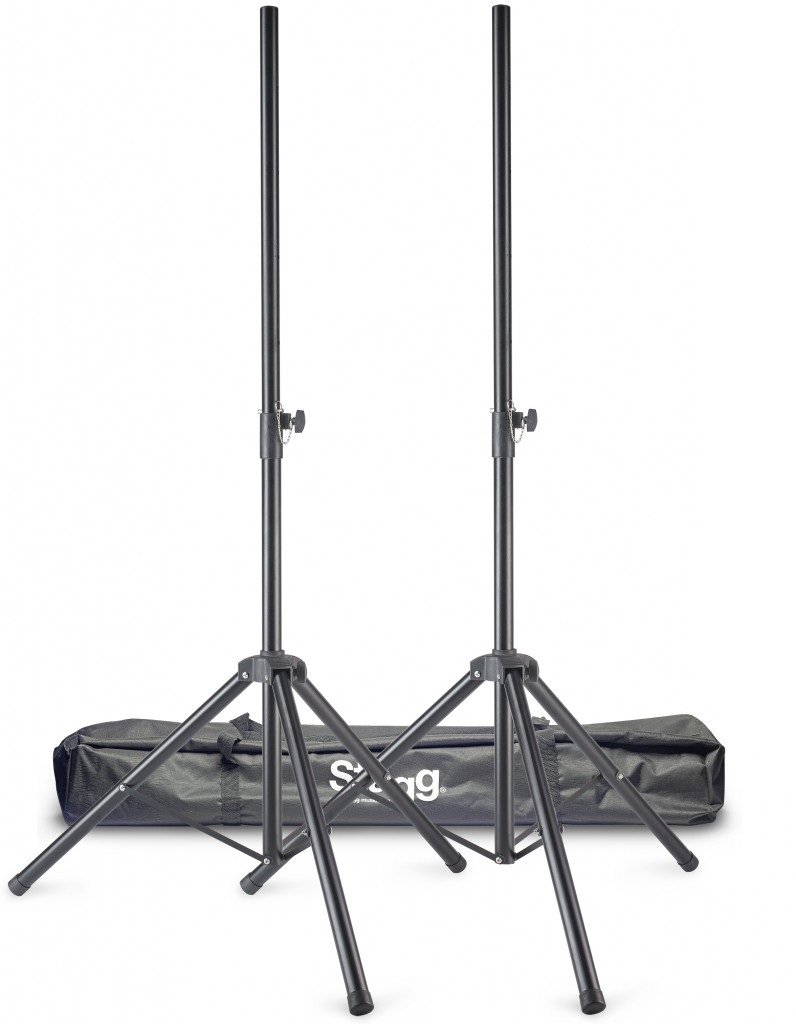

Package Contents

Verify that all components are present before proceeding with assembly:

• 2 x Stagg SPS-0620 BK Speaker Stands
• 1 x Transport Bag
• 2 x Locking Pins

Setup and Assembly

Follow these steps to correctly assemble your speaker stands:

1. Unpack Components: Carefully remove all items from the transport bag and packaging.
2. Extend Legs: Place the stand on a flat, stable surface. Gently pull the tripod legs outwards until they are fully extended and locked into position. Ensure the base is wide and stable.
3. Adjust Height: Loosen the height adjustment knob on the main pole. Carefully extend the upper pole to the desired height. The stand is adjustable from 44.5 inches (113 cm) to 68.9 inches (175 cm).
4. Secure Height with Locking Pin: Once the desired height is reached, align the hole in the upper pole with one of the five adjustment holes in the lower pole. Insert the provided locking pin completely through both holes.
5. Tighten Adjustment Knob: Firmly tighten the height adjustment knob to secure the upper pole in place. The locking pin provides additional safety.
6. Repeat for Second Stand: Follow the same steps for the second speaker stand.

Image: An assembled Stagg SPS-0620 BK speaker stand with its tripod base extended and the main pole adjusted to a medium height. This illustrates the stand's stable configuration.

Operating Instructions

Proper operation ensures stability and safety for your audio equipment.

• Speaker Placement: Carefully lift your speaker and place it onto the top mounting pole of the stand. Ensure the speaker is centered and stable.
• Load Capacity: Each stand is designed to hold a maximum load of 110 lbs (50 kg). Do not exceed this weight limit to prevent damage or instability.
• Stability Check: Before leaving the stands unattended, gently test their stability by applying light pressure to the speaker. Ensure there is no wobbling or tipping.
• Cable Management: Route speaker cables safely to avoid tripping hazards and to prevent them from pulling on the stand or speaker.

Maintenance

Regular maintenance will prolong the life of your speaker stands.

• Cleaning: Wipe down the stands with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or solvents.
• Inspection: Periodically inspect all knobs, pins, and connecting parts for wear or damage. Ensure all screws and bolts are tight.
• Storage: When not in use, collapse the stands and store them in the provided transport bag in a dry, cool place to protect them from dust and moisture.

Troubleshooting

If you encounter issues, refer to the following common solutions:

• Stand is unstable:
  • Ensure the tripod legs are fully extended and locked.
  • Verify the stand is on a flat, level surface.
  • Check that the height adjustment knob is tightened and the locking pin is fully inserted.
  • Ensure the speaker weight does not exceed the 110 lbs (50 kg) load capacity.
• Height adjustment is difficult:
  • Loosen the height adjustment knob completely before attempting to adjust.
  • Ensure the locking pin is removed before adjusting height.
  • Clean any dirt or debris from the inner and outer poles.

Specifications

Warranty Information

Stagg provides a one-year warranty against manufacturer defects for the SPS-0620 BK Speaker Stands. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, modifications, or unauthorized repairs. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, warranty claims, or further inquiries regarding your Stagg SPS-0620 BK Speaker Stands, please contact Stagg customer support through their official website or your retailer. Provide your model number (SPS-0620 BK) and proof of purchase when contacting support.
