Introduction
Thank you for choosing the WENKO Vacuum-Loc Capri Hair Dryer Holder. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new product. Please read these instructions carefully before use and retain them for future reference.
Image: The WENKO Vacuum-Loc Capri Hair Dryer Holder, highlighting its drill-free installation.
Product Overview
The WENKO Vacuum-Loc Capri Hair Dryer Holder is a high-quality bathroom accessory designed for convenient and secure storage of your hair dryer. It features a robust construction and an innovative mounting system.
- Material: Made from heavy, rust-free chrome-plated die-cast zinc for durability and a sleek appearance.
- Mounting: Utilizes the Vacuum-Loc suction system for quick, easy, and secure attachment without drilling.
- Versatility: Can be fixed on all airtight surfaces, including slightly uneven ones.
- Repositionable: The holder can be repositioned and removed as often as desired without leaving residues.
- Strong Hold: Provides a strong, reliable hold, capable of supporting up to 33 kg (72.75 lbs) of constant weight.

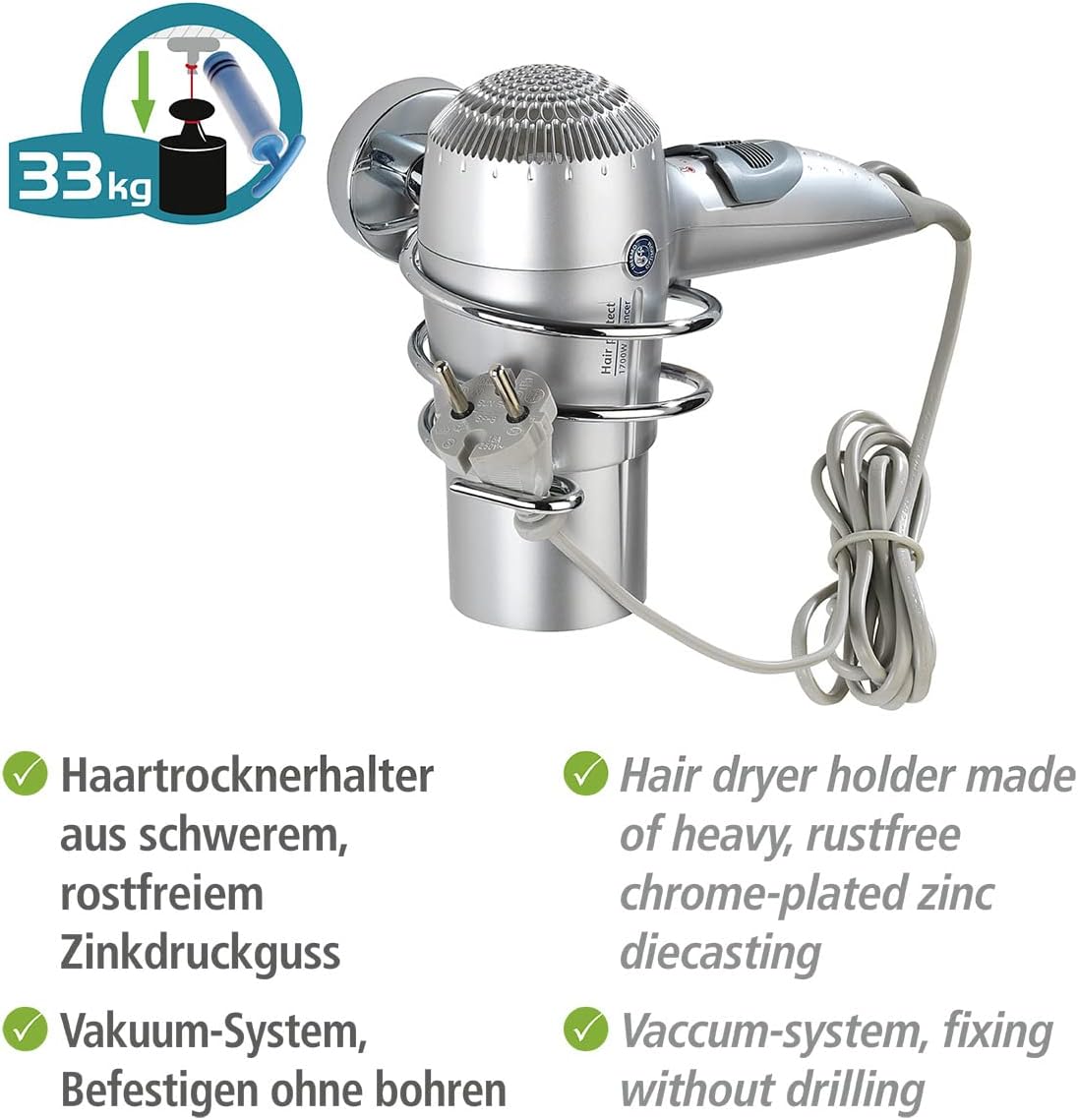

Image: The hair dryer holder demonstrating its strong hold capacity of up to 33 kg.
Setup and Installation
The WENKO Vacuum-Loc Capri Hair Dryer Holder offers multiple installation options. The primary method is the Vacuum-Loc system, which requires no drilling. Alternatively, it can be screwed to the wall or mounted using the Power-Loc adhesive system (sold separately).
Available Fixing Options:
Image: Illustration of the two main fixing options: traditional screws and dowels, and the Vacuum-Loc system.
- Vacuum-Loc System (Included): For drill-free installation on airtight surfaces.
- Screws and Dowels (Included): For traditional, permanent wall mounting.
- Power-Loc Adhesive System (Sold Separately): An alternative adhesive mounting solution.
Vacuum-Loc System Installation Steps:
Follow these steps for a secure, drill-free installation using the Vacuum-Loc system:
Image: Visual guide detailing the four steps for installing the Vacuum-Loc system.
- Step 1: Clean the Surface. Ensure the mounting surface is clean, dry, and free of grease. The surface must be airtight.
- Step 2: Fix the Vacuum Adapter. Press the Vacuum-Loc adapter firmly onto the desired surface with the arrow pointing downwards.
- Step 3: Generate a Vacuum. Place the pump onto the adapter and pull the pump handle out 4 times until a loud "plop" sound is heard. This indicates a strong vacuum has been created.
- Step 4: Attach the Holder. Slide the metal plate from the top into the fixture and attach the hair dryer holder. You can immediately hang your hair dryer.
To release the Vacuum-Loc, open the valve on the adapter.
Image: The hair dryer holder securely installed on a tiled bathroom wall, holding a hair dryer.
Operation
Once installed, the WENKO Vacuum-Loc Capri Hair Dryer Holder is ready for use. Simply place your hair dryer into the holder. The spiral design accommodates most standard hair dryer sizes and keeps the cord neatly organized.

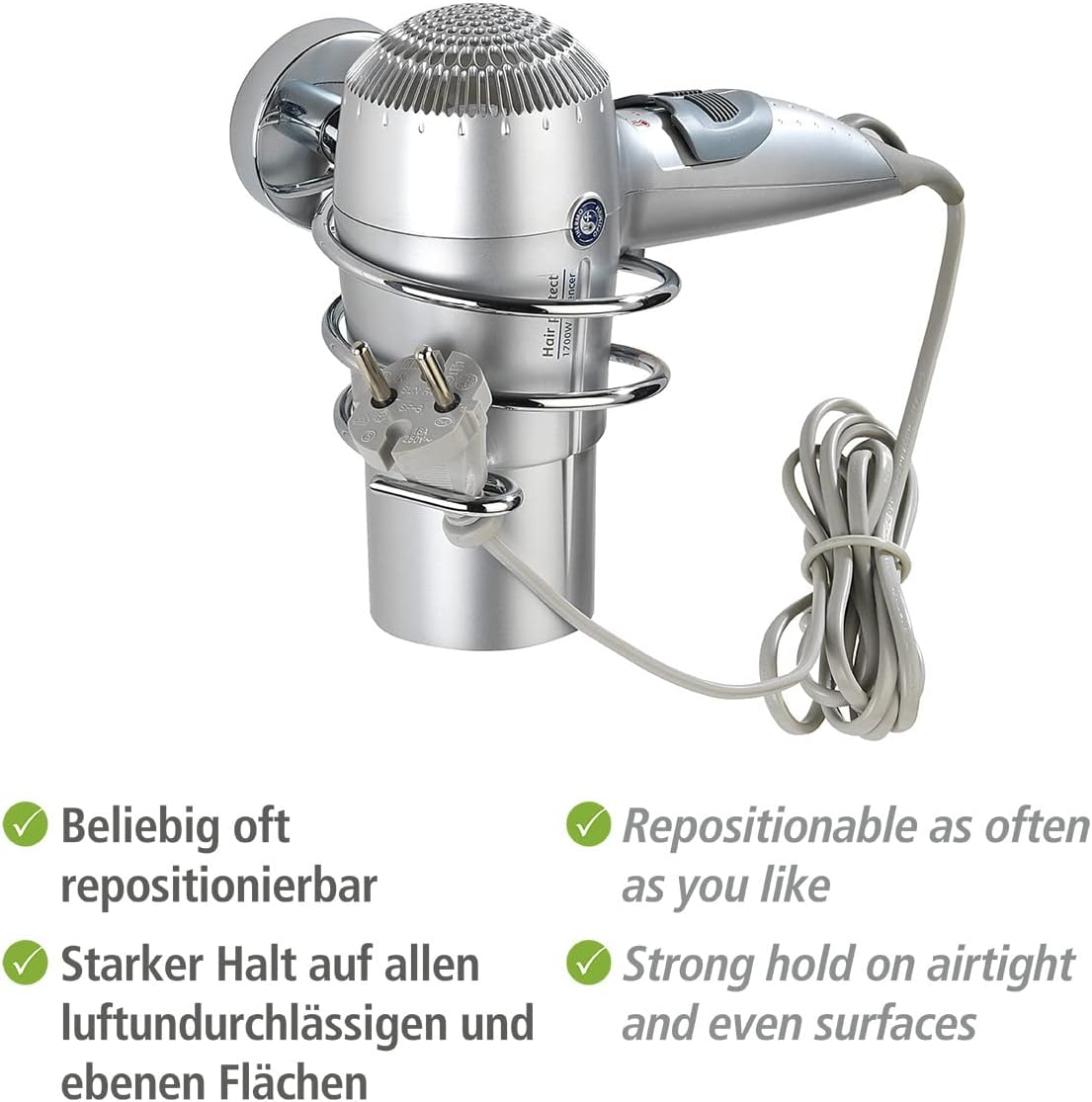

Image: The hair dryer holder with a hair dryer, illustrating its strong and repositionable design.
Maintenance
To maintain the appearance and functionality of your WENKO Vacuum-Loc Capri Hair Dryer Holder, follow these simple maintenance guidelines:
- Cleaning: Wipe the chrome surface regularly with a soft, damp cloth. For stubborn spots, use a mild, non-abrasive cleaner specifically designed for chrome or stainless steel.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, or harsh chemical detergents, as these can damage the chrome finish.
- Drying: After cleaning, dry the holder thoroughly with a soft, dry cloth to prevent water spots and maintain its shine.
Troubleshooting
If you encounter issues with the Vacuum-Loc system, consider the following:
- Loss of Suction: If the holder loses its grip, the vacuum may have weakened. Remove the holder, clean the surface and the Vacuum-Loc adapter thoroughly, and re-install following the steps in the "Setup and Installation" section.
- Uneven Surface: Ensure the mounting surface is airtight. While the Vacuum-Loc system can handle slightly uneven surfaces, excessively textured or porous surfaces will prevent a proper vacuum seal.
- Adapter Damage: Inspect the Vacuum-Loc adapter for any damage or cracks. A damaged adapter may not be able to create a sufficient vacuum.
Specifications
| Model Number: | 22324800 |
| Dimensions (L x W x H): | 15.5 cm x 10 cm x 8.5 cm (6.10 in x 3.94 in x 3.35 in) |
| Weight: | 240.4 g (0.53 lbs) |
| Material: | Die-cast zinc |
| Color: | Chrome |
| Max Load Capacity: | 33 kg (72.75 lbs) |

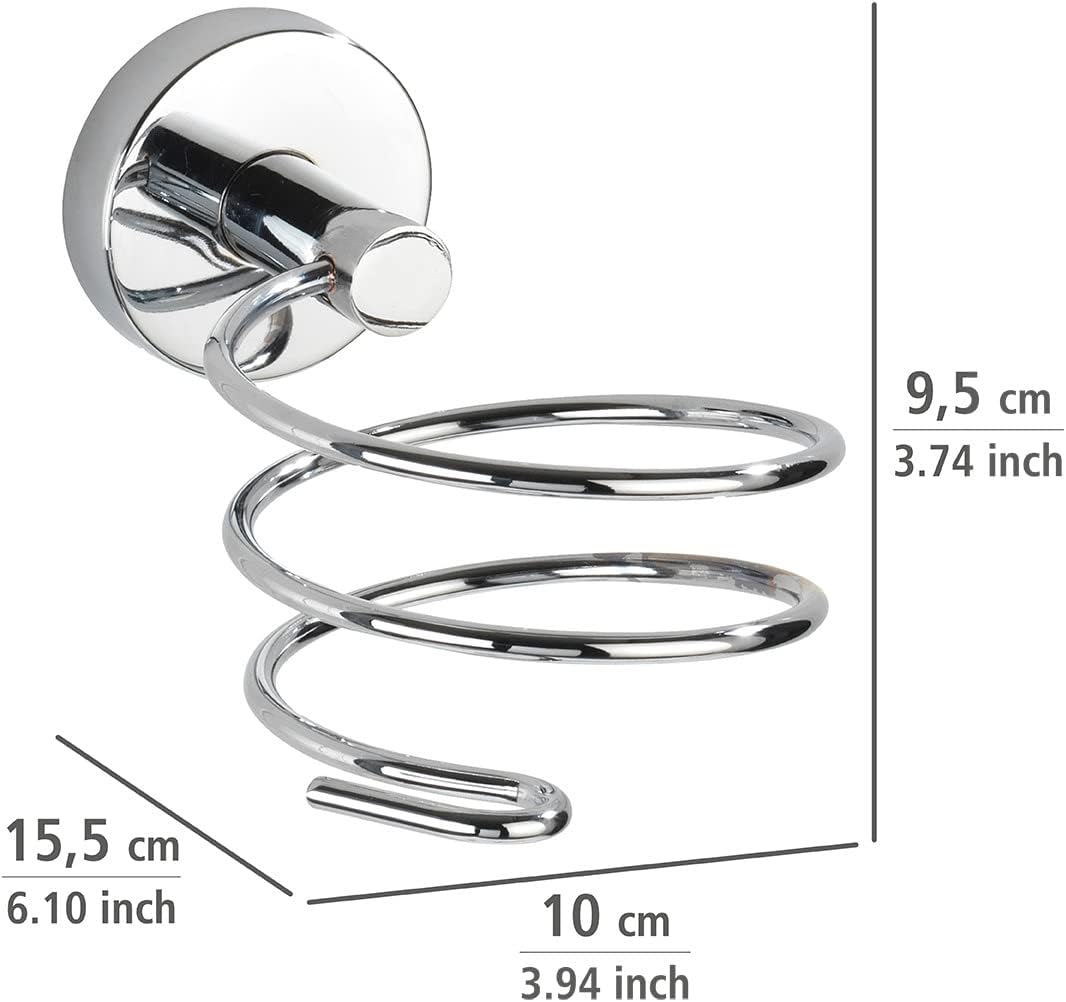

Image: Detailed dimensions of the WENKO Vacuum-Loc Capri Hair Dryer Holder.
Warranty
WENKO provides a 10-year warranty for this product, effective from the date of purchase. This warranty covers all material and manufacturing defects that impair the product's function.
Exclusions:
- Damage caused by improper use or handling.
- Normal wear and tear.
This warranty does not limit your statutory warranty rights. In case of a warranty claim, please send the product, along with the corresponding proof of purchase, securely packaged for transport, to the following address:
Wenko-Wenselaar GmbH & Co. KG
Abteilung „Retouren“
Im Hülsenfeld 17
40721 Hilden, Germany
For further inquiries, you may also contact service@wenko.de.
Image: The WENKO 10-year Guarantee Certificate.
Support
For any questions, assistance, or support regarding your WENKO Vacuum-Loc Capri Hair Dryer Holder, please contact our customer service team:
Email: service@wenko.de
Manufacturer: Wenko
