Gymstick STR-HG2B Home Gym 2 Instruction Manual

1. Introduction

Thank you for choosing the Gymstick STR-HG2B Home Gym 2. This versatile training platform is designed for effective home workouts, allowing you to train all major muscle groups. Please read this manual thoroughly before assembly and use to ensure safe and optimal operation. Keep this manual for future reference.

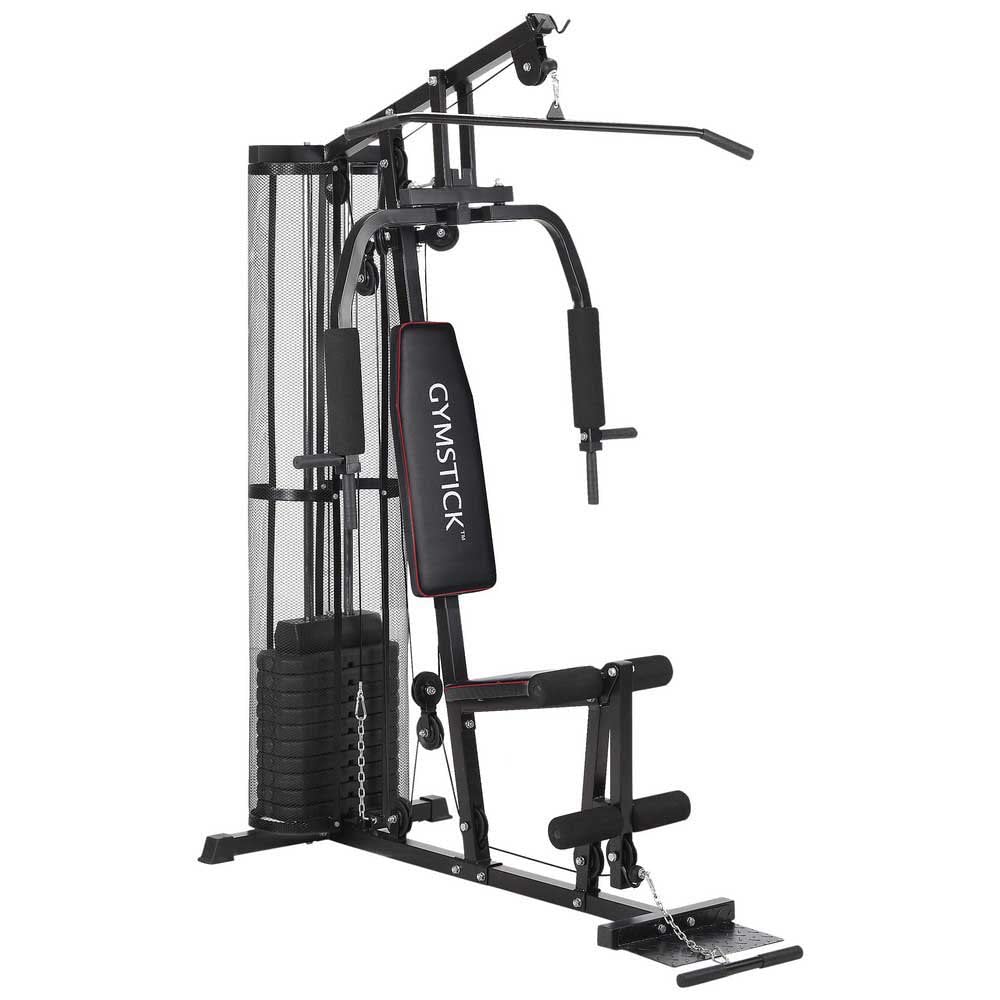

Figure 1: The Gymstick STR-HG2B Home Gym 2, a multi-functional fitness machine for comprehensive home workouts.

2. Safety Instructions

Your safety is paramount. Adhere to the following safety guidelines to prevent injury and ensure proper use of the Gymstick STR-HG2B Home Gym 2.

• Consult a Physician: Before starting any exercise program, consult with a physician, especially if you have pre-existing health conditions.
• Read Manual: Read and understand all instructions in this manual before assembly and use.
• Supervision: Children and individuals with reduced physical, sensory, or mental capabilities should not use the equipment without supervision.
• Proper Assembly: Ensure all parts are correctly assembled and tightened before each use.
• Stable Surface: Place the home gym on a flat, stable surface. Ensure adequate clearance around the equipment.
• Weight Limit: Do not exceed the maximum user weight of 110 kg.
• Inspect Equipment: Regularly inspect the equipment for worn or damaged parts. Do not use if any components are compromised.
• Proper Attire: Wear appropriate exercise clothing and athletic shoes. Avoid loose clothing that could get caught in moving parts.
• Warm-up: Always perform a warm-up before exercising and a cool-down afterwards.
• Stop if Unwell: If you experience pain, dizziness, or shortness of breath, stop exercising immediately and consult a physician.

3. Package Contents

Carefully unpack the box and verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

While specific component details are not provided, a typical home gym package includes:

• Main Frame Components
• Weight Stack (70 kg)
• Pulleys and Cables
• Seat and Backrest
• Various Handles and Attachments (e.g., lat bar, ankle strap)
• Assembly Hardware (bolts, nuts, washers)
• Instruction Manual (this document)
• Tools for Assembly (often included, but personal tools may be required)

4. Assembly and Setup

Assembly requires two people and approximately 2-4 hours. Follow the steps below carefully.

1. Preparation: Clear a spacious area for assembly. Lay out all parts and hardware. Refer to the included hardware diagram to identify each component.
2. Base Frame Assembly: Connect the main base frame components using the provided bolts and nuts. Do not fully tighten bolts until instructed.
3. Upright Posts: Attach the vertical upright posts to the base frame.
4. Weight Stack Installation: Carefully install the 70 kg weight stack. Ensure the guide rods are properly aligned and the selector pin operates smoothly.
5. Pulley and Cable System: Route the cables through the pulleys as shown in the assembly diagrams. Ensure cables are not twisted or frayed. Double-check all connections.
6. Seat and Backrest: Attach the seat and backrest to the frame. Adjust to a comfortable position if adjustable.
7. Final Tightening: Once all components are in place, systematically tighten all bolts and nuts. Do not overtighten.
8. Pre-Use Check: Before first use, perform a thorough inspection. Ensure all connections are secure, cables run freely, and the weight stack pin engages correctly.

5. Operating Instructions

The Gymstick STR-HG2B Home Gym 2 offers a variety of exercises for a full-body workout.

5.1. Adjusting Weight Resistance

To adjust the weight resistance, insert the selector pin into the desired weight plate in the stack. Ensure the pin is fully inserted before beginning your exercise. The 70 kg weight stack provides ample resistance for various fitness levels.

5.2. Performing Exercises

This home gym allows for exercises targeting major muscle groups. Examples include:

• Chest Press: Sit on the seat, grasp the handles, and push forward.
• Lat Pulldown: Use the lat bar, sit facing the machine, and pull the bar down to your chest.
• Leg Extension: Sit on the seat, place your shins behind the leg pads, and extend your legs.
• Leg Curl: Lie face down (if applicable) or sit and curl your legs against the pads.
• Bicep Curl: Use a short bar or handle, stand or sit, and curl towards your shoulders.
• Tricep Pushdown: Use a short bar or rope attachment, stand, and push down.

Always maintain proper form and controlled movements. Avoid sudden jerking motions. If unsure about proper exercise technique, consult a certified fitness professional.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Gymstick STR-HG2B Home Gym 2.

• Cleaning: Wipe down the frame and upholstery with a damp cloth after each use to remove sweat and dirt. Do not use abrasive cleaners.
• Cable Inspection: Periodically inspect all cables for fraying, kinks, or wear. Replace damaged cables immediately.
• Pulley Inspection: Check pulleys for smooth operation and ensure they are free of debris.
• Bolt Tightness: Every few months, check all bolts and nuts for tightness and re-tighten if necessary.
• Lubrication: Apply a silicone-based lubricant to guide rods and moving parts as needed to ensure smooth operation. Avoid oil-based lubricants.
• Storage: Store the home gym in a dry, temperate environment away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your Gymstick STR-HG2B Home Gym 2, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Gymstick customer support for further assistance.

8. Specifications

Key specifications for the Gymstick STR-HG2B Home Gym 2:

• Model Number: STR-HG2B
• Brand: Gymstick
• Dimensions (L x W x H): 35 x 35 x 35 cm
• Item Weight: 1 Kilogram (Note: This likely refers to packaging weight, not the full assembled unit with weight stack.)
• Weight Stack: 70 kg
• Maximum Recommended User Weight: 110 Kilograms
• Color: Black
• ASIN: B01DQWKDZK
• International Article Code (EAN/UPC): 06430016904452

Note: Product specifications are subject to change without prior notice for product improvement.
