Lenovo X1 Carbon 4th Generation Laptop User Manual

1. Introduction

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Lenovo X1 Carbon 4th Generation laptop. Please read this guide thoroughly to ensure proper use and to maximize the performance and longevity of your device.

2. Product Overview

The Lenovo X1 Carbon 4th Generation is a high-performance laptop designed for productivity and portability. It features a robust Intel Core i5-6300U processor, a vibrant 14-inch Full HD display, and a fast 256GB Solid State Drive.

Key Features:

• Intel Core i5-6300U Processor (2.4GHz Base, up to 3.0GHz Turbo)
• 14-inch Full HD (1920x1080) IPS Display with integrated 720p camera
• 256GB Solid State Drive
• 8GB RAM
• Backlit Keyboard
• Fingerprint Reader
• Windows 10 Professional 64-bit Operating System
• Intel HD Graphics 520

Physical Layout and Ports:

Familiarize yourself with the various components and ports of your laptop.

Figure 1: Front view of the Lenovo X1 Carbon 4th Generation laptop, open with the screen displaying a video conference application.

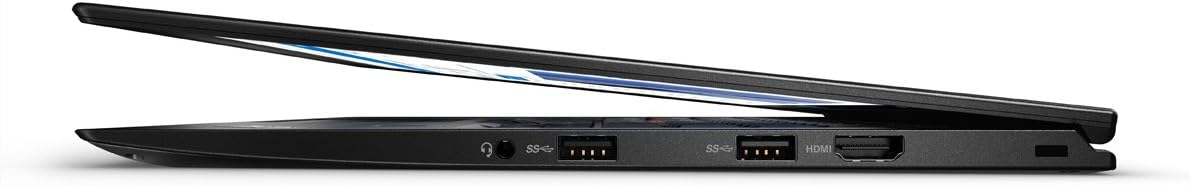

Figure 2: Left side of the laptop, illustrating the headphone/microphone combo jack, two USB 3.0 ports, and an HDMI port.

Figure 3: Right side of the laptop, showing the power input, another USB 3.0 port, and a Mini DisplayPort.

Figure 4: Angled view of the laptop's interior, highlighting the keyboard, trackpad, and fingerprint reader.

Figure 5: Top view of the closed laptop lid, featuring the ThinkPad logo in the corner.

3. Setup

3.1 Initial Power-On

1. Unpack: Carefully remove the laptop and all accessories from the packaging.
2. Connect Power: Plug the power adapter into the laptop's power input port and then into a wall outlet.
3. Power On: Open the laptop lid and press the power button, typically located above the keyboard or on the side.
4. Initial Windows Setup: Follow the on-screen prompts to complete the Windows 10 Professional setup. This includes selecting your region, language, accepting license terms, and creating a user account.

3.2 Connecting Peripherals

You can connect external devices such as a mouse, keyboard, external monitor, or USB drives to the available ports:

• USB Devices: Use the USB 3.0 ports for external storage, mice, or keyboards.
• External Display: Connect an external monitor using the HDMI or Mini DisplayPort.
• Audio: Use the headphone/microphone combo jack for headsets or external speakers.

4. Operating Instructions

4.1 Power Management

• Power On: Press the power button.
• Shut Down: Click the Start button, then Power > Shut down.
• Restart: Click the Start button, then Power > Restart.
• Sleep: Close the lid or click the Start button, then Power > Sleep.

4.2 Keyboard and Trackpad

• Backlit Keyboard: Adjust keyboard backlight intensity using the appropriate function keys (Fn + Spacebar, typically).
• Trackpad: Use multi-touch gestures for navigation. Refer to Windows settings for customization.
• TrackPoint: The red TrackPoint in the center of the keyboard provides an alternative pointing device.

4.3 Fingerprint Reader

The integrated fingerprint reader allows for secure and quick login. To set up:

1. Go to Settings > Accounts > Sign-in options.
2. Under "Windows Hello Fingerprint," click Set up and follow the on-screen instructions to register your fingerprints.

5. Maintenance

5.1 Cleaning Your Laptop

• Screen: Use a soft, lint-free cloth lightly dampened with water or a screen cleaner. Avoid harsh chemicals.
• Keyboard and Chassis: Use a soft cloth. For stubborn dirt, a slightly damp cloth with mild soap can be used, ensuring no liquid enters openings.
• Ports: Use compressed air to gently clear dust from ports.

5.2 Battery Care

To prolong battery life:

• Avoid extreme temperatures.
• If storing the laptop for an extended period, ensure the battery is charged to approximately 50-60%.
• Periodically allow the battery to discharge and recharge fully.
• If experiencing significant battery degradation, consult Lenovo support for potential replacement options.

5.3 Software Updates

Regularly update your operating system and drivers to ensure optimal performance and security:

• Windows Updates: Go to Settings > Update & Security > Windows Update.
• Driver Updates: Visit the official Lenovo support website for your specific model to download the latest drivers and firmware.

6. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, refer to the Lenovo support website.

7. Specifications

Below are the detailed technical specifications for the Lenovo X1 Carbon 4th Generation (Model: 20FB0059US).

8. Warranty and Support

8.1 Warranty Information

Your Lenovo X1 Carbon 4th Generation laptop typically comes with a 3-Year Depot Warranty. This warranty covers manufacturing defects and hardware failures under normal use conditions. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Lenovo support website.

8.2 Technical Support

For technical assistance, driver downloads, or further troubleshooting, please visit the official Lenovo Support website:

support.lenovo.com

You will need your product's serial number (usually found on a sticker on the bottom of the laptop) when contacting support.
