1. Product Overview
The Philips 9W LED R30 Flood Light Bulb (Model: 9BR30/LED/827) is designed to provide a warm glow, dimmable light experience. This LED bulb replaces traditional 65-watt equivalent BR30 flood light bulbs while consuming only 9 watts of energy. It is Energy Star certified and suitable for various residential and commercial applications, including kitchens, living rooms, dining rooms, restaurants, and hospitality settings. The bulb offers a soft white light for a pleasing and relaxed ambiance, with smooth dimming capabilities from 2700K to 2200K.
Key features include:
- Color Temperature: 2700K (Soft White)
- Base Type: E26 Medium Screw
- Dimmable: Yes, with warm glow effect
- Wattage: 9W (65W equivalent)
- Luminous Flux: 650 Lumens
- Rated Life: 25,000 hours

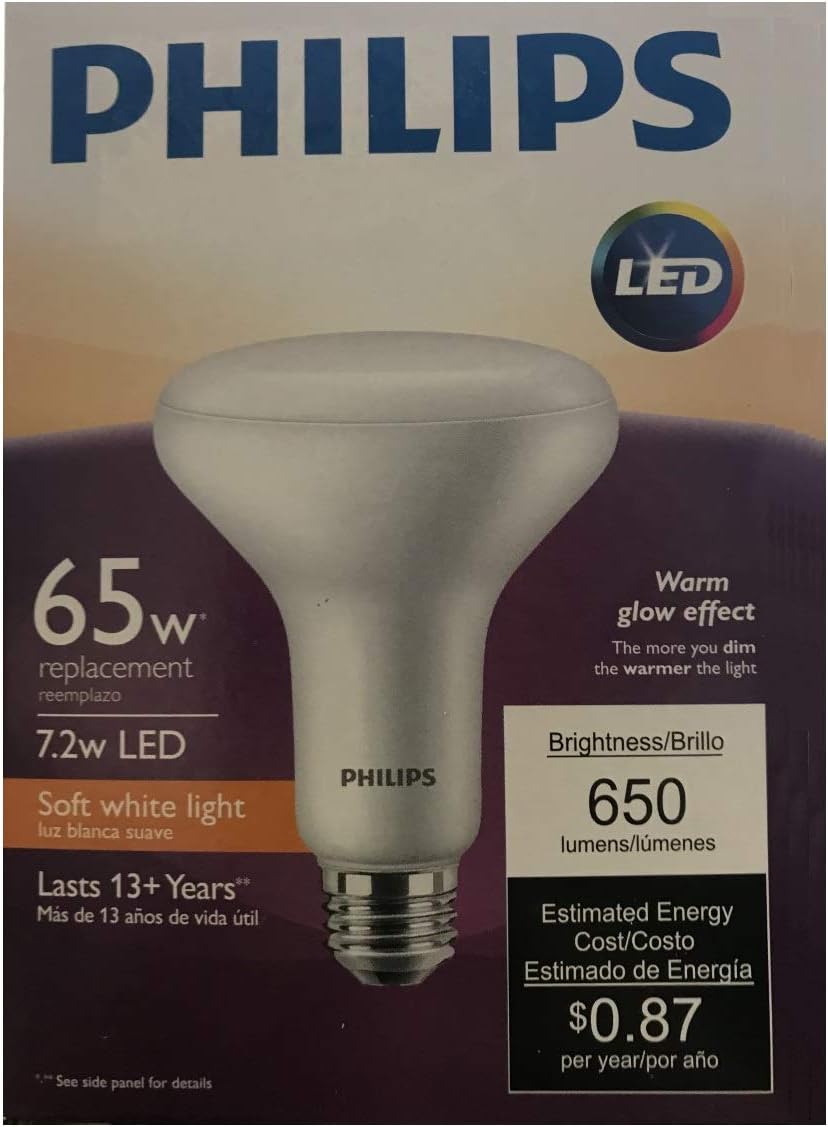

Image 1: Philips 9W LED R30 Flood Light Bulb packaging, highlighting 65W replacement, 7.2W LED, soft white light, 13+ years life, 650 lumens brightness, and estimated energy cost of $0.87 per year.
2. Safety Information
Please read and understand all safety instructions before installing or using this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Risk of Electric Shock: Always turn off power to the fixture and allow the lamp to cool before installation or removal.
- Suitable Use: This device is suitable for use in totally enclosed and recessed fixtures. Do not use where directly exposed to water.
- Emergency Lighting: This device is not intended for use with emergency exit fixtures or emergency lights.
- Operating Environment: Only install in operating environments between -4°F and 113°F (-20°C and +45°C).
- FCC Compliance: This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
3. Setup and Installation
Follow these steps to properly install your Philips LED R30 Flood Light Bulb:
- Turn Off Power: Before attempting any installation, ensure the power to the light fixture is turned off at the circuit breaker or fuse box to prevent electric shock.
- Allow Cooling: If replacing an existing incandescent or halogen bulb, allow the old bulb to cool completely before touching it to avoid burns.
- Remove Old Bulb: Carefully unscrew the old bulb from the fixture by turning it counter-clockwise.
- Install New Bulb: Gently screw the Philips LED R30 Flood Light Bulb into the E26 medium screw base socket by turning it clockwise until it is snug. Do not overtighten.
- Restore Power: Once the bulb is securely installed, restore power to the fixture at the circuit breaker or fuse box.
- Test: Turn on the light switch to verify the bulb is functioning correctly.

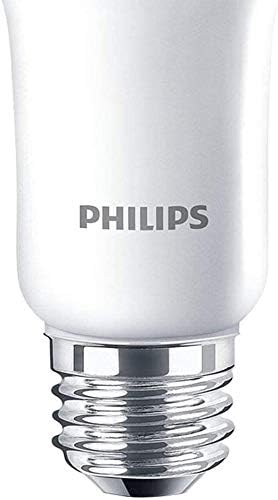

Image 2: Close-up view of the Philips LED bulb's E26 medium screw base, illustrating the standard base type for installation.
4. Operating Instructions
This Philips LED R30 Flood Light Bulb is designed for simple operation and enhanced lighting control.
- Turning On/Off: Use your standard wall switch to turn the light bulb on or off.
- Dimming Functionality: This bulb is fully dimmable. When used with a compatible dimmer switch, you can adjust the light output from its brightest setting (2700K Soft White) down to a warmer glow (2200K) for a cozy ambiance. Ensure your dimmer switch is rated for LED bulbs to ensure optimal performance and avoid flickering.
5. Maintenance
The Philips LED R30 Flood Light Bulb is designed for long-lasting performance with minimal maintenance.
- Cleaning: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid or abrasive cleaners.
- Bulb Replacement: With a rated life of 25,000 hours (approximately 22+ years based on 3 hours/day usage), this bulb requires infrequent replacement.
6. Troubleshooting
If you encounter issues with your Philips LED R30 Flood Light Bulb, try the following steps:
- Bulb Not Lighting:
- Ensure the power switch is in the "ON" position.
- Check the circuit breaker or fuse box to ensure power is supplied to the fixture.
- Verify the bulb is securely screwed into the socket.
- Test the bulb in another working fixture to confirm it is not faulty.
- Flickering or Inconsistent Dimming:
- Ensure your dimmer switch is compatible with LED bulbs. Older dimmer switches designed for incandescent bulbs may cause flickering.
- Check for loose connections in the fixture or switch.
7. Specifications
| Model Number | 9BR30/LED/827 |
| Brand | Philips |
| Light Type | LED |
| Bulb Shape Size | R30 |
| Base Type | E26 Medium Screw |
| Wattage | 9 Watts (65W Equivalent) |
| Luminous Flux | 650 Lumens |
| Color Temperature | 2700K (Soft White), Dims to 2200K (Warm Glow) |
| Special Feature | Dimmable |
| Rated Life | 25,000 Hours |
| Product Dimensions | 5.25 x 3.62 x 3.62 inches |
| Item Weight | 4.8 ounces |
Image 3: Lighting Facts label, detailing brightness (650 lumens), estimated yearly energy cost ($0.87), life (13.7 years based on 3 hrs/day), energy used (7.2 watts), and light appearance (2700K).
8. Warranty and Support
This Philips LED R30 Flood Light Bulb comes with a 5-year limited warranty, based on up to 3 hours of usage per day. For extended warranty details and restrictions, and to register your bulb within 60 days of purchase for a 10-year extended limited warranty, please visit the official Philips consumer warranties website or contact Philips customer support.
For further assistance or inquiries, please refer to the contact information provided on the product packaging or visit the official Philips support website.
Online Resources:
- Philips Consumer Warranties: www.philips.com/consumerwarranties
