1. Introduction and Overview
The Salter 9192 WH3R Curve Bluetooth Smart Analyser Bathroom Scale is designed to help you monitor your health and fitness progress. This scale provides comprehensive body composition analysis, including weight, body fat, body water, muscle mass, bone mass, Body Mass Index (BMI), and Basal Metabolic Rate (BMR). It features an easy-to-read LCD display, 8-user memory, and specialized athlete and child modes. Data can be synced with your smartphone via Bluetooth using the free Salter MiBody App for detailed tracking and analysis.
Image: The Salter 9192 WH3R scale connected to a smartphone displaying the Salter Health app dashboard.
Image: The Salter 9192 WH3R scale highlighting its 15-year guarantee and Bluetooth connectivity with the Salter Health app.
2. Safety Information
Please read all instructions carefully before use. Keep this manual for future reference.
- Always use the scale on a firm, flat surface. Using it on soft surfaces like carpet may affect accuracy.
- The scale platform can become slippery when wet. Ensure the surface is dry before stepping on.
- Do not use this device for medical diagnosis or treatment. Consult your doctor for any health concerns.
- Keep the scale out of reach of children.
- Do not immerse the scale in water or use abrasive cleaning agents.
- Ensure batteries are inserted correctly according to polarity markings. Remove batteries if the scale will not be used for an extended period.
- Individuals with pacemakers or other internal medical devices should not use this product.
3. Setup
3.1 Battery Installation
- Open the battery compartment on the underside of the scale.
- Insert 3 x AAA batteries, ensuring correct polarity (+/-).
- Close the battery compartment securely.
3.2 App Download and Pairing
To utilize the full features of your scale, download the Salter MiBody App on your smartphone.
Image: The Salter Health app supports Bluetooth, Apple Health, and is available on the App Store and Google Play.
- Search for 'Salter MiBody' in the Apple App Store (for iOS devices) or Google Play Store (for Android devices).
- Download and install the app.
- Enable Bluetooth on your smartphone.
- Open the Salter MiBody App and follow the on-screen instructions to create your user profile and pair your scale. You will need to enter personal details such as age, height, and gender for accurate body composition analysis.
3.3 User Profile Setup
The scale supports up to 8 user profiles. During initial app setup, you will create your first profile. Additional profiles can be added through the app for other family members.
Image: The Salter 9192 WH3R scale features 8 user memory and dedicated Child & Athlete modes.
- Athlete Mode: Select this mode if you engage in intense physical activity for approximately 10 hours per week and have a resting heart rate of 60 beats per minute or less. This setting adjusts the body composition algorithm for more accurate results for athletes.
- Child Mode: This mode is for children and provides weight measurements only, without body composition analysis.
4. Operating Instructions
4.1 Taking a Weight Measurement
- Place the scale on a firm, flat surface.
- Gently tap the center of the scale with your foot to activate it. The display will show '0.0'.
- Step onto the scale with bare feet, standing still and centered.
- Your weight will be displayed. The scale will automatically turn off after a few seconds.
Image: Step onto the toughened glass platform for an instant weight reading.
4.2 Taking a Body Composition Measurement
For body composition readings, you must stand on the scale with bare feet. Ensure your feet are clean and dry. If your feet are excessively dry, lightly dampen them with a wet cloth for better contact.
- Activate the scale as described above.
- Step onto the scale with bare feet, ensuring your feet are positioned over the metal electrodes.
- Stand still until your weight is displayed. The scale will then begin to analyze your body composition.
- The display will cycle through your body composition metrics.
- Ensure your smartphone with the Salter MiBody App is nearby and Bluetooth is enabled for automatic data synchronization.
4.3 Selecting User Profiles
After activating the scale, use the arrow buttons (< and >) to scroll through the user profiles (P1 to P8). Once your profile number is displayed, step onto the scale to take your measurement.
4.4 Switching Measurement Units
The scale can display measurements in kilograms (kg), stones (st), or pounds (lb).
Image: The large, easy-to-read display allows switching between metric (KG) and imperial (ST/LB) units.
- On the underside of the scale, locate the unit switch button.
- Press the button to cycle through the available units (kg, st, lb) until your desired unit is displayed.
4.5 Syncing Data with the App
The Salter MiBody App automatically syncs data when the scale is used and the app is open or running in the background with Bluetooth enabled. The app provides a comprehensive dashboard, metrics overview, and allows for data export.
Image: Screenshots of the Salter Health app displaying the Dashboard, Metrics, and Groups features for tracking progress.
Image: Screenshots of the Salter Health app showing the Dashboard, Linked Accounts for sharing profiles, and data export options (PDF & CSV).
5. Understanding Your Readings
The Salter 9192 WH3R scale provides the following body composition metrics:
Image: Icons illustrating the various health metrics tracked by the Salter scale, including weight, body water, body fat, bone mass, BMI, BMR, and muscle mass, along with athlete and child modes and 8-user memory.
- Weight: Your total body mass.
- Body Fat: The percentage of fat in your body.
- Body Water: The percentage of water in your body.
- Muscle Mass: The percentage of muscle in your body.
- Bone Mass: The percentage of bone mineral in your body.
- BMI (Body Mass Index): A measure that uses your height and weight to work out if your weight is healthy.
- BMR (Basal Metabolic Rate): The minimum number of calories required to keep your body functioning at rest.
For detailed interpretation of these metrics and to track your progress over time, refer to the Salter MiBody App.
6. Maintenance and Care
- Clean the scale with a damp cloth and mild detergent. Do not use abrasive cleaners or immerse the scale in water.
- Store the scale in a dry place at room temperature.
- If the scale is not used for a long period, remove the batteries to prevent leakage.
- Avoid dropping the scale or subjecting it to strong impacts, as this may damage the glass platform or internal components.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| "Lo" displayed | Low battery power. | Replace the 3 x AAA batteries. |
| "Err" displayed | Measurement error (e.g., unstable surface, exceeding max weight). | Ensure the scale is on a firm, flat surface. Step off and then back on, standing still. Ensure weight is within 200 kg capacity. |
| No display | Batteries incorrectly installed or dead. | Check battery polarity or replace batteries. |
| App not connecting/syncing | Bluetooth off, app not open, scale not paired, or interference. | Ensure Bluetooth is enabled on your phone. Open the Salter MiBody App. Re-pair the scale if necessary. Move closer to the scale. |
| Inaccurate body composition readings | Dry feet, incorrect user profile, or medical condition. | Ensure bare feet are slightly damp. Verify correct user profile (athlete/child mode). Consult a healthcare professional if concerns persist. |
8. Specifications

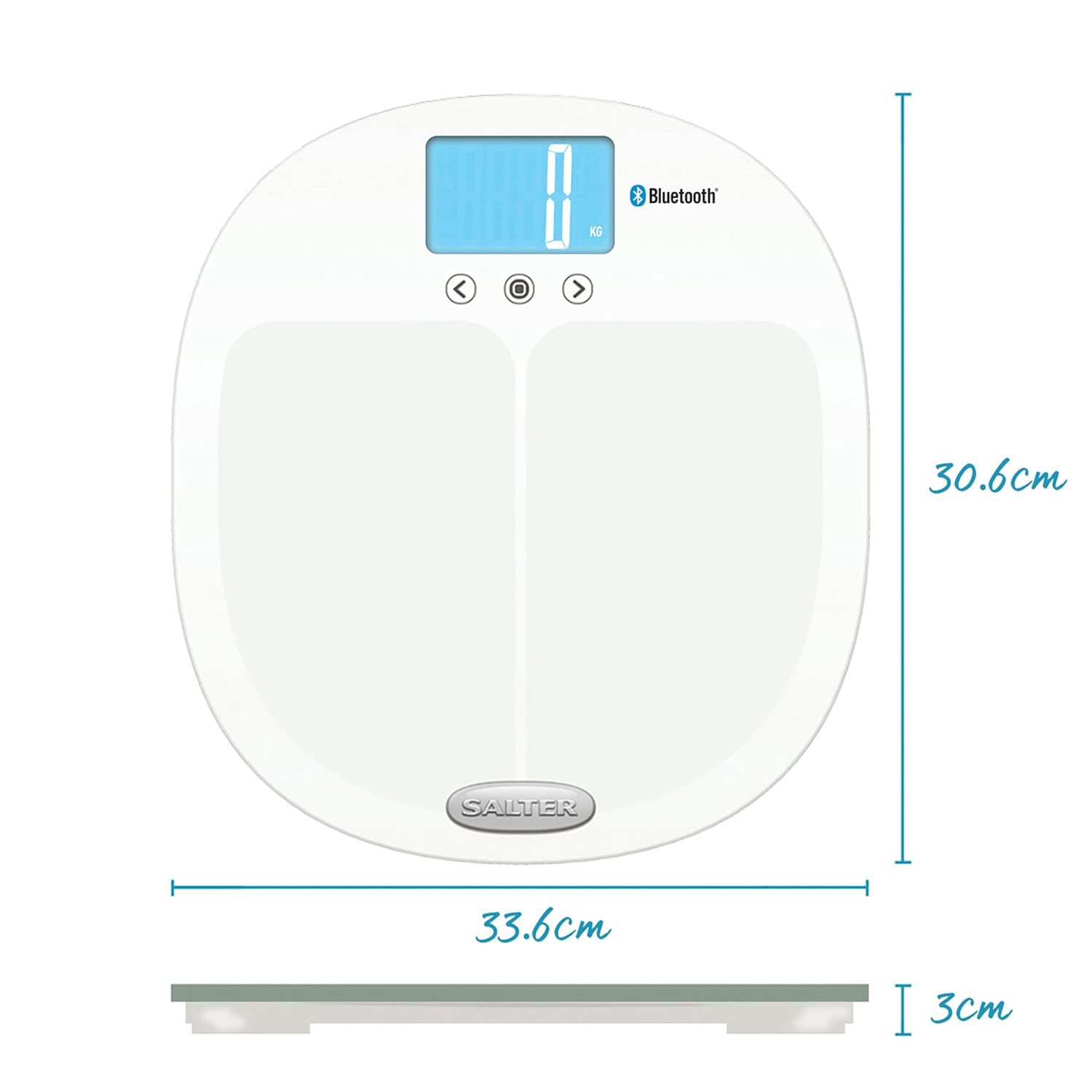

Image: Dimensions of the Salter 9192 WH3R scale.
- Model Number: 9192 WH3R
- Maximum Weight Capacity: 200 kg (31st 6lb)
- Measurement Precision: 0.5 kg
- Display Type: LCD
- Material: Toughened Glass
- Product Dimensions (L x W x H): Approximately 30.6 cm x 33.6 cm x 3 cm
- Item Weight: 1.6 Kilograms
- Batteries: 3 x AAA (included)
- User Memory: 8 users
- Connectivity: Bluetooth
- Metrics Measured: Weight, Body Fat, Body Water, Muscle Mass, Bone Mass, BMI, BMR
9. Warranty and Support
The Salter 9192 WH3R Curve Bluetooth Smart Analyser Bathroom Scale comes with a 15-year guarantee, covering defects in materials or workmanship under normal household use. This guarantee does not cover accidental damage, misuse, or damage caused by non-adherence to the instructions.
For warranty claims, technical support, or further assistance, please refer to the contact information provided on the official Salter website or your purchase documentation.
