B-Air VP-25 Air Mover User Manual

1. Introduction and Overview

The B-Air VP-25 Air Mover is a powerful and versatile fan designed for various applications including water damage restoration, carpet drying, and general air circulation. Its compact and durable design makes it suitable for both home and professional use.

Key Features:

• Home Cooling: Efficiently circulates air to cool rooms, garages, or patios.
• Water Damage Restoration: Aids in drying carpets and floors to prevent mold and mildew after water incidents.
• Powerful Performance: Features a 1/4 HP motor delivering 900 CFM airflow.
• Daisy Chain Capability: Connect up to 5 air movers from a single outlet for extended coverage.
• Stackable Design: Allows for efficient storage and transport.
• Multiple Operating Positions: Can be used flat (0°), tilted (45°), or upright (90°).

Figure 1: B-Air VP-25 Air Mover with control panel visible.

2. Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

• Always operate the air mover on a stable, level surface.
• Do not operate in standing water or extremely wet conditions.
• Ensure the power cord is not damaged and is properly grounded.
• Keep children and pets away from the unit during operation.
• Do not insert objects into the fan grilles.
• Unplug the unit before cleaning or performing any maintenance.

3. Setup

Before first use, inspect the unit for any signs of damage. Place the air mover in the desired location, ensuring adequate space around the intake and exhaust for optimal airflow.

Power Connection:

• Plug the air mover into a standard 115V AC grounded electrical outlet.
• The unit features a 10 ft 14 AWG power cord.

Daisy Chain Functionality:

The VP-25 is equipped with auxiliary outlets, allowing multiple units to be connected in a series (daisy-chained) from a single power source. This feature is ideal for large areas requiring extensive drying or air circulation.

• Locate the auxiliary outlets on the control panel.
• Connect the power cord of an additional VP-25 unit into one of these outlets.
• You can connect up to 5 air movers in a daisy chain configuration.
• Ensure the total amperage does not exceed the circuit breaker's limit (12.0 Amps max with unit off, 9.5 Amps max with unit on).

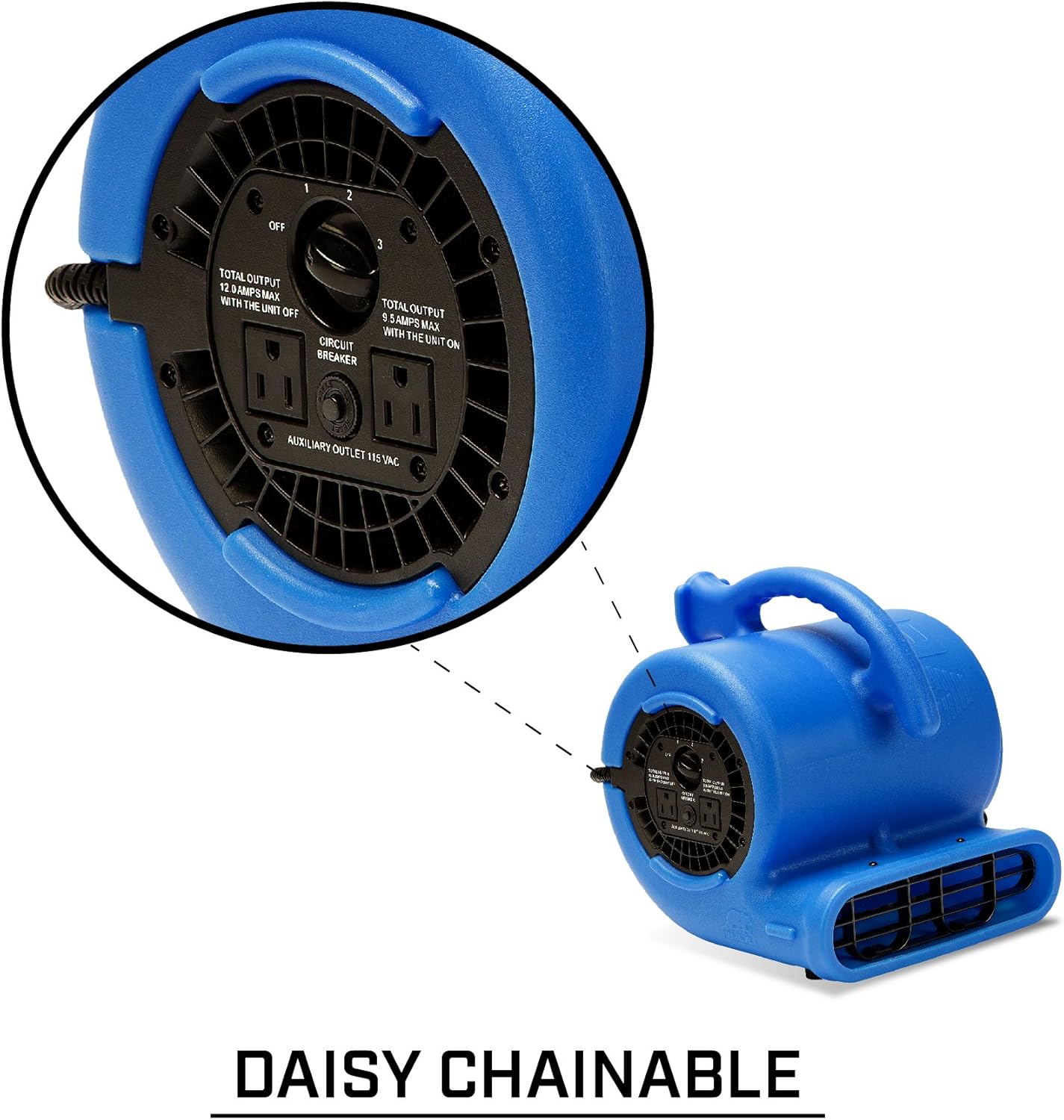

Figure 2: Control panel showing auxiliary outlets and circuit breaker.

4. Operating Instructions

The B-Air VP-25 Air Mover offers three speed settings and multiple operating positions for versatile use.

Speed Control:

• Locate the rotary switch on the control panel.
• Turn the switch to select one of the three available speeds (1, 2, or 3) or 'OFF'.
• Higher settings provide greater airflow (up to 900 CFM).

Operating Positions:

The unit can be positioned in three different angles to direct airflow precisely where needed:

• 0° (Flat): Ideal for drying floors, carpets, or directing air across a wide surface.
• 45° (Tilted): Suitable for directing airflow upwards or at an angle, such as drying walls or under cabinets.
• 90° (Upright): Perfect for drying baseboards, walls, or circulating air vertically.

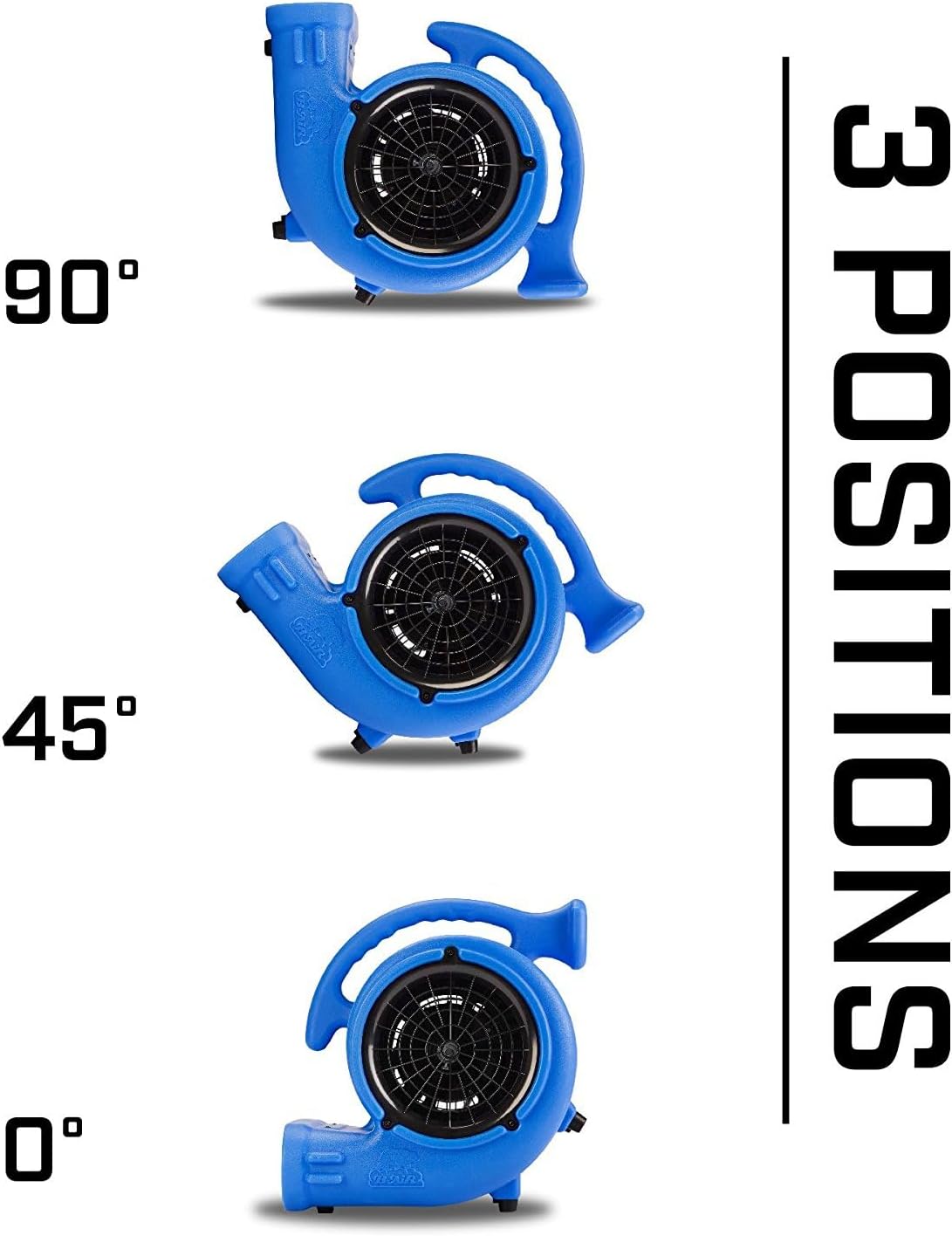

Figure 3: Three operating positions of the B-Air VP-25 Air Mover.

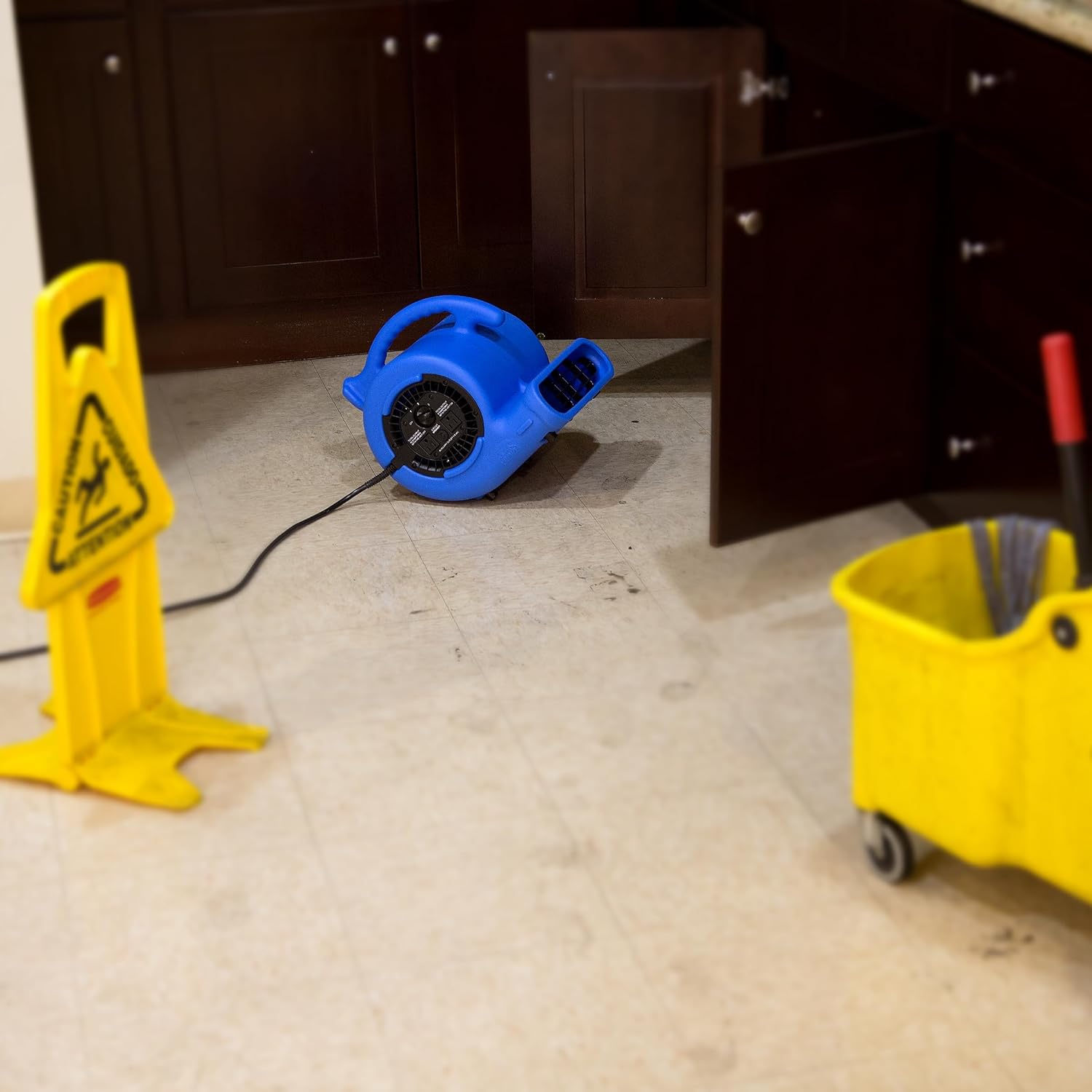

Figure 4: Air Mover in use for water damage restoration.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your B-Air VP-25 Air Mover.

• Cleaning: Periodically wipe down the exterior of the unit with a damp cloth. Ensure the intake and exhaust grilles are free from dust, debris, and obstructions.
• Storage: When not in use, store the air mover in a cool, dry place. The unit's stackable design allows for efficient storage, minimizing space requirements.

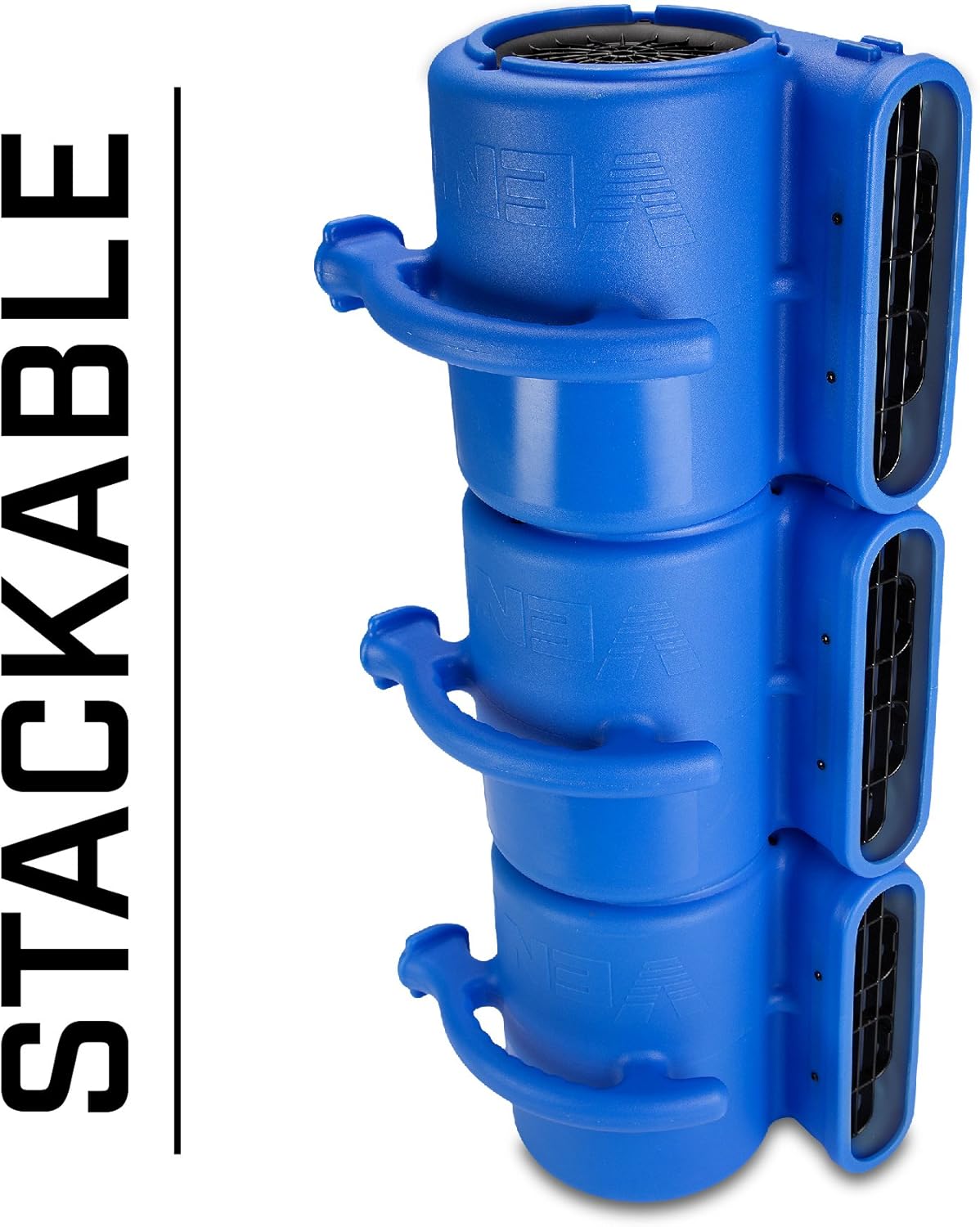

Figure 5: Stackable design for convenient storage.

6. Troubleshooting

If you encounter issues with your B-Air VP-25 Air Mover, please refer to the following common solutions:

• Unit Not Turning On: Check if the power cord is securely plugged into a working outlet. Verify that the circuit breaker on the unit (if tripped) or the wall outlet is reset.
• Reduced Airflow: Ensure the intake and exhaust grilles are not blocked by debris or other objects. Clean the unit as described in the Maintenance section.
• Unusual Noise: Turn off and unplug the unit. Inspect for any loose parts or foreign objects inside the fan housing. If the noise persists, discontinue use and contact customer support.

For issues not covered here, please contact B-Air customer support.

7. Specifications

8. Warranty and Support

The B-Air VP-25 Air Mover comes with a 2-Year Warranty on parts and labor, and a 5-Year Housing Warranty. This warranty covers defects in material and workmanship under normal use.

For warranty claims, technical support, or additional information, please visit the official B-Air website or contact their customer service department.

An electronic version of this user manual is available for download: User Manual (PDF)
