Introduction
This manual provides essential information for the proper use and maintenance of your Stagg B0200-MH Male RCA Plugs. These high-quality connectors are designed for reliable audio and video signal transmission in various applications, ensuring a secure and clear connection.
Product Features
The Stagg B0200-MH Male RCA Plugs offer the following key features:
- Male RCA connector type for broad compatibility with audio and video equipment.
- Durable nickel-plated construction for optimal signal transfer and corrosion resistance.
- ROHS compliant, ensuring the absence of hazardous materials in its composition.
- Supplied as a pair (2 pieces) for stereo audio or dual-channel video applications.
- Designed for both indoor and outdoor use environments.

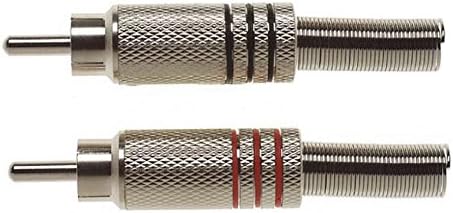

Image: A pair of Stagg B0200-MH Male RCA Plugs. The top plug features black rings, while the bottom plug has red rings, indicating channel differentiation. Both plugs have knurled grips for easy handling and a central pin for signal connection.
Setup and Connection
The Stagg B0200-MH Male RCA Plugs are designed for straightforward connection to compatible audio/video equipment.
- Identify Ports: Locate the RCA input ports on your audio or video device (e.g., amplifier, receiver, television, mixer). These ports are typically color-coded (red for right audio/video, white/black for left audio, yellow for composite video).
- Align and Insert: Align the male RCA plug with the corresponding female RCA jack. Ensure the central pin of the plug is aligned with the central hole of the jack.
- Push Firmly: Gently but firmly push the plug into the jack until it is fully seated. Avoid excessive force to prevent damage to either the plug or the device.
- Verify Connection: Ensure the connection is secure. A loose connection can result in signal loss or interference.
Note: For stereo audio, use two RCA plugs (typically one red and one white/black). For composite video, use one yellow RCA plug.
Operation
Once connected, the Stagg B0200-MH Male RCA Plugs facilitate the transmission of audio or video signals between devices. Their operation is passive, meaning they do not require external power or configuration.
- Signal Transmission: The plugs establish a physical connection, allowing electrical signals to flow from the source device to the receiving device.
- Compatibility: These plugs are compatible with any device featuring standard RCA input/output jacks.
Maintenance and Care
To ensure the longevity and optimal performance of your Stagg B0200-MH Male RCA Plugs, follow these maintenance guidelines:
- Cleaning: Periodically wipe the metal contacts with a clean, dry, lint-free cloth to remove dust or debris. Avoid using abrasive cleaners or solvents.
- Storage: When not in use, store the plugs in a clean, dry environment, away from extreme temperatures and direct sunlight.
- Handling: Always grasp the plug by its body when connecting or disconnecting, rather than pulling on the cable it's attached to. This prevents strain on the connection points.
- Inspection: Regularly inspect the plugs for any signs of damage, such as bent pins, loose connections, or corrosion.
Troubleshooting
If you encounter issues while using your Stagg B0200-MH Male RCA Plugs, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No audio/video signal | Loose connection | Ensure plugs are fully inserted into their respective jacks. |
| No audio/video signal | Incorrect port connection | Verify that the plugs are connected to the correct input/output ports on both devices. Match color codes if applicable. |
| Distorted or noisy signal | Damaged plug or cable | Inspect the plugs for physical damage. If connected to a cable, check the cable for kinks or cuts. Try a different plug/cable if available. |
| Distorted or noisy signal | Interference | Ensure the plugs and connected cables are routed away from power cables or other sources of electromagnetic interference. |
Specifications
| Attribute | Detail |
|---|---|
| Model | B0200-MH |
| Brand | Stagg |
| Connector Type | RCA |
| Connector Gender | Male |
| Material | Nickel-plated |
| Compliance | RoHS |
| Unit Count | 2 pieces |
| Dimensions (approx.) | 4 x 1 x 1 inches (per plug) |
| Item Weight (approx.) | 16 ounces (total for 2 pieces) |
| UPC | 882030160462 |
Warranty and Support
For information regarding warranty coverage or technical support for your Stagg B0200-MH Male RCA Plugs, please refer to the official Stagg website or contact your authorized Stagg dealer.
Stagg Official Website: www.staggmusic.com
