1. General Safety Information
Please read and understand all instructions before assembling and using this product. Failure to follow these instructions may result in injury or product damage. Keep this manual for future reference.
- Assembly: Assemble the coffee table on a soft, clean surface to prevent scratches. Ensure all parts are present and undamaged before beginning assembly. Do not overtighten screws, especially with particle board components, to avoid damage.
- Stability: Place the coffee table on a flat, level surface. Do not stand or sit on the table.
- Weight Capacity: Do not exceed the recommended weight capacity for the tabletop or storage compartments. Excessive weight can compromise the table's structure.
- Children and Pets: Keep children and pets away from the assembly area. Do not allow children to play on or around the coffee table, especially with the lift-top mechanism.
- Maintenance: Regularly check all fasteners to ensure they remain tight. Loose fasteners can lead to instability.
- Cleaning: Avoid using harsh chemicals or abrasive cleaners, which can damage the finish. Refer to the Maintenance section for proper cleaning.
2. Setup and Assembly
This HOMCOM coffee table requires assembly. It is recommended to have two people for assembly. Clear a large, clean area for assembly to prevent loss of small parts and to manage packaging materials like styrofoam.
2.1. Unpacking and Part Identification
- Carefully unpack all components from the box.
- Verify that all parts listed in the assembly instructions are present and undamaged. Contact customer support immediately if any parts are missing or damaged.
- Separate and organize hardware (screws, pegs, clamps) for easier assembly.
2.2. Assembly Steps
Follow the manufacturer's provided assembly diagrams. The general process involves:
- Prepare Panels: Lay out the main wooden panels (e.g., base, sides, top sections) on a protected surface. Insert wooden pegs and plastic screw pegs into their designated holes.
- Construct Frame: Assemble the main frame of the table using the prepared panels. Secure connections with the provided C-clamps, tightening them just enough to hold the pieces firmly without causing damage to the particle board.
- Attach Base: Connect the assembled frame to the main table base.
- Install Lift Mechanism: Secure the lift-top mechanism to the designated sections of the table. Ensure it operates smoothly before proceeding.
- Assemble Drawer: Construct the pull-out drawer and install its runners. Insert the assembled drawer into its compartment.
- Attach Legs: Secure the metal legs to the underside of the table.
Tip: If you have experience with IKEA-style furniture assembly, this process will be familiar. Pay close attention to the orientation of each piece as shown in the diagrams.
Figure 1: Dimensions of the HOMCOM 43-inch Modern Lift Top Coffee Table.
3. Operating Instructions
The HOMCOM 43-inch Modern Lift Top Coffee Table features a versatile design with a lift-top mechanism and integrated storage.
3.1. Using the Lift-Top Mechanism
- To raise the tabletop, gently pull the front edge of the tabletop upwards. The spring-loaded mechanism will assist in lifting it to a comfortable working or dining height.
- To lower the tabletop, apply gentle downward pressure on the front edge of the tabletop. Guide it slowly back into its closed position to avoid sudden drops or pinching.

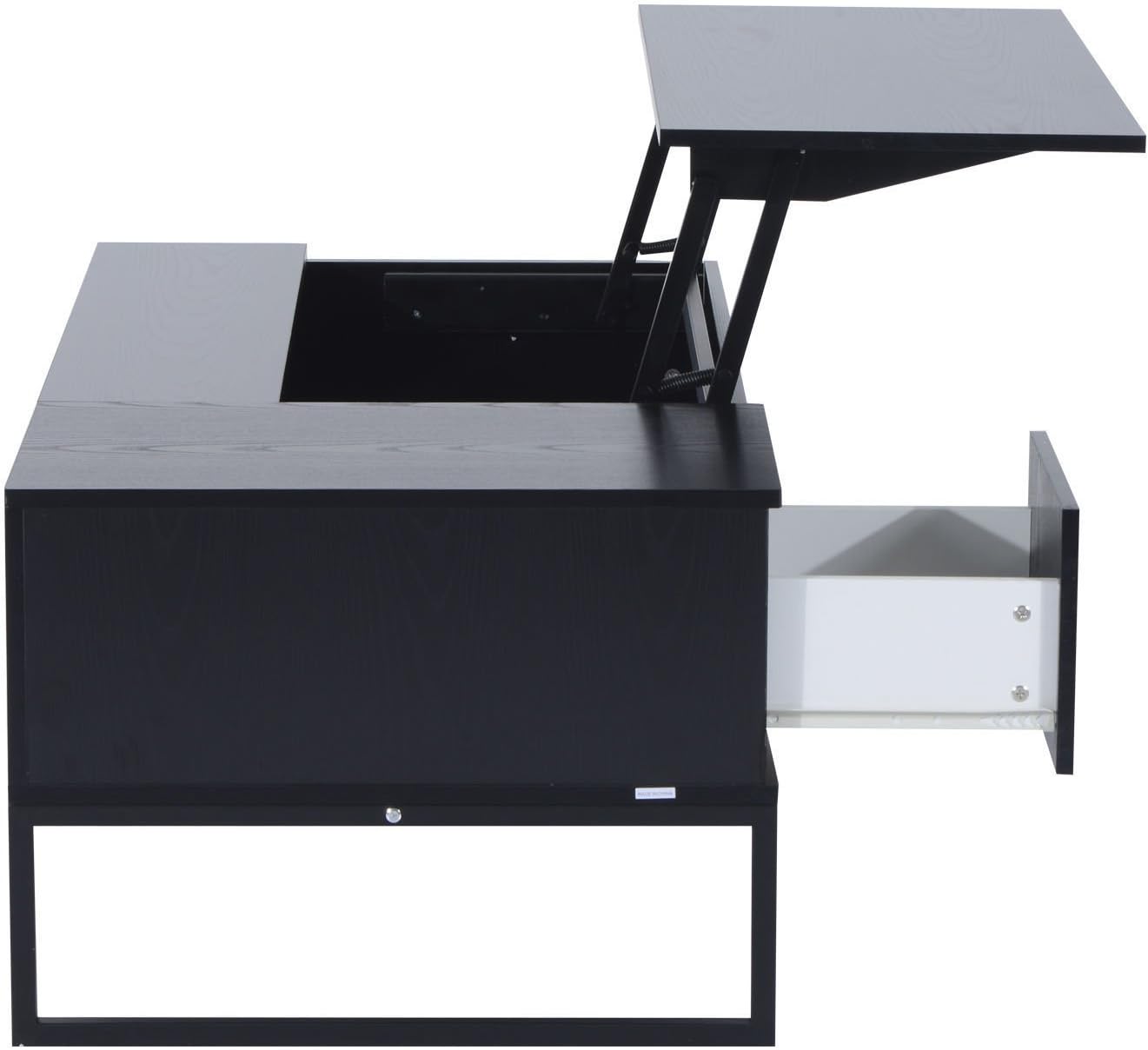

Figure 2: Coffee table with lift-top extended and drawer open.
3.2. Accessing Hidden Storage
When the lift-top is raised, a spacious hidden compartment is revealed beneath the tabletop. This area is ideal for storing items such as remote controls, magazines, blankets, or other living room essentials.
Figure 3: Hidden storage compartment and pull-out drawer.
3.3. Using the Pull-Out Drawer
- To open the side pull-out drawer, press the push-button magnetic lock. The drawer may require a slight pull from the side to fully extend.
- To close the drawer, push it firmly until the magnetic lock engages.
Figure 4: Detail of the pull-out drawer.
4. Maintenance
Proper care and maintenance will extend the life and appearance of your HOMCOM coffee table.
- Cleaning: Wipe surfaces with a soft, damp cloth. For tougher spots, use a mild soap solution and immediately dry with a clean, soft cloth. Avoid abrasive cleaners, solvents, or polishes containing silicone.
- Spills: The table is not stain-resistant. Clean up spills immediately to prevent staining or damage to the woodgrain finish.
- Fasteners: Periodically check all screws, bolts, and connections to ensure they are tight. Retighten as necessary to maintain stability.
- Moving the Table: When moving the table, always lift it rather than dragging it to prevent damage to the legs and frame.
- Heat and Moisture: Avoid placing hot items directly on the surface. Use coasters for drinks. Keep the table away from direct sunlight and excessive moisture to prevent warping or fading.
5. Troubleshooting
If you encounter issues with your coffee table, refer to the following common solutions:
- Lift-Top Mechanism is Stiff or Noisy: The mechanism may benefit from lubrication. Apply a small amount of silicone spray or WD-40 to the moving parts of the lift mechanism. Operate it a few times to distribute the lubricant.
- Drawer is Stiff or Does Not Close Properly: Check the drawer runners for any obstructions. Ensure the drawer is properly aligned on its tracks. Lubricating the drawer slides with a silicone spray can improve smoothness. Verify that the magnetic lock mechanism is functioning correctly.
- Table Feels Unstable or Wobbly: Ensure all assembly screws and fasteners are securely tightened. Re-check the connections of the legs to the main table body. If the issue persists, disassemble and reassemble the affected sections, paying close attention to the alignment of parts.
- Damaged Parts Upon Delivery: If you receive parts that are chipped, cracked, or otherwise damaged, do not proceed with assembly. Contact HOMCOM customer support immediately for replacement parts.
6. Specifications
Key specifications for the HOMCOM 43-inch Modern Lift Top Coffee Table (Model 833-044BK):
| Feature | Detail |
|---|---|
| Brand | HOMCOM |
| Model Number | 833-044BK |
| Product Dimensions (D x W x H) | 23.5" x 43.25" x 17.75" |
| Item Weight | 79 Pounds |
| Color | Black |
| Top Material Type | Wood, Stainless Steel |
| Shape | Square |
| Table Design | Coffee Table |
| Required Assembly | Yes |
| UPC / GTIN | 763250273876 |
7. Warranty Information
For specific warranty details regarding your HOMCOM 43-inch Modern Lift Top Coffee Table, please refer to the documentation included with your purchase or contact HOMCOM customer support directly. Warranty terms typically cover manufacturing defects and may vary by region and retailer.
8. Customer Support
If you have any questions, require assistance with assembly, or need to report missing or damaged parts, please contact HOMCOM customer support. Have your model number (833-044BK) and purchase information ready when you contact them.
You can often find support contact information on the manufacturer's website or through the retailer where you purchased the product.
