Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your BTF-LIGHTING 16.4ft Warm White SMD5630 LED Strip Light. Please read this manual thoroughly before use and retain it for future reference.
Safety Information
- Ensure the power supply is disconnected before installation or maintenance.
- This LED strip is designed for 12V DC power only. Connecting to a higher voltage will damage the product.
- This product is IP30 rated, meaning it is non-waterproof. Avoid exposure to water or high humidity.
- Do not bend the LED strip sharply or apply excessive force, as this may damage the circuit board or LEDs.
- Ensure proper ventilation around the LED strip to prevent overheating.
- Keep out of reach of children.
- Only use the recommended power adapter (DC12V3A) or a compatible power supply.
Package Contents
Verify that all components are present and in good condition:
- 1 x BTF-LIGHTING 16.4ft (5m) Warm White SMD5630 LED Strip Light
- 1 x Remote Control (if included with your specific package)
- Note: Power adapter is typically sold separately.
Specifications
| Brand | BTF-LIGHTING |
| Model Number | 56305MWW60W30 |
| LED Type | SMD5630 |
| LED Quantity | 300 LEDs (60 LEDs/meter) |
| Strip Length | 16.4 ft (5 meters) |
| FPCB Board Width | 10mm |
| Light Color | Warm White |
| Color Temperature | 2700K-3000K |
| Lumen per LED | 23-25 lm/LED |
| Working Voltage | DC 12V |
| Recommended Power Adapter | DC 12V 3A (36W) or higher |
| Wattage | 30 Watts |
| Waterproof Level | IP30 (Non-Waterproof) |
| Operating Temperature | -20°C to 50°C |
| Lifespan | >50,000 hours |
| Certifications | CE & RoHS |
Setup Instructions
- Prepare the Surface: Ensure the installation surface is clean, dry, and smooth. Dust, oil, or moisture can reduce the adhesive's effectiveness.

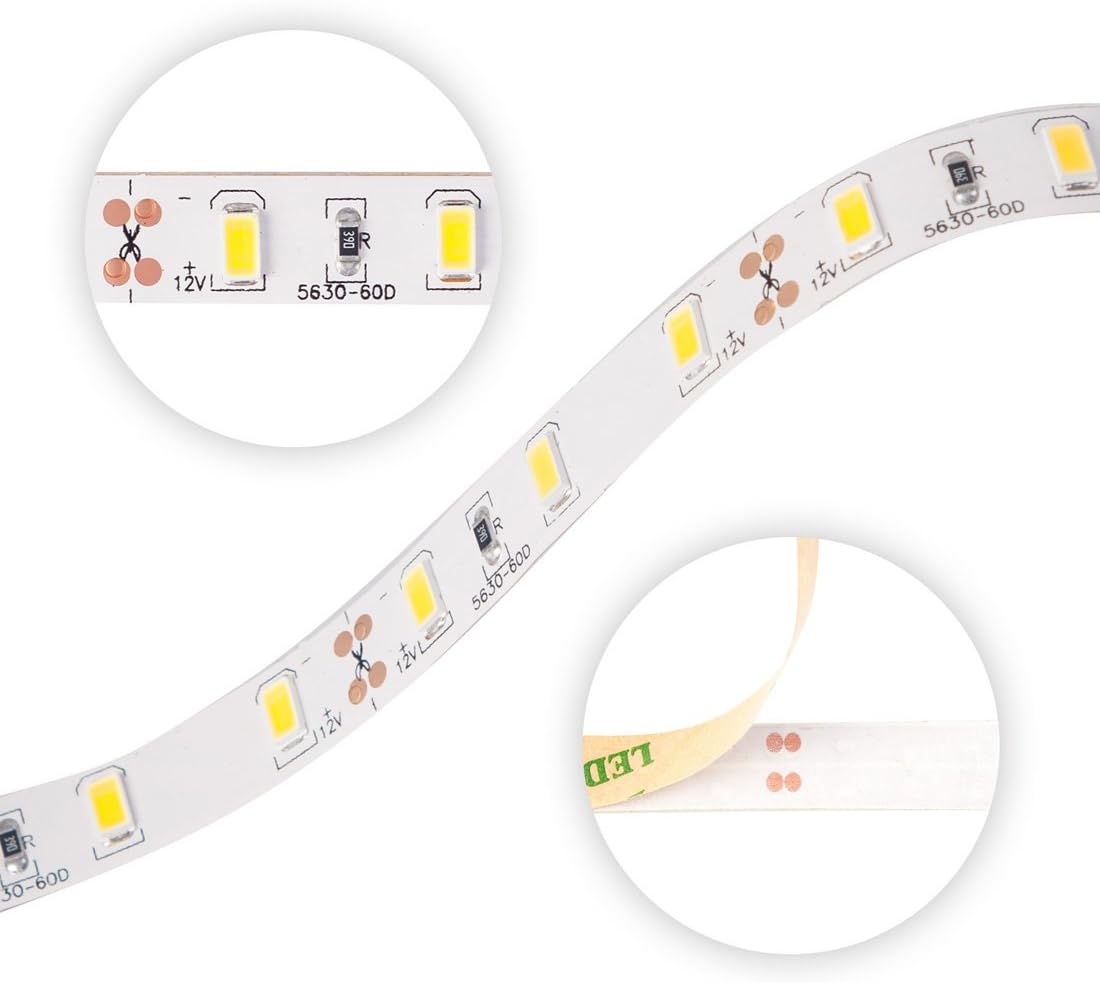

Image: Close-up view of the LED strip, highlighting individual SMD5630 LEDs and designated cut points marked with a scissor icon. The strip also shows the adhesive backing being peeled.
- Measure and Cut (Optional): If a shorter length is required, cut the LED strip only at the designated cut marks (usually indicated by a scissor icon and copper pads). Cutting elsewhere will damage the circuit and prevent the section from lighting up.
- Connect Power:
- Identify the 2-pin connectors on the LED strip.
- Connect the LED strip's 2-pin connector to a compatible DC 12V power adapter (not included). Ensure polarity is correct (positive to positive, negative to negative).
- If a remote control is included, connect the LED strip to the remote controller, and then connect the controller to the power adapter.
Image: Two separate sections of the LED strip, each terminating with a 2-pin connector (red and black wires), ready for connection to a power source or controller.
- Test Before Adhering: Before removing the adhesive backing, plug in the power adapter to test if the LED strip lights up correctly. This allows for troubleshooting before permanent installation.
- Adhere the Strip: Once tested, peel off the protective backing from the adhesive tape on the back of the LED strip. Carefully press the strip onto the desired clean, dry surface. Apply firm, even pressure along the entire length to ensure good adhesion.
Operating Instructions
Once the LED strip is properly installed and connected to a 12V DC power supply:
- Power On/Off: Plug the power adapter into a wall outlet to turn the strip light on. Unplug it to turn it off.
- Using the Remote Control (if applicable): If your package included a remote control, refer to its specific instructions for functions such as brightness adjustment or on/off control.
Image: Visual examples of LED strip lighting used in different indoor environments, demonstrating the warm white illumination. This image also shows Cool White and Nature White, but this product is Warm White.
Maintenance
- Cleaning: Ensure the power is off and unplugged before cleaning. Gently wipe the LED strip with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Inspection: Periodically check the strip for any signs of damage, loose connections, or adhesive degradation.
- Storage: If storing the LED strip, ensure it is kept in a dry, cool place, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED strip does not light up. |
|
|
| Part of the LED strip is not lighting up. |
|
|
| LEDs are dim or flickering. |
|
|
Warranty and Support
BTF-LIGHTING products are designed for reliability and performance. For warranty information, technical support, or assistance with your product, please contact BTF-LIGHTING customer service through the retailer where the product was purchased or visit the official BTF-LIGHTING website.
Please have your model number (56305MWW60W30) and purchase details ready when contacting support.
