Kendal Lighting AC17152-SN
Kendal Lighting Treo 52-inch Ceiling Fan User Manual
Model: AC17152-SN
Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kendal Lighting Treo 52-inch Indoor Ceiling Fan. Please read this manual thoroughly before beginning installation to ensure proper function and safety. Keep this manual for future reference.
Important Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Read all instructions before installing the fan.
- Ensure the installation site is suitable for a ceiling fan and can support the fan's weight (approximately 20.4 kg / 45 lbs).
- All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with wiring, consult a qualified electrician.
- Disconnect power at the main circuit breaker before installation or servicing.
- Do not operate the fan with damaged blades or housing.
- Avoid placing objects in the path of the fan blades.
- This fan is designed for indoor use only.
Package Contents
Carefully unpack your fan and inspect the contents. Retain the carton and packaging materials if possible. Ensure all parts are present before discarding packaging.
- Ceiling Fan Motor Assembly
- Fan Blades (3)
- Downrod (4.5 inches)
- Mounting Bracket
- Light Kit with Opal White Glass
- Wall-mounted Remote Control with Reverse Function and Dimmer
- 75-watt T4-shape G9 pin-base Halogen Light Bulb(s) (1 included)
- Hardware Pack (screws, washers, wire nuts)
Installation Instructions
Before starting, ensure power is turned off at the circuit breaker. Follow these steps carefully for proper installation.
1. Mounting the Fan
Attach the mounting bracket to the ceiling outlet box. Ensure the outlet box is securely fastened to the building structure and can support the fan's weight. This fan uses a downrod mount system.
Image: Kendal Lighting Treo 52-inch ceiling fan, showcasing the satin nickel finish and royal walnut blades. This view highlights the fan's contemporary design and downrod mounting.
2. Electrical Wiring
Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate wiring guide (if applicable) or standard electrical practices. Ensure all connections are secure and insulated with wire nuts.
3. Attaching the Blades
Securely attach the three fan blades to the motor housing using the provided screws. Ensure all screws are tightened to prevent wobbling during operation. The blades feature a royal walnut finish with decorative tips.
Image: Detailed view of the Kendal Lighting Treo fan, emphasizing the connection of the royal walnut blades to the satin nickel motor housing and the integrated light kit with an opal white glass shade.
4. Installing the Light Kit
Connect the light kit wiring to the fan motor wiring. Secure the light kit assembly to the bottom of the fan motor housing. Install the provided 75-watt T4-shape G9 pin-base halogen light bulb into the socket, then attach the opal white glass shade.

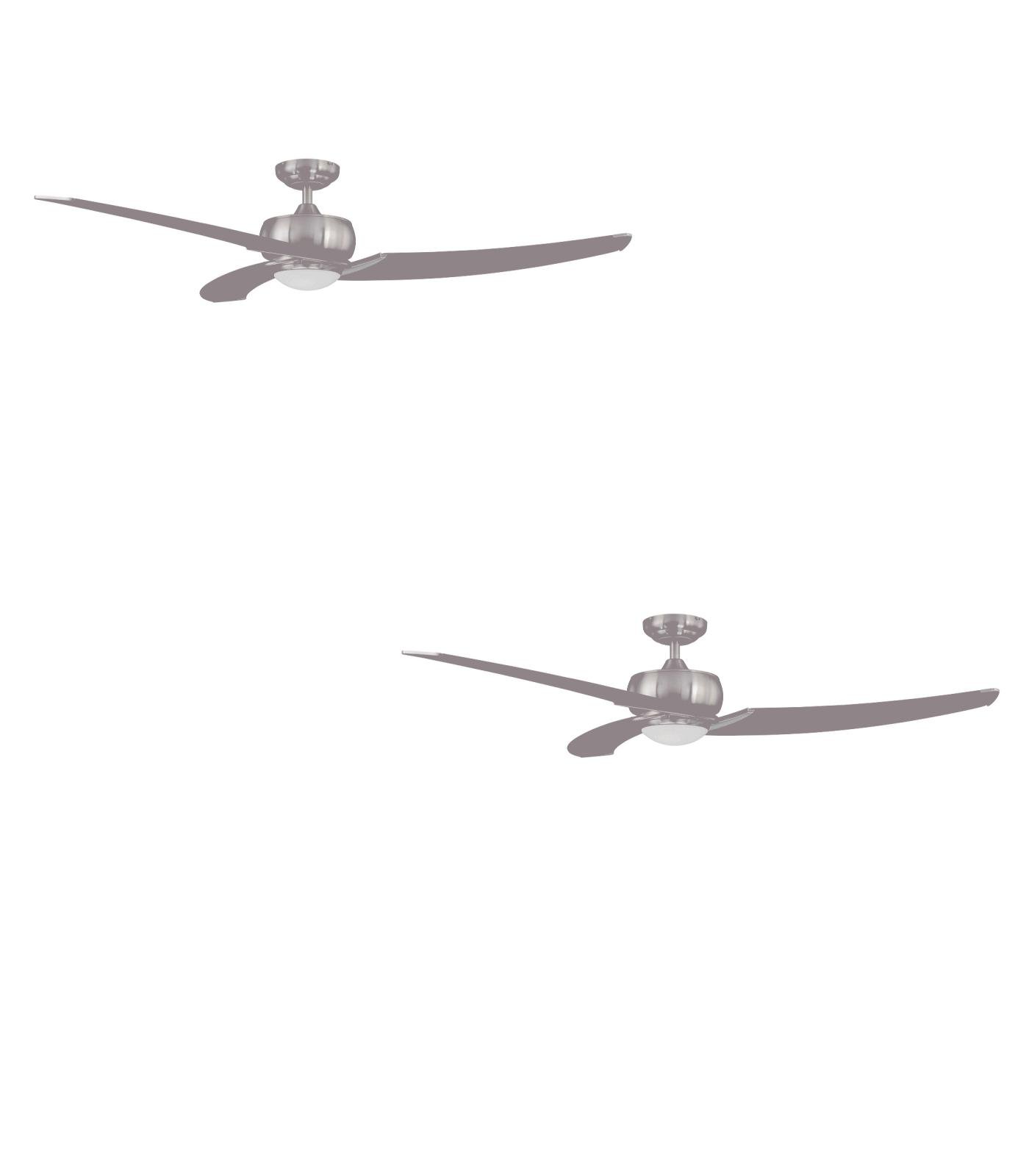

Image: A pair of Kendal Lighting Treo 52-inch ceiling fans, illustrating their sleek design and satin nickel finish. This image shows the fan with its integrated light kit.
Operating Your Ceiling Fan
Your Kendal Lighting Treo ceiling fan is operated by a wall-mounted remote control.
Remote Control Functions
The wall-mounted remote control allows you to manage fan speed, light on/off, light dimming, and reverse air flow.
- Fan Speed: Select from 3 motor speeds (High, Medium, Low) to adjust airflow.
- Light Control: Press the light button to turn the light on or off. Hold the button to dim the light.
- Reverse Air Flow: Use the reverse function button to change the direction of blade rotation. This is useful for seasonal comfort: downward airflow for cooling in summer, upward airflow for circulating warm air in winter.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan.
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish. Ensure power is off before cleaning.
- Bulb Replacement: When replacing the light bulb, ensure the power is off. Use only a 75-watt T4-shape G9 pin-base halogen bulb or an equivalent LED bulb.
- Blade Balance: If the fan wobbles, check that all blade screws are tight and that the blades are not warped.
Troubleshooting
If you experience issues with your fan, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wire connections are secure; Replace remote control battery. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Check blade balance (use balancing kit if needed); Ensure mounting bracket is secure. |
| Light does not work | Bulb burnt out; Loose wire connection; Light kit switch off. | Replace bulb; Check light kit wiring; Ensure light switch on remote is activated. |
| Remote control not working | Battery low or dead; Remote not paired with fan. | Replace battery; Refer to remote control pairing instructions (if applicable). |
Product Specifications
| Model Number | AC17152-SN |
| Brand | Kendal Lighting |
| Collection Name | Treo |
| Fan Diameter | 52 inches |
| Number of Blades | 3 |
| Blade Finish | Royal Walnut |
| Color/Finish Family | Satin Nickel |
| Mounting Type | Downrod Mount (4.5 inch downrod) |
| Light Kit Included | Yes, with Opal White Glass |
| Bulb Type | 75-watt T4-shape G9 pin-base Halogen (1 included) |
| Remote Control | Wall-mounted, with reverse function and dimmer |
| Motor Speeds | 3 |
| Reverse Air Flow | Yes |
| Application | Indoor |
| Recommended Room Size | Large (up to 400 sq. ft.) |
| High Speed Airflow (CFM) | 5713 |
| High Speed Electricity Use (Watts) | 61 |
| Product Dimensions | 91.44 x 91.44 x 91.44 cm (36 x 36 x 36 inches) |
| Item Weight | 20.4 kg (45 lbs) |
| Safety Listing | UL Safety Listing: Yes |
Warranty and Support
Your Kendal Lighting Treo ceiling fan comes with a Limited Lifetime Warranty. For warranty claims or technical support, please contact Kendal Lighting customer service. Keep your proof of purchase for warranty validation.
For further assistance, please visit the official Kendal Lighting website or contact their customer support line.
