1. Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of the Tennant 1014026 Squeegee Hose. This hose is a critical component for the recovery tank system of compatible Tennant automatic floor scrubbers, ensuring efficient liquid collection during cleaning operations. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
2. Product Overview

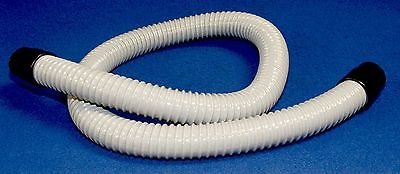

Figure 1: Tennant 1014026 Squeegee Hose. This image shows the flexible hose component, typically used to connect the squeegee assembly to the recovery tank on a floor scrubber.
The Tennant 1014026 Squeegee Hose is designed to facilitate the transfer of dirty water from the squeegee assembly to the recovery tank of your floor scrubber. Its durable construction ensures a secure and leak-free connection, vital for effective water recovery and preventing slips.
3. Compatibility
This squeegee hose is compatible with the following Tennant automatic floor scrubber models:
- Tennant A3 Automatic Floor Scrubber
- Tennant A5 Automatic Floor Scrubber
- Tennant SpeedScrub Automatic Floor Scrubber
- Tennant SpeedScrub Orbital & Rider
- Tennant SpeedScrub SS3 Automatic
Always verify the part number against your machine's specifications or owner's manual to ensure correct fitment.
4. Safety Information
Observe the following safety precautions during installation, operation, and maintenance:
- Disconnect Power: Always turn off and unplug the floor scrubber before performing any installation or maintenance.
- Wear Protective Gear: Use appropriate personal protective equipment (PPE) such as gloves and eye protection.
- Handle with Care: Avoid kinking or damaging the hose during installation.
- Proper Disposal: Dispose of old parts according to local regulations.
5. Setup and Installation
- Preparation: Ensure the floor scrubber is turned off, unplugged, and the recovery tank is empty.
- Remove Old Hose (if applicable): Carefully disconnect the existing squeegee hose from both the squeegee assembly and the recovery tank inlet. Note the routing of the old hose.
- Inspect Connections: Check the connection points on both the squeegee assembly and the recovery tank for any debris or damage. Clean if necessary.
- Install New Hose: Connect one end of the Tennant 1014026 Squeegee Hose securely to the squeegee assembly. Ensure a tight fit to prevent leaks.
- Connect to Recovery Tank: Route the hose to the recovery tank inlet and connect the other end securely. Avoid sharp bends or kinks that could restrict flow.
- Verify Security: Gently tug on both ends of the hose to confirm it is firmly attached and will not detach during operation.
- Test for Leaks: After installation, fill the recovery tank with a small amount of water and run the scrubber briefly (without brushes engaged) to check for any leaks at the connection points.
6. Operating Considerations
While the squeegee hose itself does not have operational controls, its proper function is integral to the scrubber's performance:
- Maintain Clear Path: Ensure the hose is not pinched, kinked, or obstructed during operation.
- Monitor Suction: If the scrubber exhibits poor water recovery, inspect the squeegee hose for blockages or damage.
- Regular Checks: Periodically check the hose connections for tightness before each use.
7. Maintenance
Regular maintenance extends the life of your squeegee hose and ensures efficient operation:
- Cleaning: After each use, flush the hose with clean water to remove any debris or chemical residue.
- Inspection: Regularly inspect the entire length of the hose for cracks, punctures, wear, or signs of kinking. Check the integrity of the connection points.
- Storage: When not in use, ensure the hose is stored in a manner that prevents kinking or damage.
- Replacement: Replace the hose immediately if any damage is found or if it shows signs of reduced flexibility or sealing capability.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor water recovery / Leaks | Hose not securely connected; Hose is cracked or punctured; Hose is kinked or blocked. | Ensure connections are tight; Inspect and replace damaged hose; Clear any blockages or straighten kinks. |
| Hose detaches during operation | Improper installation; Worn connection points. | Re-install hose ensuring secure fit; Inspect connection points for wear and replace if necessary. |
9. Specifications
- Part Number: 1014026
- Brand: Tennant
- Item Weight: 0.01 Ounces (approx. 0.28 grams)
- Style: Modern (as per manufacturer classification)
- Batteries Required: No
- ASIN: B01D0U4O3K
10. Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please contact Tennant customer service directly or refer to the official Tennant website. Keep your purchase receipt for warranty claims.
Tennant Official Website: www.tennantco.com
