ELEMENT ELEFT426 V500DK2-CKS2 E88441 T-CON Board Instruction Manual

1. Introduction

This manual provides essential information for the proper handling, installation, and maintenance of the ELEMENT ELEFT426 V500DK2-CKS2 E88441 T-CON Board. This board is a critical component in liquid crystal display (LCD) televisions, responsible for processing and distributing timing signals to the display panel, ensuring correct image rendering.

It is imperative to read and understand all instructions before attempting any installation or maintenance procedures to ensure safety and prevent damage to the component or associated equipment.

2. Safety Precautions

• Power Disconnection: Always disconnect the television from the main power supply before beginning any work on internal components.
• Electrostatic Discharge (ESD): T-CON boards are sensitive to electrostatic discharge. Use an anti-static wrist strap and work on an anti-static mat to prevent damage.
• Handle with Care: Avoid touching the integrated circuits (ICs) and delicate connectors directly. Hold the board by its edges.
• Tool Usage: Use appropriate, non-magnetic tools for disassembly and reassembly.
• Professional Installation: If you are not confident in your technical abilities, seek assistance from a qualified technician.

3. Setup and Installation

This section outlines the general steps for replacing a T-CON board. Specific disassembly procedures may vary depending on the television model.

3.1. Required Tools

• Phillips head screwdriver set
• Flathead screwdriver (for prying plastic clips, if necessary)
• Anti-static wrist strap and mat
• Small container for screws

3.2. Installation Steps

1. Prepare Work Area: Ensure a clean, well-lit, and anti-static environment.
2. Disconnect Power: Unplug the television from the wall outlet.
3. Access Rear Panel: Carefully place the TV face down on a soft, clean surface to protect the screen. Remove the screws securing the rear panel.
4. Locate T-CON Board: The T-CON board is typically located at the top or bottom center of the display panel, often covered by a metal shield. It connects to the main board via a ribbon cable and to the LCD panel via two or more flat flexible cables (FFCs).

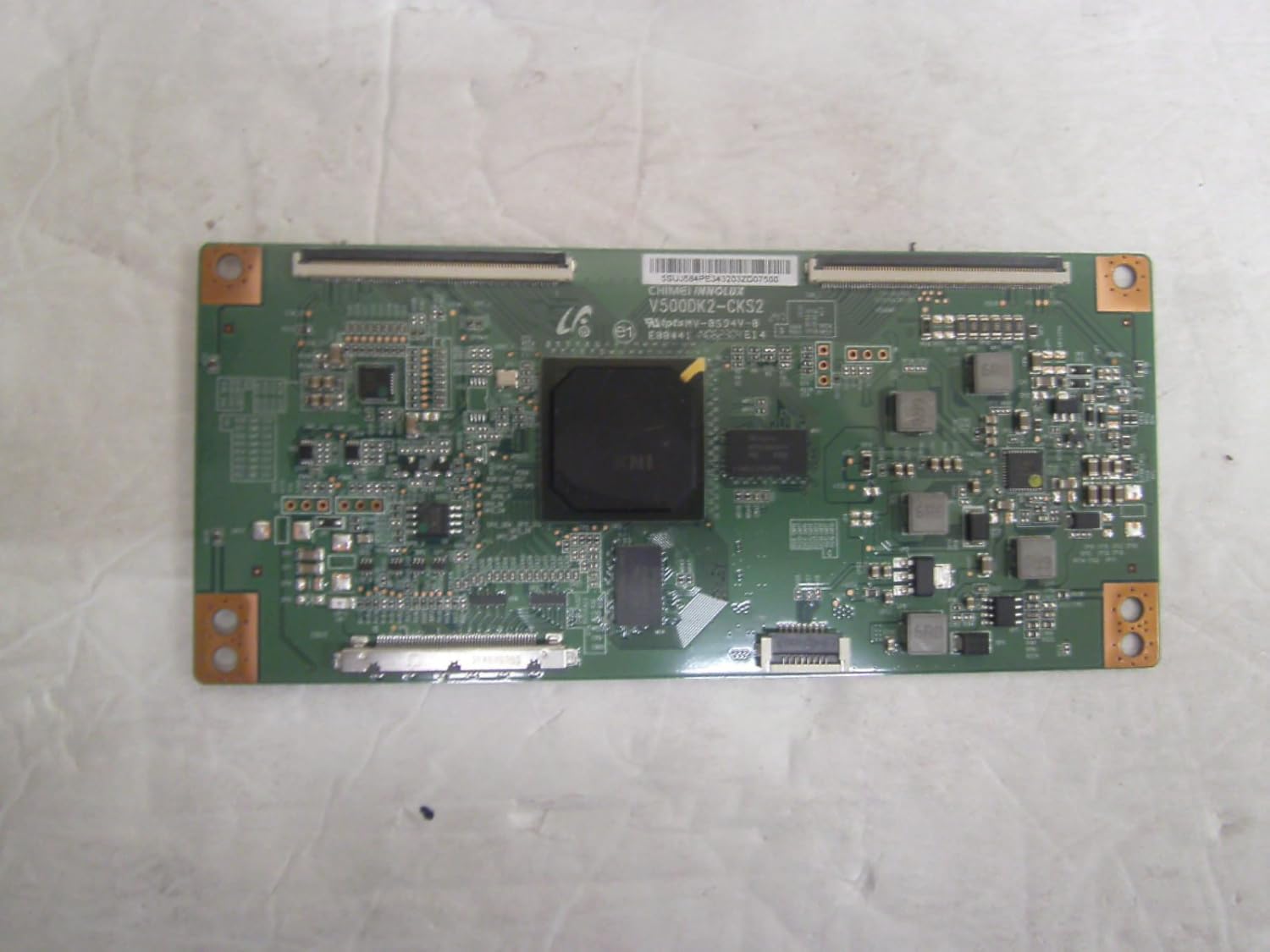

Figure 1: Overview of the ELEMENT ELEFT426 V500DK2-CKS2 E88441 T-CON Board. This image shows the full board with its various components, connectors, and mounting holes.
5. Disconnect Cables: Gently unlatch and disconnect the FFCs from the T-CON board. Be extremely careful as these cables and their connectors are fragile. Disconnect any other cables, such as the LVDS cable from the main board.
6. Remove Old Board: Unscrew the mounting screws holding the T-CON board in place and carefully lift it out.
7. Install New Board: Position the new ELEMENT ELEFT426 V500DK2-CKS2 E88441 T-CON Board in the same location. Secure it with the mounting screws.

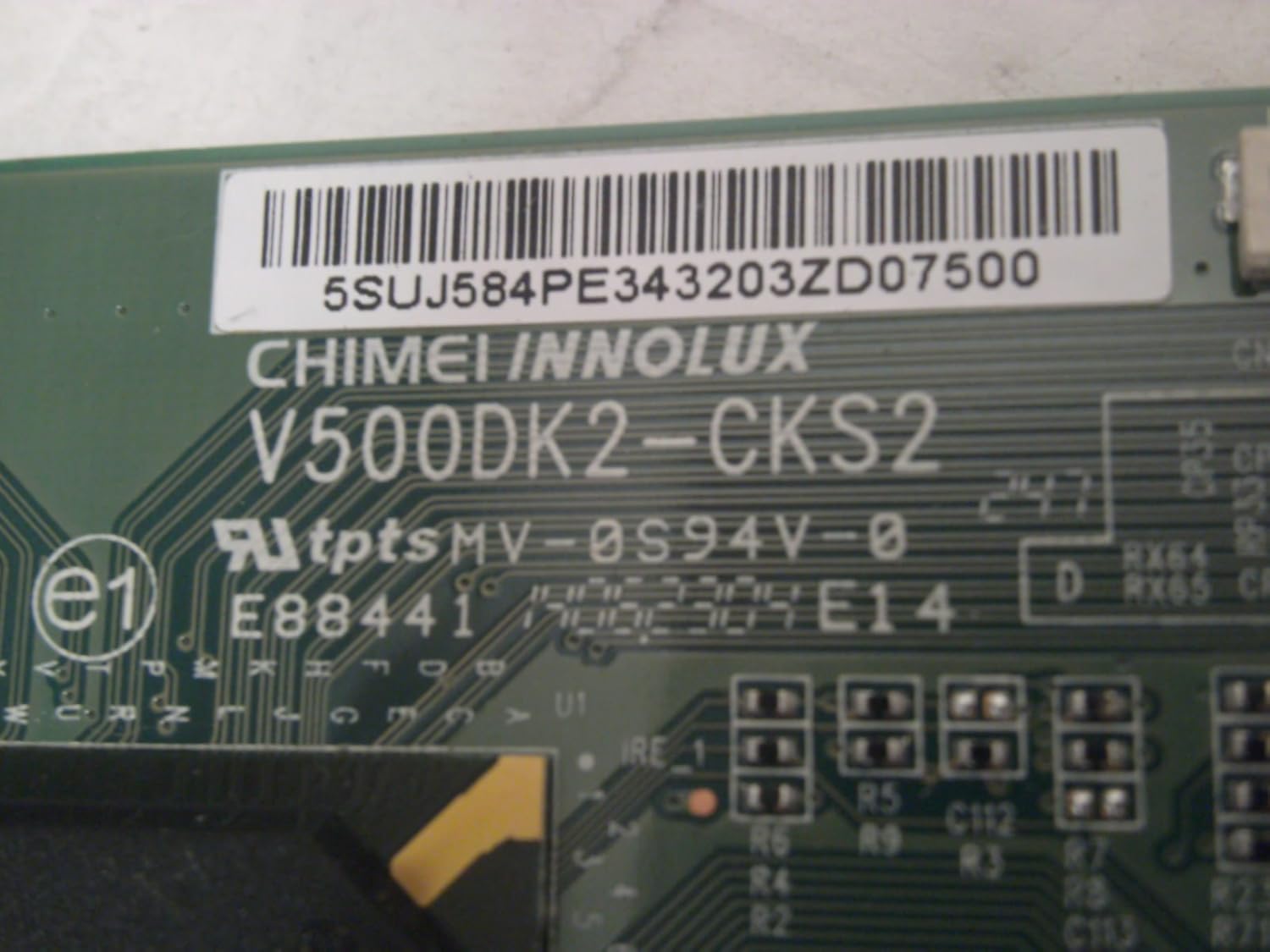

Figure 2: Close-up view of the product label on the T-CON board, clearly displaying the model number V500DK2-CKS2 and part number E88441. This label is crucial for verifying component compatibility.

8. Reconnect Cables: Carefully reattach all FFCs and other cables, ensuring they are fully seated and latched. Double-check all connections.

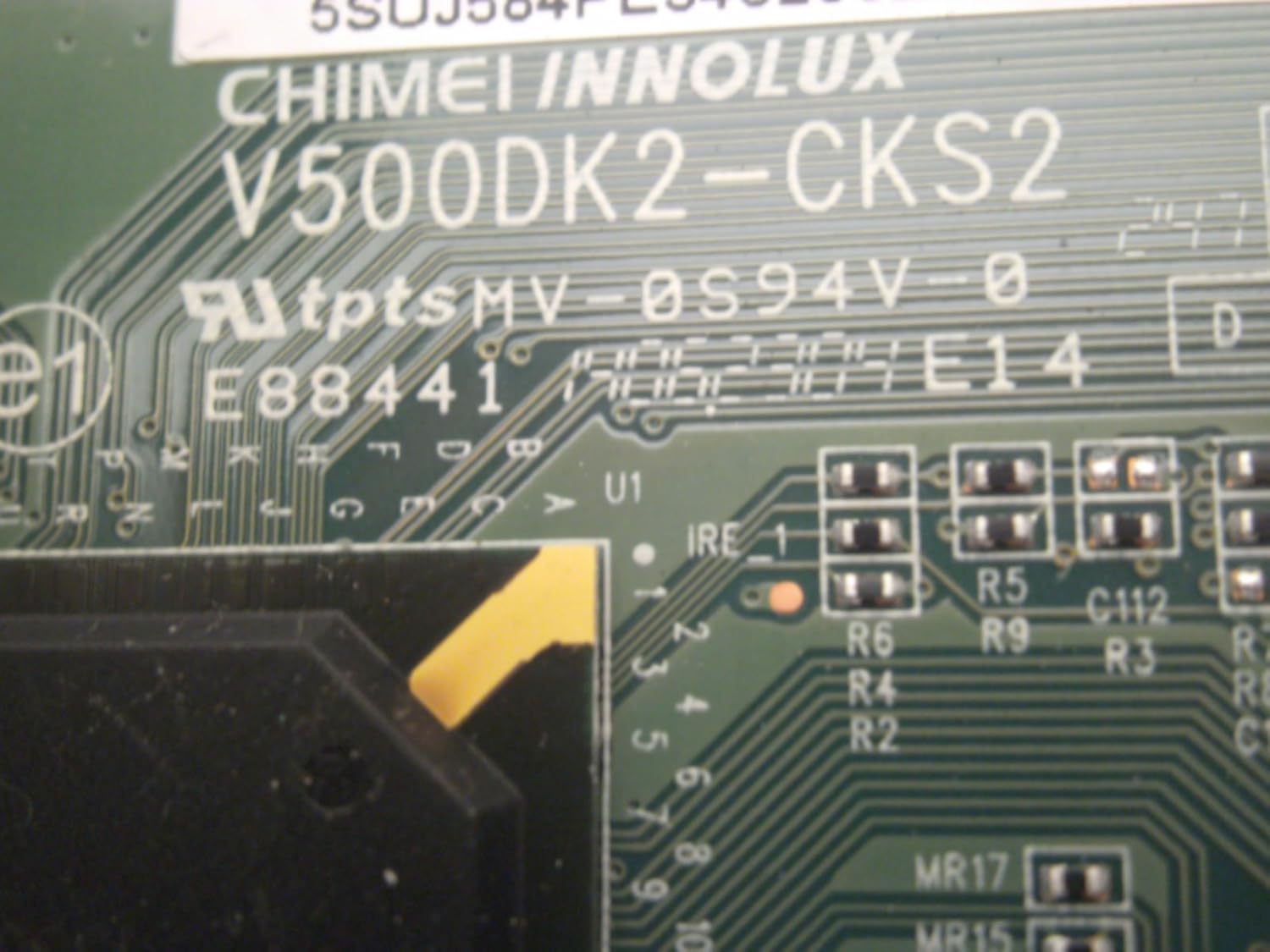

Figure 3: Detailed view of the T-CON board, highlighting various integrated circuits and the E88441 marking. This image provides a closer look at the board's intricate design and component layout.

9. Reassemble TV: Replace the rear panel and secure it with screws.
10. Test Functionality: Plug in the television and power it on to verify proper display functionality.

4. Operating Principles

The T-CON (Timing Controller) board is an essential component in LCD and LED displays. Its primary function is to receive video data and control signals from the main board and convert them into timing signals that drive the liquid crystal panel. This process involves:

• Signal Conversion: Transforming LVDS (Low-Voltage Differential Signaling) data from the main board into RSDS (Reduced Swing Differential Signaling) or other panel-specific formats.
• Timing Generation: Creating precise timing signals (gate and source drivers) that control the switching of individual pixels on the LCD panel.
• Gamma Correction: Adjusting the luminance response of the display to ensure accurate color and grayscale reproduction.
• Power Management: Regulating power supply to the display panel components.

A properly functioning T-CON board ensures a clear, stable, and correctly rendered image on the screen. Any malfunction can lead to various display issues.

5. Maintenance and Storage

5.1. General Maintenance

The T-CON board itself requires minimal maintenance once installed. However, adhering to general electronic component care practices can prolong its lifespan:

• Dust Control: Ensure the television's internal environment remains as dust-free as possible. Dust accumulation can lead to overheating or short circuits over time.
• Ventilation: Ensure the television's ventilation openings are not blocked to allow for proper heat dissipation.
• Avoid Liquids: Keep liquids away from the television to prevent accidental spills that could damage internal electronics.

5.2. Storage

If the T-CON board is not immediately installed, store it in its original anti-static packaging in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid environments with high humidity or significant temperature fluctuations.

6. Troubleshooting

If you encounter issues after installing the T-CON board, consider the following troubleshooting steps:

If these steps do not resolve the issue, it may indicate a more complex problem with the display panel or other internal components, or the replacement T-CON board itself may be faulty. In such cases, professional diagnosis is recommended.

7. Specifications

8. Warranty Information

This T-CON board is provided with a 30-day warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

Please note that the buyer is responsible for return shipping costs for any warranty claims. Damage resulting from improper installation, misuse, neglect, or unauthorized modifications is not covered under this warranty.

For warranty service, please contact the seller or original point of purchase with your proof of purchase.

9. Technical Support

For technical assistance or further inquiries regarding the ELEMENT ELEFT426 V500DK2-CKS2 E88441 T-CON Board, please refer to the following:

• Seller Support: Contact the seller directly through the platform where the purchase was made for product-specific support.
• Online Resources: Consult online forums or technical communities for general troubleshooting tips related to T-CON board replacement.
• Professional Service: If you are unable to resolve an issue, consider consulting a qualified television repair technician.
