Rowenta RO3753EA Compact Power Cyclonic Bagless Canister Vacuum Cleaner

1. Introduction

The Rowenta Compact Power Cyclonic vacuum cleaner is designed for efficient and user-friendly operation. It offers practical ergonomics, making it easy to use, transport, and store. This model features a powerful, high-efficiency suction brush for excellent performance on hard floors. Its monocyclonic system ensures a high level of air-dust separation. The product also includes a two-stage filtration system: a foam filter before the motor and a high-efficiency filter at the air outlet, capturing 99.98% of vacuumed dust particles.

2. Safety Instructions

Please read these instructions carefully before using the appliance for the first time. Keep this manual for future reference.

• Ensure the power supply voltage matches the voltage indicated on the appliance's rating plate.
• Do not use the appliance if the power cord or plug is damaged. Contact an authorized service center for repair.
• Do not vacuum water, liquids, hot ashes, sharp objects, or flammable substances.
• Always unplug the appliance before cleaning or performing any maintenance.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Package Contents

Verify that all components are present in the packaging:

• Rowenta Compact Power Cyclonic Vacuum Cleaner Unit
• Flexible Hose
• Telescopic Tube
• High-Efficiency Suction Floor Brush
• Parquet Brush
• 2-in-1 Crevice Tool

Image 1: The Rowenta Compact Power Cyclonic vacuum cleaner unit, flexible hose, telescopic tube, floor brush, and 2-in-1 crevice tool.

4. Setup

1. Attach the Flexible Hose: Insert the flexible hose into the suction inlet on the main unit until it clicks into place.
2. Assemble the Telescopic Tube: Connect the telescopic tube to the handle of the flexible hose. Adjust the length of the telescopic tube by pressing the release button and sliding it to the desired position.
3. Attach the Floor Brush: Connect the desired floor brush (e.g., high-efficiency suction brush or parquet brush) to the end of the telescopic tube.
4. Power Connection: Extend the power cord from the back of the unit and plug it into a suitable electrical outlet.

Image 2: Side view of the vacuum cleaner, illustrating the main unit's compact design and handle.

5. Operating Instructions

1. Power On: Press the ON/OFF button located on the main unit to start the vacuum cleaner.
2. Adjust Suction: The suction power can be adjusted via the air flow regulator on the hose handle.
3. Vacuuming Floors: Use the high-efficiency suction floor brush for general cleaning on various floor types. For delicate hard floors like parquet, attach the dedicated parquet brush.
4. Using Accessories:
   • The 2-in-1 crevice tool is ideal for narrow spaces, corners, and upholstery.
5. Power Off: Press the ON/OFF button again to turn off the appliance.
6. Cord Rewind: Press the cord rewind button to automatically retract the power cord.

Image 3: A person demonstrating the use of the vacuum cleaner on a carpeted surface.

Image 4: Detail of the floor brush, highlighting its design for effective suction.

Image 5: The versatile 2-in-1 crevice tool, shown in both its narrow and brush configurations.

6. Maintenance

6.1 Emptying the Dustbin

The vacuum cleaner is bagless and features a 1.5-liter dustbin. Empty the dustbin regularly to maintain optimal suction performance.

1. Unplug the vacuum cleaner from the power outlet.
2. Press the dustbin release button and carefully remove the dustbin from the main unit.
3. Position the dustbin over a waste bin and press the bottom release button to open the lid and empty the contents.
4. Close the dustbin lid securely and reattach the dustbin to the main unit until it clicks into place.

Image 6: The transparent dustbin, allowing visual monitoring of its fill level.

6.2 Cleaning the Filters

The vacuum cleaner features a two-stage filtration system: a foam filter and a high-efficiency filter. Regular cleaning of these filters is essential for maintaining performance and air quality.

1. Unplug the vacuum cleaner.
2. Remove the dustbin as described above.
3. Access the foam filter, typically located within or near the dustbin assembly. Remove it.
4. Locate the high-efficiency filter, usually positioned at the air outlet. Remove it.
5. Rinse both filters under cold running water. Do not use detergents.
6. Allow the filters to air dry completely for at least 24 hours before reinserting them. Do not use a hairdryer or other heating devices.
7. Once dry, reinsert the filters into their respective positions and reattach the dustbin.

Image 7: An illustration of the internal cyclonic system and filter placement within the dustbin.

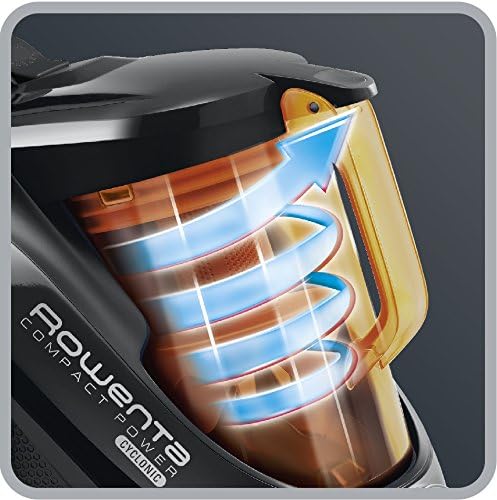

Image 8: A detailed view of the advanced cyclonic system, showing how air and dust are separated.

6.3 Storage

The compact design allows for easy storage. The hose and accessories can be stored on the unit or separately.

Image 9: The vacuum cleaner being carried, demonstrating its portability and compact size for storage.

7. Troubleshooting

8. Specifications

• Brand: Rowenta
• Model Number: RO3753
• Color: Orange/Black
• Product Dimensions (L x W x H): 40.94 x 27.62 x 29.03 cm
• Item Weight: 6.6 kg
• Capacity: 1.5 Liters (Dustbin)
• Power: 750 Watts
• Voltage: 240V
• Material: Plastic
• Automatic Shut-off Function: No
• Energy Class: A
• Annual Energy Consumption: 28 kWh/year
• Noise Level: 79 dB
• Features: Compact, Bagless
• Filter Type: Foam
• Surface Recommendation: All floors
• Power Source: Corded Electric
• Included Components: 2-in-1 Crevice Tool

9. Warranty and Support

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Rowenta website. For technical support, spare parts, or service, please contact Rowenta customer service in your region.

You can find more information and support resources on the official Rowenta Brand Store.
