1. Introduction
This user manual provides comprehensive instructions for the ASUS K31AN-IN006D Desktop PC. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. Please read this manual thoroughly before using your desktop PC.
Figure 1: Front view of the ASUS K31AN-IN006D Desktop PC.
2. Package Contents
Verify that all items are present in your package. If any item is missing or damaged, contact your retailer.
- ASUS K31AN-IN006D Desktop PC
3. Setup
3.1 Connecting Peripherals
Before powering on your desktop PC, connect all necessary peripherals such as the monitor, keyboard, mouse, and network cable.
- Connect the Monitor: Connect your monitor to the appropriate video output port (VGA, HDMI) on the rear panel of the desktop PC.
- Connect Keyboard and Mouse: Plug your USB keyboard and mouse into the available USB ports on the rear or front panel.
- Connect Network (Optional): If using a wired network connection, connect an Ethernet cable from your router or modem to the LAN port on the rear panel.
- Connect Power: Connect the power cord to the power input on the rear panel of the desktop PC, then plug the other end into a power outlet.
Figure 2: Rear panel connectivity ports including USB, LAN, VGA, and HDMI.
3.2 Powering On
After connecting all peripherals and power, press the power button located on the front panel of the desktop PC. The system will initiate the boot process.
4. Operating System
The ASUS K31AN-IN006D Desktop PC comes pre-installed with DOS (Disk Operating System). Upon initial boot, you may need to install a preferred operating system such as Windows or Linux to utilize the full functionality of the hardware. Refer to the installation guide of your chosen operating system for detailed steps.
4.1 Front Panel Overview
The front panel provides convenient access to frequently used ports and drives.

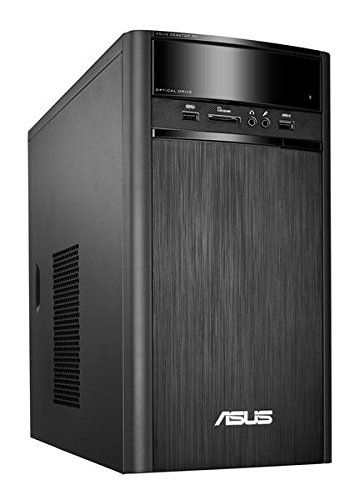

Figure 3: Front panel showing optical drive, USB ports, and audio jacks.
- Optical Drive: For reading and writing CDs/DVDs.
- USB Ports: Connect USB devices such as flash drives or external hard drives.
- Audio Jacks: Headphone and microphone ports for audio input/output.
- Card Reader: For reading various memory card formats.
5. Maintenance
Regular maintenance helps ensure the longevity and stable operation of your desktop PC.
- Keep it Clean: Regularly clean the exterior of the PC with a soft, dry cloth. Use compressed air to clear dust from ventilation grilles to prevent overheating.
- Ensure Proper Ventilation: Place the desktop PC in a well-ventilated area, ensuring that air vents are not obstructed.
- Software Updates: Once an operating system is installed, regularly update it and your drivers to maintain security and performance.
- Data Backup: Periodically back up important data to an external drive or cloud storage to prevent data loss.
6. Troubleshooting
This section addresses common issues you might encounter with your desktop PC.
- No Power:
- Check if the power cord is securely connected to both the PC and the power outlet.
- Ensure the power outlet is functional.
- No Display:
- Verify that the monitor is powered on and the video cable is securely connected to both the PC and the monitor.
- Ensure the correct input source is selected on your monitor.
- System Slowdown:
- Check for excessive background programs or processes.
- Ensure sufficient free space on the hard drive.
- Consider running a disk cleanup or defragmentation tool (if applicable for your OS).
- Peripheral Not Detected:
- Try connecting the peripheral to a different USB port.
- Ensure necessary drivers are installed for the peripheral (after OS installation).
7. Specifications
Below are the technical specifications for the ASUS K31AN-IN006D Desktop PC.
| Feature | Specification |
|---|---|
| Brand | ASUS |
| Model Name | K31AN IN006D |
| Operating System | DOS |
| CPU Model | Pentium J2900 |
| CPU Speed | 2.41 GHz |
| RAM Memory Installed Size | 4 GB |
| RAM Memory Technology | DDR3 |
| Hard Disk Description | Serial ATA (1TB 7200rpm) |
| Graphics Coprocessor | Intel HD Graphics (Integrated) |
| Network Connectivity | Wired, Wi-Fi |
| Item Dimensions | 39 x 18 x 35 Centimeters |
| Item Weight | 5300 Grams |
| Included Components | Desktop |
8. Warranty and Support
The ASUS K31AN-IN006D Desktop PC comes with a 3 Year Manufacturer Warranty from the date of purchase. For technical support, warranty claims, or service inquiries, please contact ASUS customer support through their official website or designated service centers. Keep your proof of purchase for warranty validation.
For the most up-to-date support information, visit the official ASUS support website.
