SRAM 900 Rear Hub Instruction Manual

1. Introduction

The SRAM 900 Rear Hub is engineered for superior performance, durability, and versatility in mountain and gravel biking. Crafted from lightweight aluminum, this high-performance hub combines advanced technology with precision engineering to deliver rapid engagement, smooth rotation, and reliable power transfer across various trail conditions. It is designed for riders seeking to reduce bike weight while maintaining robustness and high engagement.

Key features include a Double Time four-pawl internal mechanism for fast engagement, Speedball bearings for smooth rotation and longevity, and a versatile design supporting both XD-R and XDR cassette systems.

2. Setup and Installation

Proper installation of the SRAM 900 Rear Hub is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified bicycle mechanic.

2.1 Compatibility

• Cassette Systems: Compatible with 11-12 speed XD/XDR or SRAM 11s cassette systems.
• Axle Type: Features a convertible QR/12mm thru-axle design. End caps are included for seamless installation on different bike frames.
• Brake Mount: 6-bolt disc rotor mount.
• Spoke Drilling: Available in 24, 28, or 32 spoke hole options to suit various wheel builds.

2.2 General Installation Guidelines

Ensure all components are clean and free of debris before assembly. Apply appropriate grease or thread locker where specified by SRAM's official service manuals. Torque all fasteners to the manufacturer's recommended specifications. Refer to the official SRAM technical documentation for detailed, step-by-step installation instructions specific to your wheel build and frame type.

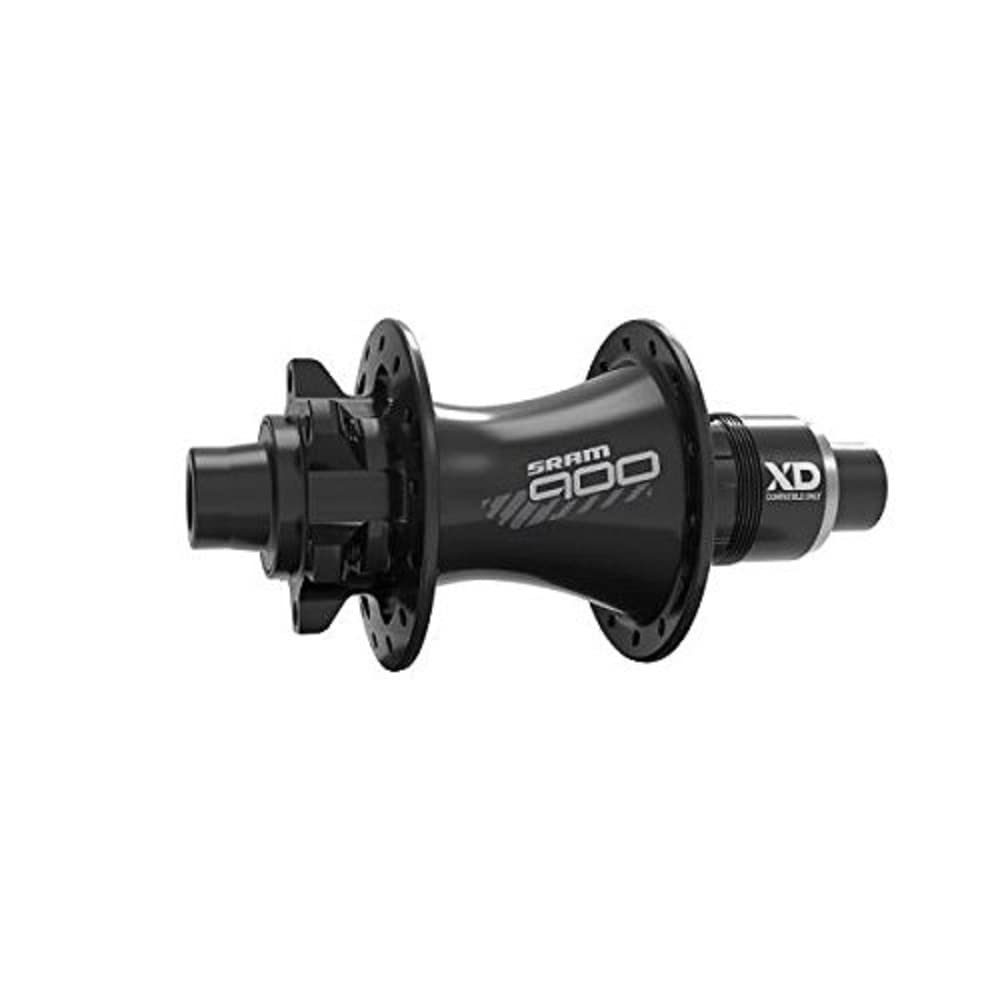

An image showing the SRAM 900 Rear Hub in black, highlighting its 6-bolt disc mount and overall design.

3. Operating the Hub

The SRAM 900 Rear Hub is designed for responsive and efficient power transfer during cycling. Its Double Time four-pawl internal mechanism ensures rapid engagement, minimizing pedal lag and providing immediate power delivery when you accelerate or encounter technical terrain. The Speedball bearings contribute to a smooth, low-friction rotation, enhancing overall ride quality.

This hub is optimized for rigorous trail riding, all-mountain adventures, and endurance racing, providing reliable performance under demanding conditions.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your SRAM 900 Rear Hub. While the Speedball bearings are designed for enhanced longevity and reduced maintenance, periodic checks are still important.

4.1 Cleaning

Keep the hub and surrounding areas clean from dirt, mud, and grime. Use a mild detergent and water, avoiding high-pressure sprays directly on the seals.

4.2 Inspection

Periodically inspect the hub for any signs of wear, damage, or loose components. Check for play in the axle or bearings. Ensure the disc rotor bolts are securely tightened to the manufacturer's specifications.

4.3 Bearing Service

While Speedball bearings are durable, they may require service or replacement over time depending on riding conditions and usage. Refer to the official SRAM service manual for detailed instructions on bearing inspection, cleaning, and replacement procedures. Do not attempt to disassemble the hub without the proper tools and knowledge.

5. Troubleshooting

If you experience issues with your SRAM 900 Rear Hub, consider the following general troubleshooting steps. For complex problems, consult a professional bicycle mechanic or SRAM's official support resources.

• Excessive Play: If there is noticeable play in the hub, check that the axle and end caps are correctly installed and tightened. Bearing wear could also be a factor, requiring professional inspection.
• Unusual Noises: Grinding or clicking sounds may indicate contamination, worn bearings, or issues with the freehub mechanism. Disassembly and inspection by a mechanic may be necessary.
• Poor Engagement: If the hub is not engaging quickly or consistently, the freehub mechanism may require cleaning, lubrication, or replacement of pawls/springs.

6. Specifications

7. Warranty Information

The SRAM 900 Rear Hub is covered by a Limited Warranty. For specific details regarding warranty terms, conditions, and duration, please refer to the official SRAM warranty policy available on their website or contact SRAM customer service. Keep your proof of purchase for warranty claims.

8. Support

For further assistance, technical documentation, or service inquiries, please visit the official SRAM website or contact their customer support department. You can often find detailed service manuals, exploded diagrams, and FAQs on their support pages.

SRAM Official Website: www.sram.com
