1. Introduction
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of the Vestil HDC-905-IDC/208V Hydraulic Drum Crusher and Compactor. This industrial equipment is designed to crush steel drums and compact their contents, offering a dual-function solution for material handling and waste reduction.
Key features include 38,000 lbs of crushing force, automatic reset, and compliance with OSHA and JIC standards. Understanding and following these instructions will ensure proper use and extend the lifespan of your equipment.
Figure 1: Front view of the Vestil HDC-905-IDC/208V Hydraulic Drum Crusher and Compactor.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or death. Always prioritize safety during operation, maintenance, and transport.
- Always read and understand all instructions and warnings before operating the unit.
- Ensure the unit is properly installed, grounded, and connected to the specified power supply by a qualified electrician.
- Never operate the machine with the access door open. A door interlock system prevents motor operation unless the door is securely closed.
- In case of emergency, immediately press the mushroom-head emergency stop button to instantly shut down the unit.
- The pressure relief valve prevents overload, but do not attempt to crush items beyond the machine's rated capacity or intended use.
- Only crush ribbed steel drums. Do not attempt to crush smooth-walled drums, as this can cause damage to the machine and potential injury due to improper crushing.
- Wear appropriate personal protective equipment (PPE) at all times, including safety glasses, hearing protection, and gloves.
- Keep hands, feet, and clothing clear of all moving parts and the crushing chamber during operation.
- Ensure the work area is clear of bystanders and obstructions.
- Do not modify the equipment in any way. Use only genuine Vestil replacement parts.
3. Setup
3.1 Unpacking and Placement
Carefully unpack the unit from its shipping container. The machine is equipped with built-in fork pockets to facilitate safe transportation and precise positioning using a forklift. Ensure the unit is placed on a level, stable, and structurally sound surface capable of supporting its weight (approximately 1160 lbs) and the dynamic forces generated during operation.
Figure 2: The drum crusher with its access door open, revealing the crushing chamber.
3.2 Electrical Connection
Connect the unit to a dedicated 208 Volt Three Phase power supply. All electrical connections must be performed by a qualified and licensed electrician in accordance with all applicable national and local electrical codes and standards.
3.3 Hydraulic Fluid
Before initial operation, verify that the hydraulic fluid reservoir is filled to the appropriate level with the manufacturer-recommended hydraulic fluid. Refer to the product's specific documentation for fluid type and capacity.
4. Operating Instructions
4.1 Crushing Drums
- Ensure the unit is powered on and the emergency stop button is released.
- Open the access door of the crushing chamber.
- Place a ribbed steel drum (up to 55 gallons) inside the crushing chamber. Ensure the drum is centered on the base plate.
- Close the access door securely. The door interlock system must engage for the unit to operate.
- Activate the crushing cycle using the illuminated on/off switch. The unit will apply 38,000 lbs of force to flatten the drum to approximately 6 inches in about 25 seconds.
- The unit will automatically reset after the crushing cycle is complete, retracting the platen.
- Open the door and carefully remove the crushed drum.

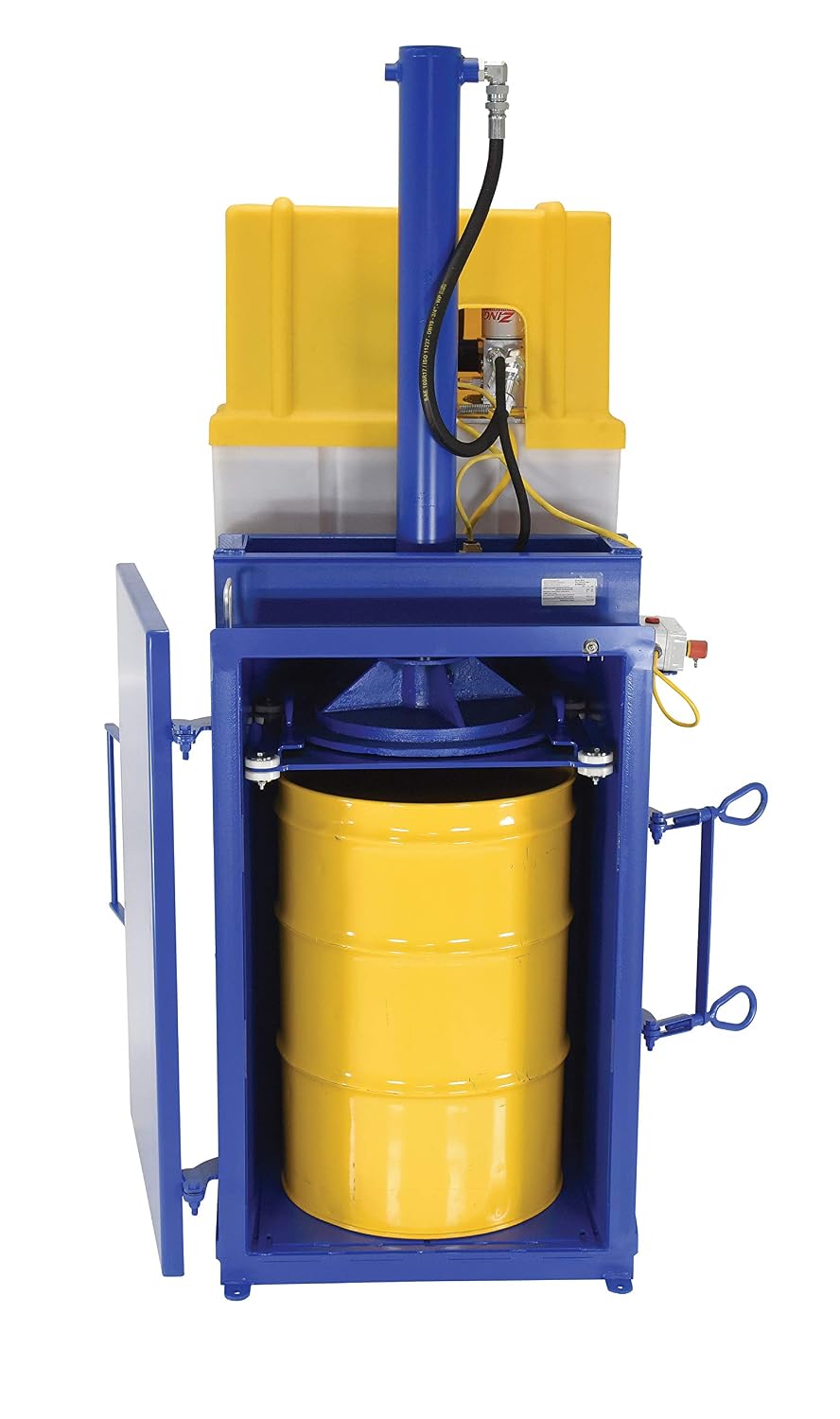

Figure 3: A drum positioned inside the crushing chamber, ready for operation.
4.2 Compacting Contents
The unit can also compact contents within 55-gallon drums. This feature requires the removal of the drum crushing platen.
- Before compacting, remove the drum crushing platen according to the manufacturer's instructions.
- Place the 55-gallon drum with contents into the chamber.
- Close the door and initiate the compacting cycle using the on/off switch.
- The machine will compact the contents. The unit will automatically reset upon completion.
- Open the door and remove the drum.
4.3 Drip Pan
The included drip pan should always be in place at the base of the unit to collect any spills or leaks during operation, helping to maintain a clean and safe work environment.
5. Maintenance
Regular maintenance is crucial for the safe and efficient operation and longevity of your Vestil drum crusher and compactor.
- Regular Cleaning: Keep the unit clean, especially the crushing chamber, platen, and hydraulic components, to ensure optimal performance and prevent debris buildup.
- Hydraulic System Check: Periodically inspect all hydraulic hoses, fittings, and cylinders for leaks, wear, or damage. Check and maintain hydraulic fluid levels as per manufacturer guidelines. Replace any damaged components immediately.
- Electrical System Check: Regularly inspect electrical wiring, connections, and control panel components for signs of wear, fraying, or damage. Ensure the emergency stop button and door interlock system are functioning correctly.
- Drip Pan: Empty and clean the drip pan regularly to prevent overflow and maintain cleanliness. Replacement and additional drip pans are available from Vestil.
- General Inspection: Routinely check all fasteners, welds, and structural components for signs of wear, fatigue, or damage. Tighten any loose fasteners and replace any worn or damaged parts immediately.
6. Troubleshooting
This section provides solutions to common operational issues. For problems not listed here, or if solutions do not resolve the issue, contact Vestil customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | No power supply; Emergency stop engaged; Door not closed; Faulty switch | Check 208V Three Phase power; Release emergency stop; Close door completely; Inspect on/off switch. |
| Drum not crushing properly | Smooth-walled drum; Drum not centered; Hydraulic pressure low; Obstruction | Ensure ribbed steel drum; Center drum; Check hydraulic fluid level; Remove obstructions. |
| Unusual noises or vibrations | Loose components; Foreign object; Hydraulic system issue | Immediately shut down unit; Inspect for loose parts or foreign objects; Contact qualified technician for hydraulic inspection. |
| Hydraulic fluid leaks | Damaged hose/fitting; Seal failure | Immediately shut down unit; Identify source of leak; Replace damaged components; Contact qualified technician. |
7. Specifications
- Model: HDC-905-IDC/208V
- Brand: Vestil
- Crushing Force: 38,000 lbs.
- Power Source: 208 Volt Three Phase (AC)
- Crushing Capacity: Up to 55-gallon ribbed steel drums
- Compacting Capacity: 55-gallon drums (with platen removed)
- Weight: Approximately 1160 pounds
- Material: Steel (Blend)
- Color: Blue
- Compliance: Manufactured to comply with OSHA and JIC standards & specifications.
8. Warranty and Support
For detailed warranty information regarding your Vestil HDC-905-IDC/208V Hydraulic Drum Crusher and Compactor, please refer to the warranty documentation provided at the time of purchase. You may also contact Vestil customer service directly for specific warranty terms and conditions.
Vestil is committed to providing quality products and excellent customer support. For technical assistance, parts inquiries, service requests, or any other questions, please contact Vestil customer support through their official channels.
