1. Important Safety Information
Read and understand all instructions and safety warnings before installing or using the Erickson 07495 Deluxe Cargo Carrier. Failure to follow these instructions may result in property damage, personal injury, or death.
- Weight Capacity: Do not exceed the maximum load capacity of 500 lbs (226.8 kg) for this cargo carrier. Also, ensure your vehicle's hitch receiver and towing capacity are not exceeded.
- Hitch Requirement: This cargo carrier is designed for use with a 2-inch square hitch receiver only.
- Secure Cargo: Always secure all cargo to the carrier using appropriate tie-downs, such as Erickson bungees or ratchet straps, to prevent shifting or falling during transit.
- Clearance: Ensure adequate ground clearance and clearance from vehicle exhaust systems.
- Inspection: Before each use, inspect the carrier for any signs of damage, loose fasteners, or corrosion. Do not use if damaged.
- Driving: Drive cautiously, especially when turning or braking, as the added weight and length may affect vehicle handling.
2. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Erickson customer support.
- Cargo Carrier Basket Sections
- Hitch Shank
- Mounting Hardware (bolts, nuts, washers)
- Reflectors
3. Setup and Installation
The Erickson 07495 Deluxe Cargo Carrier requires approximately 15-20 minutes for assembly. No special tools are needed for this process.
- Assemble the Carrier: Follow the included assembly diagram to connect the cargo basket sections and attach them to the hitch shank using the provided hardware. Ensure all bolts are tightened securely.
- Install Reflectors: Attach the red reflectors to the designated areas on the carrier for increased visibility.
- Insert into Hitch Receiver: Slide the hitch shank of the assembled cargo carrier into your vehicle's 2-inch square hitch receiver.
- Secure with Pin: Align the hitch pin holes and insert a hitch pin (not included) to secure the carrier to the vehicle. Use a hitch clip or lock to prevent accidental disengagement.
- Folding Feature: The carrier can be folded flat against the vehicle when not in use to save space. Refer to the video below for a demonstration of this feature.

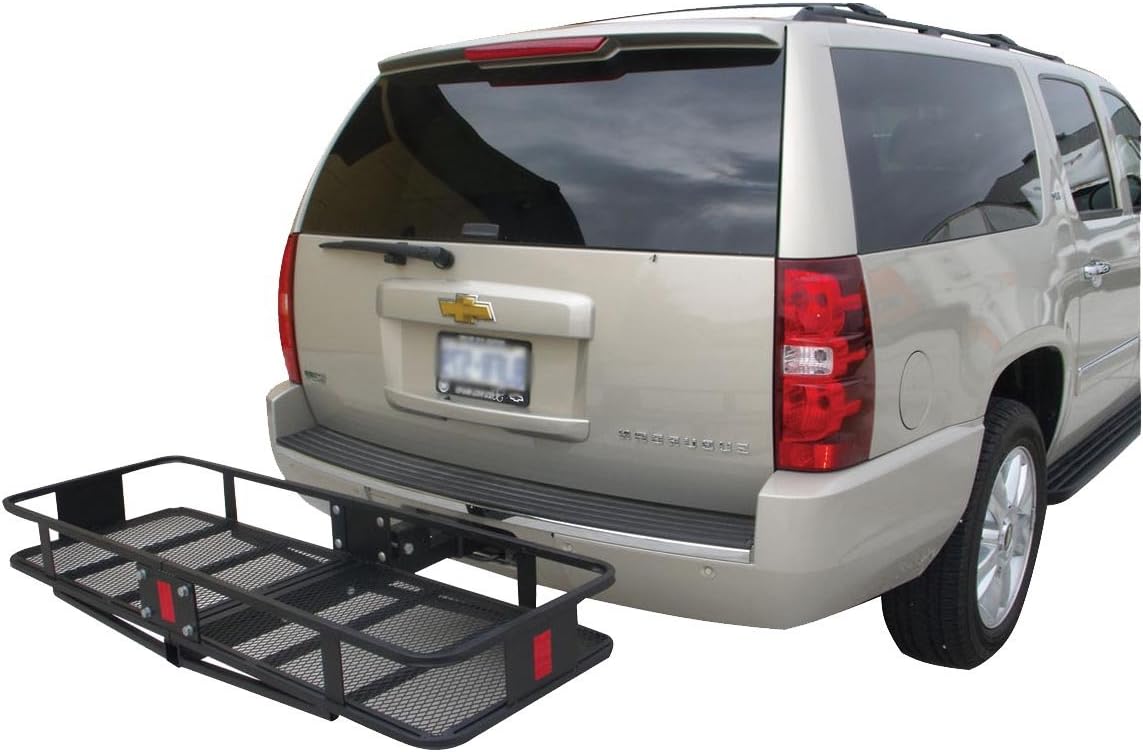

Image: The Erickson 07495 Deluxe Cargo Carrier attached to the rear of an SUV, shown in its extended position. This image illustrates the carrier ready for loading, highlighting its robust construction and hitch attachment.
Video: This official Erickson video demonstrates the features of the 07495 Deluxe Cargo Carrier, including its folding mechanism and how it attaches to a vehicle's hitch receiver. It provides a visual guide to the product's functionality and ease of use.
4. Operating Instructions
Once installed, the cargo carrier provides additional storage space for various items.
- Loading Cargo: Place items evenly across the carrier's surface. Avoid concentrating heavy loads in one area.
- Secure Items: Use bungee cords, cargo nets, or tie-down straps to firmly secure all items to the carrier. Ensure no items can shift, fall off, or obstruct vehicle lights or license plates.
- Check Clearance: Before driving, verify that the loaded carrier does not interfere with the vehicle's rear doors, trunk, or exhaust.
- Folding: To fold the carrier up against the vehicle when empty, release the locking mechanism (if applicable) and pivot the carrier upwards until it locks into the vertical position.
Image: The cargo carrier shown loaded with firewood and a cooler, demonstrating its capacity for bulky items. The items are secured with tie-downs, illustrating proper loading technique.
Image: The cargo carrier filled with assorted luggage and a cooler, all contained under a cargo net. This image highlights the versatility of the carrier for different types of gear and the importance of using a cargo net for securing multiple items.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your cargo carrier.
- Cleaning: Clean the carrier periodically with mild soap and water to remove dirt, road grime, and salt. Rinse thoroughly and allow to dry.
- Corrosion Resistance: The black powder coat finish helps resist corrosion. However, inspect for any chips or scratches in the coating and touch up with rust-inhibiting paint if necessary to prevent rust.
- Hardware Check: Regularly check all bolts, nuts, and fasteners to ensure they remain tight. Re-tighten as needed.
- Storage: When not in use, store the carrier in a dry place to protect it from the elements.
6. Troubleshooting
If you encounter issues with your cargo carrier, consider the following:
- Carrier Wobbles: Ensure the hitch pin is fully inserted and secured. Check if the hitch receiver is the correct size (2-inch). A hitch tightener (not included) can be used to reduce movement.
- Difficulty Folding: Check for any obstructions or debris in the folding mechanism. Ensure the locking pin or lever is fully disengaged before attempting to fold.
- Excessive Noise: Verify that all cargo is securely tied down and not shifting. Check all assembly hardware for tightness.
For persistent issues or concerns not addressed here, please contact Erickson customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 07495 |
| Dimensions (L x W) | 60 inches x 20 inches |
| Load Capacity | 500 lbs (226.8 kg) |
| Hitch Receiver Size | 2-inch square |
| Material | Steel with Black Powder Coat Finish |
| Foldable | Yes |
| Item Weight | 55 Pounds |
8. Warranty and Support
Erickson's liability for defects on any product shall not exceed its replacement cost. Please follow all safety warnings and instructions provided in this manual.
For customer support, technical assistance, or warranty claims, please visit the official Erickson website or contact their customer service department directly. Always refer to your product model number (07495) when seeking support.
