Greenworks 2000 PSI Electric Pressure Washer

1. Introduction

This instruction manual provides essential information for the safe and efficient operation of your Greenworks 2000 PSI Electric Pressure Washer, Model GPW2002. Please read this manual thoroughly before assembly, setup, and operation to ensure proper use and to prevent injury or damage.

2. Safety Information

Always follow basic safety precautions when using this electric pressure washer to reduce the risk of fire, electric shock, and personal injury.

• Wear appropriate safety gear, including eye protection, hearing protection, and protective clothing.
• Ensure the power cord is connected to a grounded outlet with GFCI protection.
• Never point the spray gun at people, pets, or electrical devices.
• Keep the work area clear of obstructions and ensure stable footing.
• Do not operate the pressure washer in the rain or wet conditions.
• Always disconnect power and water supply before performing any maintenance or cleaning.

3. Package Contents

Verify that all items are present in the package:

• Greenworks 2000 PSI Electric Pressure Washer Unit
• High-Pressure Hose (25 ft) with Hose Reel
• Spray Gun
• Spray Wand
• Quick-Connect Nozzle Tips: 25°, 40°, Soap, and Turbo Nozzle
• Detergent Tank
• 35 ft Power Cord with inline GFCI
• Owner's Manual

Figure 3.1: Overview of the Greenworks 2000 PSI Pressure Washer and its main components.

4. Assembly

Follow these steps to assemble your pressure washer:

1. Attach the spray gun holders to the main unit.
2. Connect the high-pressure hose from the hose reel to the spray gun. Ensure a secure connection.
3. Attach the spray wand to the spray gun.
4. Select and attach the desired quick-connect nozzle tip to the spray wand.

Figure 4.1: Detail of the rotary switch, easy-grip garden hose connection, on-board detergent tank, and 1/4" quick connect for nozzles.

5. Setup

Before operating, ensure proper water and power connections:

1. Connect your garden hose to the water inlet on the pressure washer. Ensure the connection is tight to prevent leaks.
2. Connect the 35 ft power cord to a grounded 120V AC outlet with GFCI protection.
3. Turn on the water supply completely.
4. Squeeze the spray gun trigger to purge air from the system until a steady stream of water emerges.

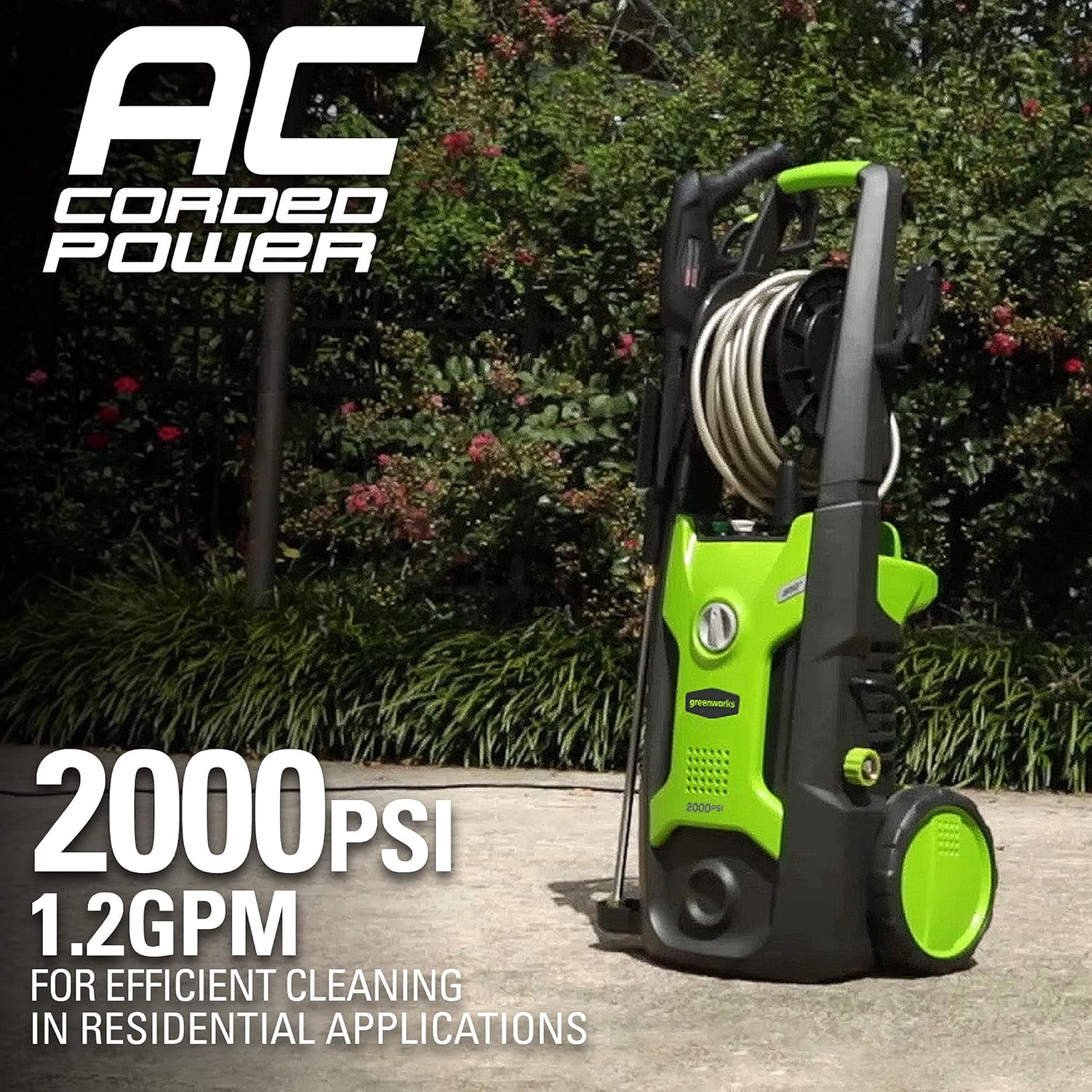

Figure 5.1: The Greenworks 2000 PSI Electric Pressure Washer ready for use, highlighting its corded power and compact design.

6. Operating Instructions

To operate your pressure washer:

1. Turn the power switch to the 'ON' position.
2. Squeeze the trigger on the spray gun to activate the motor and begin spraying. The motor will only run when the trigger is squeezed, conserving energy and reducing noise.
3. Release the trigger to stop the water flow and motor.
4. Maintain a safe distance from the surface being cleaned, adjusting as needed for desired results.

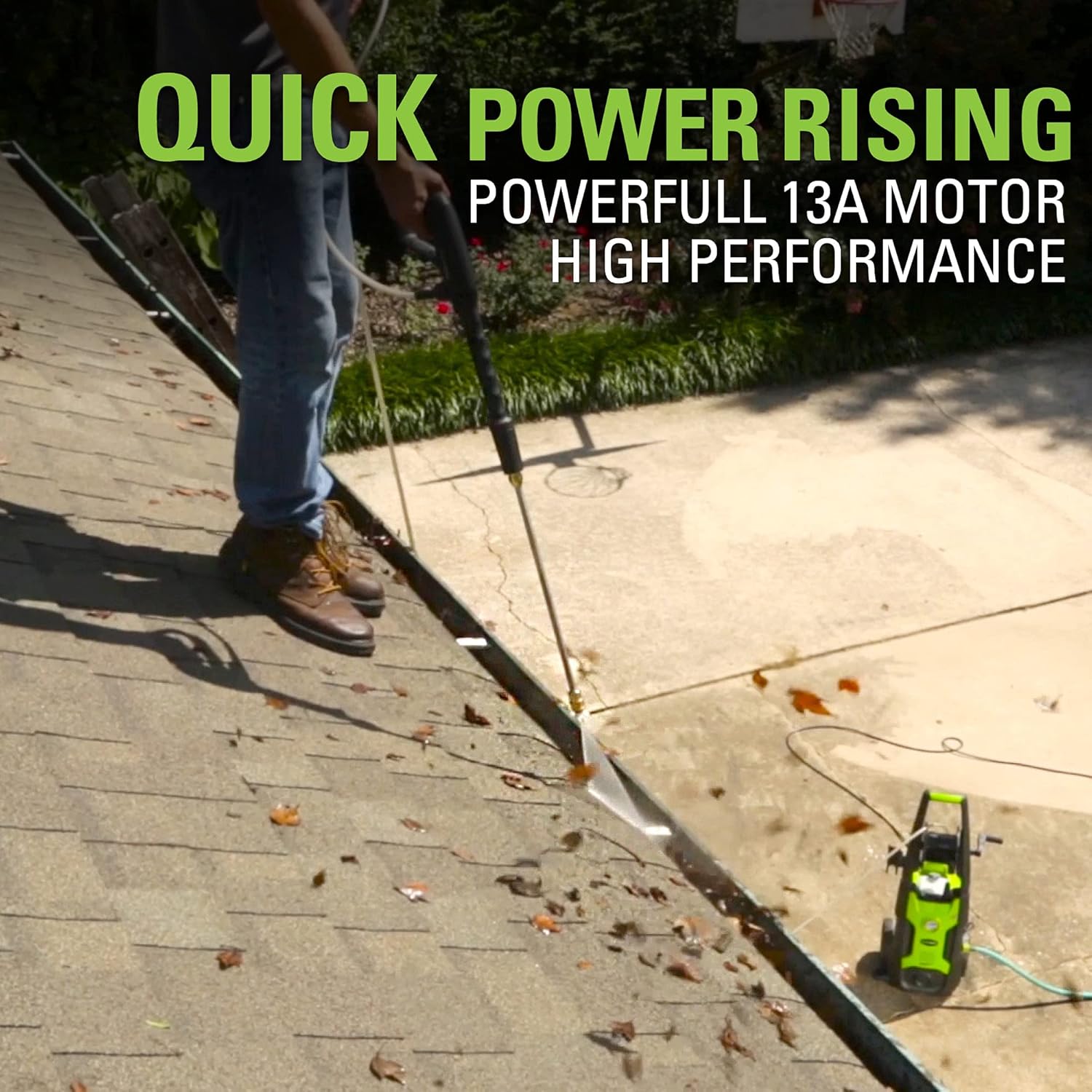

Figure 6.1: Demonstrating the quick power rising and effective cleaning of the pressure washer on a roof gutter.

7. Nozzle Usage

The GPW2002 comes with four quick-connect nozzle tips for various cleaning tasks:

• 25° Nozzle (Green): Provides a medium-angle spray for general cleaning of most surfaces.


Figure 7.1: The 25° nozzle delivering a high-pressure, medium-angle spray for general cleaning.

• 40° Nozzle (White): Offers a wide-angle, lower-pressure spray suitable for delicate surfaces or broad cleaning.

Figure 7.2: The 40° nozzle providing a medium-pressure, wide-angle spray, ideal for cleaning gutters.
• Soap Nozzle (Black): Designed for applying detergent. It mixes soap with water at a lower pressure.


Figure 7.3: The Soap nozzle in action, applying a layer of foam for effective pre-treatment.

• Turbo Nozzle: Delivers a concentrated, oscillating stream for aggressive cleaning of stubborn dirt and grime, cleaning up to 40% faster.

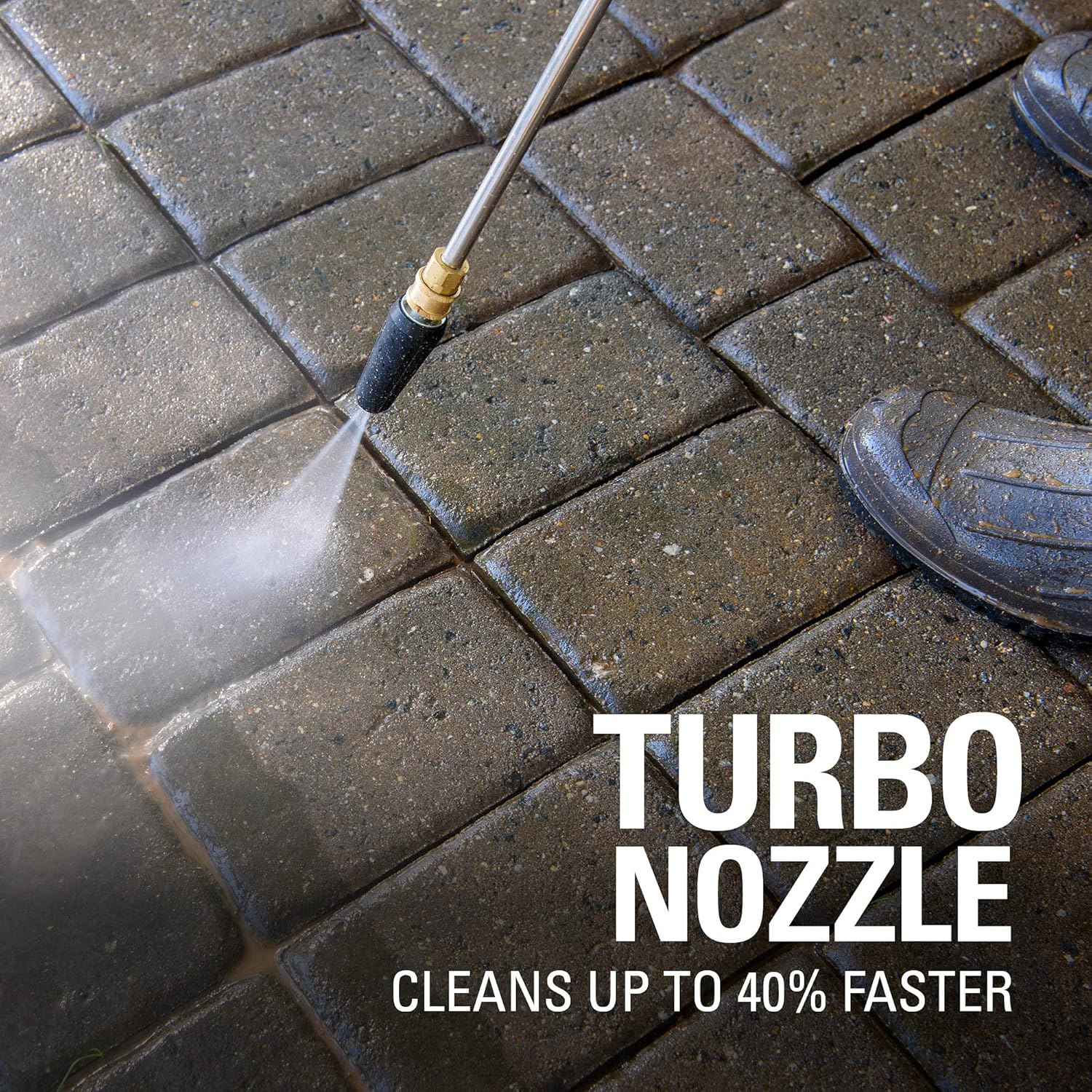

Figure 7.4: The Turbo nozzle providing an intense, rotating spray for deep cleaning of tough stains on pavement.

Store all unused nozzle tips in the designated on-board storage slots on the machine for convenience.

8. Detergent Application

To use detergent with your pressure washer:

1. Open the cap of the detergent tank and fill it with an appropriate pressure washer-safe detergent. Refer to the detergent manufacturer's instructions for dilution ratios.
2. Securely close the detergent tank cap.
3. Attach the black Soap Nozzle to the spray wand.
4. Operate the pressure washer as usual. The detergent will be automatically mixed with the water and applied at low pressure.
5. After applying detergent, switch to a high-pressure nozzle (e.g., 25° or Turbo) and rinse the surface thoroughly.

9. Maintenance

Regular maintenance ensures optimal performance and extends the life of your pressure washer:

• After Each Use: Flush the system with clean water to remove any detergent residue. Disconnect the water supply and squeeze the trigger to release any remaining pressure.
• Nozzle Cleaning: Clear any blockages from the nozzle tips using the included nozzle cleaning tool or a thin wire.
• Storage: Store the pressure washer in a dry, frost-free area. Drain all water from the pump, hose, and spray gun before storing to prevent freezing damage.
• Hose Reel: Use the integrated hose reel to neatly store the high-pressure hose, preventing kinks and damage.

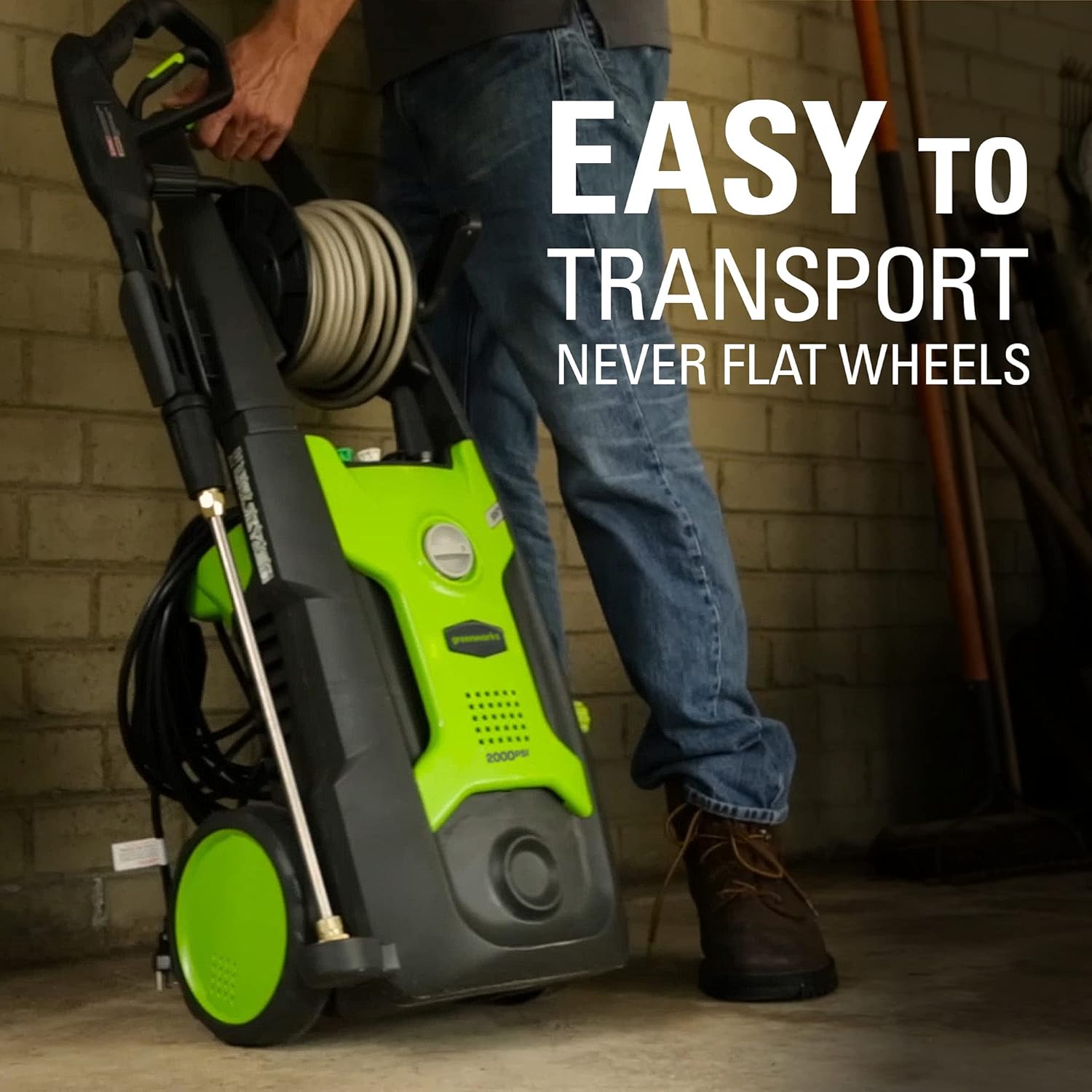

Figure 9.1: The pressure washer features large, never-flat wheels for easy transport and storage.

10. Troubleshooting

If you encounter issues, refer to these common solutions:

• No Power: Check the power cord connection, ensure the GFCI is reset, and verify the outlet is functional.
• No Water Pressure: Ensure the water supply is fully open, the garden hose is not kinked, and the nozzles are clear of debris.
• Motor Runs Continuously: This may indicate an air leak in the system. Check all connections for tightness.
• Pulsating Pressure: Could be due to air in the pump, a restricted inlet, or a clogged nozzle. Purge air, check water flow, and clean nozzles.

For persistent issues, contact Greenworks customer support.

11. Specifications

12. Warranty and Support

Your Greenworks 2000 PSI Electric Pressure Washer, Model GPW2002, is covered by a 3-Year Limited Warranty. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or replacement parts, please contact Greenworks customer service. Keep your proof of purchase for warranty validation.
