1. Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your JET JWDP-12 12-Inch Benchtop Variable Speed Drill Press. Please read all instructions thoroughly before initial use to ensure proper function and to prevent injury or damage to the machine.
The JET JWDP-12 is a versatile benchtop drill press featuring a 1/2 HP induction motor, variable speed control from 530 to 3,100 RPM, and a compact cast iron base. It is designed for precision drilling tasks in various materials, offering features like an X-shaped XACTA Laser for accuracy, an LED work light, and a linear depth stop.
2. Safety Instructions
WARNING: Always follow basic safety precautions to reduce the risk of fire, electric shock, or personal injury.
- Read the Manual: Understand all operating instructions and warnings before using the drill press.
- Wear Eye Protection: Always wear ANSI-approved safety goggles or a face shield.
- Secure Workpiece: Use clamps or a vise to firmly secure the workpiece to the drill press table. Never hold the workpiece by hand.
- Clear Work Area: Keep the work area clean, well-lit, and free of clutter.
- Proper Attire: Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that could get caught in moving parts. Tie back long hair.
- Maintain Balance: Keep proper footing and balance at all times.
- Avoid Overreaching: Do not overreach.
- Disconnect Power: Always disconnect the drill press from the power source before making adjustments, changing accessories, or performing maintenance.
- Use Correct Speed: Select the appropriate RPM for the drill bit size and material being drilled.
- Inspect Before Use: Check for damaged parts, misalignment, binding of moving parts, breakage of parts, and any other condition that may affect its operation.
- Keep Guards in Place: Ensure all guards are properly installed and functioning before operation.
3. Components and Assembly
The JET JWDP-12 drill press is designed for straightforward assembly. Ensure all components listed below are present before beginning assembly. Refer to the detailed assembly instructions provided with your product for step-by-step guidance.
Included Components:
- Head Assembly
- Table
- Table Arm & Support Assembly
- Base
- Column and Rack Assembly
- Handles (x4)
- Arbor
- Drift Key
- Chuck Key
- Lock Handles (x2)
- Hardware
- Wrenches (x2)
Figure 1: Overview of the JET JWDP-12 Benchtop Drill Press with key features labeled.
4. Operating Instructions
4.1 Power On/Off
To power on the drill press, lift the yellow safety cover and press the green 'ON' button. To power off, press the red 'OFF' button or push down the yellow safety cover.

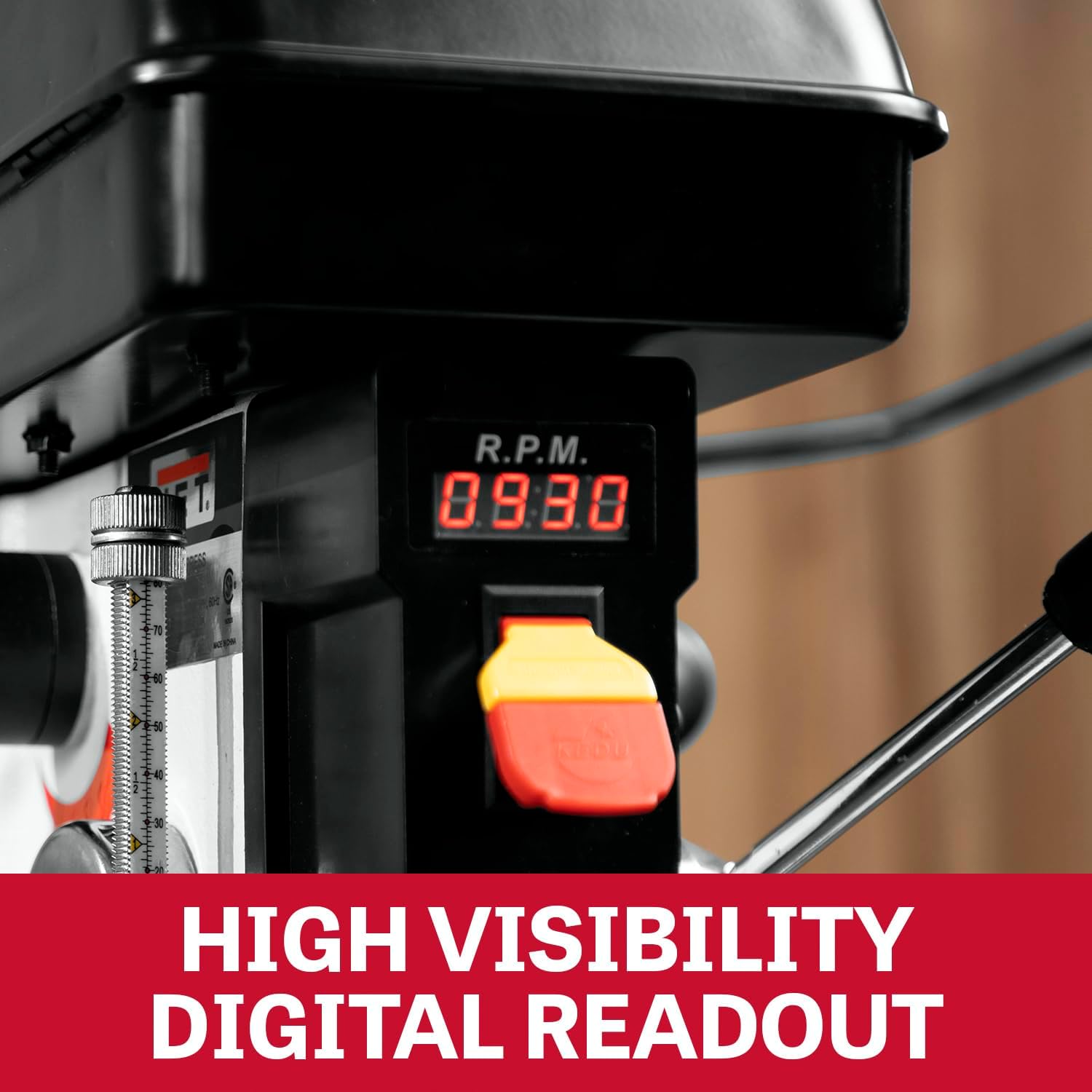

Figure 2: Digital RPM readout and power controls for the drill press.
4.2 Adjusting Speed (RPM)
The drill press features a variable-speed system. Use the speed adjustment lever to smoothly change the spindle RPM from 530 to 3,100. The current RPM is displayed on the high-visibility digital readout.
4.3 Using the XACTA Laser
The innovative X-shaped XACTA Laser ensures drilling accuracy by projecting a crosshair onto the workpiece, indicating the exact point of drill bit contact. Activate the laser using its dedicated switch on the control panel.
Figure 3: The XACTA Laser provides precise targeting for drilling operations.
4.4 Setting Drilling Depth
Utilize the clear linear scale with depth stop for consistent drilling depths. Adjust the stop collar to the desired depth, ensuring repeatable results for multiple holes.

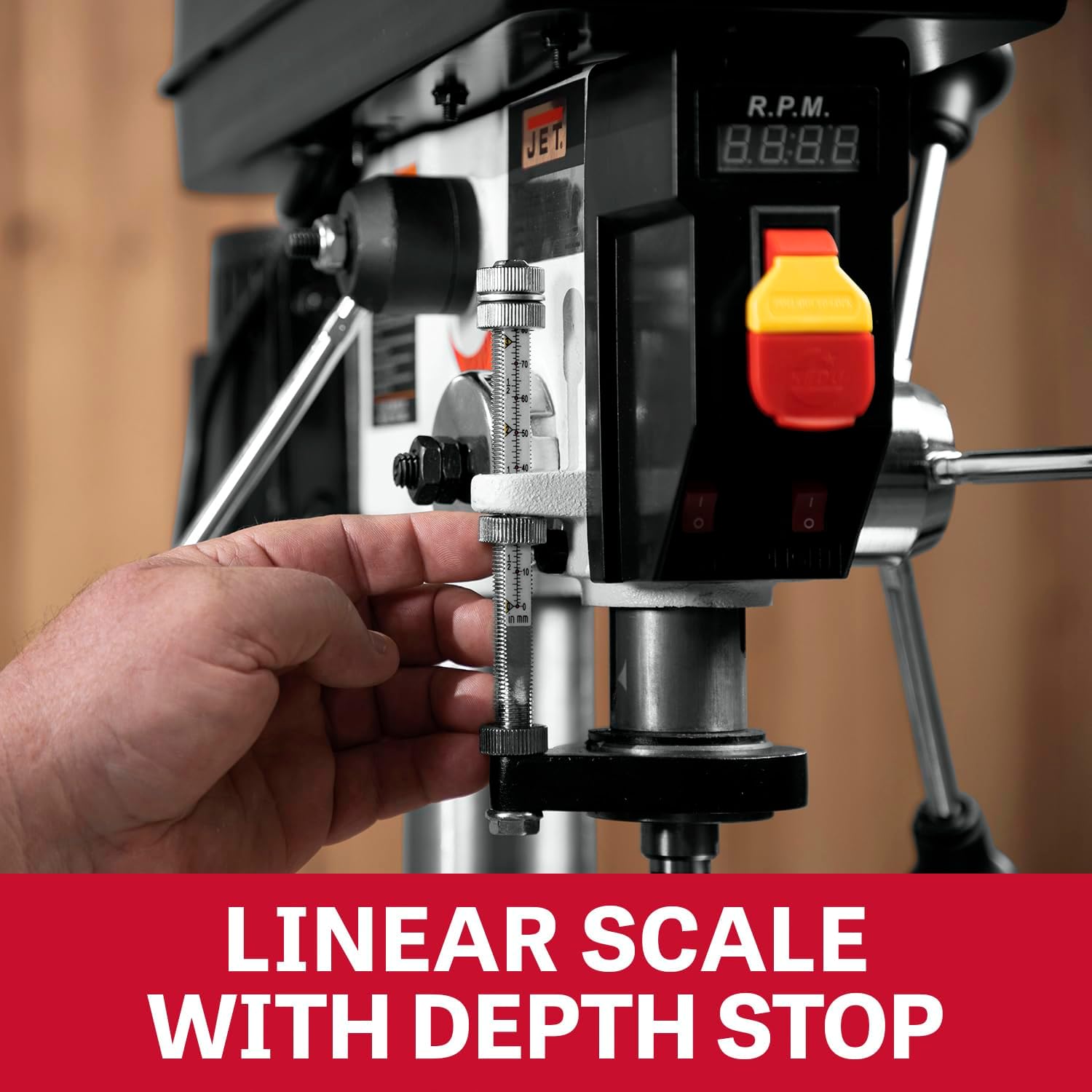

Figure 4: Linear scale and depth stop for precise depth control.
4.5 Table Adjustment
The 10" x 16-1/8" cast iron table can be adjusted for height and angle. Use the crank handle to raise or lower the table. The table also tilts 45 degrees left and right for angled drilling. The retractable roller extension provides additional support for larger workpieces.
Figure 5: The drill press table can be tilted for angled drilling.
Figure 6: Retractable roller extension for supporting longer workpieces.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your JET JWDP-12 drill press.
- Cleaning: Keep the machine clean and free of dust and debris. Use a brush or vacuum to remove wood chips and metal shavings.
- Lubrication: Periodically lubricate moving parts such as the column, rack, and quill with appropriate machine oil.
- Belt Tension: Check the drive belt tension regularly and adjust if necessary to prevent slippage and ensure consistent speed.
- Chuck Inspection: Inspect the chuck for wear or damage. Ensure it holds drill bits securely.
- Electrical Connections: Periodically check all electrical connections for tightness and signs of wear.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drill press does not start | No power, tripped circuit breaker, faulty switch | Check power supply, reset breaker, inspect switch. |
| Excessive vibration | Loose components, unbalanced drill bit, worn bearings | Tighten fasteners, replace drill bit, inspect bearings. |
| Inaccurate drilling | Loose chuck, misaligned laser, worn drill bit | Tighten chuck, calibrate laser, replace drill bit. |
| Motor overheating | Overload, insufficient ventilation | Reduce load, ensure proper airflow around motor. |
7. Technical Specifications
| Specification | Value |
|---|---|
| Brand | Jet |
| Model Number | JWDP-12 (716000) |
| Power Source | Corded Electric |
| Motor Horsepower | 0.5 HP |
| Voltage | 115 Volts |
| Amperage | 5 Amps |
| Maximum Rotational Speed | 3100 RPM |
| Minimum Rotational Speed | 530 RPM |
| Spindle Travel | 3-1/8 inches |
| Maximum Chuck Size | 13 Millimeters (approx. 1/2 inch) |
| Table Dimensions | 10" x 16-1/8" (Cast Iron) |
| Product Dimensions (L x W x H) | 16.13"L x 10"W x 37"H |
| Item Weight | 85 Pounds |
| Material | Cast Iron, Steel |
| Special Features | Variable Speed, LED Work Light, XACTA Laser, Depth Stop, Retractable Roller Extension |
| UPC | 731325455885 |
8. Warranty Information
The JET JWDP-12 Benchtop Drill Press comes with a 5-Year Warranty for residential use. If the product is used for commercial or industrial purposes, the warranty defaults to a 2-Year Warranty. Please retain your proof of purchase for warranty claims. For full details, refer to the warranty documentation included with your product or contact JET customer support.
Figure 7: Warranty badge for the JET drill press.
9. Customer Support
For technical assistance, parts, or service, please contact JET Customer Support. Have your model number (JWDP-12) and serial number ready when contacting support. You can find the serial number on the product label, typically located on the motor housing.
Visit the official Jet website for the most up-to-date contact information and support resources.
