UHF 380-512MHz 50W Duplexer User Manual

1. Product Overview

The WishRing UHF 380-512MHz 50W Duplexer is a critical component designed for two-way radio repeater systems. It enables a single antenna to be used for both transmitting and receiving signals simultaneously by isolating the transmit and receive frequencies. This unit is pre-tuned to specific frequencies upon order to ensure optimal performance.

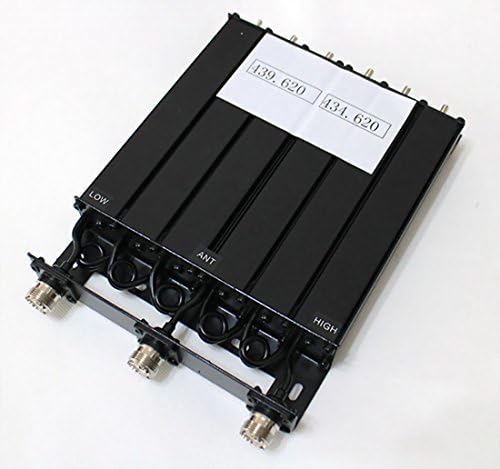

Figure 1: Top-down view of the UHF Duplexer, showing the main housing and tuning points.

Key features include:

• 50W RF power handling capacity.
• Supports a frequency range of 380-512MHz.
• Minimum Tx and Rx frequency difference: UHF 4MHz.
• Maximum Tx and Rx frequency difference: UHF 20MHz.
• Default connector type is N female; M Jack (SO 239) or BNC adapters are available upon request.

2. Setup and Installation

Proper setup is crucial for the optimal performance of your duplexer. This unit requires frequency tuning, which is typically performed by the manufacturer prior to shipment based on your specified high and low frequencies.

2.1 Unpacking and Inspection

Carefully remove the duplexer from its packaging. Inspect the unit for any visible damage that may have occurred during transit. Ensure all specified connectors are present and in good condition.

Figure 2: Front view of the duplexer, showing the 'LOW', 'ANT', and 'HIGH' N-female connectors.

2.2 Connecting the Duplexer

1. Antenna Connection: Connect your repeater antenna to the central port labeled 'ANT'. Ensure a secure connection.
2. Transmitter Connection: Connect your radio transmitter to the port labeled 'HIGH' or 'LOW' as per your frequency allocation. If your transmit frequency is higher than your receive frequency, connect to 'HIGH'.
3. Receiver Connection: Connect your radio receiver to the remaining port, 'LOW' or 'HIGH', corresponding to your receive frequency.

Note: The specific 'HIGH' and 'LOW' ports correspond to the tuned frequencies. Refer to the label on your specific unit for the exact frequencies assigned to each port.

Figure 3: Top view of the duplexer, illustrating the tuning screws for frequency adjustment. These adjustments are typically factory-set.

2.3 Mounting

The duplexer is designed for stable mounting. Secure the unit using appropriate hardware through the mounting holes on its frame. Ensure it is mounted in a location that is protected from environmental elements and has adequate ventilation.

3. Operating Principles

A duplexer functions as a highly selective filter that allows a transmitter and receiver to operate simultaneously on different frequencies using a single antenna. It achieves this by providing high isolation between the transmit and receive paths, preventing the powerful transmit signal from overloading the sensitive receiver.

The performance of the duplexer is directly related to its tuning. A properly tuned duplexer will exhibit low insertion loss on the desired frequencies and high isolation on the undesired frequencies, ensuring clear and efficient communication through the repeater.

4. Maintenance

The UHF Duplexer is designed for reliable, long-term operation with minimal maintenance. However, periodic checks can help ensure continued performance.

• Physical Inspection: Periodically inspect the unit for any signs of physical damage, corrosion, or loose connections.
• Connector Integrity: Ensure all RF connectors are clean, dry, and securely tightened. Loose or corroded connectors can degrade performance.
• Environmental Conditions: Ensure the operating environment remains within specified temperature and humidity ranges. Protect the unit from excessive dust and moisture.
• Re-tuning: Unless you have specialized equipment and expertise, avoid attempting to re-tune the duplexer yourself. Improper tuning can severely degrade performance. If re-tuning is suspected to be necessary, contact a qualified technician.

5. Troubleshooting

If you experience issues with your repeater system, consider the following troubleshooting steps related to the duplexer:

5.1 Weak or No Signal

• Check Connections: Ensure all cables are securely connected to the correct ports on the duplexer, antenna, transmitter, and receiver.
• Cable Integrity: Inspect RF cables for damage (kinks, cuts, worn insulation) or faulty connectors.
• Antenna Issues: Verify the antenna is properly installed, undamaged, and correctly matched to the system's impedance.
• Duplexer Tuning: If the duplexer was recently moved, subjected to physical shock, or if the operating frequencies have changed, its tuning may have drifted. This is a common cause of weak signals or poor isolation. Professional re-tuning may be required.

5.2 Interference or Desensitization

• Poor Isolation: If the transmit signal is interfering with the receiver (desensitization), it indicates insufficient isolation from the duplexer. This is almost always due to improper tuning.
• Frequency Drift: Environmental factors or physical stress can cause the duplexer's tuning to drift over time, reducing isolation.
• Professional Assistance: For issues related to poor isolation or suspected tuning problems, it is highly recommended to consult a qualified radio technician with specialized test equipment (e.g., a service monitor or network analyzer) to diagnose and re-tune the duplexer.

6. Specifications

7. Warranty and Support

Specific warranty information for this product is not provided in the available documentation. For details regarding warranty coverage, terms, and conditions, please contact the seller, Hong Kong Sunkin Global Trading Company, or the manufacturer directly.

For technical support, inquiries about frequency tuning, or assistance with troubleshooting, please reach out to the seller or manufacturer. When contacting support, please provide your product model number (B01C8D73WO) and the specific frequencies for which your duplexer was tuned.
