1. Introduction
The Philips TORNADO 24W CDL E27 220-240V is an energy-saving compact fluorescent light (CFL) bulb designed to provide superior brightness. This bulb features an extra-small spiral shape and delivers a cool daylight illumination, making it suitable for various indoor and outdoor applications. This manual provides essential information for the safe and effective use of your light bulb.

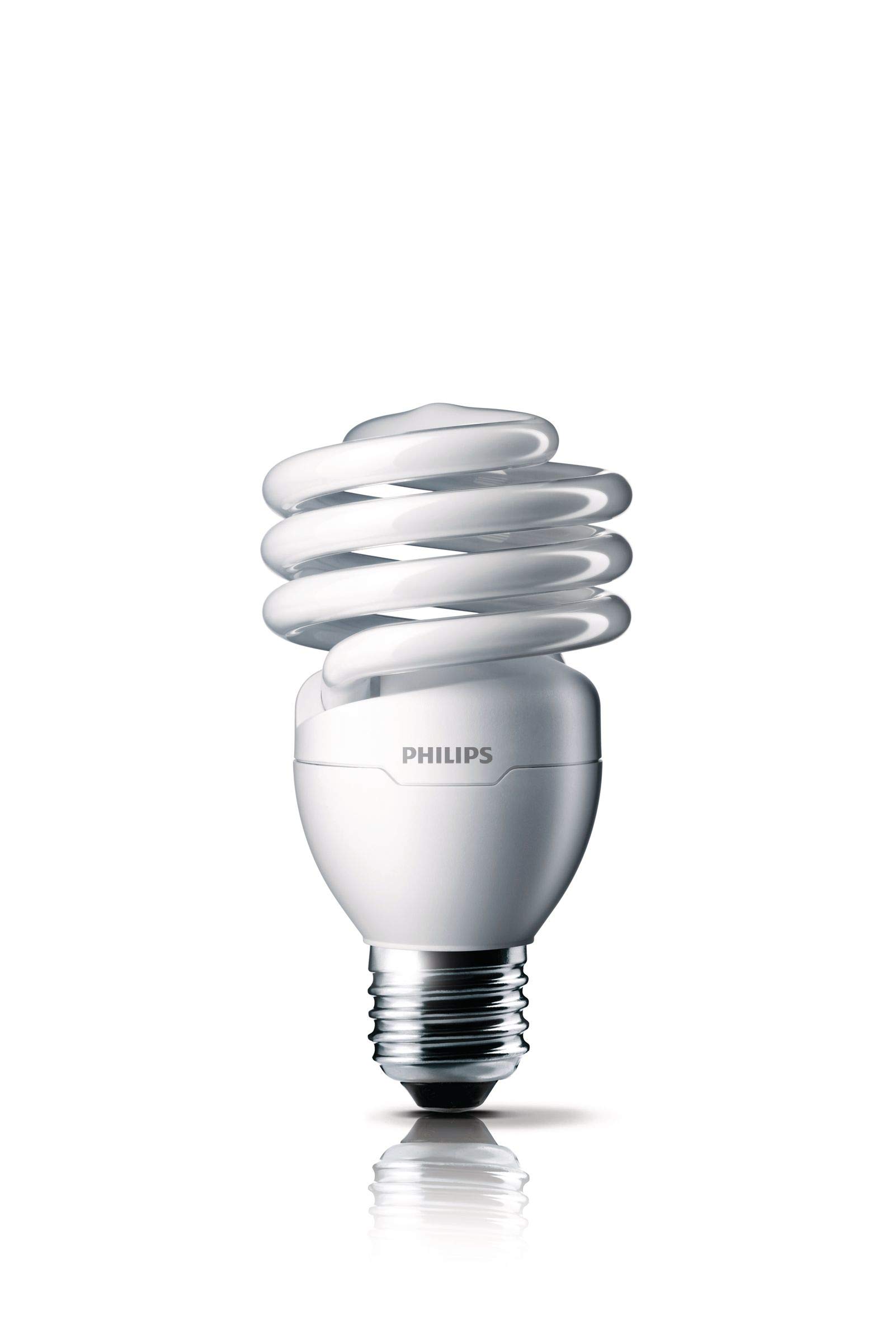

Figure 1: Philips TORNADO 24W CDL E27 spiral light bulb. This image shows the compact spiral design of the bulb with an E27 screw base, suitable for standard light fixtures.
2. Safety Information
Please read all safety instructions before installing or using the light bulb. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Power Off: Always ensure the power supply to the fixture is turned off before installing, removing, or cleaning the bulb.
- Correct Voltage: This bulb is designed for 220-240V AC operation. Do not use with incompatible voltage supplies.
- Correct Base: Use only in light fixtures with an E27 screw base.
- Indoor/Outdoor Use: Suitable for both indoor and outdoor use, provided the outdoor fixture is rated for the environment and protects the bulb from direct water exposure.
- Disposal: CFL bulbs contain a small amount of mercury. Dispose of used bulbs according to local regulations for hazardous waste. Do not dispose of in regular household trash.
- Handling: Avoid touching the glass spiral directly. Handle the bulb by its plastic base.
3. Setup and Installation
Follow these steps to install your Philips TORNADO light bulb:
- Turn off Power: Locate the light switch or circuit breaker controlling the light fixture and turn off the power.
- Remove Old Bulb (if applicable): If replacing an existing bulb, allow it to cool completely before carefully unscrewing it counter-clockwise from the socket.
- Install New Bulb: Gently screw the Philips TORNADO bulb clockwise into the E27 socket until it is snug. Do not overtighten.
- Restore Power: Turn the power back on at the switch or circuit breaker.
4. Operating Instructions
Once installed, operating the Philips TORNADO light bulb is straightforward:
- Switch On: Use the standard wall switch or fixture control to turn the light on.
- Warm-up Time: CFL bulbs may require a short warm-up period (typically a few seconds) to reach full brightness.
- Light Output: The bulb provides 1600 lumens of cool daylight illumination, equivalent to a 125W incandescent bulb, while consuming only 24W.
5. Maintenance
The Philips TORNADO light bulb is designed for long-lasting performance with minimal maintenance.
- Cleaning: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Lifetime: The average operating life of this lamp is 8000 hours. Replace the bulb when it reaches the end of its operational life or if it fails prematurely.
6. Troubleshooting
If you encounter issues with your light bulb, refer to the following common troubleshooting steps:
- Bulb Does Not Light:
- Ensure the power supply to the fixture is on.
- Check that the bulb is screwed in securely into the E27 socket.
- Test the bulb in another working fixture to confirm if the bulb or the fixture is at fault.
- Verify that the fixture's voltage matches the bulb's requirements (220-240V).
- Flickering:
- Ensure the bulb is fully tightened in the socket.
- CFLs are generally not compatible with dimmer switches unless specifically rated as dimmable. Using a non-dimmable CFL with a dimmer can cause flickering and reduce bulb life.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 8727900908749 |
| Brand | Signify (Philips) |
| Bulb Type | Compact Fluorescent Lamp (CFL) |
| Shape | TORNADO (Spiral) |
| Wattage | 24 W |
| Equivalent Incandescent Wattage | 125 W |
| Input Voltage | 220-240 V |
| Bulb Base | E27 |
| Light Color | Daylight White |
| Color Temperature | 2700 Kelvin |
| Brightness (Lumens) | 1600 Lumens |
| Operating Life | 8000 hours |
| Dimensions (W x H) | 6.2 cm x 11.9 cm |
| Weight | 0.18 Kilograms |
| Material | Glass |
| Special Features | Energy Efficient |
8. Warranty Information
This Philips TORNADO light bulb comes with a 1 Year Local (Singapore) Manufacturer Warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or improper installation.
9. Support
For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official Signify (Philips) website for your region.
