YATO YT-38931 173-Piece Socket Set Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and effective use of your YATO YT-38931 173-piece socket set. This comprehensive set is designed for a wide range of mechanical and repair tasks, offering versatility and durability. Please read this manual thoroughly before using the tools to ensure proper operation and to maximize the lifespan of your product.

The YATO YT-38931 socket set includes three ratchets with 1/4", 3/8", and 1/2" drives, featuring 72-tooth mechanisms for a precise 5-degree swing angle. The ratchets are equipped with ergonomic rubber handles and quick-release buttons for convenient, single-hand socket changes. All components are manufactured to industrial-grade standards, utilizing high-quality Chrome Vanadium steel (CRV 50BV30, CRV 6140, CRV 6150) and conforming to DIN specifications. The set features an 'AS-Drive' profile for optimal fastener engagement and is housed in a robust, separable case with durable metal hinges for organized storage and transport.

2. Product Features

• Three Ratchets: Includes 1/4", 3/8", and 1/2" drive ratchets for diverse applications.
• 72-Tooth Mechanism: Provides a fine 5-degree swing angle for working in confined spaces.
• Chrome Vanadium Steel Construction: All components are made from high-quality CRV 50BV30, CRV 6140, and CRV 6150 steel for strength and durability.
• DIN Standard Compliance: Ensures industrial-grade quality and performance.
• 'AS-Drive' Profile Sockets: Designed for enhanced grip on fasteners, reducing rounding.
• Ergonomic Rubber Handles: Ratchets feature comfortable, non-slip rubber grips.
• Quick-Release Buttons: Facilitates fast and easy socket attachment and removal.
• Comprehensive Bit Assortment: Includes various screwdriver bits, Torx, Hex, and spark plug inserts.
• Durable Storage Case: Robust case with metal hinges, designed to be separable for convenient storage in tool carts or drawers.

3. Package Contents

The YATO YT-38931 socket set contains 173 pieces, carefully organized within a durable carrying case. The exact contents are detailed in the diagram below, but generally include:

• 1/4" Drive Sockets, Extension Bars, Universal Joint, Ratchet
• 3/8" Drive Sockets, Extension Bars, Universal Joint, Ratchet, Spark Plug Sockets
• 1/2" Drive Sockets, Extension Bars, Universal Joint, Ratchet, Spark Plug Sockets
• Various Screwdriver Bits (Phillips, Pozi, Slotted, Torx, Hex)
• Bit Holders and Adapters
• Hex Keys
• Storage Case

Figure 3.1: Detailed diagram illustrating all 173 components included in the YATO YT-38931 socket set.

4. Setup

Setting up your YATO YT-38931 socket set is straightforward:

1. Unpack the Case: Carefully open the latches on the carrying case and open it.
2. Familiarize Yourself: Take a moment to observe the layout of the tools. Each component has a designated slot for easy identification and organization.
3. Inspect Tools: Before first use, visually inspect all tools for any signs of damage or manufacturing defects. Do not use any damaged tools.
4. Case Configuration: The case can be separated into two halves by removing the central pins, allowing for more flexible storage options, such as in a tool cart or drawer.

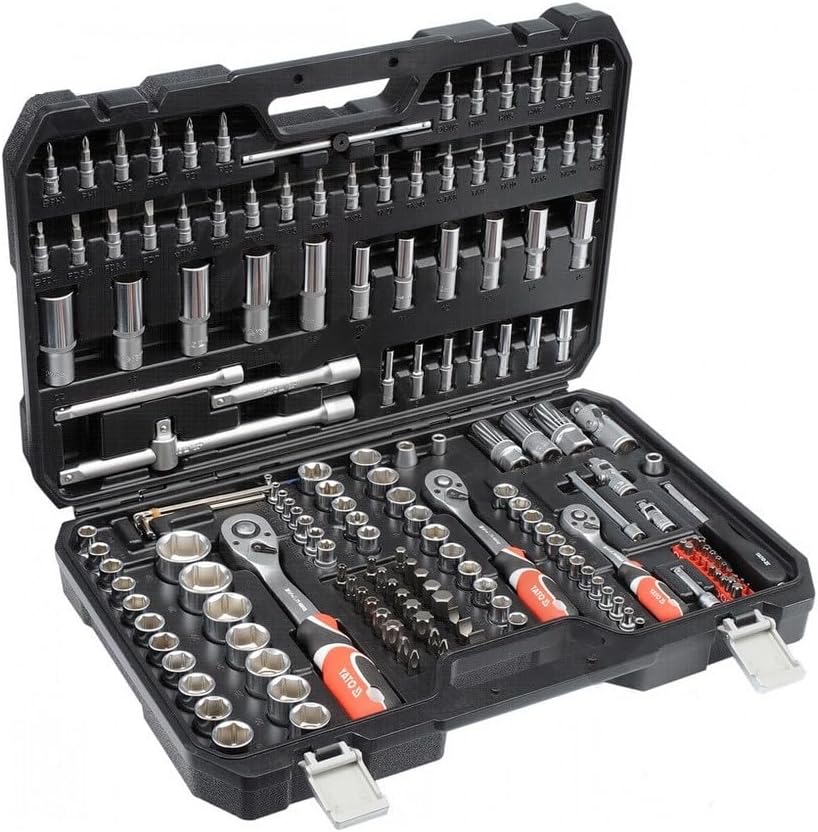

Figure 4.1: The YATO YT-38931 socket set with the case open, showing the organized arrangement of tools.

5. Operating Instructions

Follow these steps for safe and effective operation of your socket set:

1. Select the Correct Socket: Choose a socket that perfectly matches the size and type of the fastener (nut or bolt head). Using an incorrect size can damage both the fastener and the socket.
2. Attach Socket to Ratchet: Press the quick-release button on the ratchet head, insert the chosen socket firmly onto the drive square, and release the button. Ensure the socket is securely locked in place.
3. Select Ratchet Direction: Use the directional switch on the ratchet head to select clockwise (tightening) or counter-clockwise (loosening) rotation.
4. Position the Socket: Place the socket squarely onto the fastener. Ensure full engagement to prevent slipping.
5. Apply Force: Apply steady, controlled force to the ratchet handle. For stubborn fasteners, use an extension bar for better leverage, but avoid excessive force that could damage the tool or fastener. Never use a pipe or 'cheater bar' on the ratchet handle as this can void the warranty and cause injury.
6. Using Extension Bars and Universal Joints: For fasteners in recessed or angled locations, attach an extension bar or universal joint between the ratchet and the socket. Ensure these accessories are also securely attached.
7. Using Screwdriver Bits: Insert the appropriate bit into a bit holder or directly into a 1/4" drive ratchet if applicable. Ensure the bit matches the screw head type (e.g., Phillips, Torx, Hex).

Figure 5.1: Close-up of ratchets and sockets, demonstrating the tool's design for operation.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your YATO socket set:

• Cleaning: After each use, wipe down all tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild solvent or degreaser can be used, followed by thorough drying.
• Lubrication: Periodically apply a small amount of light machine oil to the moving parts of the ratchets, particularly the internal mechanism, to ensure smooth operation and prevent corrosion.
• Storage: Always return tools to their designated slots in the original carrying case after use. This protects them from damage, prevents loss, and keeps them organized. Store the case in a dry environment to prevent rust.
• Inspection: Regularly inspect all tools for signs of wear, cracks, bends, or other damage. Pay close attention to the drive squares of sockets and ratchets, and the teeth of the ratchet mechanism. Replace any damaged tools immediately.

7. Troubleshooting

Here are some common issues and their solutions:

• Socket Slipping on Fastener:
  Cause: Incorrect socket size, worn socket, or worn fastener head.
  Solution: Ensure the correct socket size is used. Inspect the socket and fastener for wear. Replace worn components.
• Ratchet Mechanism Not Engaging:
  Cause: Dirt or debris in the mechanism, lack of lubrication, or internal damage.
  Solution: Clean the ratchet head thoroughly. Apply light machine oil. If the issue persists, the ratchet may require professional service or replacement.
• Stuck or Seized Fastener:
  Cause: Rust, corrosion, or over-tightening.
  Solution: Apply penetrating oil and allow it to soak. Use steady, increasing force. Avoid sudden jerks. If necessary, consider specialized tools for fastener removal.
• Socket Difficult to Remove from Ratchet:
  Cause: Debris in the quick-release mechanism or lack of lubrication.
  Solution: Ensure the quick-release button is fully depressed. Clean and lubricate the ratchet drive square and socket opening.

8. Specifications

Figure 8.1: Key specifications and features of the YATO YT-38931 socket set.

9. Safety Information

Always adhere to basic safety precautions when using hand tools:

• Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
• Correct Tool for the Job: Use the appropriate size and type of tool for each task. Never force a tool that doesn't fit.
• Inspect Tools: Before each use, inspect tools for damage, wear, or defects. Do not use damaged tools.
• Keep Hands Clear: Ensure hands and fingers are clear of pinch points and moving parts.
• Stable Workpiece: Secure the workpiece firmly to prevent it from moving during operation.
• Avoid Over-tightening: Do not over-tighten fasteners, as this can strip threads or break tools. Use a torque wrench when specific torque values are required.
• Clean Work Area: Keep your work area clean and well-lit to prevent accidents.
• Store Safely: Store tools in their case in a secure, dry place, out of reach of children.

10. Warranty and Support

Yato products are manufactured to high standards and are designed for durability and performance. For specific warranty information, terms, and conditions, please refer to the official Yato website or contact the retailer from whom you purchased the product. For technical support or assistance with your YATO YT-38931 socket set, please reach out to your authorized Yato dealer or customer service.
