1. Introduction
Thank you for choosing the Sunforce 82153 Solar Motion-activated Triple Head 150-LED Light. This product is designed to provide efficient, motion-activated illumination for various outdoor areas using solar power. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your device.
2. Product Features
- Triple Head Design: Features three adjustable lamp heads for maximum lighting coverage.
- High Brightness: Equipped with 150 super-bright white LEDs, delivering 1000 lumens of light output.
- Motion-Activated: Automatically turns on when motion is detected.
- Solar Powered: Utilizes an amorphous solar panel that charges in all daylight conditions, eliminating the need for direct sunlight.
- Weather Resistant: Designed for outdoor use in various weather conditions.
- Easy Installation: No main power or wiring required, allowing for flexible mounting options.
- Adjustable Settings: Includes controls for detection distance and light duration.
3. Package Contents
Please ensure all items are present in the package:
- 150 LED Triple Head Motion Light (50 LEDs per lamp head)
- Solar Panel with 15 ft. (4.5m) of wire
- 3 x AA Rechargeable Batteries (pre-installed or included separately)
- Mounting Hardware
4. Setup and Installation
The Sunforce 82153 light is designed for straightforward installation without the need for electrical wiring. Follow these steps for optimal performance:
- Choose a Location: Select a mounting location for the light unit that provides the desired illumination coverage. The light can be mounted on walls, eaves, or other suitable surfaces.
- Solar Panel Placement: The solar panel must be placed in an area that receives maximum direct sunlight throughout the day to ensure proper battery charging. The 15 ft (4.5m) wire allows for flexible placement of the solar panel away from the light unit.
- Mounting: Use the provided mounting hardware to securely attach both the light unit and the solar panel to their chosen surfaces. Ensure the light unit is positioned to cover the desired detection area.
- Connect Solar Panel: Plug the solar panel's wire into the designated port on the light unit.
- Battery Installation: If the batteries are not pre-installed, open the battery compartment (usually located on the light unit) and insert the 3 x AA rechargeable batteries, observing correct polarity.
This image displays the main components of the Sunforce 82153 light: the triple-head LED light unit with an integrated motion sensor, and the separate solar panel designed to charge the unit.
This image highlights the adjustable nature of the three LED light heads, which can be moved horizontally and vertically to direct illumination. Arrows indicate the range of motion for the side heads.
An example installation of the Sunforce 82153 light on the side of a shed, with the solar panel mounted on the roof. The light effectively illuminates the shed's entrance and surrounding area.

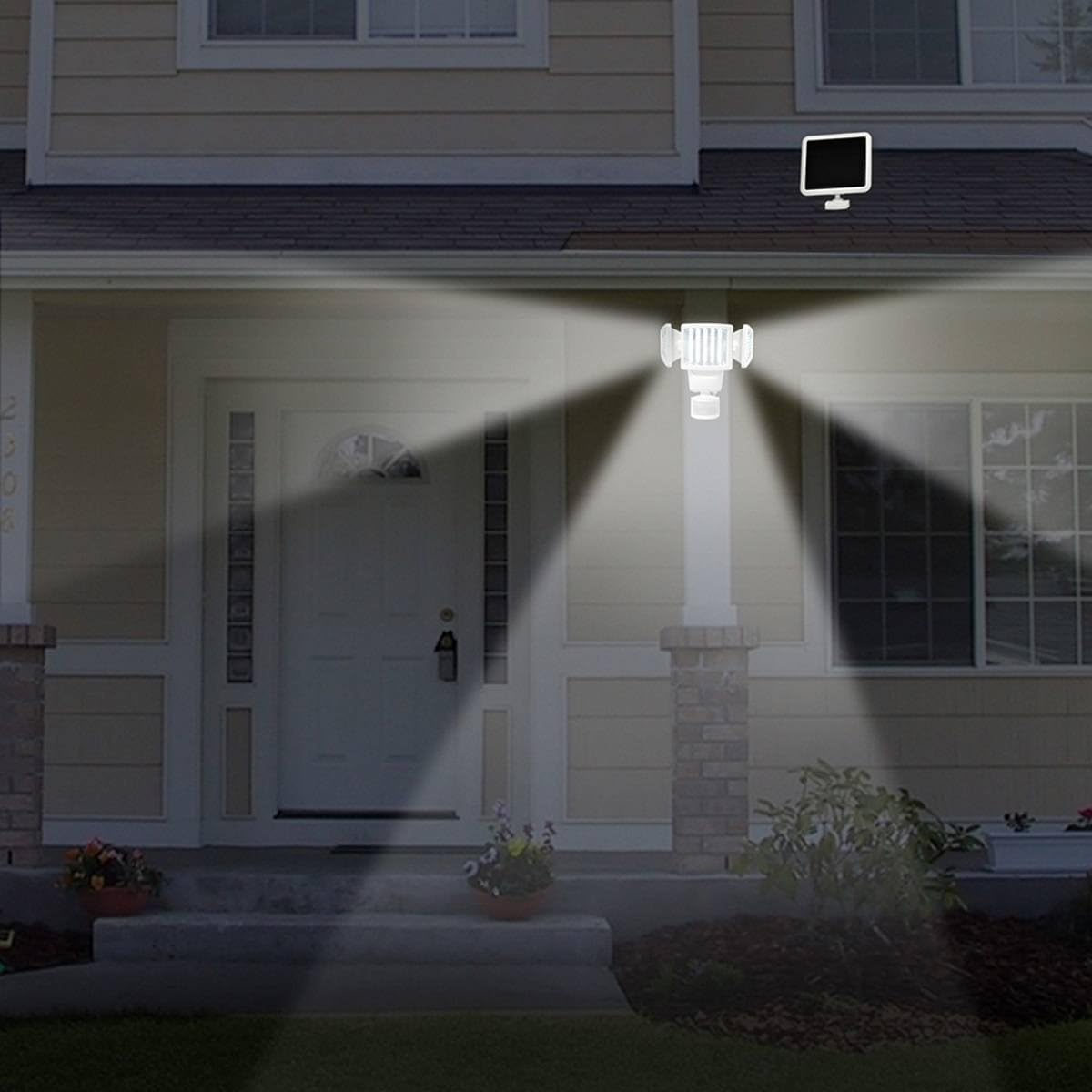

This image shows the Sunforce 82153 light mounted above a residential entrance, with the solar panel positioned on the roof. The light provides broad illumination across the porch and steps.
5. Operation
The Sunforce 82153 light operates by charging its internal batteries during the day and activating automatically at night when motion is detected.
- Power Switch: Locate the 3-position switch on the light unit. This switch typically has 'ON', 'OFF', and 'AUTO' settings.
- AUTO Mode: For normal operation, set the switch to 'AUTO'. In this mode, the light will charge during daylight hours and automatically turn on when motion is detected in darkness.
- Adjustable Settings: The light unit features two adjustable dials or controls:
- Detection Distance: Adjusts the range at which the motion sensor detects movement (up to 30 ft / 9.1m).
- Light Duration: Controls how long the light remains on after motion is detected and then stops (e.g., 30 seconds, 60 seconds, etc.).
- Motion Sensor: The motion sensor has a detection range of 180 degrees. Position the light heads and the sensor to cover your desired area.
- Adjustable Light Heads: Manually adjust the three LED light heads to direct illumination precisely where needed. The side heads can move upwards, downwards, and horizontally.
6. Maintenance
To ensure optimal performance and extend the lifespan of your solar light, regular maintenance is recommended:
- Clean Solar Panel: Periodically wipe the solar panel with a soft, damp cloth to remove dust, dirt, and debris. A clean panel ensures efficient charging.
- Clean Light Heads: Keep the LED light heads and motion sensor lens clean for unobstructed light output and accurate motion detection.
- Battery Check: The included AA rechargeable batteries have a limited lifespan. If the light duration or brightness significantly decreases, consider replacing the batteries with new rechargeable AA batteries of the same type and capacity.
- Inspect Wiring: Occasionally check the wire connecting the solar panel to the light unit for any signs of damage or wear.
7. Troubleshooting
If your Sunforce 82153 light is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | Insufficient solar panel charging. | Ensure the solar panel is in a location receiving maximum direct sunlight. Clean the solar panel surface. Allow 1-2 full days of charging. |
| Light is dim or stays on for a short duration. | Batteries are not fully charged or are at the end of their lifespan. | Ensure adequate solar charging. Replace the 3 x AA rechargeable batteries if they are old or no longer hold a charge effectively. |
| Motion sensor is not detecting movement. | Sensor obstructed or incorrect sensitivity setting. | Clear any obstructions from the sensor lens. Adjust the 'Detection Distance' dial to increase sensitivity. Ensure the sensor is aimed at the desired detection area. |
| Light stays on continuously. | Motion sensor is continuously triggered or faulty. | Check for constant movement in the sensor's field of view (e.g., swaying branches, pets). Adjust the sensor's angle or sensitivity. If the issue persists, the sensor may be faulty. |
8. Specifications
- Model: 82153
- Light Source: 150 SMD LEDs (50 LEDs per head)
- Lumen Output: 1000 lumens
- Detection Distance: Up to 30 ft (9.1m)
- Detection Range: 180 degrees
- Solar Panel Technology: Amorphous
- Power Source: Solar Powered
- Batteries: 3 x AA rechargeable batteries (included)
- Product Dimensions: 12.9" x 6.7" x 9.0" (33.0cm x 17.2cm x 23.0cm)
- Product Weight: 2.80 lbs (1.27 kg)
- Solar Panel Wire Length: 15 ft (4.5m)
- Indoor/Outdoor Usage: Outdoor
- Material: Metal
- Color: White
9. Warranty and Support
For warranty information or technical support regarding your Sunforce 82153 Solar Motion-activated Triple Head 150-LED Light, please contact Sunforce Products Inc. directly. Refer to the product packaging or the manufacturer's official website for the most current contact details and warranty terms.
