Maxxima M84407-B Interior Compartment LED Light User Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of the Maxxima M84407-B 3"x6" Interior Compartment LED Light. This product is designed to provide bright, efficient illumination for interior compartments in vehicles such as cars and trucks. It features 12 LEDs, producing 200 lumens of light, and is built for durability with a polycarbonate lens.

2. Safety Information

• Always disconnect power before installation or maintenance to prevent electrical shock.
• This product is an interior courtesy light. It is not intended for use as a clearance marker or back-up light.
• Ensure proper wiring connections to avoid short circuits or damage to the vehicle's electrical system.
• Do not modify the light or its components. Unauthorized modifications may void the warranty and create safety hazards.
• Handle the light with care to prevent damage to the lens or internal components.

3. Package Contents

Verify that all items are present before beginning installation:

• Maxxima M84407-B Interior Compartment LED Light
• Snap-on Polycarbonate Lens (pre-installed or separate)
• Hidden Mounting Screws (typically included with the light)

4. Setup (Installation)

The Maxxima M84407-B light is designed for surface mounting and hardwired termination. Follow these steps for proper installation:

1. Choose Mounting Location: Select a flat, secure surface within the interior compartment where the light is needed. Ensure there is sufficient space for the light (approximately 5-7/64 inches long by 2-29/32 inches wide).
2. Prepare Wiring: Identify the appropriate 12.8-volt power source in your vehicle. Disconnect the vehicle's battery before proceeding with wiring. Run the power and ground wires to the chosen mounting location.
3. Remove Lens: Carefully remove the snap-on polycarbonate lens to access the mounting screw holes.
4. Mount the Light: Position the light housing on the chosen surface. Mark the locations for the mounting screws. Drill pilot holes if necessary, ensuring they are smaller than the screw diameter. Secure the light housing using the hidden mounting screws provided.
5. Wire Connections: Connect the light's positive wire to the vehicle's 12.8V power source and the light's negative (ground) wire to a suitable ground point on the vehicle chassis. Ensure all connections are secure and insulated.
6. Reattach Lens: Once the light is securely mounted and wired, snap the polycarbonate lens back into place.
7. Test Functionality: Reconnect the vehicle's battery and test the light to ensure it functions correctly.

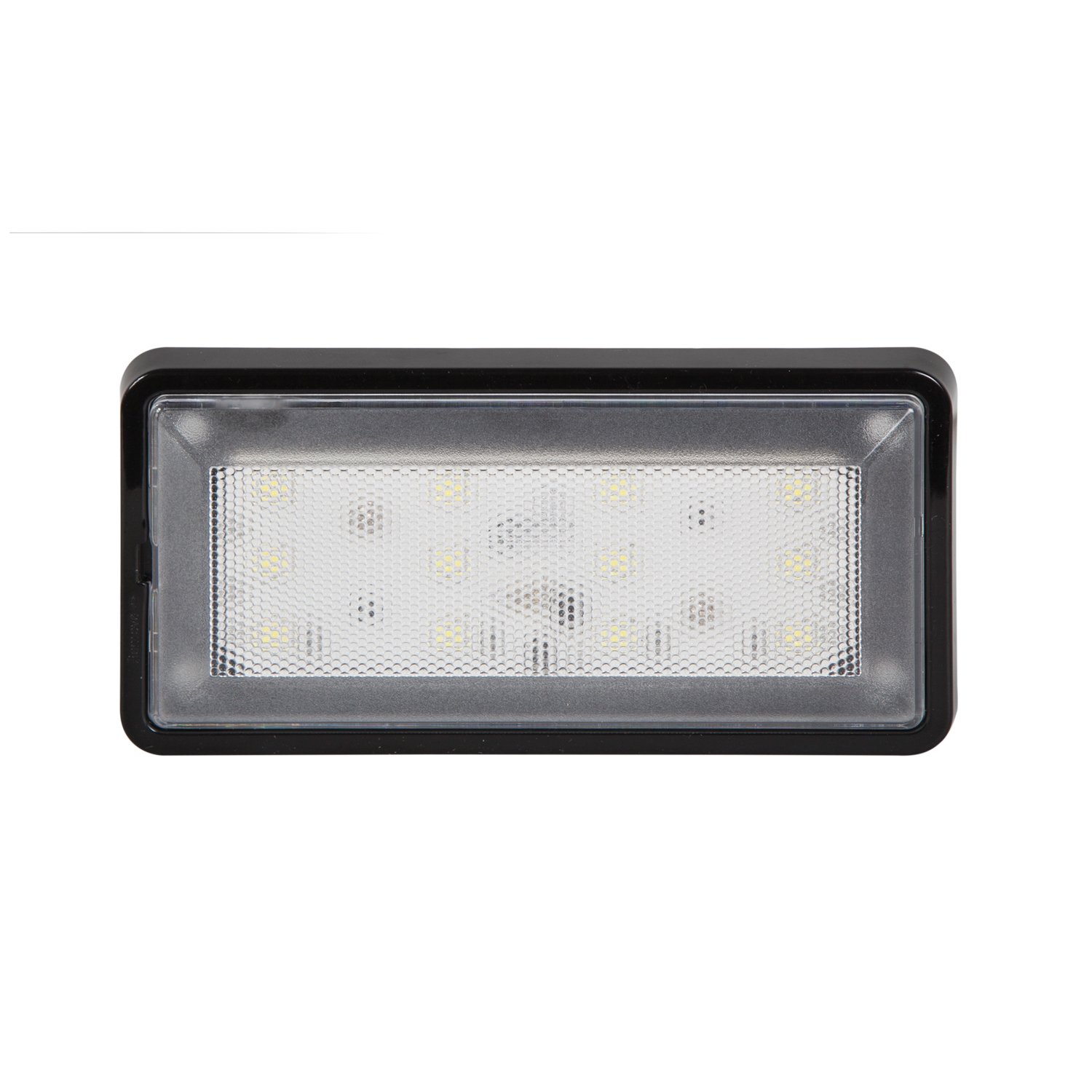

This image displays the Maxxima M84407-B interior compartment light. The light features a durable black housing and a clear, textured polycarbonate lens that diffuses the light from the internal LED array. The overall shape is rectangular, designed for surface mounting.

5. Operating Instructions

The Maxxima M84407-B Interior Compartment LED Light operates by receiving power from your vehicle's 12.8-volt electrical system. Once properly installed and wired to a switched power source (e.g., a door switch or manual switch), the light will illuminate when power is supplied to it. There are no user-adjustable settings or controls on the light unit itself.

6. Maintenance

The Maxxima M84407-B LED light requires minimal maintenance due to its durable construction and long-life LEDs.

• Cleaning: To clean the lens, use a soft, damp cloth. Avoid abrasive cleaners or solvents, as these can damage the polycarbonate material.
• Inspection: Periodically check the wiring connections for any signs of corrosion or looseness. Ensure the mounting screws remain tight.
• LED Life: The LEDs have an estimated life of 100,000 hours, meaning replacement of individual bulbs is generally not required.

7. Troubleshooting

If the light does not function as expected, consider the following:

• Light Does Not Turn On:
  • Check the power source: Ensure the vehicle's battery is connected and charged.
  • Verify wiring connections: Confirm that the positive and negative wires are correctly and securely connected.
  • Check for blown fuses: Inspect the vehicle's fuse box for any blown fuses related to the circuit powering the light.
• Light Flickers:
  • Inspect wiring for loose connections or damaged insulation.
  • Ensure the ground connection is solid and free of corrosion.
• Dim Light Output:
  • Clean the lens if it appears dirty or obstructed.
  • Verify the power supply voltage is stable and within the specified 12.8V range.

If issues persist after troubleshooting, contact Maxxima customer support.

8. Specifications

9. Warranty Information

The Maxxima M84407-B Interior Compartment LED Light comes with a 5-year Maxxima Warranty. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, or to make a warranty claim, please refer to the official Maxxima warranty documentation or contact Maxxima customer support.

10. Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Maxxima customer support through their official website or the contact information provided with your purchase. When contacting support, please have your product model number (M84407-B) and purchase details available.
