1. Product Overview
The SANYO MDF-U55V-PE is a high-performance -86°C upright freezer designed for critical storage applications. It features a 519-liter capacity, advanced Panasonic compressors, and revolutionary Vacuum Insulation Panel (VIP) technology for superior temperature stability and energy efficiency. This manual provides essential information for the safe and effective operation of your freezer.

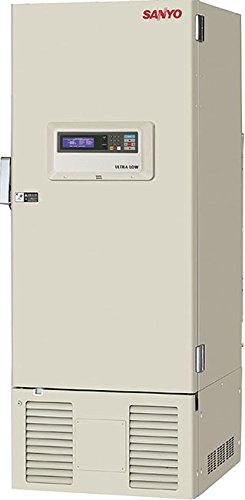

Image 1.1: Front view of the SANYO -86°C Upright Freezer, model MDF-U55V-PE. This image shows the exterior design, including the door and control panel.
2. Safety Instructions
Read all safety instructions carefully before operating the freezer. Failure to follow these instructions may result in injury or damage to the unit.
- Electrical Safety: Ensure the freezer is connected to a grounded power outlet with the correct voltage. Do not use extension cords.
- Placement: Place the freezer on a level, stable surface. Maintain adequate clearance around the unit for proper ventilation.
- Handling: The unit is heavy. Use appropriate lifting equipment and personnel during installation to prevent injury.
- Temperature: The freezer operates at extremely low temperatures (-86°C). Always wear appropriate personal protective equipment (PPE), such as cryogenic gloves and eye protection, when handling samples or working inside the freezer.
- Flammable Materials: Do not store flammable or explosive materials inside the freezer.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
3. Setup
3.1 Unpacking
- Carefully remove all packaging materials from the freezer.
- Inspect the unit for any signs of shipping damage. Report any damage to your supplier immediately.
- Remove all internal packing materials, including tape and protective films.
3.2 Placement
- Choose a location with a stable floor capable of supporting the freezer's weight when fully loaded.
- Ensure the ambient temperature is within the specified operating range (typically 18°C to 30°C).
- Allow at least 15 cm (6 inches) of clearance from walls or other equipment on all sides (back, top, and sides) for proper air circulation.
- Level the freezer using the adjustable leveling feet to ensure the door seals properly.
3.3 Power Connection
- Before connecting, ensure the power supply matches the voltage and frequency specified on the freezer's rating plate.
- Plug the freezer directly into a dedicated, grounded electrical outlet. Do not use multi-outlet adapters or extension cords.
- After connecting power, allow the freezer to stabilize for at least 4 hours before turning it on to allow refrigerants to settle.
4. Operating Instructions
4.1 Initial Start-up
- After the 4-hour settling period, turn on the main power switch, usually located on the control panel.
- The digital display will illuminate, showing the current internal temperature.
- The freezer will begin to cool down to its factory preset temperature, typically -80°C.
4.2 Setting Temperature
- Access the temperature setting menu via the control panel. Refer to the specific button layout on your unit.
- Use the up/down arrows to adjust the desired temperature. The freezer supports temperatures down to -86°C.
- Confirm your selection. The display will show the new set point and then revert to the actual internal temperature.
4.3 Digital Display and Alarms
- The digital display continuously shows the internal temperature.
- The unit is equipped with various alarms, including high/low temperature, power failure, and door open alarms.
- In case of an alarm, an audible signal will sound, and an indicator on the display will flash. Silence the alarm by pressing the designated button, then investigate the cause.
4.4 VIP Insulation Benefits
The revolutionary Vacuum Insulation Panel (VIP) technology significantly reduces insulation thickness while increasing internal storage capacity by over 30%. This design also allows for easier passage through access doors due to a reduced footprint. The VIP series also features an adjustable base and visual condenser filter dust indicator.
The freezer also features two insulated inner doors, acting as thermal barriers to minimize temperature fluctuations during access.
5. Maintenance
5.1 Cleaning the Interior
- Frequency: Clean the interior as needed, or at least once a year.
- Procedure: Power off the unit and allow it to warm up. Remove all samples. Use a mild, non-abrasive detergent and warm water to wipe down surfaces. Rinse with clean water and dry thoroughly before restarting.
5.2 Condenser Filter Maintenance
- Frequency: Check the condenser filter monthly. Clean or replace as indicated by the visual dust indicator or if visibly dirty.
- Procedure: Locate the condenser filter (usually at the bottom front or back of the unit). Remove it and clean with a vacuum cleaner or wash with water. Ensure it is completely dry before reinstallation.
5.3 Defrosting
Frost buildup on the inner doors and interior surfaces can reduce efficiency. Defrost the unit when frost accumulation becomes significant.
- Procedure: Transfer all samples to an alternative ultra-low temperature storage unit. Power off the freezer and open the doors to allow frost to melt. Use soft cloths to absorb water. Never use sharp objects to remove ice.
6. Troubleshooting
This section provides solutions to common operational issues. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer not cooling | No power; power cord loose; circuit breaker tripped; compressor issue | Check power connection; reset circuit breaker; contact service if compressor is suspected |
| High temperature alarm | Door left open; excessive door openings; power failure; condenser filter dirty | Ensure door is closed; minimize door openings; check power; clean condenser filter |
| Excessive frost buildup | Frequent door openings; poor door seal; high ambient humidity | Minimize door openings; check door gasket for damage; defrost unit |
7. Specifications
Key technical specifications for the SANYO MDF-U55V-PE freezer:
| Feature | Specification |
|---|---|
| Brand | Sanyo |
| Model Name | MDF-U55V-PE (mdf u55) |
| Model Number | 099359 |
| Capacity | 519 Liters |
| Temperature Range | Down to -86°C |
| Compressors | Panasonic (Dual SANYO compressors) |
| Insulation Type | VIP (Vacuum Insulation Panel) |
| Door Material Type | Glass (Inner doors) |
| Item Weight | 8 Kilograms (Note: This weight seems unusually low for a freezer of this type and capacity. Please verify with product label.) |
| Door Orientation | Right |
| Installation Type | Freestanding |
| Refrigerants | CFC-free, non-toxic, non-flammable |
| Origin | France |
8. Warranty and Support
8.1 Warranty Information
The SANYO MDF-U55V-PE freezer comes with a 36-month warranty on its Panasonic compressors, ensuring reliable performance and peace of mind. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, service requests, or to order replacement parts, please contact your local SANYO distributor or authorized service center. You may also visit the official SANYO website for further information.
- Website: www.sanyo.com (Example link, please refer to actual Sanyo support website)
- Email: support@sanyo.com (Example email)
- Phone: +1-800-XXX-XXXX (Example phone number)
