Introduction

This manual is a reproduction of the original Craftsman 103.23881 Wood Lathe Instructions and Parts Manual. It provides essential information for the safe and effective use of your wood lathe, including installation procedures, operating controls, lubrication guidelines, and detailed exploded view parts diagrams. This document is intended to serve as a valuable resource for maintaining and understanding your equipment.

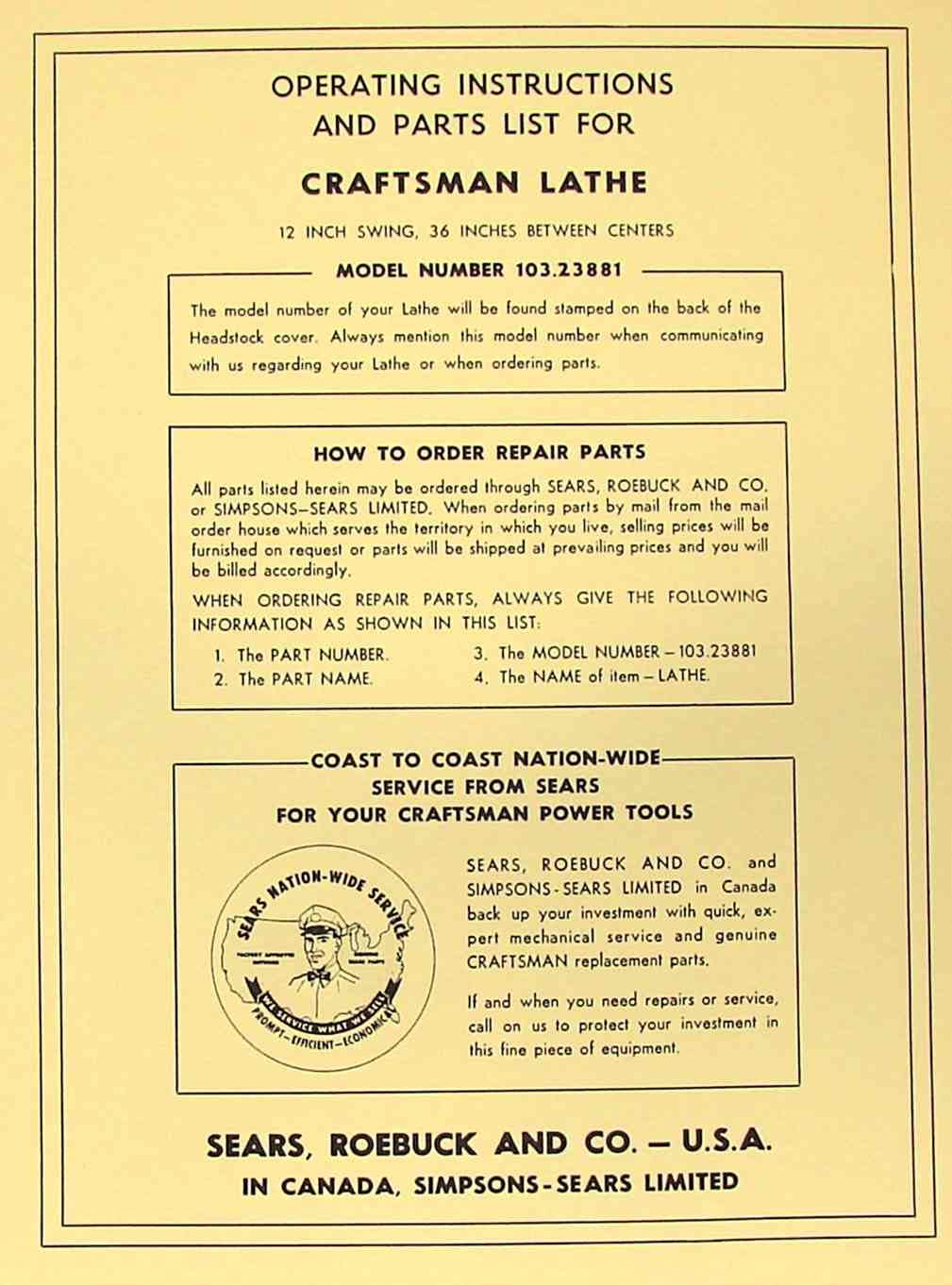

Figure 1: Front cover of the Craftsman 103.23881 Wood Lathe Instructions and Parts Manual. This image displays the title and basic information about the manual's content.

Safety Information

Always prioritize safety when operating any machinery. Before using the Craftsman 103.23881 Wood Lathe, carefully read and understand all safety warnings and instructions provided in this manual. Failure to follow these guidelines can result in serious injury or damage to the equipment.

• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and dust masks.
• Ensure the work area is clean, well-lit, and free from obstructions.
• Never operate the lathe under the influence of drugs or alcohol.
• Keep hands and clothing clear of moving parts.
• Disconnect power before performing any maintenance or adjustments.

Setup and Installation

Proper installation is crucial for the stability and safe operation of your Craftsman 103.23881 Wood Lathe. Follow these steps to set up your machine:

1. Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present.
2. Mounting: Securely mount the lathe to a sturdy workbench or stand using appropriate hardware. Ensure the mounting surface is level and capable of supporting the lathe's weight and operational forces.
3. Electrical Connection: Connect the lathe to a grounded electrical outlet according to local electrical codes. Verify the voltage and amperage requirements match your power supply.
4. Initial Adjustments: Perform any initial adjustments as specified in the original manual, such as aligning the headstock and tailstock.

Operating Controls

Familiarize yourself with the various controls and their functions before operating the Craftsman 103.23881 Wood Lathe. This section outlines the primary operating components:

• Power Switch: Located on the front of the machine, this switch controls the main power supply to the motor.
• Speed Control: Adjusts the rotational speed of the spindle. Refer to the original manual for recommended speed settings for different materials and operations.
• Headstock: Houses the motor and spindle assembly.
• Tailstock: Provides support for the workpiece opposite the headstock. It can be adjusted along the bed.
• Tool Rest: Supports turning tools during operation. Ensure it is securely positioned close to the workpiece without touching it.

Maintenance and Lubrication

Regular maintenance and proper lubrication are essential for extending the lifespan and ensuring the optimal performance of your Craftsman 103.23881 Wood Lathe. Follow these guidelines:

• Cleaning: After each use, clean the lathe thoroughly, removing wood dust and debris from all surfaces, especially the bed and moving parts.
• Lubrication Points: Refer to the original manual's lubrication chart for specific points and recommended lubricants. Typically, spindle bearings, tailstock quill, and bedways require periodic lubrication.
• Belt Tension: Check the drive belt tension periodically and adjust as necessary to prevent slippage and excessive wear.
• Inspections: Regularly inspect all fasteners for tightness and moving parts for signs of wear or damage. Replace worn parts promptly.

Parts Overview and Diagrams

This section provides an overview of the main components of the Craftsman 103.23881 Wood Lathe and includes exploded view diagrams to assist with identification and assembly. These diagrams are invaluable for ordering replacement parts or understanding the machine's construction.

Figure 2: Example pages from the manual, illustrating exploded view parts diagrams. These diagrams help in identifying individual components and their assembly order.

For detailed part numbers and specific assembly instructions, refer directly to the exploded view diagrams and accompanying parts lists within the full manual.

Troubleshooting

While this manual primarily focuses on instructions and parts, some common operational issues can often be resolved by reviewing the setup and operating sections. For more complex problems, consult a qualified technician or refer to the original Craftsman service manual if available.

• Lathe not starting: Check power connection, power switch, and ensure safety interlocks are engaged.
• Excessive vibration: Verify workpiece is securely mounted, check for loose components, and ensure the lathe is properly mounted to its stand.
• Unusual noises: Inspect for worn bearings, loose belts, or foreign objects. Disconnect power before inspection.

Specifications

The Craftsman 103.23881 Wood Lathe is designed with specific operational parameters. While this manual is a reproduction, the original specifications are critical for proper use and maintenance.

Note: For detailed mechanical and electrical specifications of the Craftsman 103.23881 Wood Lathe itself, please refer to the original product documentation or the lathe's nameplate.

Warranty and Support

This manual is a reproduction of the original instructions and parts guide. It does not include warranty information for the Craftsman 103.23881 Wood Lathe itself. For warranty details, please refer to the original purchase documentation or contact Craftsman directly.

For support regarding the content of this manual or to inquire about other tool manuals, please contact the publisher, Ozark Tool Manuals.
