DecoBREEZE Providence Pedestal Standing Fan User Manual

Introduction

Thank you for choosing the DecoBREEZE Providence Pedestal Standing Fan. This manual provides important information for the safe operation, assembly, maintenance, and troubleshooting of your new fan. Please read it thoroughly before use and retain it for future reference.

This 18-inch outdoor-rated fan features a stylish antique design with an off-white weathered effect, adjustable height, and three-speed oscillating options, making it ideal for enhancing comfort in your outdoor living spaces.

Important Safety Instructions

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this fan.
• This fan is ETL "Wet Listed" and designed for outdoor use. Always connect to a Ground Fault Circuit Interrupter (GFCI) protected outlet when used outdoors.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect fan, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fan.
• Do not block air intakes or exhaust openings in any manner.
• Do not use on wet surfaces or near water.
• Always place the fan on a stable, flat surface to prevent tipping. The fan has a weighted base for stability.
• Close supervision is necessary when any appliance is used by or near children.
• Do not use this fan with any solid-state speed control device.

Package Contents

Carefully unpack your fan and ensure all items are present and in good condition. If any items are missing or damaged, please contact customer service.

• Fan Head Assembly (includes motor and blades)
• Adjustable Height Pole
• Decorative Pedestal Base
• Power Cord with GFCI Plug
• Assembly Hardware (screws, washers, etc.)

Image: The complete DecoBREEZE Providence Pedestal Standing Fan, showcasing its antique off-white finish and elegant design.

Setup and Assembly

Assembly is required before first use. Please follow these steps:

1. Attach Pole to Base: Carefully align the bottom of the adjustable height pole with the opening in the decorative pedestal base. Secure it using the provided screws and washers from underneath the base. Ensure it is firmly tightened for stability.
2. Attach Fan Head to Pole: Place the fan head assembly onto the top of the adjustable height pole. There should be a locking mechanism or screw to secure the fan head in place. Tighten securely.
3. Adjust Height: Loosen the height adjustment knob on the pole to extend or retract the pole to your desired height (between 40 and 51 inches). Once set, tighten the knob firmly to lock the height.
4. Positioning: Place the assembled fan on a flat, stable surface in your desired outdoor location. Ensure the power cord can reach a GFCI-protected outlet without being stretched or creating a tripping hazard.

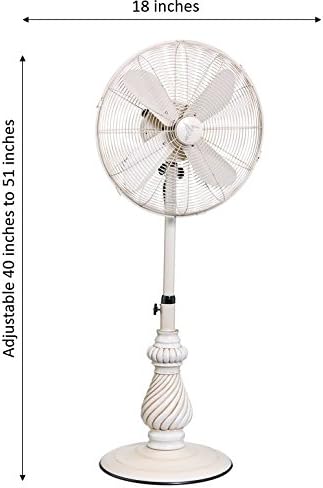

Image: Diagram showing the adjustable height (40-51 inches) and 18-inch diameter of the fan head.

Operating Instructions

Your DecoBREEZE Providence Pedestal Fan is designed for ease of use.

• Power On/Off: Plug the fan into a standard 220V GFCI-protected electrical outlet. Use the push button controls located on the fan's motor housing to turn the fan ON or OFF.
• Speed Settings: The fan offers three speed settings. Press the speed control button repeatedly to cycle through the speeds:
  • Speed 1: 900 RPM (Low)
  • Speed 2: 1100 RPM (Medium)
  • Speed 3: 1280 RPM (High)
• Oscillation: To activate the oscillation feature, press the oscillation button (usually located on top or back of the motor housing). The fan head will sweep from side to side to distribute air over a wider area. Press the button again to stop oscillation at a desired direction.
• Adjusting Vertical Angle: The fan head can be tilted up or down to direct airflow. Gently push or pull the fan head to adjust its vertical angle.

Image: The DecoBREEZE Providence Pedestal Standing Fan positioned on an outdoor patio, demonstrating its suitability for outdoor living spaces.

Maintenance

Regular maintenance will help prolong the life and efficiency of your fan.

• Cleaning: Always unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior surfaces of the fan. Do not use abrasive cleaners or solvents. For dust accumulation on the fan blades or inside the grille, use a vacuum cleaner with a brush attachment or compressed air. The fan grille may be removable for deeper cleaning; refer to assembly instructions for removal.
• Storage: When not in use for extended periods, store the fan in a cool, dry place. It is recommended to cover the fan to protect it from dust and moisture.
• Cord Care: Regularly inspect the power cord for any signs of damage. Do not wrap the cord tightly around the fan when storing.

Troubleshooting

If your fan is not operating correctly, please consult the following common issues and solutions:

Specifications

Warranty and Support

Your DecoBREEZE Providence Pedestal Standing Fan comes with a 3-year limited manufacturer warranty.

For warranty claims, technical support, or replacement parts, please contact Deco Breeze customer service. You can typically find contact information on the product packaging or the official Deco Breeze website.

Online Support: Visit the Deco Breeze Store on Amazon for more information and product support.
