1. Introduction
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Truck-Lite 92910 Back-Up Alarm. Please read this manual thoroughly before installation and use to ensure safe and efficient operation. Keep this manual for future reference.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product and vehicle:
- Disconnect Power: Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or short circuits.
- Proper Wiring: Ensure all wiring connections are secure and insulated to prevent shorts and corrosion. Use appropriate gauge wire for connections.
- Mounting Location: Mount the alarm in a location that is protected from direct impact and excessive vibration, and where its sound will not be obstructed.
- Professional Installation: If you are unsure about any part of the installation process, consult a qualified automotive technician.
- Operating Environment: This device is designed for specific vehicle applications. Ensure it is suitable for your vehicle's electrical system and operating conditions.
3. Package Contents
Verify that all items are present in the package before beginning installation:
- Truck-Lite 92910 Back-Up Alarm Unit
- Mounting Hardware (screws, washers, nuts)
- Instruction Manual (this document)
4. Installation
Follow these steps for proper installation of the Truck-Lite 92910 Back-Up Alarm:

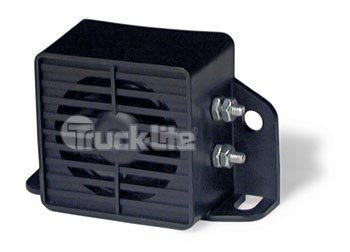

Figure 1: Truck-Lite 92910 Back-Up Alarm unit. This image shows the compact design of the alarm, typically featuring a durable housing and mounting brackets.
- Choose Mounting Location: Select a secure, flat surface at the rear of the vehicle, away from exhaust heat and moving parts. The alarm should be positioned to project sound effectively.
- Mark Drilling Points: Use the alarm's mounting bracket as a template to mark the drilling points for the mounting hardware.
- Drill Pilot Holes: Drill pilot holes at the marked locations, ensuring they are appropriate for the provided mounting screws.
- Mount the Alarm: Securely attach the alarm to the vehicle using the provided mounting hardware. Ensure it is firmly fixed and does not vibrate loose.
- Wire Connections:
- Connect the positive (+) wire of the alarm to the vehicle's reverse light circuit (the wire that becomes live when the vehicle is in reverse gear).
- Connect the negative (-) wire of the alarm to a good chassis ground point on the vehicle.
- Test Functionality: Reconnect the vehicle's battery. Engage the reverse gear (with the parking brake on and in a safe environment) to verify the alarm sounds correctly.
5. Operating Instructions
The Truck-Lite 92910 Back-Up Alarm operates automatically. When the vehicle's transmission is shifted into reverse gear, the alarm will activate, emitting an audible warning signal. This signal alerts pedestrians and other drivers to the vehicle's rearward movement, enhancing safety.
- The alarm is designed to provide a consistent warning tone whenever the reverse circuit is active.
- Ensure the alarm's sound is not obstructed by debris or vehicle components.
6. Maintenance
The Truck-Lite 92910 Back-Up Alarm requires minimal maintenance to ensure long-term performance:
- Regular Inspection: Periodically check the alarm unit for any signs of physical damage, loose mounting, or corrosion on the wiring connections.
- Cleaning: Keep the alarm unit clean from dirt, mud, and debris. Use a damp cloth to wipe the exterior. Avoid using harsh chemicals or high-pressure washers directly on the unit.
- Wiring Integrity: Ensure all wiring remains securely connected and insulation is intact. Repair or replace any damaged wiring immediately.
7. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Alarm does not sound when in reverse. | No power to the alarm; faulty wiring; alarm unit failure. | Check all wiring connections for looseness or corrosion. Verify the reverse light circuit is receiving power. Test the alarm unit with a direct 12V power source. |
| Alarm sounds intermittently. | Loose wiring connection; intermittent power supply. | Inspect all connections for secure fit. Check for any breaks or damage in the wiring. |
| Alarm sound is too low or distorted. | Obstruction of sound; internal damage to alarm. | Ensure the alarm's sound output is not blocked. Clean any debris from the unit. If the problem persists, the alarm unit may need replacement. |
8. Specifications
- Brand: Truck-Lite
- Model: 92910
- Power Source: Vehicle's 12V/24V DC electrical system (hand_powered is an incorrect specification from source data, actual is vehicle powered)
- ASIN: B01B3PI1S8
- Unit Count: 1.0 Count
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Truck-Lite customer service directly. Keep your proof of purchase for warranty claims.
