Kettler KINETIC F5 Multi-Gym Instruction Manual

1. Important Safety Information

Read all instructions carefully before assembling or using the Kettler KINETIC F5 Multi-Gym. Keep this manual for future reference. Failure to follow these instructions can result in serious injury or equipment damage.

• Consult a Physician: Before starting any exercise program, consult your physician to determine if you have any medical conditions that could be aggravated by using this equipment.
• Adult Supervision: This equipment is intended for adult use only. Keep children and pets away from the machine during operation.
• Proper Assembly: Ensure all parts are correctly assembled and tightened according to the instructions. Improper assembly can lead to instability and injury.
• Stable Surface: Place the multi-gym on a flat, stable surface. Ensure adequate clearance around the equipment for safe operation.
• Inspect Before Use: Before each use, inspect the equipment for worn or loose parts, especially cables, pulleys, and fasteners. Do not use the machine if any components are damaged.
• Proper Form: Use proper exercise form to prevent injury. If you experience pain or discomfort, stop exercising immediately.
• Maximum User Weight: Do not exceed the maximum user weight of 150 kg.

2. Package Contents

Carefully unpack all components and verify that all parts are present. If any parts are missing or damaged, do not proceed with assembly and contact Kettler customer support.

Typical components include:

• Main frame components
• Weight stack plates and selector pin
• Cables and pulleys
• Seat and backrest
• Leg extension/curl attachment
• Butterfly arms
• Lat pulldown bar, short bar, ankle strap
• Hardware kit (bolts, nuts, washers)
• Assembly tools (basic wrenches, Allen keys)

3. Setup and Assembly

Assembly of the Kettler KINETIC F5 Multi-Gym requires two people and approximately 3-5 hours. Follow the step-by-step instructions provided in the separate assembly guide. Ensure you have sufficient space and all necessary tools before beginning.

3.1 Assembly Steps Overview

1. Unpack and Organize: Lay out all parts and hardware. Refer to the parts list in the assembly guide to identify each component.
2. Assemble Base Frame: Connect the main base frame components securely.
3. Install Uprights: Attach the vertical support posts to the base.
4. Mount Pulleys and Cables: Carefully route the cables through the pulleys as shown in the diagrams. Ensure cables are not twisted or pinched.
5. Install Weight Stack: Place the weight plates onto the guide rods and secure the top plate.
6. Attach Exercise Stations: Install the seat, backrest, leg extension, butterfly arms, and lat pulldown tower.
7. Final Inspection: Double-check all bolts and nuts for tightness. Test all moving parts for smooth operation.

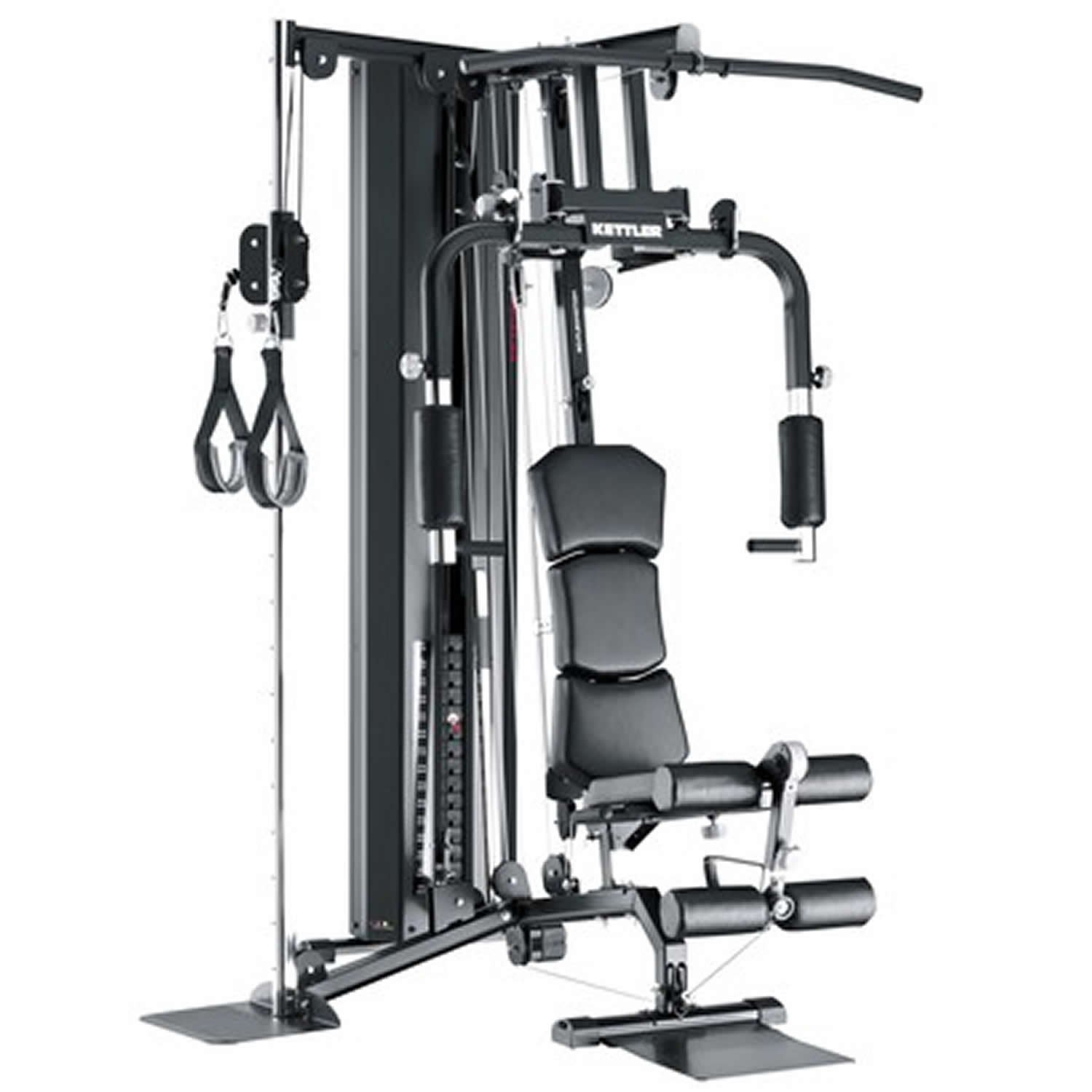

Image 1: Assembled Kettler KINETIC F5 Multi-Gym. This image shows the complete multi-gym from a front-side angle, highlighting its various stations including the lat pulldown, chest press, and leg extension.

4. Operating Instructions

The Kettler KINETIC F5 Multi-Gym offers a variety of exercises targeting different muscle groups. Always warm up before exercising and cool down afterwards.

4.1 Adjusting the Weight Stack

To select your desired resistance, insert the selector pin into the hole of the corresponding weight plate. Ensure the pin is fully inserted before beginning your exercise. The weight stack ranges from 5 kg to 80 kg, with increments of 5 kg (16 x 5 kg plates). The double cable pull system allows for a maximum load of 2 x 40 kg.

4.2 Adjusting the Seat and Attachments

• Seat Height: The seat is height-adjustable. Loosen the adjustment knob, slide the seat to the desired height, and re-tighten the knob securely.
• Leg Extension/Curl: The leg extension attachment is adjustable. Position it to comfortably fit your leg length for proper exercise form.
• Butterfly Arms: The butterfly arms are adjustable to accommodate different arm lengths and exercise preferences.

4.3 Exercise Stations and Usage

The KINETIC F5 includes the following stations:

• Lat Pulldown Tower: Use the lat pulldown bar for exercises targeting the back muscles.
• Seated Press / Adjustable Press Bar: For chest and shoulder exercises. Adjust the press bar position as needed.
• Butterfly (Pec Deck): Targets chest muscles.
• Leg Extension / Leg Curl: For quadriceps and hamstring exercises.
• Low Cable Pull: Versatile station for various arm, leg, and core exercises (e.g., bicep curls, tricep pushdowns, upright rows, cable crunches, rowing).
• Abdominal Crunch (Seated): For core strengthening.
• Rower: Simulates rowing motion for back and arm muscles.

Always start with a light weight to familiarize yourself with the movement and gradually increase resistance as your strength improves.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Kettler KINETIC F5 Multi-Gym.

• Cleaning: Wipe down the frame and upholstery with a damp cloth after each use to remove sweat and dust. Do not use abrasive cleaners.
• Cable Inspection: Periodically inspect all cables for fraying, kinks, or wear. Replace damaged cables immediately.
• Pulley Inspection: Check pulleys for smooth rotation and ensure they are free of debris. The multi-gym features ball-bearing guide pulleys for smooth cable operation.
• Fastener Check: Regularly check all bolts, nuts, and screws for tightness. Tighten any loose fasteners.
• Lubrication: Apply a silicone-based lubricant to guide rods and pivot points as needed to ensure smooth movement and prevent squeaking.

6. Troubleshooting

If you encounter issues with your Kettler KINETIC F5 Multi-Gym, refer to the following common solutions:

• Squeaking Noises: Check for loose fasteners and lubricate pivot points and guide rods. Ensure cables are properly routed and not rubbing against any surfaces.
• Rough Cable Movement: Inspect cables for damage or fraying. Ensure pulleys are clean and rotating freely. Lubricate guide rods if the weight stack movement is not smooth.
• Weight Stack Sticking: Ensure the selector pin is fully inserted. Check guide rods for debris or lack of lubrication.
• Instability: Verify that the multi-gym is placed on a flat, level surface. Check all frame connections for tightness.

If problems persist, contact Kettler customer support for assistance.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Kettler website. Kettler provides customer support for product inquiries, parts replacement, and technical assistance.

Contact Kettler Support:

• Visit the Kettler website for contact details specific to your region.
• Have your model number (KINETIC F5) and ASIN (B00SRKBTLE) ready when contacting support.
