1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your AstralPool Marlin 45 III Countercurrent Swimming Equipment. Please read this manual thoroughly before attempting to install or operate the equipment. Retain this manual for future reference.

2. Safety Instructions

WARNING: Failure to follow these instructions can result in serious injury or death.

• Always disconnect power to the equipment before performing any service or maintenance.
• Installation must be performed by a qualified electrician and plumber in accordance with all local and national electrical and plumbing codes.
• Ensure the electrical supply matches the equipment's specifications (400 V III 50 Hz).
• Keep children away from the equipment during operation and maintenance.
• Do not operate the equipment if any part is damaged or malfunctioning.
• Never block the water inlet or outlet during operation.
• Ensure proper grounding of all electrical components.

3. Product Overview

The AstralPool Marlin 45 III is a countercurrent swimming system designed to create a powerful water flow in your pool, allowing for stationary swimming and aquatic exercise. The system consists of a nozzle, a plastic housing, a control panel, and a robust 3.3 kW (4.5 CV) three-phase pump.

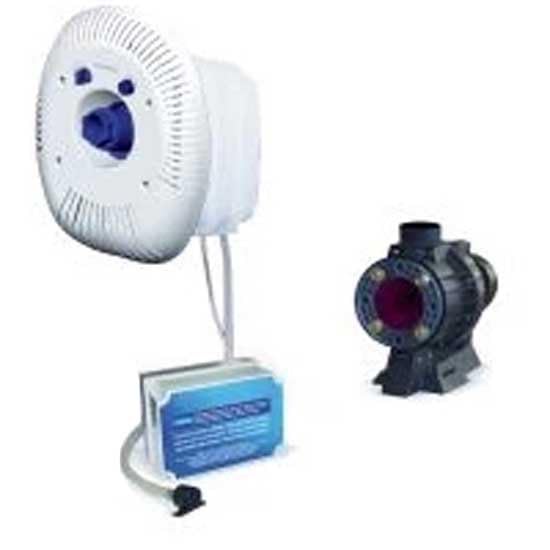

This image displays the main components of the AstralPool Marlin 45 III countercurrent swimming equipment. On the left is the white, circular nozzle unit, which is installed in the pool wall. To its right is the black pump motor assembly, responsible for generating the water flow.

Components:

• Nozzle: The adjustable outlet unit installed in the pool wall, directing the water flow.
• Plastic Housing: Protects internal components and provides structural support for the nozzle unit.
• Control Panel: Allows users to activate and deactivate the countercurrent system.
• Pump (3.3 kW / 4.5 CV, 400 V III 50 Hz): The powerful motor responsible for circulating water and creating the countercurrent.

4. Setup and Installation

Installation of the AstralPool Marlin 45 III Countercurrent Swimming Equipment requires specialized knowledge and should only be performed by certified professionals. Incorrect installation can lead to equipment damage, electrical hazards, or plumbing issues.

General Installation Steps (for professional guidance):

1. Site Selection: Choose an appropriate location for the pump, ensuring it is protected from weather, well-ventilated, and accessible for maintenance.
2. Nozzle Placement: Install the nozzle unit in the pool wall at the recommended depth and location for optimal countercurrent effect.
3. Plumbing Connections: Connect the pump to the nozzle unit using appropriate PVC piping and fittings, ensuring all connections are watertight.
4. Electrical Wiring: Connect the pump and control panel to the main electrical supply (400 V III 50 Hz) via a dedicated circuit breaker, ensuring proper grounding and compliance with electrical codes.
5. Initial Priming: Before first use, ensure the pump is properly primed according to the pump manufacturer's instructions to prevent dry running.
6. System Test: After installation, perform a thorough test of the system to check for leaks, proper operation, and electrical safety.

5. Operating Instructions

Once properly installed and primed, operating the Marlin 45 III is straightforward.

Starting the System:

1. Ensure the pool water level is adequate for safe operation.
2. Activate the main power switch for the countercurrent system.
3. Press the ON button on the control panel, typically located near the pool or on the nozzle unit itself. The pump will start, and water will begin to flow from the nozzle.

Stopping the System:

1. Press the OFF button on the control panel. The pump will stop.
2. For extended periods of non-use, or during maintenance, turn off the main power switch to the system.

Adjusting Flow:

Some models may feature adjustable nozzle settings to vary the intensity or direction of the countercurrent. Refer to the specific nozzle documentation for adjustment procedures.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your countercurrent system.

Routine Maintenance:

• Inspect Nozzle: Periodically check the nozzle for any debris or blockages. Clean as necessary.
• Check Pump: Listen for unusual noises from the pump. Ensure there are no visible leaks around the pump or plumbing connections.
• Electrical Inspection: Annually, have a qualified electrician inspect all electrical connections and wiring for wear or corrosion.
• Winterization: In colder climates, the system must be properly winterized to prevent freeze damage. This typically involves draining all water from the pump and plumbing lines and storing the pump in a dry, frost-free location if removable. Consult a pool professional for specific winterization procedures for your setup.

7. Troubleshooting

This section addresses common issues you might encounter with your countercurrent system.

If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact a qualified service technician or AstralPool customer support.

8. Specifications

• Model: Marlin 45 III
• Part Number: 35377
• Pump Power: 3.3 kW (4.5 CV)
• Voltage: 400 V
• Phase: Three-phase (III)
• Frequency: 50 Hz
• Item Weight: 42.2 kg
• Manufacturer: AstralPool
• First Available Date: August 3, 2016

9. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your authorized AstralPool dealer. Keep your proof of purchase for warranty claims.

For technical support, spare parts, or service, please contact your local AstralPool distributor or the retailer from whom you purchased the equipment. Provide your model number (Marlin 45 III) and serial number (if applicable) when seeking assistance.
