1. Product Overview
This manual provides instructions for the GORILLA SPORTS Weight Bench, Model 100118-00022-0001. This adjustable fitness equipment is designed for strength training, offering a weight bench with incline and flat positions, an integrated barbell rack, and a dip station. It is constructed from alloy steel and features a comfortable padded cushion.
Image 1.1: Overall view of the GORILLA SPORTS Weight Bench with Barbell Rack.
2. Safety Information
Read all instructions before assembling and using this equipment. Keep this manual for future reference. Failure to follow these instructions may result in serious injury.
- Consult a physician before starting any exercise program.
- Keep children and pets away from the equipment during use.
- Place the equipment on a flat, stable surface. Ensure adequate space around the bench for safe operation.
- Inspect the equipment for loose parts, damage, or wear before each use. Do not use if damaged.
- Ensure all bolts and nuts are securely tightened before use.
- Do not exceed the maximum weight capacity of 200 kg for the bench and barbell rack.
- Use proper lifting techniques and always use spotters when lifting heavy weights.
- Wear appropriate exercise attire and footwear.
3. Package Contents
Carefully unpack all components and verify against the packing list provided with your product. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
Typical components include:
- Main frame components (bench frame, barbell rack uprights, base supports)
- Padded bench cushion
- Hardware kit (bolts, nuts, washers, pins)
- Assembly tools (e.g., mini wrenches)
- User Manual
4. Assembly Instructions
Assembly typically requires two people. Follow the numbered steps in the order presented. Ensure all connections are secure before proceeding to the next step.
Step 4.1: Assemble the Bench Base
Attach the front and rear stabilizers to the main bench frame using the provided bolts and nuts. Ensure the rubber feet are securely attached to the stabilizers for stability and floor protection.

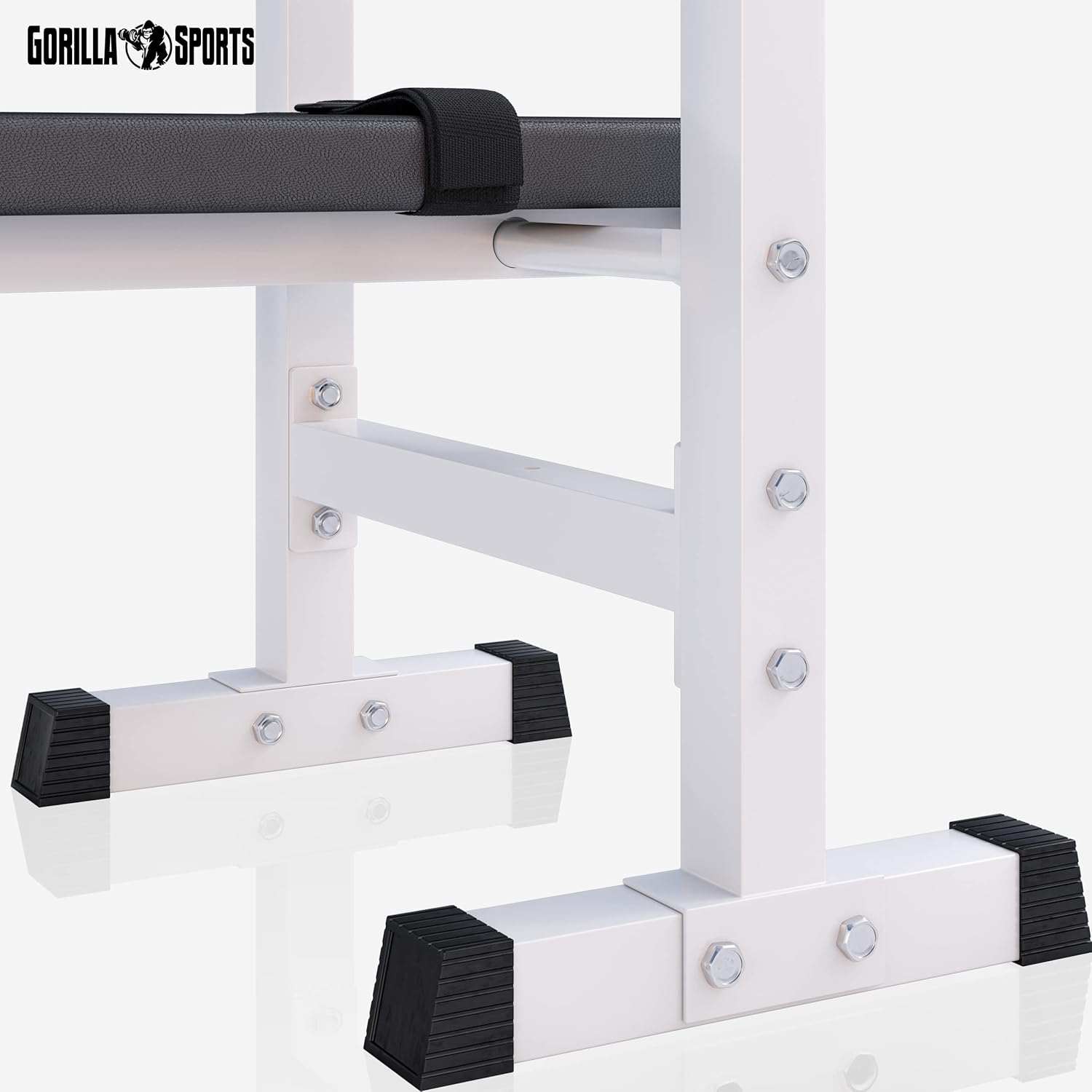

Image 4.1: Detail of the bench base and protective feet.
Step 4.2: Attach the Padded Cushion
Secure the padded bench cushion to the bench frame using the designated screws or bolts. Ensure it is firmly attached and does not wobble.
Image 4.2: Detail of the padded bench cushion with securing strap.
Step 4.3: Assemble the Barbell Rack Uprights
Connect the two barbell rack uprights to their respective base supports. Then, attach these assemblies to the main bench frame or designated connection points. Insert the adjustable pins for the barbell rests.
Image 4.3: Close-up view of the barbell rack uprights and adjustment points.
Step 4.4: Final Inspection
After completing assembly, double-check all bolts, nuts, and pins to ensure they are tightened and secured. Test the stability of the bench and rack before initial use.
5. Operating Instructions
5.1 Using the Weight Bench
The bench can be adjusted to various positions, including flat and incline. To adjust the bench angle, locate the adjustment pin or lever mechanism beneath the bench seat. Pull the pin, adjust the bench to the desired angle, and ensure the pin locks securely into place before use.
Image 5.1: The weight bench adjusted to an incline position.
5.2 Using the Barbell Rack
The barbell rack features multiple height adjustment levels. To adjust the height, remove the safety pin, slide the barbell rest to the desired height, and reinsert the safety pin, ensuring it passes completely through the frame and rest. Always ensure both sides of the rack are at the same height.
Image 5.2: The weight bench with the barbell rack, illustrating height adjustment capability.
5.3 Using the Dip Station
The integrated dip station allows for bodyweight exercises. Ensure the bench is stable and all connections are secure before performing dips. Grip the handles firmly and maintain control throughout the exercise.
Image 5.3: Example of a user performing an exercise with the weight bench and barbell rack.
6. Adjustments
- Bench Angle: The bench offers multiple incline positions and a flat position. To change the angle, locate the adjustment mechanism (pin or lever) under the seat, pull it out, set the bench to the desired angle, and release the pin to lock it in place.
- Barbell Rack Height: The barbell rack has 5 different adjustment levels. To adjust, remove the locking pin, slide the barbell support to the desired height, and re-insert the pin, ensuring it is fully engaged.
7. Folding and Storage
The GORILLA SPORTS Weight Bench is designed to be foldable for convenient storage. To fold the bench:
- Ensure no weights are on the barbell rack or bench.
- Adjust the bench to its flat position.
- Locate the folding mechanism (often a pin or lever) near the base of the bench seat.
- Disengage the mechanism and carefully fold the bench seat upwards or downwards, depending on the design, until it is in the compact storage position.
- Secure the folded position with any provided locking pins or straps.
Image 7.1: Detail of the bench's underside, showing components related to folding.
8. Maintenance
- Cleaning: Wipe down the bench and frame with a damp cloth after each use to remove sweat and dirt. Use a mild soap solution for deeper cleaning, then wipe dry. Avoid abrasive cleaners.
- Inspection: Regularly check all bolts, nuts, and pins for tightness. Tighten any loose fasteners. Inspect the frame for cracks or damage, and the padded cushion for tears or excessive wear.
- Lubrication: Periodically apply a small amount of silicone-based lubricant to moving parts or adjustment mechanisms to ensure smooth operation.
9. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Bench feels unstable or wobbly | Loose bolts or uneven surface | Ensure all bolts are tightened. Move the bench to a flat, level surface. |
| Adjustment pin for bench or rack is stuck | Dirt/debris in hole or lack of lubrication | Clean the pin and hole. Apply a small amount of silicone lubricant. |
| Squeaking noises during use | Loose connections or friction between metal parts | Tighten all bolts. Apply lubricant to pivot points or contact areas. |
10. Specifications
| Feature | Detail |
|---|---|
| Model Number | 100118-00022-0001 |
| Brand | GORILLA SPORTS |
| Color | White |
| Material | Alloy Steel |
| Maximum Weight Capacity | 200 Kilograms |
| Item Weight | 18.42 Kilograms |
| Product Dimensions (L x W x H) | 118D x 54.5W x 112H centimetres (approximate assembled) |
| Barbell Rack Adjustment Levels | 5 |

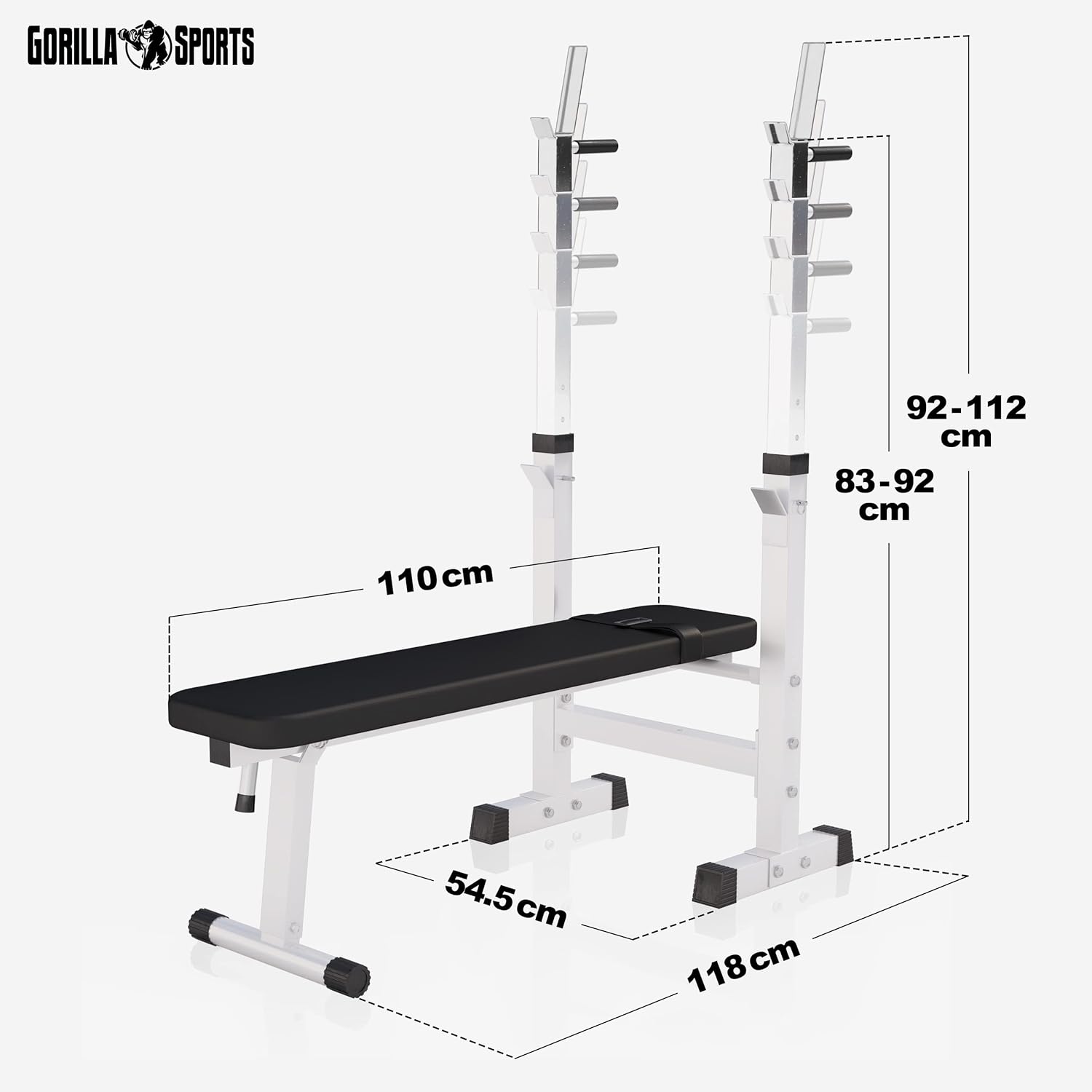

Image 10.1: Dimensional overview of the GORILLA SPORTS Weight Bench.
11. Warranty and Support
This product is manufactured by GORILLA SPORTS. Spare parts are available for a duration of 2 years from the date of first availability. For warranty claims, technical support, or to inquire about spare parts, please contact your retailer or the manufacturer directly. Please retain your proof of purchase.
