Evenflo Portable BabySuite Deluxe Playard Instruction Manual

Important Safety Information

Please read and understand all instructions and warnings before assembling and using the Evenflo Portable BabySuite Deluxe Playard. Failure to follow these instructions could result in serious injury or death.

• Suffocation Hazard: Infants can suffocate in gaps between an extra pad and the side of the playard, or on soft bedding. Use ONLY the pad provided by Evenflo. NEVER add a pillow, comforter, or another mattress for padding.
• Fall Hazard: To prevent falls, do not use the bassinet or changer when the infant begins to push up on hands and knees, or has reached 15 lbs (6.8 kg), whichever comes first.
• Always ensure all locking mechanisms are securely engaged before placing a child in the playard, bassinet, or changer.
• Keep the playard away from hazards such as windows with cords or blinds, heaters, and electrical outlets.

For a period of 90 days from the original purchase, Evenflo warrants this product against defects in material or workmanship. Repair or replacement is the exclusive remedy. Proof of purchase is required for warranty service.

Setup Instructions

1. Unpacking and Initial Inspection

Remove all contents from the box. Inspect all parts for damage or missing components. Do not use if any parts are damaged or missing. Keep packaging materials away from children.

2. Assembling the Playard Frame

1. Stand the playard upright. Pull the two short side rails upward until they lock into place. Listen for an audible click.
2. Repeat for the two long side rails. Ensure all four rails are locked. If a rail does not lock, pull it up firmly until it clicks.
3. Push down on the center hub of the playard floor until it lies flat and is securely locked.

Figure 1: Fully assembled playard with bassinet and changer.

3. Installing the Full-Size Bassinet

The bassinet is designed for infants who cannot push up on hands and knees, or weigh less than 15 lbs (6.8 kg).

1. Unzip the bassinet fabric from the carry bag.
2. Insert the support rods into the designated sleeves around the bassinet perimeter.
3. Securely attach the bassinet to the top rails of the playard using the clips and zippers provided. Ensure all attachment points are firm and the bassinet is level.
4. Place the playard mattress pad inside the bassinet, ensuring it lies flat.

Figure 2: Playard with the full-size bassinet installed.

4. Attaching the Rotating Changer

The rotating changer is for infants weighing less than 15 lbs (6.8 kg).

1. Assemble the changer frame according to the instructions printed on the changer fabric.
2. Attach the changer unit to the designated clips on the playard's top rail. Ensure it is securely fastened and stable.

Figure 3: Rotating changer in position for use.

5. Installing the Storage Organizer

1. Unfold the storage organizer.
2. Attach the organizer to the side of the playard using the Velcro straps or clips provided. Ensure it hangs securely and does not interfere with the playard's stability.

Figure 4: Storage organizer attached to the playard side.

6. Attaching the Toy Bar

1. Insert the ends of the toy bar into the designated slots on the playard rails.
2. Ensure the toy bar is firmly seated and the toys hang freely.

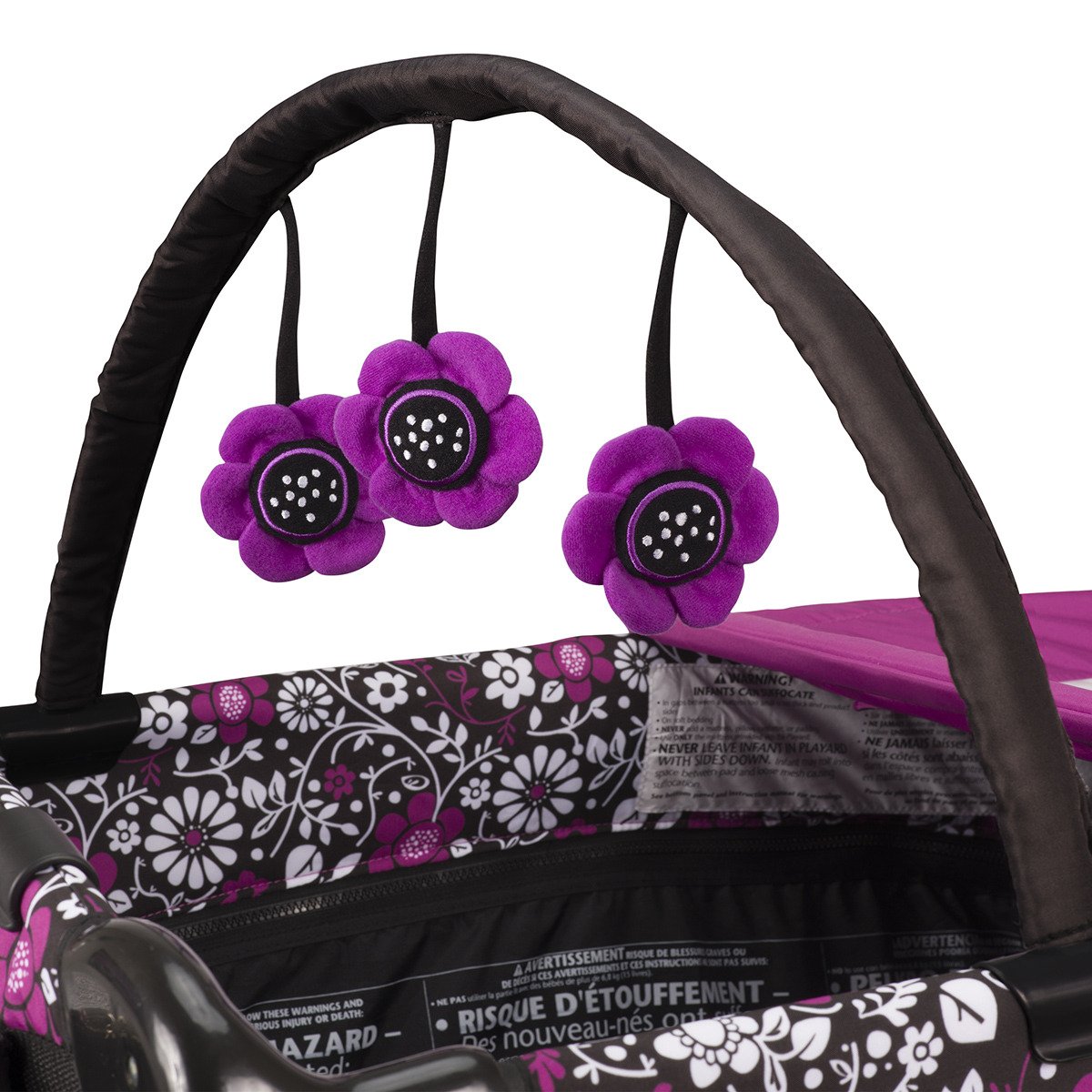

Figure 5: Toy bar with plush toys installed.

Operating Your BabySuite Deluxe

1. Using the Full-Size Bassinet

The bassinet provides a comfortable, elevated sleeping and resting area for newborns. Always ensure the bassinet is securely attached and the mattress pad is flat. Discontinue use when the infant reaches 15 lbs (6.8 kg) or shows signs of pushing up.

2. Using the Rotating Changer

The changer can be rotated into position for diaper changes and then swiveled out of the way when not in use, maximizing space within the playard. Always keep one hand on your child while using the changer. Discontinue use when the infant reaches 15 lbs (6.8 kg).

Figure 6: Changer rotated to the side, providing full access to the playard.

3. Using the Playard

Once your child outgrows the bassinet, remove it to use the full depth of the playard for safe play and sleep. The playard is suitable for children up to 35 inches (89 cm) tall or 30 lbs (13.6 kg), or until they are able to climb out.

4. Using the Playtime Playmat

The padded floor mat can be removed and used independently as a playtime playmat for tummy time or other activities. It provides a clean and comfortable surface for your baby.

Figure 7: Baby enjoying playtime on the convertible floor mat.

5. Portability and Storage

The BabySuite Deluxe is designed for easy folding and transport. To fold, ensure the center hub is pulled up first, then unlock the side rails. The specific folding instructions are printed on the playard mattress pad. The included carry bag allows for convenient storage and travel.

Figure 8: Folded playard and storage organizer in the carry bag.

Care and Maintenance

1. Cleaning Instructions

• Fabric Parts: Wipe clean with a damp cloth and mild soap. Air dry. Do not machine wash or bleach.
• Frame and Plastic Parts: Wipe clean with a damp cloth. Do not use abrasive cleaners.
• Mattress Pad: Wipe clean with a damp cloth and mild soap. Air dry thoroughly before re-inserting into the playard.

2. Storage

When not in use, fold the playard according to the instructions and store it in its carry bag in a clean, dry place. Avoid storing in extreme temperatures.

Troubleshooting Guide

Difficulty Folding/Unfolding

• Issue: Side rails do not lock into place during setup.
• Solution: Ensure the center hub of the playard floor is NOT pushed down. The side rails must be locked BEFORE the center is lowered. Pull each rail firmly until it clicks.
• Issue: Playard will not fold down.
• Solution: Ensure the center hub of the playard floor is pulled UP as far as it can go. Then, unlock each side rail by squeezing the release buttons. Refer to the folding instructions printed on the mattress pad.

Changer Stability Issues

• Issue: The rotating changer feels unstable or sags.
• Solution: Verify that all attachment clips are fully engaged with the playard rails. Ensure the changer's support bars are correctly assembled and locked.

Bassinet Mattress Comfort

• Note: The bassinet mattress pad is designed to fold for portability. This may result in a slightly less rigid surface compared to a standard crib mattress.
• Warning: Do NOT add any additional padding, mattresses, pillows, or blankets to the bassinet. This creates a suffocation hazard.

Product Specifications

Warranty Information

Evenflo provides a limited warranty for a period of 90 days from the original purchase date of this product. This warranty covers defects in material or workmanship. Evenflo's sole obligation under this warranty is to repair or replace any defective product at its discretion. This warranty is extended ONLY to the original purchaser and is not transferable. To obtain warranty service, proof of purchase (receipted invoice or bill of sale) is required.

Customer Support

For any questions, concerns, or to obtain warranty service, please contact Evenflo's ParentLink Consumer Resource Center. Contact details can typically be found on the Evenflo official website or product packaging.
