Presto HeatDish Plus Parabolic Heater Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Presto HeatDish Plus Parabolic Heater. Please read all instructions thoroughly before use and retain this manual for future reference.

The Presto HeatDish Plus Parabolic Heater, showcasing its distinctive parabolic design and glowing heating element.

Important Safeguards

To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner.
• Do not use outdoors.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• This heater includes a tip-over switch protection with a warning buzzer that sounds if the heater is jarred or tipped while the heating element is energized.

Product Features

The Presto HeatDish Plus Parabolic Heater is designed for efficient and targeted heating. Key features include:

• Parabolic Reflector: A computer-designed parabolic reflector focuses heat, similar to how a satellite dish concentrates TV signals. This allows you to feel warmth directly and almost instantly.
• Energy Efficiency: This heater feels significantly warmer than many 1,500-watt heaters, yet it uses less energy, contributing to potential energy savings.
• Infinite Switch Technology: Provides a wide range of heat settings, allowing precise control over the desired level of warmth.
• Tip-Over Switch Protection: For enhanced safety, the heater is equipped with a tip-over switch and a warning buzzer that activates if the unit is accidentally knocked over or jarred while operating.

Setup

Before first use, ensure the heater is placed on a stable, level surface away from flammable materials. Ensure the power cord is fully extended and not obstructed.

1. Unpack the heater and remove all packaging materials.
2. Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the front and sides of the heater.
3. Inspect the power cord for any damage. If damaged, do not use the heater.
4. Plug the power cord into a 120-volt AC electrical outlet.

The Presto HeatDish Plus Parabolic Heater features integrated cord storage for convenient organization when not in use.

The integrated carry handle on the Presto HeatDish Plus Parabolic Heater allows for easy and safe portability.

Operating Instructions

Follow these steps to operate your Presto HeatDish Plus Parabolic Heater:

1. Power On: Plug the heater into a suitable electrical outlet. The power indicator light on the base will illuminate.
2. Adjust Heat Setting: Use the control knob located on the back of the heater to select your desired heat level: Low, Medium, or High.
3. Tilt Function: The parabolic dish can be tilted to direct heat precisely where needed. Adjust the angle of the dish by gently pushing or pulling the top of the heater.
4. Power Off: Turn the control knob to the 'OFF' position and unplug the heater from the wall outlet when not in use.

A detailed view of the heater's control knob, allowing users to select between low, medium, and high heat settings, along with the power reset button.

Operational Demonstrations

Maintenance

Regular maintenance ensures the longevity and safe operation of your heater.

1. Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or immerse the heater in water.
2. Storage: When not in use, store the heater in a cool, dry place. Utilize the integrated cord storage to keep the power cord neatly wrapped.
3. Inspection: Periodically inspect the power cord and plug for any signs of damage. If damage is found, discontinue use and contact customer support.

The back of the heater, illustrating the convenient built-in cord storage for neat organization when not in use.

Troubleshooting

If you encounter issues with your heater, refer to the following common problems and solutions:

• Heater does not turn on: Ensure the power cord is securely plugged into a working outlet. Check if the circuit breaker has tripped. Verify the control knob is set to a heat setting (Low, Medium, or High).
• Continuous alarm sounds: If the heater is jarred or tipped, the safety buzzer will sound. To reset, ensure the heater is upright and stable, then press the Power Reset Button located on the back of the unit.
• Insufficient heat: Ensure the heater is placed in an appropriate area for targeted heating. Check that the heat setting is adjusted to a higher level if more warmth is desired.

A detailed view of the heater's control knob, allowing users to select between low, medium, and high heat settings, along with the power reset button.

Specifications

Detailed technical specifications for the Presto HeatDish Plus Parabolic Heater:

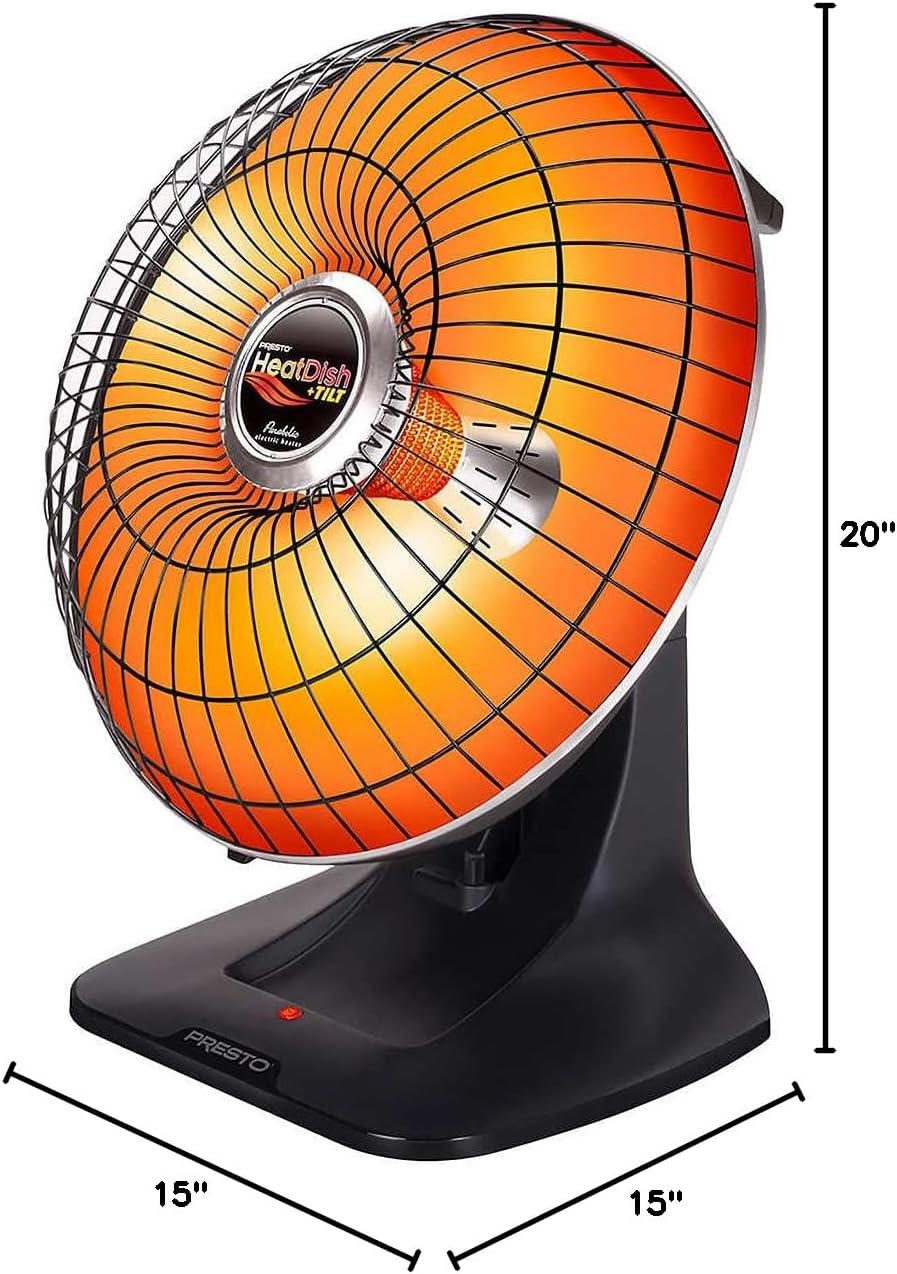

An image detailing the physical dimensions of the Presto HeatDish Plus Parabolic Heater, measuring 15 inches in depth, 15 inches in width, and 20 inches in height.

Warranty

Presto products are manufactured under strict quality control standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Presto website. Keep your purchase receipt as proof of purchase for any warranty claims.

Support

For further assistance, product inquiries, or to order replacement parts, please contact Presto Customer Service. Contact information can typically be found on the product packaging or the official Presto website.
