Topstar HE30P S100RX Head Point RS Office Chair

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Topstar HE30P S100RX Head Point RS office chair. Please read these instructions carefully before using the product to ensure proper function and longevity.

Topstar Head Point RS office chair in a modern office environment, showcasing its design and presence.

Safety Information

• Ensure all components are present and undamaged before assembly.
• Do not use the chair if any parts are missing or damaged.
• This chair is designed for a maximum user weight of 110 kg (242 lbs).
• Recommended daily usage is a maximum of 8 hours.
• The chair is equipped with load-dependent safety casters for soft floors. For hard floors (e.g., parquet, laminate, tiles), special casters (Art.-Nr.: 6990-3) are recommended and sold separately.
• This model carries the GS mark, indicating compliance with safety requirements.

Assembly Instructions

The Topstar HE30P S100RX Head Point RS office chair is delivered unassembled. Please follow these steps carefully for proper assembly. Assembly typically requires approximately 40 minutes.

1. Unpack Components: Carefully remove all parts from the packaging and verify against the included parts list.
2. Attach Casters to Base: Insert the safety casters into the polyamide five-star base. Apply firm pressure until they click into place.
3. Insert Gas Lift: Place the gas lift cylinder into the center hole of the five-star base.
4. Assemble Seat Mechanism: Attach the point-synchronous mechanism to the underside of the seat using the provided screws. Ensure it is oriented correctly.
5. Attach Backrest: Secure the ergonomic backrest to the seat mechanism. The backrest height is adjustable via a grid mechanism.
6. Install Armrests: Attach the height-adjustable armrests to the seat.
7. Mount Headrest: Install the height-adjustable headrest onto the backrest.
8. Connect Seat to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder. The chair is now assembled.

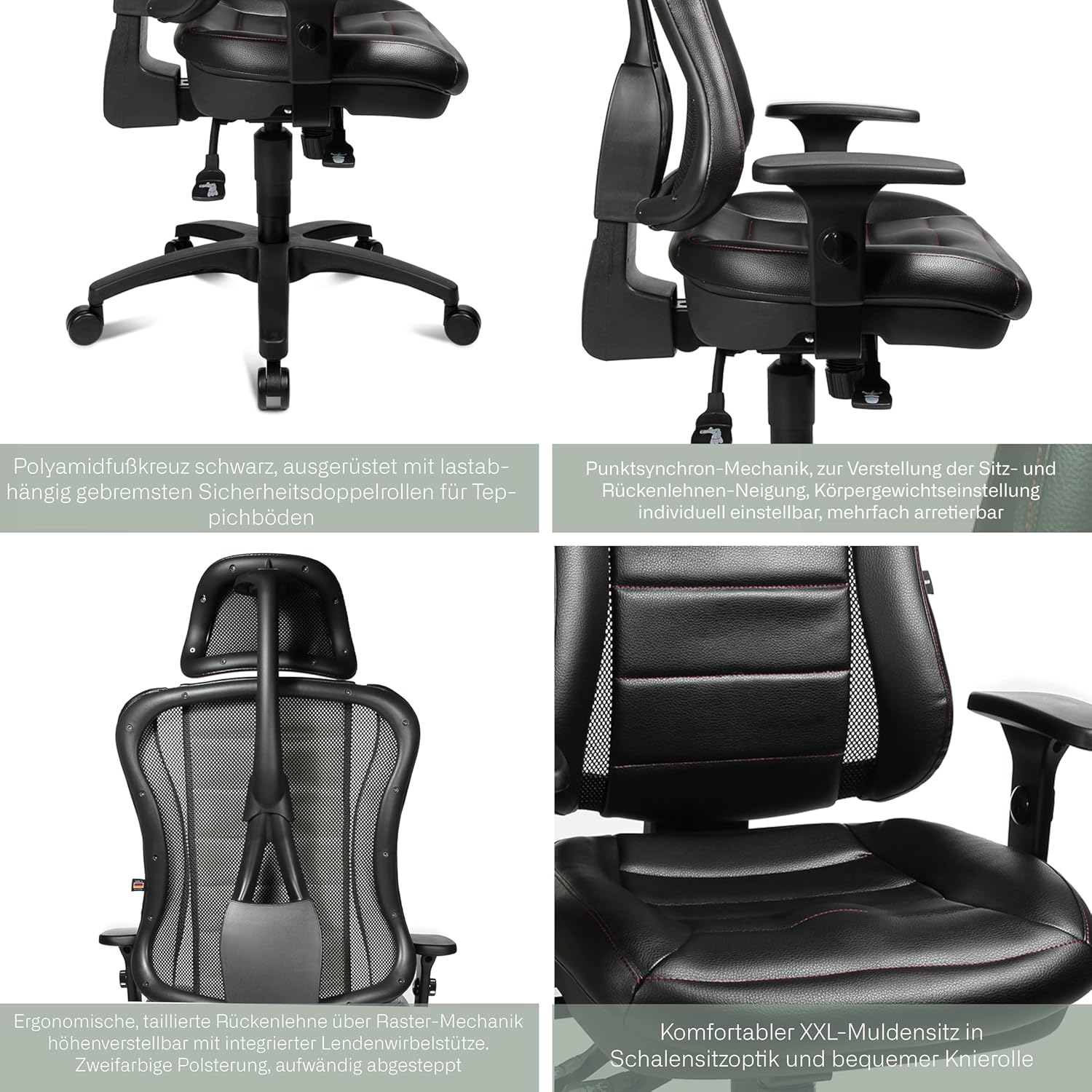

Close-up views of the black polyamide base with safety casters, the point-synchronous mechanism, the ergonomic backrest with integrated lumbar support, and the comfortable XXL contoured seat.

Operating Instructions

Adjust your Topstar office chair to achieve optimal ergonomic support and comfort.

• Seat Height Adjustment (Toplift): Use the lever located under the seat to adjust the seat height steplessly. To raise, lift the lever with no weight on the seat. To lower, lift the lever while seated.
• Backrest Height Adjustment: The backrest height can be adjusted using the grid mechanism. Lift the backrest to the desired position; it will lock into place.
• Headrest Adjustment: The headrest is individually height-adjustable to support your neck and head.
• Armrest Height Adjustment: The armrests are height-adjustable. Use the buttons or levers on the armrests to set them to your preferred height.
• Point-Synchronous Mechanism: This mechanism allows for synchronous adjustment of the seat and backrest tilt. The spring force can be individually adjusted to your body weight. The mechanism can be locked in multiple positions. Refer to the specific lever for tilt adjustment and locking.

This image illustrates the critical dimensions of the Topstar Head Point RS office chair, including seat height (42-53 cm), seat width (50 cm), seat depth (47 cm), backrest height (63 cm), and headrest adjustment (20-28 cm). It also indicates a maximum user weight of 110 kg and a recommended daily usage of up to 8 hours.

Maintenance

Proper care will extend the life and appearance of your office chair.

• Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary.
• Casters: Keep casters free of debris to ensure smooth movement.

A detailed view of the chair's upholstery, showcasing the black Softex material with distinctive red quilted stitching and mesh accents on the backrest.

Troubleshooting

If you encounter any issues with your chair, please refer to the following common solutions:

• Chair Sinks or Does Not Hold Height: Ensure the gas lift lever is fully disengaged. If the problem persists, the gas lift may need replacement.
• Chair Wobbles: Check all assembly screws, especially those connecting the seat to the mechanism and the base to the gas lift. Ensure they are securely tightened.
• Casters Not Rolling Smoothly: Inspect casters for trapped hair or debris and clean them. Ensure you are using the correct casters for your floor type (soft floor casters are standard; hard floor casters are optional).
• Backrest Does Not Lock: Verify that the point-synchronous mechanism is engaged and the locking lever is properly operated.

Specifications

Front view of the Topstar Head Point RS office chair, emphasizing its ergonomic design. The image also features labels indicating 'Made in Germany' and a '3-year warranty'.

Warranty

The Topstar HE30P S100RX Head Point RS office chair comes with a 3-year warranty. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims.

Support

For further assistance, spare parts, or warranty inquiries, please contact Topstar customer service. Visit the official Topstar website for contact information or consult your retailer.

Note: Optional casters for hard floors (Art.-Nr.: 6990-3, pin diameter: 10 mm) are available separately.
