CUB CADET 732-05182A Compression Spring Instruction Manual

1. Product Overview

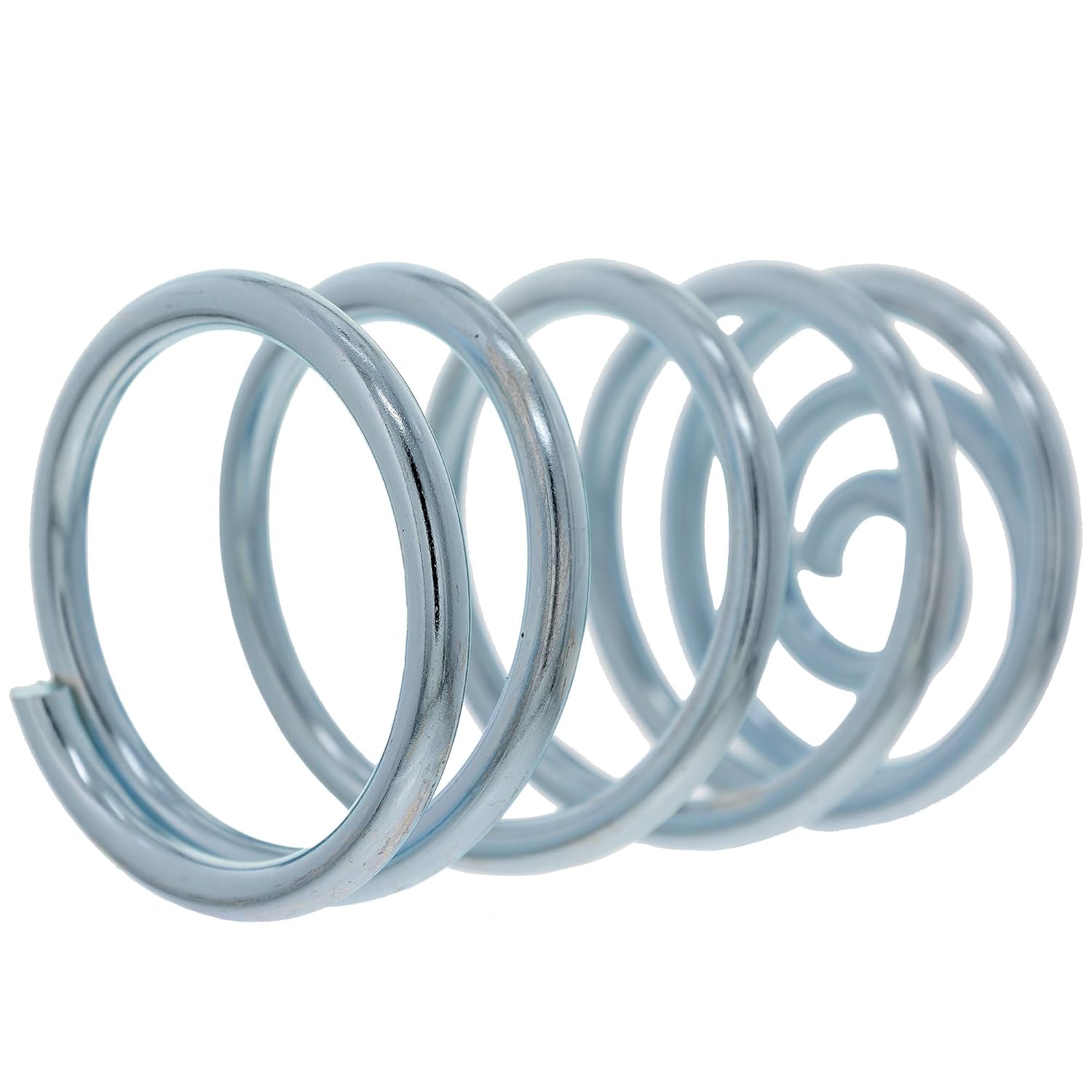

This manual provides instructions for the CUB CADET 732-05182A Compression Spring, a genuine OEM replacement part designed for specific CUB CADET XT1 and XT2 series lawn tractors. This spring is crucial for maintaining proper seat suspension and operator comfort.

1.1. Part Identification

The part number for this compression spring is 732-05182A. It replaces prior MPN 732-05182.

Dimensions: Approximately 4 x 2.5 x 2.5 inches; 5.6 ounces.

Material: Metal.

2. Compatibility

The 732-05182A Compression Spring is compatible with the following CUB CADET lawn tractor models:

• XT1 Series: GT50, XT1-GT54 Fab, XT1-LT42, XT1-LT42 EFI, XT1-LT42B, XT1-LT42C, XT1-LT42E, XT1-LT46, XT1-LT46 EFI Fab, XT1-LT46 Fab, XT1-LT50, XT1-LT50 Fab, XT1-LT54, XT1-LT54 Fab, XT1-ST54 Fab
• XT2 Series: GX50 Fab, XT2-GX54 Fab, XT2-GX54D Fab, XT2-LX42, XT2-LX42 EFI, XT2-LX42 Fab, XT2-LX46, XT2-LX46 EFI Fab, XT2-LX46 Fab, XT2-LX46 LE Fab, XT2-LX50, XT2-LX54, XT2-LX54 Fab, XT2-SLX50, XT2-SLX50 EFI, XT2-SLX50 EFI Fab, XT2-SLX50 Fab, XT2-SLX54 Fab

Important: Always refer to your original equipment owner's manual to verify compatibility before installation.

3. Setup and Installation

Installation of the compression spring typically involves replacing an existing worn or broken seat spring. While the process can vary slightly by model, the general steps are outlined below. It is recommended to consult your specific lawn tractor's service manual for detailed, model-specific instructions.

3.1. Safety Precautions

• Ensure the lawn tractor is turned off, the engine is cool, and the parking brake is engaged.
• Disconnect the spark plug wire to prevent accidental starting.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Use proper tools and techniques to avoid injury.

3.2. General Installation Steps

1. Access the Seat Mechanism: Depending on your model, you may need to lift the seat or remove retaining clips/bolts to access the seat suspension springs.
2. Remove Old Spring(s): Carefully remove the old compression spring(s). Note their orientation and how they are seated. Springs can be under tension, so exercise caution.
3. Inspect Mounting Points: Check the mounting points for any damage, wear, or corrosion. Clean as necessary.
4. Install New Spring(s): Place the new CUB CADET 732-05182A Compression Spring(s) into the designated positions. Ensure they are seated correctly and securely. If replacing only one spring, consider replacing both to maintain even seat suspension, as old springs may have lost resilience.
5. Reassemble: Reattach any components removed to access the springs, ensuring all bolts and clips are securely fastened.
6. Test: Gently sit on the seat to ensure it feels stable and provides proper suspension.

4. Operating Considerations

Once installed, the compression spring operates as part of the seat suspension system. No specific operational steps are required for the spring itself, as its function is passive.

• Ensure the seat moves freely and provides adequate cushioning.
• If the seat feels uneven or excessively stiff/soft after installation, re-check the spring placement and ensure all components are correctly assembled.

5. Maintenance

Compression springs generally require minimal maintenance. Regular inspection is key to ensuring their longevity and proper function.

5.1. Inspection Schedule

• Inspect the seat springs annually or every 50 operating hours, whichever comes first.
• Perform a visual inspection if you notice any changes in seat comfort or stability.

5.2. What to Look For

• Corrosion: Check for rust or other forms of corrosion on the spring surface.
• Deformation: Look for bent, stretched, or compressed coils that indicate the spring has lost its original shape or tension.
• Cracks or Breaks: Inspect for any visible cracks or complete breaks in the spring material.
• Loose Mounting: Ensure the spring is securely seated in its mounting points.

5.3. Cleaning

Keep the area around the springs clean and free of debris, dirt, and moisture to prevent corrosion.

6. Troubleshooting

If you experience issues with your lawn tractor's seat suspension after installing or using the 732-05182A Compression Spring, consider the following:

• Uneven Seat: Check if both springs (if applicable) are installed correctly and have similar tension. If only one spring was replaced, the old spring on the other side might be worn, causing an imbalance. It is often recommended to replace springs in pairs.
• Excessive Bounciness or Stiffness: Verify that the correct spring type and size have been installed for your specific model. Refer to your owner's manual.
• Noise from Seat: Inspect for any loose components, debris, or metal-on-metal contact around the spring area.

If problems persist, consult a qualified service technician or your CUB CADET dealer.

7. Specifications

8. Official Product Videos

The following videos provide additional information or related product demonstrations. Please note that some videos may feature similar but not identical products, or may be general instructional videos from third-party sellers.

9. Warranty and Support

For warranty information or technical support regarding your CUB CADET 732-05182A Compression Spring, please contact CUB CADET directly or refer to the documentation provided with your lawn tractor.

You can also visit the official CUB CADET Store on Amazon for more information on their products and support resources.
