1. Introduction and Overview
This manual provides detailed instructions for the installation, operation, and maintenance of the Mishimoto MMOC-MIA-16 Oil Cooler Kit. This kit is designed to enhance the cooling efficiency of your 2016 and newer Mazda MX-5 Miata by maintaining optimal engine oil temperatures, particularly under demanding conditions such as track use.
The Mishimoto MMOC-MIA-16 Oil Cooler Kit is a direct-fit solution featuring a 19-row stacked-plate oil cooler, application-specific mounting brackets, and durable braided stainless steel lines with -10AN fittings. It is available with either a thermostatic or non-thermostatic oil sandwich plate to suit specific cooling needs.
2. Safety Information
Always prioritize safety during installation and maintenance. Failure to follow safety guidelines can result in injury or damage to the vehicle.
- Professional installation is recommended for optimal results and safety.
- Ensure the vehicle is parked on a level surface and the engine is cool before beginning any work.
- Disconnect the vehicle's battery to prevent electrical hazards.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Use proper lifting equipment and jack stands to secure the vehicle.
- Be aware of hot engine components and fluids.
- Dispose of used oil and other fluids responsibly according to local regulations.
- Refer to your vehicle's service manual for specific torque specifications and procedures.
3. Package Contents
Verify that all components listed below are present in your Mishimoto MMOC-MIA-16 Oil Cooler Kit before beginning installation.

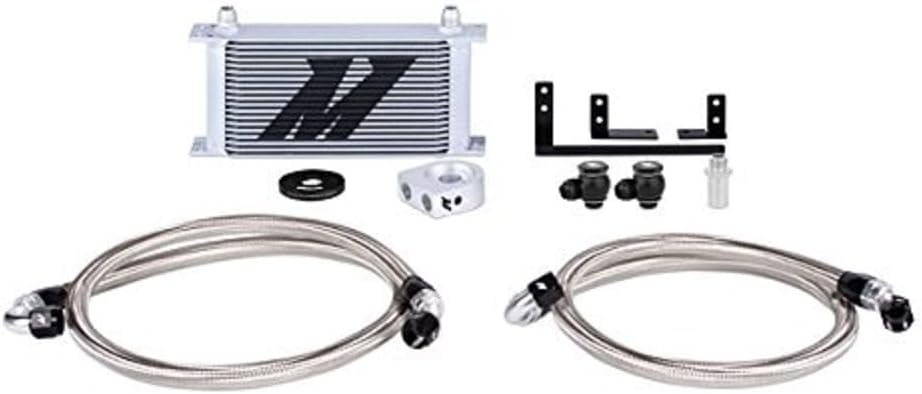

Image 3.1: All components included in the Mishimoto MMOC-MIA-16 Oil Cooler Kit. This includes the oil cooler core, mounting brackets, oil sandwich plate, and braided stainless steel lines.
- 1x Mishimoto 19-Row Stacked-Plate Oil Cooler
- 1x Set of Application-Specific Mounting Brackets
- 1x Mishimoto Oil Sandwich Plate (Thermostatic or Non-Thermostatic)
- 2x Braided Stainless Steel Oil Lines with -10AN Fittings
- Associated Hardware (bolts, washers, etc.)
4. Setup and Installation
The following steps outline the general procedure for installing the Mishimoto MMOC-MIA-16 Oil Cooler Kit. Specific details may vary; always consult a professional or a detailed vehicle service manual if unsure.
- Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and allow the engine to cool completely. Disconnect the negative terminal of the battery.
- Access Front Bumper Area: Remove necessary components of the front bumper and undertray to gain access to the area in front of the radiator where the oil cooler will be mounted.
- Mount the Oil Cooler:

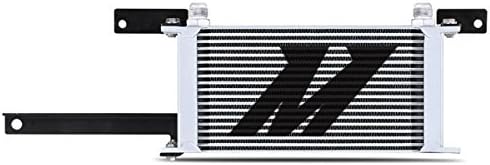

Image 4.1: The Mishimoto 19-row stacked-plate oil cooler core.

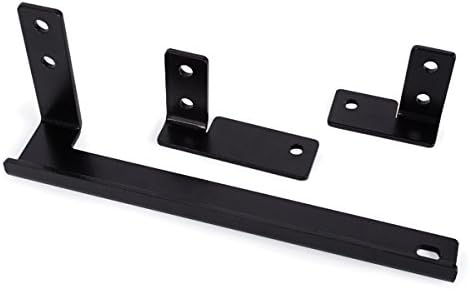

Image 4.2: The application-specific mounting brackets for the oil cooler.
Attach the Mishimoto 19-row stacked-plate oil cooler to the application-specific mounting brackets. Securely mount the assembly in the designated location in front of the radiator, ensuring maximum airflow and clearance from other components.
Image 4.3: The Mishimoto oil cooler kit installed in the front bumper area of a Mazda MX-5 Miata, positioned for optimal airflow.
- Install Oil Sandwich Plate:
Image 4.4: The Mishimoto oil sandwich plate, which connects the oil lines to the engine.
Remove the factory oil filter. Install the Mishimoto oil sandwich plate between the engine block and the new oil filter. Ensure proper orientation and tighten to the manufacturer's specified torque. Apply a thin layer of fresh oil to the gasket of the new oil filter before installation.
- Connect Oil Lines: Connect the braided stainless steel oil lines from the oil sandwich plate to the oil cooler core using the -10AN fittings. Ensure all connections are secure and free from kinks or obstructions.
- Refill Oil and Check for Leaks: Add engine oil to the manufacturer's recommended level. Start the engine and allow it to reach operating temperature. Carefully inspect all connections for any signs of leaks. Shut off the engine and re-check the oil level, adding more if necessary.
- Reassemble Vehicle: Reinstall all removed bumper components and undertrays. Reconnect the battery.
5. Operating Instructions
The Mishimoto Oil Cooler Kit operates automatically to regulate engine oil temperature. Once installed, no manual operation is required. The system is designed to:
- Maintain engine oil within optimal temperature ranges, especially during high-performance driving or in hot climates.
- Reduce the risk of oil degradation and engine wear caused by excessive heat.
- Increase the overall oil capacity by approximately 0.75 quarts, contributing to better thermal stability.
For kits equipped with a thermostatic sandwich plate, the thermostat will regulate oil flow to the cooler, allowing the engine oil to reach operating temperature quickly before engaging the cooler for heat dissipation. Non-thermostatic kits will route oil through the cooler constantly.
6. Maintenance
Regular inspection and maintenance will ensure the longevity and performance of your oil cooler kit.
- Routine Checks: Periodically inspect all oil lines and fittings for signs of wear, leaks, or damage. Ensure all connections remain tight.
- Cooler Fin Cleaning: Over time, debris can accumulate in the oil cooler fins, reducing efficiency. Carefully clean the cooler fins with compressed air or a soft brush to remove any obstructions. Avoid using high-pressure washers directly on the fins.
- Oil Changes: Follow your vehicle manufacturer's recommended oil change intervals. The increased oil capacity of the system should be accounted for when refilling.
- Fluid Levels: Regularly check your engine oil level and top off as needed.
7. Troubleshooting
If you encounter issues with your Mishimoto Oil Cooler Kit, consider the following common troubleshooting steps:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Oil Leaks | Loose fittings, damaged lines, improper sandwich plate installation, faulty gasket. | Inspect all -10AN fittings and sandwich plate connections for tightness. Check oil lines for damage. Ensure sandwich plate gasket is properly seated and not pinched. Replace any damaged components. |
| Engine Oil Overheating | Blocked cooler fins, insufficient oil, air in the system, faulty thermostatic plate (if applicable). | Clean cooler fins. Check oil level and top off. Ensure proper bleeding of air from the system. If thermostatic, verify its function. |
| Unusual Noises | Loose mounting, lines rubbing against other components. | Verify all mounting brackets are secure. Inspect oil lines for contact with moving or hot parts and adjust routing if necessary. |
If troubleshooting steps do not resolve the issue, contact Mishimoto customer support or consult a qualified automotive technician.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | MMOC-MIA-16 |
| Compatibility | Mazda MX-5 Miata (2016+) |
| Oil Cooler Type | 19-Row Stacked-Plate |
| Oil Capacity Increase | Approximately 0.75 quarts |
| Typical Temperature Drop | Up to 57°F (29.5°C) |
| Typical Pressure Drop | 3-5 psi |
| Fittings | -10AN |
| Sandwich Plate Options | Thermostatic or Non-Thermostatic |
| Item Weight | 10 pounds (approximate) |
| Product Dimensions | 18 x 15 x 8.5 inches (approximate) |
9. Warranty and Support
Mishimoto Lifetime Warranty: This Mishimoto Oil Cooler Kit is backed by the Mishimoto Lifetime Warranty. This warranty covers defects in materials and workmanship for the lifetime of the product. For full details and terms, please refer to the official Mishimoto website or contact their customer service.
Customer Support: For technical assistance, warranty claims, or any questions regarding your Mishimoto product, please visit the official Mishimoto website or contact their customer support department directly. Contact information can typically be found on the Mishimoto website.
Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
