Introduction
The iProtec 6094-A RM120LSR is a versatile light and red laser sight combination designed for use with rail-equipped pistols and long guns. This device integrates a high-power LED flashlight with a precise red laser, offering enhanced visibility and targeting capabilities. Constructed from anodized aircraft-grade aluminum, it is built to be water and impact-resistant. This manual provides essential information for the proper setup, operation, and maintenance of your iProtec 6094-A RM120LSR.
Setup
1. Mounting the Device
The iProtec 6094-A RM120LSR features an adjustable hinge mount designed for standard rail-equipped firearms. Note: This unit is not compatible with subcompact firearms. Use the provided Mounting Allen Wrench to securely attach the unit to your firearm's rail. Ensure the device is firmly seated and tightened to prevent movement during use.
Image showing the iProtec 6094-A RM120LSR Light/Red Laser Combo disassembled, displaying the main unit, pressure switches, and Allen wrenches for mounting and adjustment.
2. Battery Installation
The light and laser functions require separate batteries:
- Light: Requires one CR123A battery.
- Laser: Requires three LR44 batteries.
Carefully open the battery compartments and insert the batteries, observing the correct polarity indicators (+/-). Securely close the battery caps after installation.
3. Laser Adjustment
The red laser sight is adjustable for windage and elevation. Use the provided Laser Adjustment Allen Wrench to fine-tune the laser's point of aim to match your firearm's zero. Perform adjustments in a safe environment, following all firearm safety protocols.
4. Connecting Pressure Switches
Two pressure switches are included for remote activation of the light and laser. Connect each switch to its corresponding port on the device. These switches allow for momentary activation without repositioning your grip.
Operating Instructions
1. Power On/Off
The primary ON/OFF button is located at the rear of the unit. Press the button once to activate the last used function (light or laser), and press again to deactivate. The pressure switches provide momentary activation.
Image showing the iProtec 6094-A RM120LSR Light/Red Laser Combo, illustrating its compact design and integrated light and laser modules.
2. Light Modes
The high-power LED provides 160 lumens of intense white light. The available light modes are:
- White Light: 160 Lumens, with an approximate runtime of 1.5 hours and a beam distance of 98 meters.
- Strobe Light: Provides a disorienting strobe effect, with an approximate runtime of 3 hours and a beam distance of 98 meters.
Cycle through the light modes by pressing the ON/OFF button or the dedicated light pressure switch repeatedly.
3. Laser Operation
The red laser sight (<5mW / 650nm) can be activated independently or in conjunction with the light. Use the dedicated laser pressure switch for momentary activation, or cycle through functions using the rear ON/OFF button.
4. Red Lens Filter
A removable flip-up red lens filter is included. This filter can be positioned over the light to change the color of the light output, which may be useful in certain tactical or low-light situations.

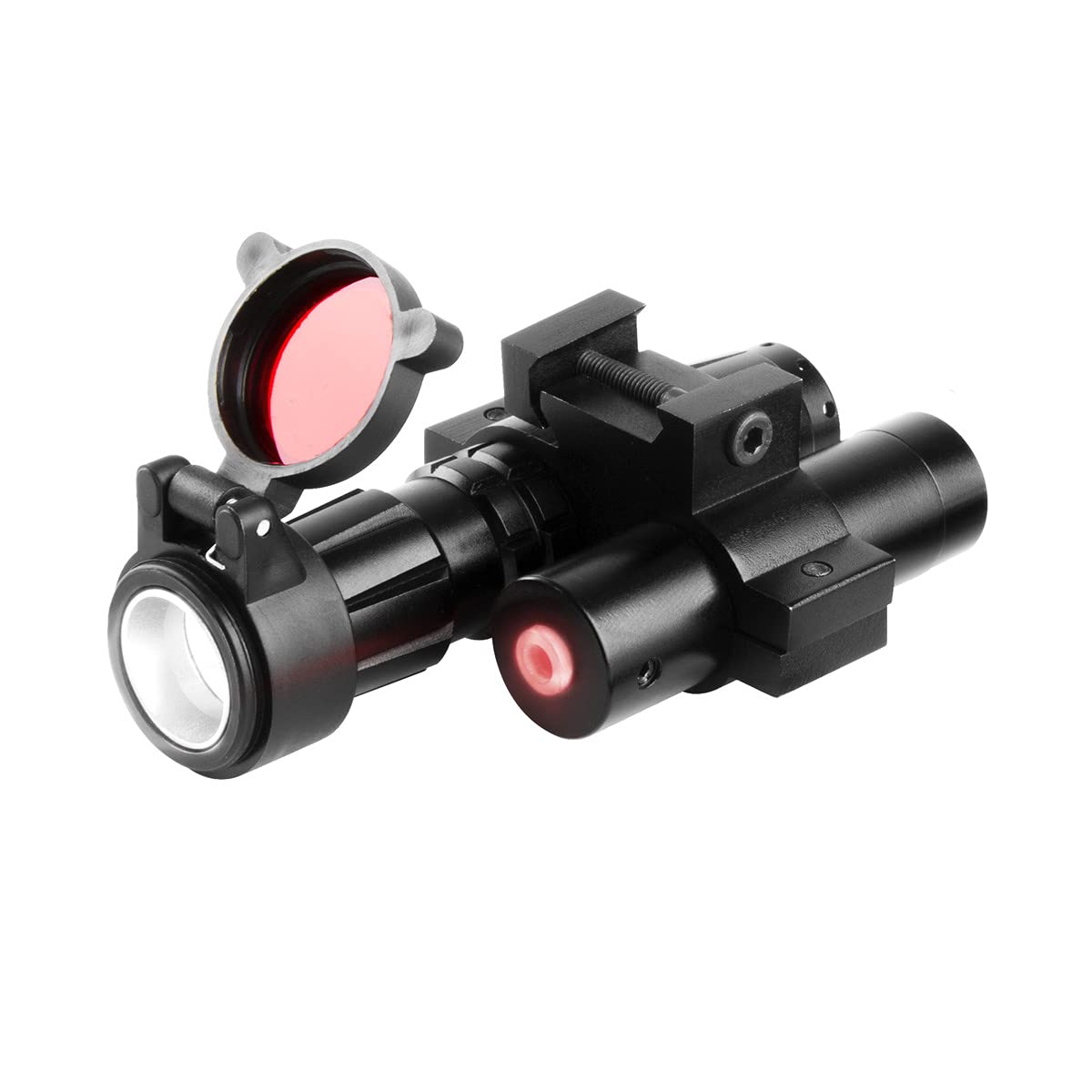

Image showing the iProtec 6094-A RM120LSR Light/Red Laser Combo with the red lens filter flipped down over the light, indicating its use.
Image showing the iProtec 6094-A RM120LSR Light/Red Laser Combo mounted on a firearm rail, demonstrating its operational setup.
Maintenance
1. Cleaning
Regularly clean the lens of the flashlight and the aperture of the laser with a soft, dry, lint-free cloth. Avoid using abrasive materials or harsh chemical cleaners, as these can damage the optical surfaces or the anodized finish. Ensure the unit is powered off before cleaning.
2. Battery Replacement
Replace batteries when you notice a decrease in light output or laser intensity. Always use fresh, high-quality CR123A and LR44 batteries. Dispose of used batteries according to local regulations.
Troubleshooting
- Light Not Activating:
- Check if the CR123A battery is installed correctly with the correct polarity.
- Ensure the battery is fresh.
- Verify that the ON/OFF button or light pressure switch is fully pressed and connected.
- Laser Not Activating:
- Check if the LR44 batteries are installed correctly with the correct polarity.
- Ensure the batteries are fresh.
- Verify that the laser aperture is clear and the laser pressure switch is fully pressed and connected.
- Dim Light or Laser:
- Replace all batteries with fresh ones.
- Ensure battery contacts are clean and free of corrosion.
- Unit Not Mounting Securely:
- Ensure the mounting screws are tightened firmly with the provided Allen wrench.
- Confirm that your firearm's rail system is compatible with the device's adjustable hinge mount.
Specifications
| Light Output | High-power 160 lumen LED |
| Light Modes | White (160 Lumens), Strobe |
| Laser Type | Red, adjustable (<5mW / 650nm), Class 3R |
| Mount Style | Adjustable hinge mount for rail-equipped pistols and long guns (does not fit subcompacts) |
| Design | Anodized aircraft-grade aluminum; water and impact-resistant |
| Dimensions (L x W x H) | 4.25" x 2.5" x 1.5" |
| Weight | 0.5 lbs (8 ounces) |
| Batteries | 1 x CR123A (for light), 3 x LR44 (for laser) |
| Included Components | Firearm Laser, Mounting Allen Wrench, Laser adjustment Allen Wrench, 2 pressure switches, 1 CR123A battery, 3 LR44 batteries |
Warranty Information
The iProtec 6094-A RM120LSR is covered by a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your original proof of purchase for any warranty claims. For complete warranty terms and conditions, please refer to the official iProtec website or contact customer support.
