1. Introduction
The Edimax BR-6478AC V2 is a versatile AC1200 Gigabit Dual-Band Wi-Fi router designed to provide reliable and high-speed wireless connectivity. This device supports multiple operating modes, including Router, Access Point, Range Extender, Bridge, and WISP, making it adaptable to various networking needs. It features high-gain antennas for extended coverage, a USB port for network storage (FTP/file server) and printer sharing, and VPN capabilities for secure remote access and enhanced privacy.
Figure 1: Front view of the Edimax BR-6478AC V2 Wi-Fi Router, showcasing its sleek design and two external antennas.
2. Package Contents
Verify that all items are present in the package:
- Edimax BR-6478AC V2 AC1200 Dual-Band Wi-Fi Router
- Power Adapter
- Ethernet Cable
- Quick Installation Guide
3. Product Overview
Familiarize yourself with the physical components of your Edimax BR-6478AC V2 router.
3.1 Front Panel
The front panel typically features LED indicators that display the status of power, internet connection, Wi-Fi activity for both 2.4GHz and 5GHz bands, and LAN port activity.
Figure 2: Front view of the router, highlighting the LED indicators for system status.
3.2 Rear Panel
The rear panel houses all the physical ports and buttons for connectivity and control.
Figure 3: Rear view of the router, showing the power input, Internet (WAN) port, LAN ports, USB port, and reset/WPS button.
- Power Input (DC IN 12V): Connects to the included power adapter.
- Internet (WAN) Port: Connects to your modem for internet access.
- LAN Ports (1-4): Gigabit Ethernet ports for connecting wired devices.
- USB Port: For connecting USB storage devices (FTP/file server) or a USB printer (print server).
- Reset/WPS Button: Press briefly for WPS function; press and hold for factory reset.
4. Setup
Follow these steps to set up your Edimax BR-6478AC V2 router.
- Connect Hardware:
- Connect your modem's Ethernet cable to the router's Internet (WAN) port.
- Connect the power adapter to the router's Power Input and plug it into an electrical outlet.
- Wait for the router to power on and the indicator LEDs to stabilize.
- Connect to the Router:
- Wireless Connection: Search for the default Wi-Fi network name (SSID) printed on the router's label and connect using the provided password.
- Wired Connection: Connect an Ethernet cable from one of the router's LAN ports to your computer.
- Run Smart iQ Setup:
- Open a web browser on your connected device.
- Type the default router IP address (e.g.,
http://edimax.setupor192.168.2.1) into the address bar and press Enter. - Follow the on-screen instructions of the Smart iQ Setup wizard to configure your internet connection and Wi-Fi settings. No CD is required for this process.

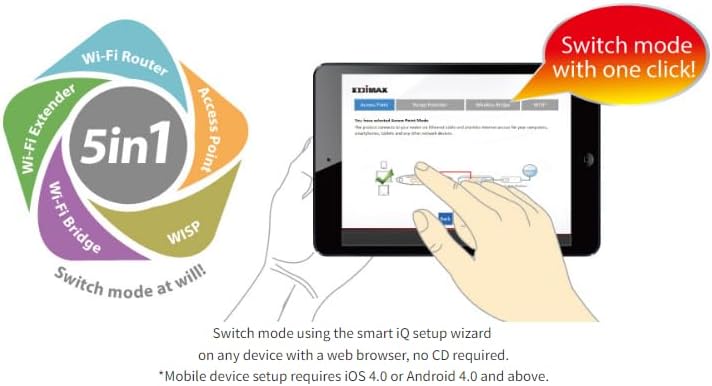

Figure 4: The Smart iQ Setup wizard, accessible via a web browser on various devices, simplifies the initial configuration.
5. Operating Modes
The Edimax BR-6478AC V2 offers five distinct operating modes to suit different networking requirements. You can switch between these modes using the Smart iQ Setup wizard.
Figure 5: Visual representation of the five versatile operating modes available with the Edimax BR-6478AC V2.
- Router Mode: Connects to your modem to share internet access with multiple wired and wireless devices. This is the default mode for most home networks.
- Access Point (AP) Mode: Converts a wired network connection into a wireless network, extending Wi-Fi coverage without routing functions.
- Wi-Fi Range Extender Mode: Boosts the signal of an existing Wi-Fi network to eliminate dead zones and improve coverage.
- Wi-Fi Bridge Mode: Connects two wired networks wirelessly, useful for connecting devices like gaming consoles or smart TVs to a Wi-Fi network.
- WISP (Wireless Internet Service Provider) Mode: Connects to a public Wi-Fi hotspot or a WISP network and shares the internet connection with local devices.
6. Advanced Features
The BR-6478AC V2 includes several advanced features to enhance your network experience.
- Dual-Band Wi-Fi (AC1200): Supports both 2.4GHz and 5GHz wireless bands, offering faster speeds and reduced interference on the 5GHz band while maintaining compatibility with older devices on 2.4GHz.
- Gigabit Ethernet Ports: Equipped with five Gigabit Ethernet ports (1 WAN, 4 LAN) for high-speed wired connections, ideal for gaming, streaming, and network storage.
- VPN-Ready: Allows for setting up Virtual Private Network connections, enabling secure remote access to your network and bypassing internet censorship.
- Multiple SSIDs & VLANs: In Access Point mode, the router supports up to 10 SSIDs (5 for 2.4GHz, 5 for 5GHz) and VLANs, providing enhanced security by segmenting network resources.
- USB Port for FTP/File/Print Server: Connect a USB storage device to create a private cloud (FTP/file server) or share a USB printer across your network.

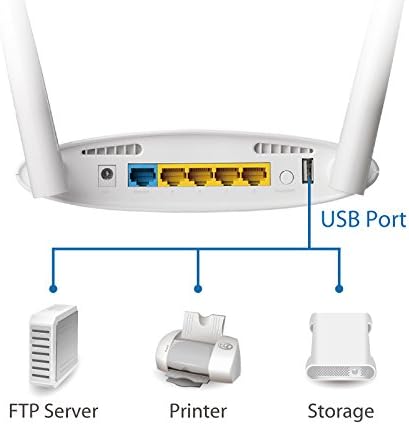

Figure 6: The USB port enables versatile functions such as FTP server, printer sharing, and network storage.
- Guest Network: In Router mode, create a separate guest Wi-Fi network to provide internet access to visitors while isolating them from your primary network for security.

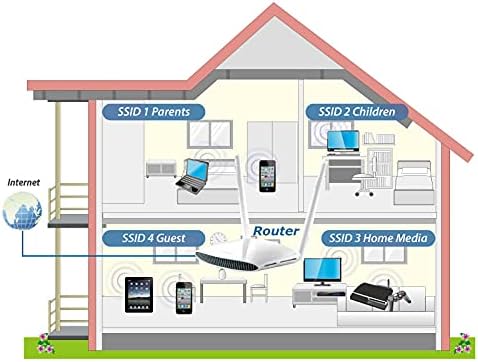

Figure 7: Illustration of a secure main Wi-Fi network and a separate guest Wi-Fi network within a home environment.
- iQoS Bandwidth Management: Intelligently manages internet bandwidth to prioritize critical traffic, ensuring smoother performance for important applications.
- High Gain Antennas: Equipped with high-gain antennas to ensure strong and stable Wi-Fi signals throughout your home or office.
Figure 8: High gain antennas enhance Wi-Fi signal strength and coverage for both 2.4GHz and 5GHz bands.
7. Maintenance
Regular maintenance helps ensure optimal performance and longevity of your router.
- Firmware Updates: Periodically check the Edimax website for the latest firmware updates. Updating the firmware can improve performance, add new features, and fix security vulnerabilities.
- Regular Reboot: Rebooting your router every few weeks can help clear its memory and resolve minor performance issues. Simply unplug the power adapter, wait 10 seconds, and plug it back in.
- Physical Cleaning: Keep the router in a well-ventilated area and periodically clean dust from its vents to prevent overheating. Use a soft, dry cloth.
- Secure Placement: Place the router in a central location, away from obstructions and sources of interference (e.g., microwaves, cordless phones) to maximize Wi-Fi coverage.
8. Troubleshooting
If you encounter issues with your router, try the following troubleshooting steps:
- No Internet Access:
- Check all cable connections between the modem and router, and between the router and your devices.
- Power cycle both your modem and router. Unplug them, wait 30 seconds, then plug in the modem first, wait for it to fully boot, then plug in the router.
- Verify your internet service provider (ISP) connection is active.
- Wi-Fi Signal Issues:
- Ensure the router is placed centrally and away from obstacles or interference.
- Check if the Wi-Fi LEDs on the router are lit.
- Try changing the Wi-Fi channel in the router's settings to avoid interference from neighboring networks.
- Cannot Access Router Settings:
- Ensure your device is connected to the router (wired or wirelessly).
- Verify you are typing the correct IP address or domain (e.g.,
http://edimax.setupor192.168.2.1) into your browser. - Clear your browser's cache or try a different browser.
- Factory Reset: If all else fails, perform a factory reset. With the router powered on, press and hold the Reset/WPS button for approximately 10 seconds until the LEDs flash. This will revert all settings to their factory defaults, requiring you to reconfigure the router.
9. Specifications
Key technical specifications for the Edimax BR-6478AC V2 router.
| Feature | Specification |
|---|---|
| Model Name | BR-6478AC_V2 |
| Wireless Type | 802.11a/b/g/n, 802.11ac |
| Frequency Band Class | Dual-Band (2.4GHz / 5GHz) |
| Ethernet Ports | 5 Gigabit Ethernet (1 WAN, 4 LAN) |
| Special Features | Access Point Mode, WPS, VPN-Ready, USB Port (FTP/Print Server) |
| Antenna Type | Fixed High-Gain Antennas |
| Operating System | EDIMAX proprietary firmware |
| Product Dimensions (LxWxH) | 7.52 x 1.69 x 6.81 inches |
| Item Weight | 11.4 ounces |
| Color | White |
10. Warranty Information
For detailed warranty terms and conditions, please refer to the warranty card included with your product packaging or visit the official Edimax website. Warranty coverage typically includes defects in materials and workmanship under normal use.
11. Technical Support
If you require further assistance or have questions not covered in this manual, please contact Edimax technical support. Support resources, FAQs, and contact information can be found on the official Edimax website:
Edimax Support Website: www.edimax.com
