1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Aftermarket AIR FILTER (FIRE RET.) 17741-U3330-71. Please read this manual thoroughly before using the product to ensure safe and efficient performance.
The AIR FILTER (FIRE RET.) 17741-U3330-71 is a high-quality replacement air filter designed for optimal engine performance and longevity. It is engineered with fire-retardant materials for enhanced safety.
2. Product Overview

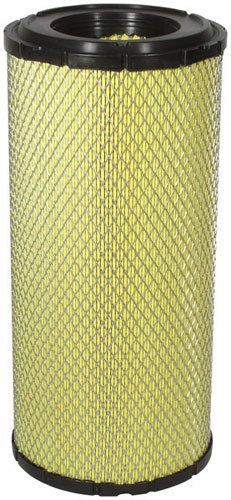

Figure 1: The Aftermarket AIR FILTER (FIRE RET.) 17741-U3330-71 (Model: 17741-U3330-71). This image shows the cylindrical air filter, featuring its yellow pleated filtration media and durable black end caps, designed for efficient air purification in automotive systems.
The AIR FILTER (FIRE RET.) 17741-U3330-71 is a critical component in your vehicle's air intake system, designed to prevent harmful contaminants from entering the engine. Its robust construction ensures durability and consistent performance.
3. Setup and Installation
Proper installation is crucial for the air filter's effectiveness. Consult your vehicle's service manual for specific instructions related to your make and model.
- Safety First: Ensure the vehicle's engine is turned off and cool before beginning installation. Disconnect the negative terminal of the battery if required by your vehicle's manual.
- Locate Air Filter Housing: Identify the air filter housing, typically a large plastic box connected to the engine's air intake duct.
- Open Housing: Unclip or unscrew the fasteners securing the air filter housing cover. Carefully remove the cover.
- Remove Old Filter: Take out the old air filter. Note its orientation to ensure the new filter is installed correctly.
- Clean Housing: Inspect the air filter housing for any debris, leaves, or dust. Clean the inside of the housing with a damp cloth if necessary.
- Install New Filter: Insert the new AIR FILTER (FIRE RET.) 17741-U3330-71 into the housing, ensuring it fits snugly and is oriented correctly. The fire-retardant material should be clearly visible.
- Secure Housing: Replace the air filter housing cover and secure all clips or screws. Ensure a tight seal to prevent unfiltered air from entering the engine.
- Reconnect Battery (if disconnected): Reconnect the negative terminal of the battery if it was disconnected.
Note: If you are unsure about any step, it is recommended to seek assistance from a qualified mechanic.
4. Operating Principles
The AIR FILTER (FIRE RET.) 17741-U3330-71 functions by filtering airborne particles such as dust, pollen, and debris before they enter the engine's combustion chamber. This process is vital for maintaining engine efficiency, preventing wear on internal components, and ensuring proper fuel combustion.
- Airflow: Air is drawn into the engine through the air intake system, passing directly through the filter.
- Filtration: The pleated media of the filter traps contaminants, allowing only clean air to proceed to the engine.
- Engine Protection: By providing clean air, the filter protects sensitive engine components from abrasive particles, extending engine life and maintaining performance.
- Fire Retardant: The fire-retardant properties of this filter add an extra layer of safety, reducing the risk of fire propagation within the engine bay.
5. Maintenance
Regular maintenance of your air filter is essential for optimal vehicle performance and fuel economy. A clogged air filter can significantly reduce engine efficiency.
- Inspection Frequency: Inspect your air filter every 12,000 to 15,000 miles or as recommended by your vehicle manufacturer. More frequent inspection may be necessary if you drive in dusty conditions.
- Replacement: Replace the air filter when it appears dirty or clogged. A dirty filter will restrict airflow, leading to decreased engine performance and increased fuel consumption.
- Signs of a Dirty Filter:
- Reduced fuel efficiency
- Sluggish acceleration
- Unusual engine sounds
- Check Engine Light illumination (in some cases)
- Cleaning: This type of air filter is generally not designed to be cleaned. Attempting to clean it may damage the filtration media and compromise its effectiveness. Always replace with a new filter.
6. Troubleshooting
If you experience issues related to air filtration, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Engine Performance | Clogged or dirty air filter | Inspect and replace the air filter. |
| Decreased Fuel Economy | Restricted airflow due to dirty filter | Replace the air filter. |
| Unusual Engine Noises | Improperly seated air filter or housing | Re-check air filter installation and housing seal. |
| Check Engine Light | Severe airflow restriction or sensor issue | Replace air filter. If light persists, consult a mechanic. |
7. Specifications
- Model Number: 17741-U3330-71
- Part Number: 17741-U3330-71
- Brand: Aftermarket
- Type: Engine Air Filter (Fire Retardant)
- Item Weight: 2.4 pounds
- UPC: 723810187661
8. Warranty and Support
This Aftermarket product comes with a 6 Months Unlimited Warranty from the date of purchase. This warranty covers defects in material and workmanship under normal use and service.
For warranty claims or technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty validation.
Disclaimer: The manufacturer is not responsible for damages resulting from improper installation, misuse, or neglect of the product.
