Wiremold Legrand V2444-2 Steel 2-Gang Extra Deep Device Switch Box User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Wiremold Legrand V2444-2 Steel 2-Gang Extra Deep Device Switch Box. Please read this manual thoroughly before beginning installation to ensure proper and safe use of the product. This device box is designed for use in surface metal raceway systems, providing a secure enclosure for electrical and communication devices.

2. Safety Information

WARNING: Risk of Electric Shock or Fire.

• Always disconnect power at the circuit breaker or fuse box before installing or servicing this product.
• Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.
• Do not use this product for purposes other than its intended design.
• Ensure all connections are secure and properly insulated.
• Inspect the product for any damage before installation. Do not install damaged products.

3. Product Overview

The Wiremold Legrand V2444-2 is a steel, 2-gang, extra deep device switch box, part of the V2400 series. It is designed to house electrical and communication devices within a surface metal raceway system. Its robust steel construction ensures durability and protection for internal components.

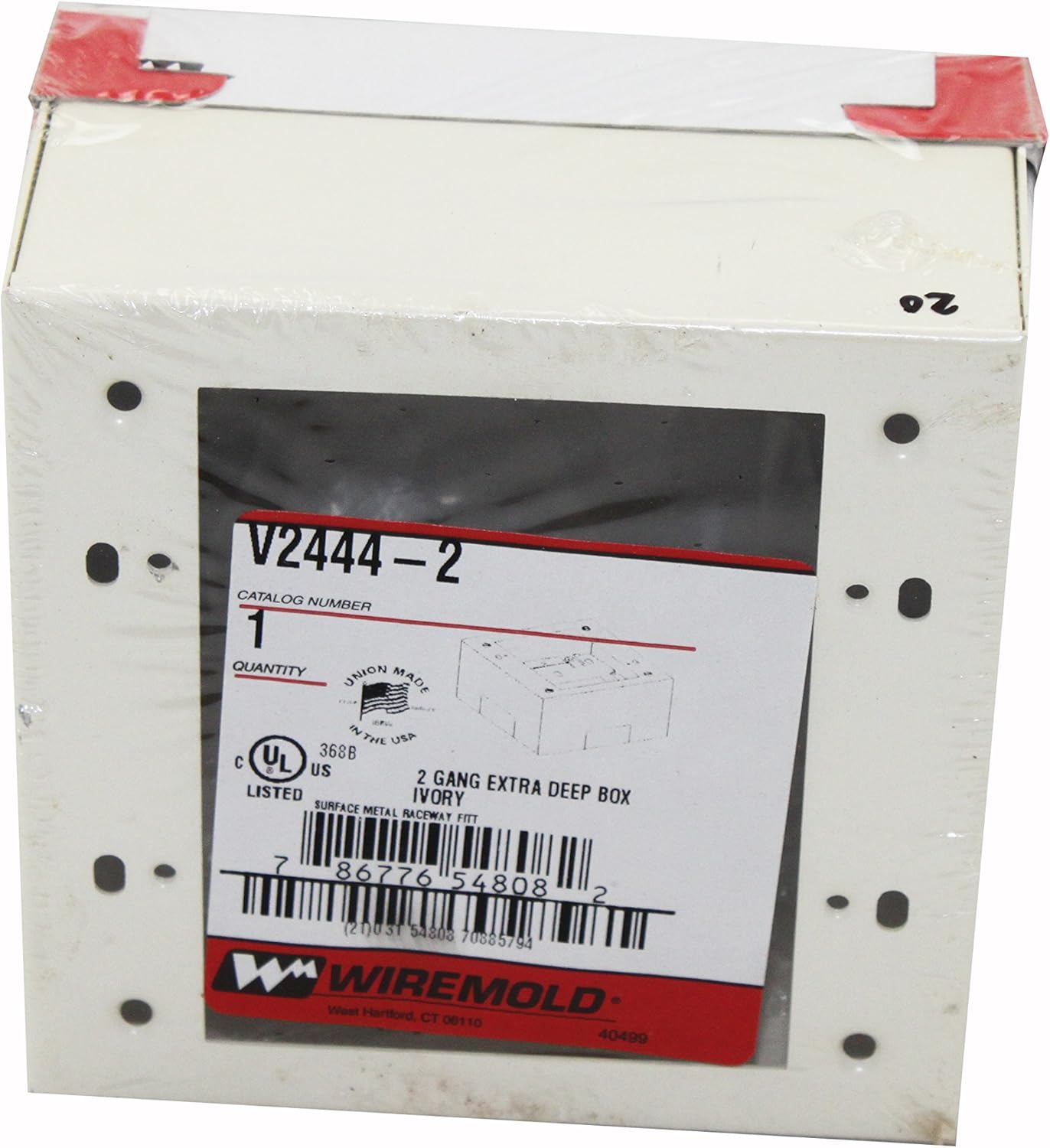

Figure 3.1: Wiremold Legrand V2444-2 Steel 2-Gang Extra Deep Device Switch Box, shown in its original packaging. The label indicates the catalog number V2444-2, quantity, and UL listing.

Figure 3.2: Another view of the Wiremold Legrand V2444-2 Device Box in its packaging, highlighting the product label and the 'Wiremold' branding on the bottom of the package.

Key Features:

• Material: Steel construction for durability and protection.
• Configuration: 2-Gang, extra deep design for ample wiring space.
• Knockouts: Features a rectangular knockout for extension from an existing single-gang flush wall box, and 1/2 inch and 1 inch concentric knockouts for various conduit sizes.
• Twistouts: Equipped with four V2400 Series twistouts on the cover for flexible cable entry and exit.
• Compatibility: Accepts industry-standard faceplates for electrical and communication devices.
• Color: Ivory finish.

4. Setup and Installation

Follow these steps for proper installation of the V2444-2 device box.

Tools and Materials Required:

• Screwdriver (appropriate type for mounting screws)
• Pliers or knockout punch (for removing knockouts)
• Wire strippers/cutters
• Measuring tape and pencil
• Safety glasses and gloves

Installation Steps:

1. Disconnect Power: Ensure all power to the installation area is turned off at the main circuit breaker or fuse box. Verify with a voltage tester.
2. Position the Box: Place the V2444-2 device box in the desired location on the surface. Mark the mounting holes.
3. Mount the Box: Securely fasten the device box to the surface using appropriate screws (not included) through the pre-drilled mounting holes. Ensure the box is level and firmly attached.
4. Remove Knockouts: Identify the necessary knockouts for your wiring or conduit. The box features a rectangular knockout for extending from an existing single-gang flush wall box, and 1/2 inch and 1 inch concentric knockouts. Carefully remove the chosen knockouts using pliers or a knockout punch.
5. Route Wiring: Feed the electrical wires or communication cables through the removed knockouts into the device box. Ensure sufficient wire length for connections.
6. Install Devices: Mount your electrical switches, outlets, or communication devices (e.g., data jacks) into the device box. Connect the wiring according to the device manufacturer's instructions and local electrical codes.
7. Utilize Twistouts (if needed): The cover has four V2400 series twistouts. If additional cable entry/exit points are required on the cover, carefully twist them out.
8. Attach Cover and Faceplate: Once devices are installed and wired, attach the device box cover. Then, install the industry-standard faceplate over the devices and secure it to the device box.
9. Restore Power: Once all installation is complete and verified, restore power at the circuit breaker.

5. Operating Instructions

The Wiremold Legrand V2444-2 device box is a passive component designed to provide a protective enclosure for electrical and communication devices and their associated wiring. Once properly installed, its primary function is to safely house these components and facilitate their connection within a surface raceway system. No active operation is required from the box itself.

Ensure that all installed devices (switches, outlets, etc.) are functioning correctly after installation. The extra deep design provides ample space for wiring, reducing strain on connections and improving safety.

6. Maintenance

The V2444-2 device box requires minimal maintenance. Regular inspection is recommended to ensure continued safety and performance.

• Periodic Inspection: Periodically check the device box and its contents for any signs of physical damage, corrosion, or loose connections.
• Cleaning: If necessary, gently wipe the exterior of the box with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Secure Mounting: Ensure the box remains securely mounted to the surface. Tighten any loose mounting screws if found.
• Wiring Integrity: If accessing the interior, ensure all wire connections remain tight and insulation is intact. Always disconnect power before opening the box for inspection.

7. Troubleshooting

As a passive enclosure, troubleshooting for the device box itself is generally limited to installation issues.

• Devices Not Fitting: Ensure you have selected the correct 2-gang device box for your application. The V2444-2 is an extra deep box, providing more space than standard boxes.
• Loose Mounting: If the box feels loose after installation, ensure the mounting screws are appropriate for the surface material and are fully tightened.
• Wiring Issues: If electrical devices within the box are not functioning, the issue is likely with the wiring connections or the devices themselves, not the box. Refer to the device's manual and consult a qualified electrician.
• Damaged Knockouts/Twistouts: If a knockout or twistout was removed incorrectly or damaged, it may compromise the enclosure's integrity. Consider replacing the box if significant damage occurs.

8. Specifications

9. Warranty and Support

For warranty information and technical support regarding the Wiremold Legrand V2444-2 Steel 2-Gang Extra Deep Device Switch Box, please contact Wiremold/Legrand directly through their official website or customer service channels. Keep your purchase receipt as proof of purchase.
