Sun Joe SBJ605E 3-in-1 Electric Blower/Vacuum/Mulcher User Manual

Introduction

Thank you for purchasing the Sun Joe SBJ605E 3-in-1 Electric Blower/Vacuum/Mulcher. This versatile tool is designed to simplify your yard cleanup tasks by combining the functions of a powerful blower, an efficient vacuum, and a high-impact mulcher into a single unit. Please read this manual carefully before operating the product to ensure safe and effective use. Keep this manual in a safe place for future reference.

Important Safety Instructions

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

General Safety

• Always wear eye protection (safety glasses) and hearing protection when operating the unit.
• Wear long pants, long sleeves, gloves, and sturdy footwear. Do not wear loose clothing or jewelry that could get caught in moving parts.
• Keep children, bystanders, and pets at a safe distance (at least 50 feet / 15 meters) from the operating area.
• Inspect the work area before use. Remove all objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the machine.
• Do not operate the unit in wet conditions or rain.
• Always disconnect the power cord before performing any adjustments, cleaning, or maintenance.

Electrical Safety

• Use only a grounded extension cord suitable for outdoor use. Ensure the extension cord is in good condition and has adequate wire gauge for the length.
• Do not abuse the cord. Never carry the unit by the cord or yank it to disconnect from the receptacle.
• Keep the extension cord away from heat, oil, sharp edges, or moving parts.
• This appliance is double-insulated. Use only identical replacement parts.

Product Components

Familiarize yourself with the parts of your Sun Joe SBJ605E before assembly and operation.

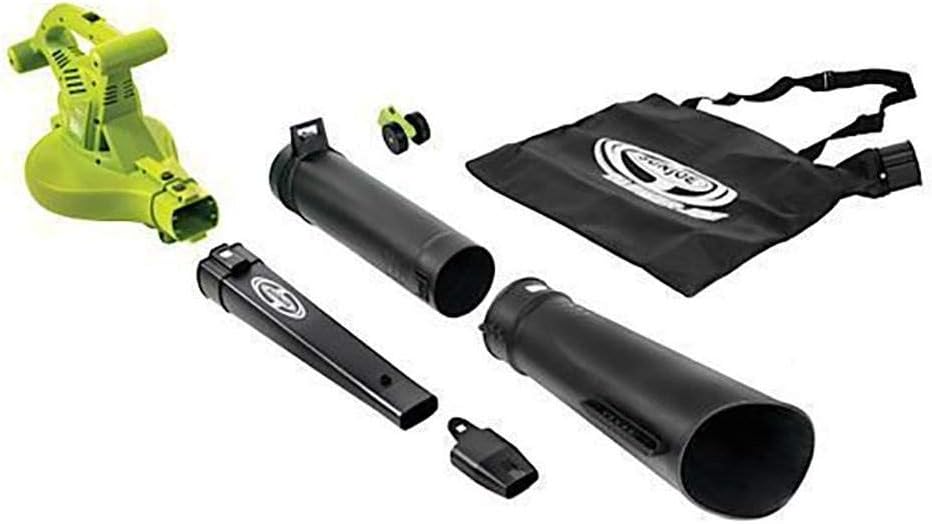

Figure 1: Main components of the Sun Joe SBJ605E. Includes the motor housing, various tubes for blowing and vacuuming, the collection bag, and wheel assembly.

• Motor Unit
• Blower Tube
• Blower Concentrator Nozzle
• Front Vacuum/Mulcher Tube
• Rear Vacuum/Mulcher Tube
• Collection Bag
• Wheel Assembly
• Manual with Registration Card

Setup and Assembly

Assembling for Blower Mode

1. Attach the Blower Tube: Align the blower tube with the outlet on the motor unit. Push and twist until it locks securely into place.
2. Attach Concentrator Nozzle (Optional): For more focused airflow, attach the concentrator nozzle to the end of the blower tube.

Figure 2: The unit assembled for blower operation, showing the main motor unit and the attached blower tube.

Assembling for Vacuum/Mulcher Mode

1. Remove Blower Tube: Disconnect the blower tube from the motor unit.
2. Attach Vacuum Tubes: Connect the front vacuum/mulcher tube to the intake opening on the motor unit. Then, attach the rear vacuum/mulcher tube to the front tube. Ensure both are securely locked.
3. Attach Collection Bag: Securely attach the collection bag to the exhaust port of the motor unit. Ensure the zipper is closed before operation.
4. Attach Wheel Assembly: For easier maneuverability, attach the wheel assembly to the front vacuum tube.

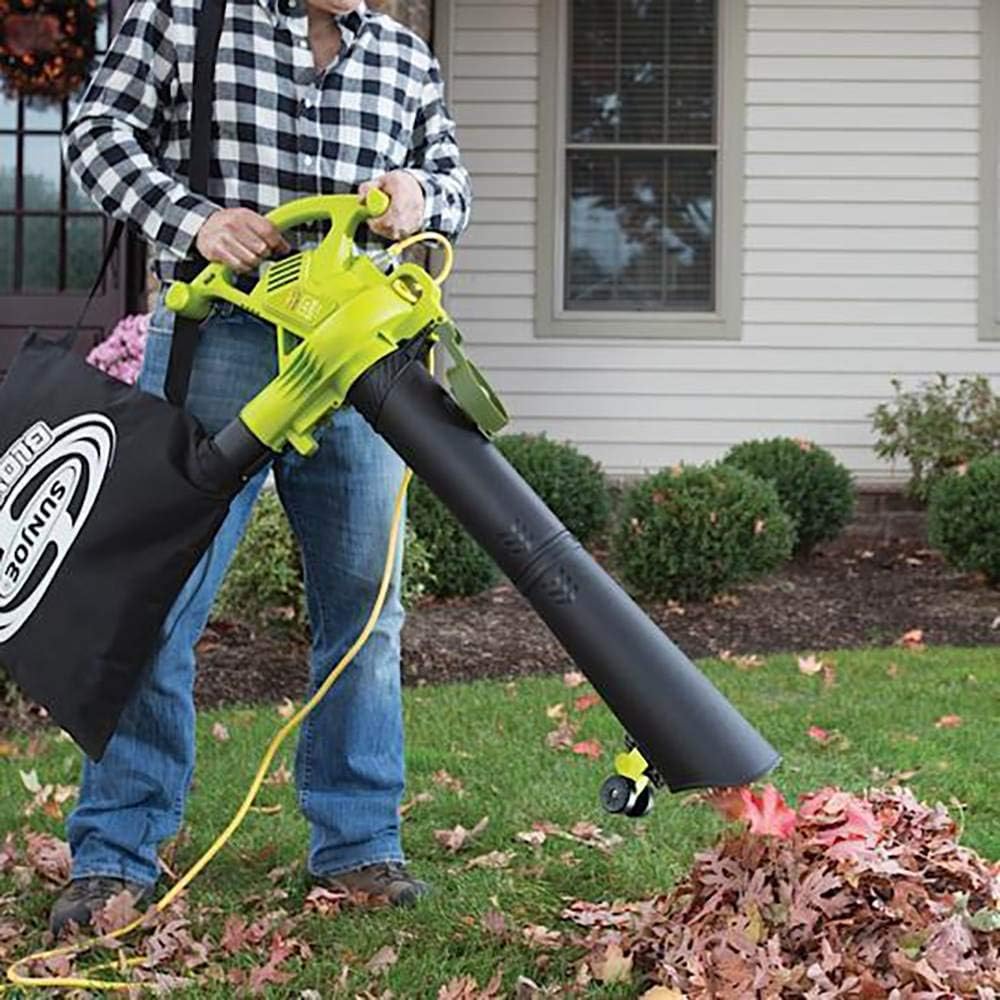

Figure 3: The unit configured for vacuuming and mulching, complete with the collection bag and front wheels for support.

Operating Instructions

Starting the Unit

1. Ensure the unit is properly assembled for the desired function (blower or vacuum/mulcher).
2. Connect the power cord to a suitable outdoor-rated extension cord, then plug into a grounded outlet.
3. Press the ON/OFF switch to the "ON" position to start the motor.
4. Adjust the speed control dial to the desired airflow/suction level.

Using as a Blower

Hold the unit firmly with both hands. Sweep the blower tube from side to side, moving debris into piles. For stubborn debris, use the concentrator nozzle.

Figure 4: Demonstrates the blower function, showing a user clearing leaves from a grassy area.

Using as a Vacuum/Mulcher

With the unit in vacuum mode, guide the vacuum tube over the debris. The powerful suction will draw leaves and light debris into the impeller, where they are mulched and deposited into the collection bag. Empty the bag when it is full.

Figure 5: A close-up of the durable aluminum alloy impeller, responsible for mulching debris into a 16:1 reduction ratio.

Maintenance

WARNING: Always disconnect the power cord before performing any maintenance.

Cleaning

• After each use, clean the exterior of the unit with a damp cloth.
• Remove any debris from the air intake vents and the impeller area. Ensure the impeller is free of tangled material.
• Empty and clean the collection bag regularly to prevent buildup and maintain optimal performance.

Storage

• Store the unit indoors in a dry, well-ventilated area, out of reach of children.
• Ensure the unit is clean and dry before storing.
• Store the power cord neatly to prevent damage.

Troubleshooting

Specifications

Figure 6: Product dimensions for the Sun Joe SBJ605E.

• Model: SBJ605E
• Motor: 14-Amp
• Voltage: 120 Volts
• Air Speed (Max): Up to 250 MPH
• Air Flow Capacity (Max): 150 CFM
• Mulching Ratio: 16:1
• Weight: 8.6 lbs (3.9 kg)
• Dimensions (L x W x H): 32.68" x 12.79" x 9.1" (83 cm x 32.5 cm x 23.1 cm)
• Material: Aluminum (impeller)
• Special Features: 3-in-1 Blower Vacuum Mulcher, Blower/Vacuum Conversion, 6 Adjustable Speed Settings

Warranty and Support

The Sun Joe SBJ605E is backed by a full 2-year warranty. For warranty claims, technical support, or to order replacement parts, please contact Sun Joe customer service. Refer to the registration card included with your product for detailed warranty information and contact methods.

You can also visit the official Sun Joe website for more information and support resources: www.sunjoe.com
