Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Chacon 34548 Outdoor Wi-Fi IP Camera. This device allows for remote monitoring of your property, day and night, through the dedicated Chacon application. Please read this manual thoroughly before using the product to ensure proper function and safety.
Safety Information
- Ensure the camera is installed in a secure location, out of reach of unauthorized individuals.
- Use only the power adapter supplied with the camera.
- Do not expose the camera to extreme temperatures, humidity, or direct water immersion (beyond its IP66 rating).
- Avoid placing the camera near strong electromagnetic fields.
- Disconnect power before cleaning or performing any maintenance.
Package Contents
Verify that all items are present in the package:
- Chacon 34548 Outdoor Wi-Fi IP Camera
- Power Adapter
- Mounting Kit (screws, wall plugs)
- User Manual (this document)
Product Overview
The Chacon 34548 is an outdoor-rated Wi-Fi IP camera designed for robust surveillance. It features a durable housing, integrated night vision, and Wi-Fi connectivity for remote access.
Figure 1: Front view of the Chacon 34548 Outdoor Wi-Fi IP Camera, showing the lens, IR illuminator, and mounting bracket.
Figure 2: Frontal perspective of the camera, highlighting the main lens, infrared sensor, and external Wi-Fi antenna for improved signal reception.
Figure 3: Side view of the Chacon 34548 camera, illustrating its compact design and the position of the Wi-Fi antenna.
Figure 4: Rear view of the camera, displaying the model number (34548), regulatory marks, and a QR code for easy setup.
Setup
1. Physical Installation
- Choose a Location: Select an outdoor location that provides the desired viewing angle and is within range of your Wi-Fi network. Ensure the location offers protection from direct impact and allows for proper cable management.
- Mount the Camera:
- Mark the drilling points on the wall or ceiling using the camera's mounting bracket as a template.
- Drill holes and insert the provided wall plugs.
- Secure the mounting bracket with screws.
- Attach the camera to the bracket and adjust the angle as needed.
2. Power Connection
Connect the supplied power adapter to the camera's power input port. Plug the adapter into a suitable outdoor power outlet. Ensure the connection is secure and protected from weather elements.
3. App Installation
Download the official Chacon application from the App Store (for iOS devices) or Google Play Store (for Android devices). Search for "Chacon" and install the application.

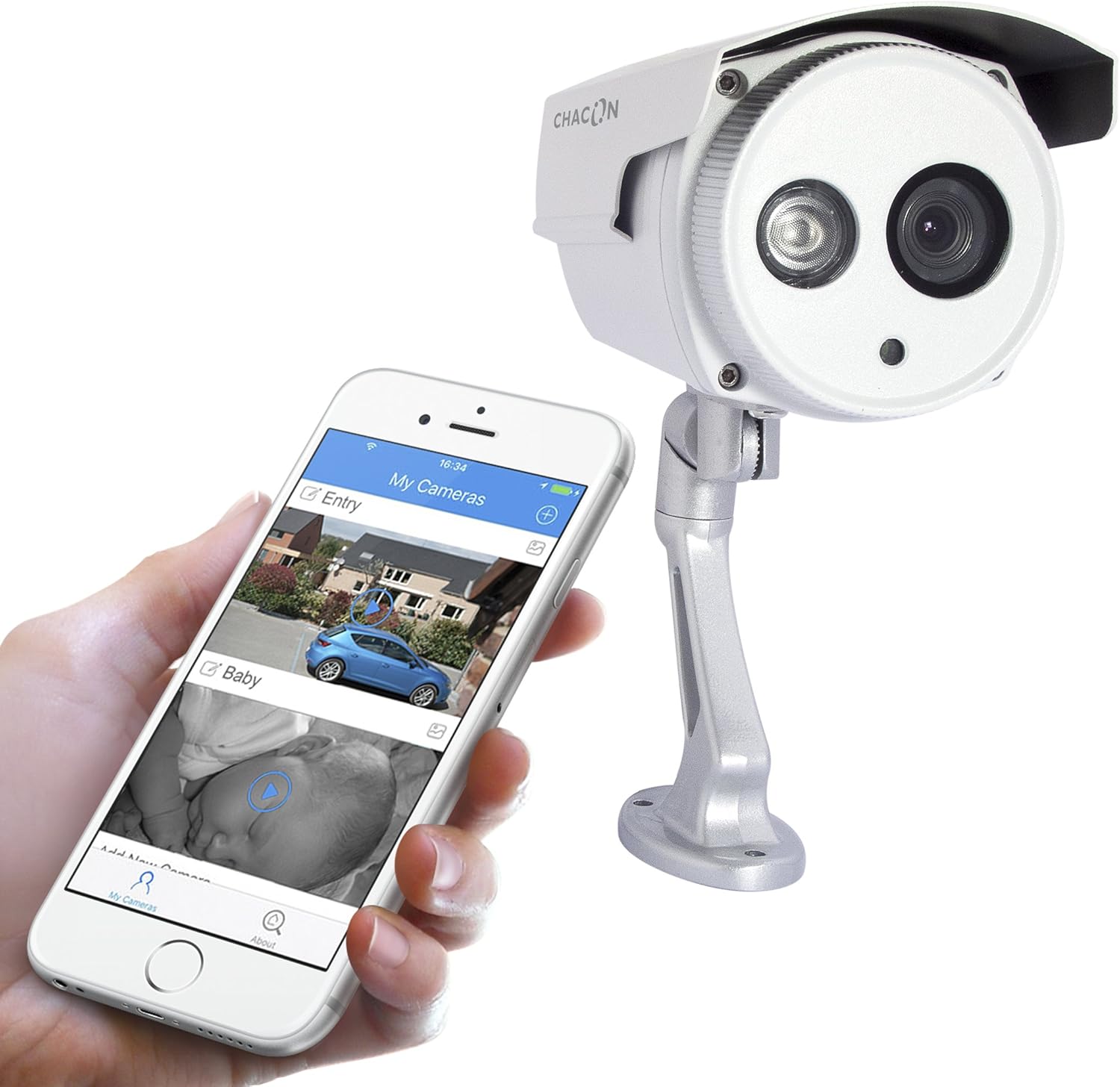

Figure 5: The Chacon 34548 camera shown alongside a smartphone running the Chacon application, demonstrating remote viewing capabilities.
4. Network Connection (Wi-Fi)
- Open the Chacon app and create an account or log in.
- Follow the in-app instructions to add a new device. This typically involves scanning a QR code on the camera (refer to Figure 4) or manually entering the device ID.
- Select your Wi-Fi network and enter the password. Ensure your camera is within range of your Wi-Fi router.
- Wait for the camera to connect to the network. The app will indicate successful connection.
Operating Instructions
1. Viewing Live Feed
Once connected, open the Chacon app and select your camera from the device list to view the live video feed. You can monitor your property in real-time.
2. Night Vision
The camera is equipped with automatic night vision, providing clear images up to 20 meters in low-light conditions. This feature activates automatically when ambient light levels are insufficient.
3. Remote Access and Control
The Chacon app allows you to access your camera feed from anywhere with an internet connection. You can also adjust settings, such as video resolution (720p), and monitor the horizontal viewing angle of 70 degrees and diagonal viewing angle of 75 degrees.
4. Recording and Playback
Refer to the Chacon app's specific features for information on motion detection recording, cloud storage options, or local storage (if a microSD card slot is present, which is not explicitly mentioned in specifications but common). Instructions for playback of recorded footage will be available within the app.
Maintenance
- Cleaning: Gently wipe the camera lens and housing with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Firmware Updates: Periodically check the Chacon app for available firmware updates. Keeping your camera's firmware updated ensures optimal performance and security.
- Cable Inspection: Regularly inspect power and network cables for any signs of wear or damage, especially in outdoor installations.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera not powering on | No power, faulty adapter, loose connection | Check power outlet, ensure adapter is securely connected, try a different outlet. |
| Cannot connect to Wi-Fi | Incorrect Wi-Fi password, camera out of range, network interference | Verify Wi-Fi password, move camera closer to router, restart router, check for 2.4GHz network compatibility. |
| No live video feed | Network issue, camera offline, app malfunction | Check internet connection, restart camera, restart Chacon app, ensure camera is connected to Wi-Fi. |
| Poor image quality | Dirty lens, low light, network bandwidth | Clean the camera lens, ensure adequate lighting or check night vision activation, check network speed. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 34548 |
| Brand | Chacon |
| Connectivity Technology | Wireless (Wi-Fi) |
| Video Recording Resolution | 720p |
| Effective Video Resolution | 720 Pixels |
| Special Features | Night Vision |
| Night Vision Range | 20 meters |
| Viewing Angle (Horizontal) | 70 Degrees |
| Viewing Angle (Diagonal) | 75 Degrees |
| Water Resistance Level | Water-repellent (IP66 rating implied by "voor buiten" and common for outdoor cameras) |
| Compatible Devices | Smartphone (iOS, Android) |
| Power Source | Electrical cable |
| Mounting Type | Wall Mount |
| Color | White |
| Material | PVC |
| Included Components | Wi-Fi IP Camera for outdoor use |
Warranty Information
For detailed warranty information, please refer to the warranty card included with your product packaging or consult your purchase documentation. Warranty terms and conditions may vary by region and retailer.
Customer Support
If you encounter any issues or have questions not covered in this manual, please contact Chacon customer support. Visit the official Chacon website for contact details, FAQs, and additional resources.
