Kichler 15815AZT27R LED Side Mount Instruction Manual

Model: 15815AZT27R | Brand: Kichler

1. Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler 15815AZT27R LED Side Mount fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The Kichler 15815AZT27R is a transitional LED side mount fixture designed for various applications, including ceiling fan integration. It features a durable metal construction with a textured architectural bronze finish and operates on a 12-volt power source, utilizing energy-efficient LED technology.

2. Safety Information

WARNING: Risk of Electric Shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.

  • All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
  • This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
  • Ensure the supply voltage is correct (12 Volts) before connecting the fixture.
  • Do not handle any live components with wet hands.
  • This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning). Wash hands after handling.

3. Setup and Installation

3.1 Pre-Installation

  • Unpack the fixture and inspect for any damage.
  • Ensure all parts are present. Included components typically consist of the 15815AZT27R fixture and necessary mounting hardware.
  • Turn off power at the main circuit breaker or fuse box before starting installation.
  • Gather necessary tools: screwdriver, wire strippers, electrical tape, safety glasses.

3.2 Mounting the Fixture

The Kichler 15815AZT27R is designed for side mounting. Follow these general steps:

  1. Secure the mounting bracket to the desired surface using appropriate screws (not included, ensure they are suitable for the surface material).
  2. Carefully align the fixture with the mounting bracket.
  3. Attach the fixture to the bracket, ensuring it is securely fastened.

3.3 Wiring Connections

This fixture operates on 12 Volts and requires a compatible power source (e.g., a low-voltage transformer, not included). Connect the fixture's wires to your 12-volt power supply wires as follows:

  1. Connect the positive (+) wire from the fixture to the positive (+) wire of your 12V power supply.
  2. Connect the negative (-) wire from the fixture to the negative (-) wire of your 12V power supply.
  3. Ensure all connections are secure using wire nuts or appropriate connectors and insulated with electrical tape.

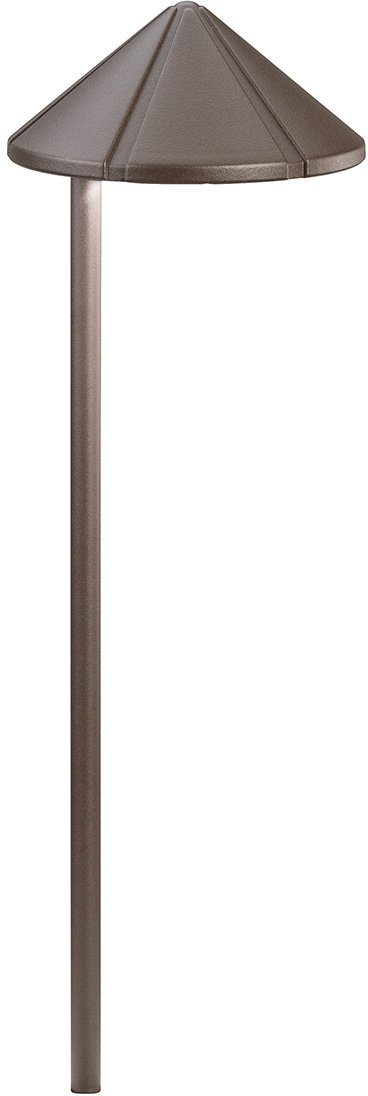

Kichler 15815AZT27R LED Side Mount fixture in Textured Architectural Bronze finish.

This image shows the Kichler 15815AZT27R LED Side Mount fixture, featuring its textured architectural bronze finish and compact design, ready for installation.

4. Operating Instructions

Once properly installed and wired, the Kichler 15815AZT27R LED Side Mount fixture will operate when power is supplied to its circuit. Typically, this involves activating a wall switch connected to the 12-volt power supply.

  • Turning On/Off: Use the standard wall switch or control mechanism connected to your 12V power supply to turn the fixture on or off.
  • LED Technology: This fixture uses integrated LED technology, meaning there are no bulbs to replace. The LEDs are designed for long-lasting performance.

5. Maintenance

The Kichler 15815AZT27R LED Side Mount fixture requires minimal maintenance.

  • Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
  • No User-Serviceable Parts: There are no user-serviceable parts inside this fixture. Do not attempt to open or repair the unit yourself.

6. Troubleshooting

If your Kichler 15815AZT27R LED Side Mount fixture is not functioning correctly, refer to the following common issues and solutions:

ProblemPossible CauseSolution
Fixture does not light up.No power to the fixture.Check the circuit breaker or fuse. Ensure the wall switch is in the 'ON' position. Verify all wiring connections are secure.
Light flickers or is dim.Loose wiring connection or insufficient power supply.Turn off power and check all wiring connections. Ensure your 12V power supply is adequate for the fixture's wattage (4 watts).

7. Specifications

SpecificationDetail
ManufacturerKichler
Part Number15815AZT27R
Item Weight1.43 pounds
Product Dimensions8.25 x 9.25 x 10 inches
Item Model Number15815AZT27R
SizeMedium
ColorBronze/Dark
StyleModern
FinishTextured Architectural Bronze
MaterialMetal
Power SourceCorded Electric
Voltage12 Volts
Wattage4 watts
Item Package Quantity1
Type of BulbLED
Mounting TypeProtruding
CertificationETL Listed
UsageCeiling fan (as an accessory/component)

8. Warranty and Support

Warranty: The provided product information indicates that warranty details are not available ("Na."). Please refer to your purchase documentation or contact the retailer for specific warranty information.

Customer Support: For technical assistance, replacement parts, or further inquiries, please contact Kichler customer service directly or visit their official website. Ensure you have your model number (15815AZT27R) available when contacting support.

© 2023 Kichler. All rights reserved.
