Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Duluth Forge FDI32R Dual Fuel Ventless Gas Fireplace Insert. This unit is designed to operate on either Natural Gas or Liquid Propane, delivering up to 32,000 BTU to heat areas up to 1,500 square feet without the need for an outside duct or chimney.
Key features include remote control functionality for on/off and temperature control, 9 realistic hand-painted ceramic fiber logs, and an Oxygen Depletion Sensor (ODS) for enhanced safety. Please read all instructions carefully before installation and use.
Important Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- This appliance is for use with Natural Gas or Liquid Propane only.
- Always ensure adequate ventilation. Do not obstruct air openings.
- The Oxygen Depletion Sensor (ODS) is a safety device designed to shut off the appliance if oxygen levels in the room fall below a safe threshold. Do not bypass or tamper with the ODS.
- Maintain a minimum clearance of 42 inches from the top of the fireplace to the ceiling.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN, CLOTHING, FURNITURE, GASOLINE AND OTHER LIQUIDS HAVING FLAMMABLE VAPORS AWAY.
Setup and Installation
The Duluth Forge FDI32R is a zero-clearance fireplace insert, meaning it can be framed without additional air gaps or spacing on the sides and top. It can be paired with a face mantel or recessed directly into a wall.
Components Included:
- Fireplace Insert Unit
- 9 Ceramic Fiber Logs
- Iron Grate
- Remote Control & Receiver
- 1 AAA Battery
Log Placement:
Carefully place the 9 hand-painted ceramic fiber logs onto the grate as per the diagram in the full product manual. Proper log placement is crucial for optimal flame appearance and safe operation. Ensure logs do not obstruct the pilot light or burner ports.
Fuel Connection:
This unit features patented Dual Fuel Technology, allowing operation with either Natural Gas or Liquid Propane. Ensure the correct fuel type is connected and all gas connections are sealed and leak-tested by a qualified professional. The unit is 99.9% efficient, requiring no external venting.
Video: Installation & Operation Overview
Operating Instructions
Ignition:
The unit features battery-assisted Piezo ignition. To light the pilot, follow the instructions on the control knob located at the base of the unit. Once the pilot is lit, the main burner can be activated.
Remote Control:
The included remote control allows for convenient operation. It features On/Off buttons and temperature control. The remote acts as a thermostat, allowing you to set a desired room temperature. The fireplace will automatically turn on or off to maintain this setting.
- ON/OFF: Press the 'ON' button to ignite the flames. Press 'OFF' to extinguish.
- MODE: Use the 'MODE' button to switch between manual and thermostat modes.
- SET: In thermostat mode, use the 'SET' button to adjust the desired temperature.
Video: Remote Control Usage
Maintenance
Regular maintenance ensures the longevity and safe operation of your fireplace insert. Always turn off the gas supply and allow the unit to cool completely before performing any maintenance.
Cleaning:
- Wipe exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners.
- Periodically inspect the ceramic logs for any damage or soot buildup. Clean gently with a soft brush if necessary.
- Ensure the air intake and exhaust vents are clear of obstructions.
Annual Inspection:
It is recommended to have a qualified service technician inspect your fireplace insert annually to ensure all components are functioning correctly and safely.
Troubleshooting
If your fireplace insert is not operating as expected, consult the following common issues before contacting customer support.
No Ignition/Pilot Light Issues:
- Ensure the gas supply is turned on.
- Check if the AAA battery for the Piezo ignition is correctly installed and has sufficient charge.
- Verify that the control knob is set to the 'PILOT' position during ignition attempts.
Remote Control Not Responding:
- Check the battery in the remote control and replace if necessary.
- Ensure the remote receiver is set to 'REMOTE' mode (not 'ON' or 'OFF' for manual operation).
- Confirm the remote is within range and there are no obstructions between the remote and the receiver.
Unit Shuts Off Unexpectedly:
- The Oxygen Depletion Sensor (ODS) may have activated due to low oxygen levels. Ensure adequate ventilation in the room.
- In thermostat mode, the unit will turn off once the set temperature is reached.
Video: Fireplace Remote Control Troubleshooting
Specifications
| Feature | Detail |
|---|---|
| Brand | Duluth Forge |
| Model Number | FDI32R |
| Power Source | Gas Powered (Natural Gas or Liquid Propane) |
| Heat Output | 32,000 British Thermal Units |
| Heating Coverage | Up to 1,500 square feet |

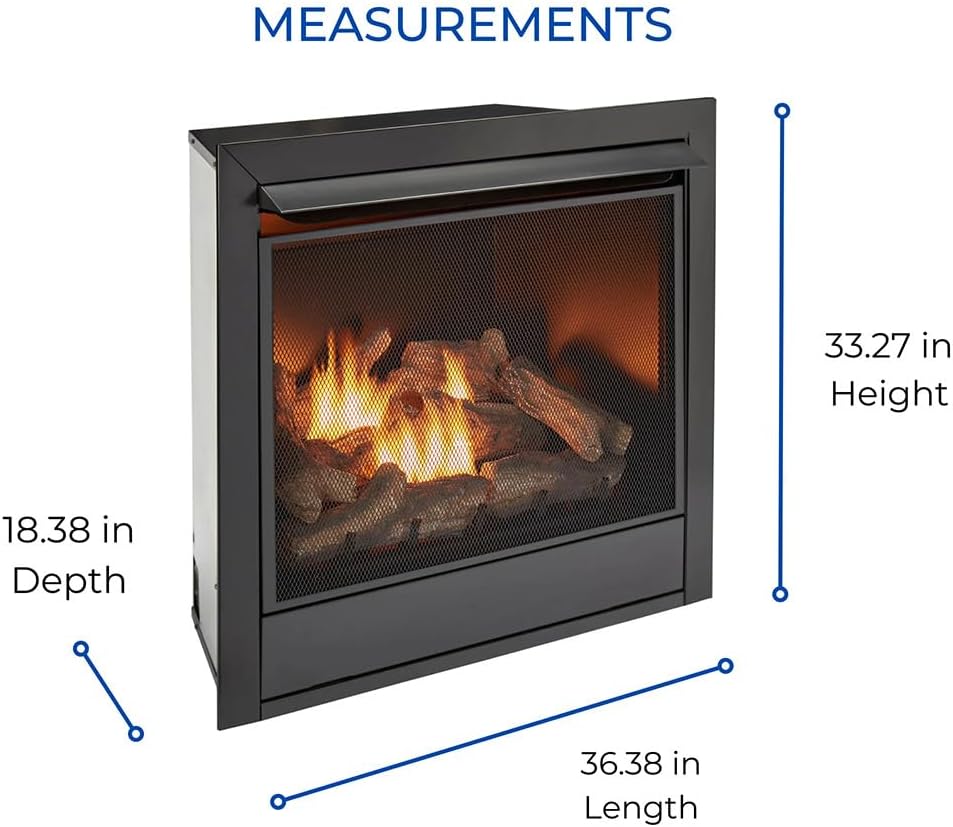

| Product Dimensions (D x W x H) | 18.38" x 33.27" x 36.38" |
| Item Weight | 88.2 lbs |
| Material | Ceramic, Metal |
| Color | Black |
| Installation Type | Built-In (Zero Clearance) |
| Ventilation Type | Vent Free |
| Special Feature | Adjustable Thermostat, Oxygen Depletion Sensor (ODS) |
| Included Components | Burner, Remote Control, 9 Ceramic Logs |
Warranty Information
This Duluth Forge fireplace insert comes with a Limited Warranty. For specific details regarding coverage, duration, and terms, please refer to the warranty card included with your product or contact customer support.
Customer Support
For technical assistance, parts, or warranty inquiries, please contact the manufacturer:
Manufacturer: Factory Buys Direct
Please have your model number (FDI32R) and purchase information ready when contacting support.
