Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Zoeller Shark Model 807-0001 Residential Grinder Pump. Please read this manual thoroughly before attempting to install or operate the pump. Retain this manual for future reference.
The Zoeller Shark Model 807-0001 is a 1 HP, 115V residential grinder pump designed for handling wastewater and effluent in residential applications. It features a robust grinding mechanism to reduce solids into a fine slurry, allowing for discharge through small diameter piping.
Safety Information
WARNING: Risk of electric shock. This pump is supplied with a grounding conductor and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
- Always disconnect power to the pump before handling or servicing.
- Ensure all electrical connections are made by a qualified electrician and comply with local codes.
- Do not operate the pump in an explosive atmosphere.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (Proposition 65 Warning)
Setup and Installation
Proper installation is crucial for the longevity and performance of your grinder pump. Consult a qualified professional for installation if you are unsure.
Unpacking and Inspection
Carefully remove the pump from its packaging. Inspect for any visible damage that may have occurred during shipping. Report any damage to your supplier immediately.
Figure 1: Zoeller Shark Model 807-0001 Residential Grinder Pump. This image shows the complete pump unit with its float switch mechanism.
Location and Sump Requirements
- The pump must be installed in a properly sized and vented sump or basin.
- Ensure the sump is free of debris before placing the pump.
- The pump should be placed on a solid, level surface at the bottom of the sump.
Piping Connections
- Connect the discharge piping to the pump's outlet. Ensure all connections are watertight.
- Install a check valve in the discharge line to prevent backflow.
- A shut-off valve is recommended for ease of maintenance.
Electrical Connections
- The pump requires a 115V, 60 Hz, single-phase power supply.
- Connect the pump to a dedicated, properly grounded circuit with appropriate overcurrent protection.
- Ensure the float switch is installed and adjusted correctly to control pump cycles.
Operating Instructions
Once installed and connected, the Zoeller Shark Model 807-0001 operates automatically via its float switch.
Initial Start-up
- Ensure all piping and electrical connections are secure.
- Slowly fill the sump with water to activate the float switch.
- Observe the pump for proper operation: it should turn on, pump down the water, and then turn off.
- Check for any leaks in the discharge piping.
Normal Operation
The pump will activate when the water level rises to the "on" level set by the float switch and will continue to run until the water level drops to the "off" level. The grinding mechanism processes solids before pumping.

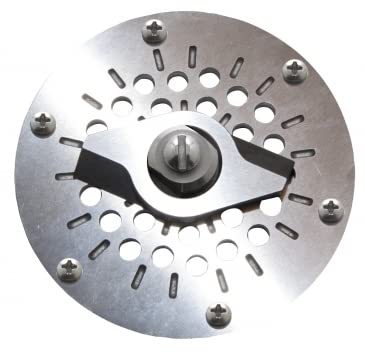

Figure 2: Close-up view of the Zoeller Shark Grinder Pump's impeller and grinding plate. This mechanism is responsible for reducing solids in wastewater.
Maintenance
Regular maintenance helps ensure reliable operation and extends the life of your pump.
Routine Checks (Monthly)
- Visual Inspection: Check the pump and sump for any unusual debris, blockages, or signs of wear.
- Float Switch: Manually lift and lower the float switch to ensure it moves freely and activates the pump correctly.
- Discharge Line: Listen for any unusual noises or signs of obstruction in the discharge line.
Annual Inspection (Professional Recommended)
- Inspect the grinding mechanism for wear.
- Check motor windings and electrical connections.
- Clean the sump basin thoroughly.
CAUTION: Always disconnect power before performing any maintenance or inspection.
Troubleshooting
This section provides solutions to common issues. For problems not listed, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not run | No power; tripped breaker; faulty float switch; motor overload. | Check power supply and breaker. Inspect float switch for obstruction. Reset thermal overload if present. |
| Pump runs continuously | Stuck float switch; check valve failure; discharge line blockage. | Clear float switch. Inspect/replace check valve. Clear discharge line. |
| Pump runs but no water is discharged | Air lock; clogged impeller/grinder; discharge line blockage. | Vent air from pump. Clear impeller/grinder. Clear discharge line. |
| Excessive noise or vibration | Debris in pump; worn bearings; improper installation. | Disconnect power and inspect for debris. Contact service professional for worn parts. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 807-0001 |
| Brand | Zoeller |
| Horsepower | 1 HP |
| Voltage | 115 Volts |
| Power Source | AC/DC |
| Maximum Flow Rate | 45 Gallons Per Minute |
| Item Weight | 65 Pounds |
| Product Dimensions | 17.25"L x 8.91"W x 17.25"H |
| Material | Stainless Steel |
Warranty Information
Zoeller Company products are warranted against defects in material and workmanship for a period specified by the manufacturer from the date of purchase. Specific warranty terms and conditions may vary. Please refer to the official Zoeller Company warranty statement provided with your product or visit the manufacturer's website for detailed information.
Note: Improper installation, unauthorized repairs, or misuse of the product may void the warranty.
Customer Support
For technical assistance, replacement parts, or warranty claims, please contact Zoeller Customer Support.
- Manufacturer: Zoeller Company
- Website: www.zoellerpumps.com
- Contact Information: Refer to the official Zoeller website or product packaging for current contact details.
